SMART Interactive Flat Panels Current

MX275P-V5

SMART Board MX075-V5 Plus 75-inch Interactive Display with iQ

Screen size: 65"
Resolution: 4K UHD (3840 × 2160)
Touch: HyPr Touch with Advanced IR
System: Android version 15; Supports an…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

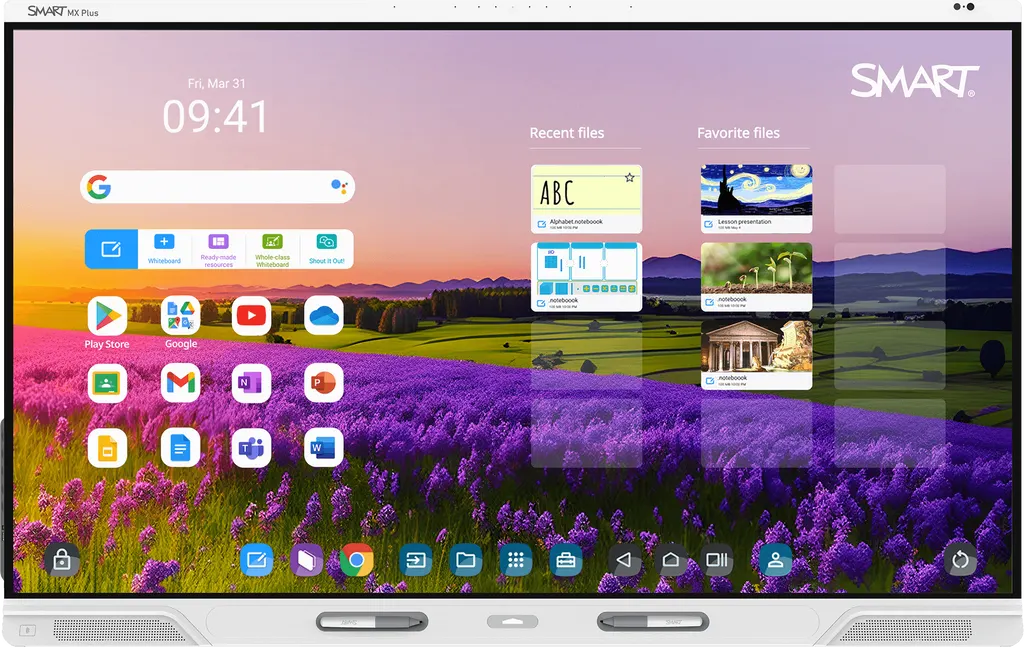

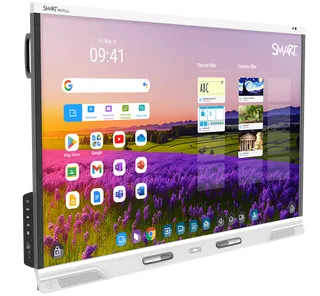

The SMART Board MX075-V5 Plus is a 75-inch 4K UHD interactive display running the iQ embedded Android 15 platform. It offers up to 50 touch points on Windows, a 490 cd/m² LED panel, an OPS slot for SMART OPS PC modules and a 65 W USB-C port that carries power, video, touch and data on one cable. Suited to mid-sized classrooms, training rooms and boardrooms across Qatar, it is supplied by quotation from SmartRooms Qatar.

What the 75-inch MX075-V5 Plus gives a room

The SMART Board MX075-V5 Plus is built around a 75-inch LED panel with a 3840 × 2160 resolution and 490 cd/m² brightness. Its bonded, anti-glare glass is heat-tempered, which suits rooms with bright windows, and a 178° viewing angle lets people seated to the side follow the same image. The manufacturer gives a minimum panel lifespan of 50,000 hours.

Touch runs on HyPr Touch with Advanced IR, with 1 mm accuracy, a 2 mm minimum object size and up to 50 touch points on Windows, depending on the operating system. Two pens are included, and tool holders are available on the magnetic or frame-mounted style.

Connections built around one cable

The front USB-C port delivers 65 W of power and carries video, touch and data over a single cable, and the back has a second 65 W USB-C port. Across the panel there are HDMI 2.1 inputs that support 4K at 60 Hz, USB 3.2 Gen 1 ports, a microSD slot with a security cover and an RJ45 LAN input. Wired networking uses two RJ45 ports at 1000BASE-T, and wireless is 802.11ax (Wi-Fi 6e) with two external antennas in the box. The back also has one OPS slot for SMART OPS PC modules. The iQ embedded Android 15 system runs on an octa-core CPU with 8 GB of DDR4 memory and 64 GB of storage, and the manufacturer states it supports an automatic update to Android 17.

Where a 75-inch panel fits in Qatar

A mid-sized classroom in a private school in Al Wakrah or Lusail suits this model well. The screen is large enough for a whole class to read a shared document, while the room stays a practical size for daily lessons.

In a boardroom in West Bay or Msheireb, the 75-inch screen gives presenters a large display without the extra weight and wall demands of the 86-inch model. The OPS slot lets an IT team house a SMART OPS PC module behind the panel instead of running a separate computer on the table.

A training centre in Education City or the Industrial Area could use it for staff induction sessions, relying on the included software, which carries no subscription requirement.

What to plan before ordering

Wall and bracket: the panel measures 174.6 cm wide, 107.8 cm high and 10.9 cm deep, weighs 56 kg, and uses an M8 VESA pattern of 800 × 400 mm.
Room climate: the operating range is 5–35°C with 5–80% non-condensing humidity, so the room needs dependable air conditioning through Qatar's summer.
Power: the unit is rated for 100–240 V AC at 50–60 Hz, with a typical draw of 105 W and standby below 0.5 W. Confirm the included country-specific cable with our team before installation.
Certifications: the manufacturer lists ENERGY STAR and EPEAT among its performance standards.
Accessories: plan for the OPS module, camera or audio add-ons, which are listed as optional accessories.

SmartRooms Qatar offers free site surveys, professional installation and delivery to all 8 municipalities of Qatar. Request a quote for the SMART Board MX075-V5 Plus and our team will usually return a quotation within one working day.

Highlights

75-inch 4K UHD LED display at 3840 × 2160 resolution
490 cd/m² brightness with bonded anti-glare glass
Up to 50 touch points on Windows, depending on OS
Back OPS slot for SMART OPS PC modules
Single 65 W USB-C cable for power, video, touch and data
Two 20 W speakers with a 15 W subwoofer

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

109 specifications · Source: manufacturer · checked Oct 2026

Display15

Screen sizes (diagonal): 65", 75", 86"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Minimum lifespan: 50,000 hours
Brightness: 490 cd/m²
Display response time: ≤ 8 ms
Viewing angle: 178°
Glass: Bonded, Anti-glare, Anti-fingerprint, Heat-tempered
Frame color: White
Convenience buttons: Power, Home, Volume, Microphone mute, Freeze frame
Sensors: Proximity, Ambient light, Infrared
Audio: Integrated soundbar featuring two 20 W speakers and a 15 W subwoofer; Integrated linear eight-microphone array with visual mute status indicator and support for onboard acoustic echo cancellation
NFC: Integrated RFID NFC reader/writer; CCID (chip card interface device) when used with a native operating system driver for Windows , Linux , or Mac; Supported protocols: ISO 14443A/B, ISO 15693, NFC Tag 1-4

Interactive experience9

Touch technology: HyPr Touch with Advanced IR
Touch features: Simultaneous tool differentiation; Object Awareness; Silktouch; Palm rejection
Typical touch response time: ≤ 4 ms
Frame rate: ≥ 300 Hz
Accuracy: 1 mm
Minimum object size: 2 mm
Multitouch capabilities: Up to 50 touch points (OS dependent)
Tools included: Pens (×2)
Tool holders: Magnetic, Frame‑mounted

Software2

Included: iQ embedded Android OS; SMART Mirror; SMART Notebook; SMART Product Drivers and SMART Ink; SMART Remote Management; SMART Control
Optional: SMART Notebook Plus; Lumio; SMART Control Signage

iQ embedded Android OS7

Operating system: Android version 15; Supports an automatic update to Android 17
CPU: Octa-core
Memory: 8 GB DDR4
OS architecture: 64-bit
Storage: 64 GB (up to 576 GB)
User interface: 4K UHD (3840 × 2160)
Updates: Automatic over‑the‑air ( OTA )

iQ embedded Android OS – iQ features and specifications1

_text: See  support.smarttech.com/docs/aboutiq4

OPS support3

Supported SMART appliances: SMART OPS PC modules
Power supply: 100 W
More information: See  smarttech.com/accessories

Inputs12

OPS PC accessory slot: Front: –; Back: 1
microSD slot with security cover: Front: –; Back: 1
HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support: Front: 1; Back: 3
VGA video: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
RS-232 (DB-9 connector): Front: –; Back: 1
RJ45 (LAN In): Front: –; Back: 1
USB Type‑C 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65 W power delivery: Front: 1; Back: 1
USB Type‑C, SuperSpeed (5 Gbps); 15 W power delivery: Front: –; Back: 1 (top)
USB 2.0 Type-A: Front: –; Back: 1
USB 3.2 Gen 1 Type‑A: Front: 2; Back: 2
USB 3.2 Gen 1 Type‑B: Front: 1; Back: 3

Outputs5

HDMI 2.1 4K @ 60Hz with HDCP 2.3 support: Front: –; Back: 1
USB Type-C 4K @ 60Hz Display Port 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery: Front: –; Back: 1
Stereo 3.5 mm (variable): Front: –; Back: 1
S/PDIF optical (fixed): Front: –; Back: 1
RJ45 (LAN Out): Front: –; Back: 1

Included cables and accessories10

Country-specific power cable: 1
16' 5" ( 5 m ) USB 2.0 A to B cable: 1
6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A: 1
Pens: 2
External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas: 2
Remote control: 1
AAA batteries: 2
SMART ID cards (for NFC sign in to a SMART Account): 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity3

Wired: RJ45 (×2) 1000BASE-T
Wi-Fi: IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
Bluetooth: 5.2 dual mode

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 41–95°F ( 5–35°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 5–80% relative humidity, non‑condensing

Power consumption1

Typical: 65": 94 W; 75": 105 W; 86": 122 W

Certification and compliance6

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
Regulatory models: IDQR65-A, IDQR75-A, IDQR86-A
US / Canada: FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM
Performance standards: ENERGY STAR, HDMI, HDCP, EPEAT

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order numbers3

MX265P-V5: SMART Board MX065-V5 Plus interactive display with iQ
MX275P-V5: SMART Board MX075-V5 Plus interactive display with iQ
MX286P-V5: SMART Board MX086-V5 Plus interactive display with iQ

Purchasing information – Optional accessories5

SWC-120UHD: SMART Ultra HD Camera 120
SMS-TE-IQ4: SMART MultiStylus with Tool Explorer (V2) technology
SND-LK: SMART SoundLift voice amplification solution
SND-FL: SMART SoundFlow audio broadcasting system
Other accessories: See  smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . Product ships upright.

Installation, dimensions, and weights – 65" models6

Dimensions: Screen (diagonal): 65ʺ; Width: 60ʺ (152.5 cm); Height: 37 1/2ʺ (95.4 cm); Depth: 4 1/4ʺ (10.9 cm)
Weight: 93 lb. ( 42 kg )
Shipping dimensions (including pallet): 65 1/2" × 46" × 7 1/8" ( 166.5 cm × 117 cm × 18 cm )
Shipping weight: 108 lb. ( 49 kg )
VESA mount: M8, 600 × 400 mm
Handles: 2

Installation, dimensions, and weights – 75" models6

Dimensions: Screen (diagonal): 75ʺ; Width: 68 3/4ʺ (174.6 cm); Height: 42 1/2ʺ (107.8 cm); Depth: 4 1/4ʺ (10.9 cm)
Weight: 124 lb. ( 56 kg )
Shipping dimensions (including pallet): 74 5/8" × 50 7/8" × 7 1/8" ( 189.5 cm × 129.3 cm × 18 cm )
Shipping weight: 147 lb. ( 67 kg )
VESA mount: M8, 800 × 400 mm
Handles: 2

Installation, dimensions, and weights – 86" models6

Dimensions: Screen (diagonal): 86ʺ; Width: 78 1/2ʺ (199.3 cm); Height: 47 7/8ʺ (121.7 cm); Depth: 4 3/4ʺ (12.1 cm)
Weight: 154 lb. ( 70 kg )
Shipping dimensions (including pallet): 84 1/4" × 57 1/4" × 7 5/8" ( 214 cm × 145.4 cm × 19.5 cm )
Shipping weight: 190 lb. ( 86 kg )
VESA mount: M8, 800 × 600 mm
Handles: 2

MX275P-V52

description: SMART Board MX075-V5 Plus interactive display with iQ
spec_page: SMART Board MX (V5) Plus series with iQ specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about MX275P-V5

Who is the SMART Board MX075-V5 Plus designed for?

It suits mid-sized rooms, such as a classroom in a private school in Al Wakrah or a training room in Doha where a team gathers around one screen. The 4K UHD panel at 75 inches is large enough for detailed shared content, and the iQ platform gives teachers built-in lesson tools while letting IT teams manage the display centrally. For larger halls, the 86-inch model is the better fit.

Will a 75-inch panel fit our wall?

The unit measures 174.6 cm wide, 107.8 cm high and 10.9 cm deep, weighs 56 kg and uses an M8 VESA pattern of 800 × 400 mm. Because of that weight, the wall, bracket and fixings should be checked before delivery. SmartRooms Qatar offers a free site survey, so the wall structure can be confirmed for an office in Doha or a school in Al Rayyan before installation is booked.

Can it run in a Doha classroom during summer?

The operating range is 5–35°C (41–95°F) with 5–80% relative humidity, non-condensing. Summer temperatures in Qatar often exceed 45°C, so the room must be air-conditioned and kept within the operating range while the panel is on. Mounting near a window or in a sun-exposed lobby should be reviewed with the SmartRooms Qatar team before installation.

How many people can write on the screen at the same time?

The panel supports up to 50 touch points on Windows and 20 on Mac OS, depending on the operating system. It differentiates tools used at the same time, so one person's writing does not interfere with another's. Two pens are included, and the tool holders can be magnetic or frame-mounted, keeping pens within reach for group sessions in a classroom or meeting room.

Which ports will I need to connect a laptop?

The front has one USB-C port with 65 W power delivery that carries video, touch and data over one cable, plus one HDMI 2.1 input, two USB 3.2 Gen 1 Type-A ports and one Type-B port. The back adds three HDMI 2.1 inputs, a second 65 W USB-C port, VGA, a 3.5 mm audio input, RS-232, an RJ45 LAN input and a microSD slot. Most laptops can connect through the front USB-C port alone.

What is the OPS slot for in a boardroom?

The back has one OPS accessory slot for SMART OPS PC modules, supported by a 100 W power supply. A boardroom in West Bay or Msheireb can run its meeting computer from a module mounted behind the panel, which keeps the table clear of cables. The included accessories do not list an OPS module, so request a quote that includes the module with the panel.

What software comes with the display?

The display includes the iQ embedded Android 15 operating system and SMART Notebook, SMART Ink, SMART Mirror, SMART Remote Management and SMART Control, with no subscription required. SMART Notebook Plus, Lumio and SMART Control Signage are optional. SMART Mirror lets students share content from a browser, a dedicated app, Google Cast, AirPlay or Miracast, and teachers can moderate the sharing from the front of the room.

Does the power supply suit Qatar's 240 V mains?

Yes. The power requirement is listed as 100–240 V AC at 50–60 Hz, which includes the 240 V, 50 Hz supply used in Qatar. The typical consumption is 105 W, and standby draw is below 0.5 W. A country-specific power cable is included, but before ordering, confirm with SmartRooms Qatar that it suits the BS 1363 (Type G) sockets in your room.

How does the 75-inch compare with the 65-inch and 86-inch models?

The 75-inch sits between the MX065-V5 Plus at 65 inches and the MX086-V5 Plus at 86 inches. It weighs 56 kg, compared with 42 kg for the 65-inch and 70 kg for the 86-inch. Its VESA pattern is 800 × 400 mm, against 600 × 400 mm for the 65-inch and 800 × 600 mm for the 86-inch. Typical power is 105 W. Choose it for mid-sized rooms where the 86-inch would be too large for the available wall.

Can a school order several units on a purchase order or government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school fitting out several classrooms with the 75-inch model should send the quantity, the room list and wall details, and the team will usually return a quotation within one working day. Delivery covers all 8 municipalities, and professional installation can be included.
