MX286-V5
SMART Board MX086-V5 86-inch Interactive Display with iQ 4
- Screen size
- 55"
- Resolution
- 4K UHD (3840 × 2160)
- Touch
- HyPr Touch with Advanced IR
- System
- Android version 15; Supports an…
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

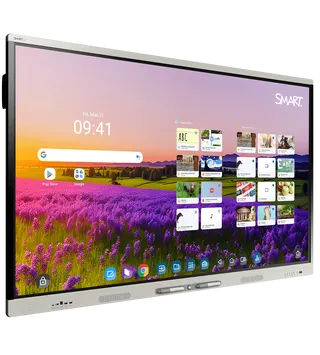

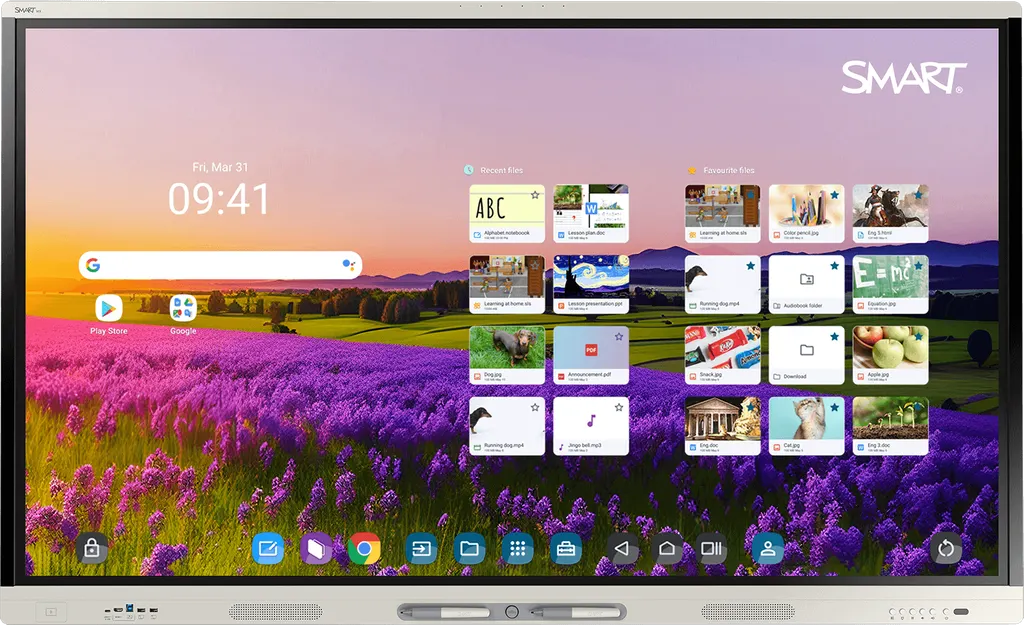

The SMART Board MX086-V5 is an 86-inch 4K UHD interactive display running iQ 4 on Android 15, with HyPr Touch infrared input, two 20 W speakers and four HDMI inputs. It has a back OPS slot for a computing module and USB-C ports at the front and back that carry video, touch and power. At 68 kg (150 lb) with an 800 × 600 mm VESA pattern, it suits lecture halls, boardrooms and training rooms across Qatar. Request a quote for supply, delivery and installation.
An 86-inch panel for large rooms that must be read from the back
The SMART Board MX086-V5 is the largest model in the MX (V5) range with iQ, built around an 86-inch 16:9 LED panel with 3840 × 2160 resolution and a 60 Hz refresh rate. Its 400 cd/m² brightness rating, 178° viewing angle and bonded anti-glare, anti-fingerprint glass suit rooms where people sit well back from the screen, such as a lecture theatre or a long boardroom table.
Touch, iQ 4 and the tools on the glass
HyPr Touch with Advanced IR tracks up to 50 touch points on Windows and Mac, 32 on Android and 16 on Chrome OS, with a typical response time of 5 ms and 1 mm accuracy. Two pens and magnetic or frame-mounted tool holders are included. The panel runs iQ 4 on Android 15 with an octa-core processor, 8 GB DDR4 memory and 64 GB storage, and it is listed with an automatic over-the-air update path to Android 17. The manufacturer notes that some units ship with Android 13 and update to Android 15 over the air.
Split screen and picture-in-picture with touch pass-through let a presenter show a laptop feed beside the built-in apps, widgets and templates. In a bilingual lesson or meeting, that means fewer switches between sources and less time spent resetting the room.
Connections for laptops, PCs and meeting systems
- Four HDMI 2.1 inputs, one at the front and three at the back, with 4K at 60 Hz
- Two USB-C ports: 27 W at the front and 65 W at the back, both carrying video and touch
- One back OPS slot supporting SMART PCM computing modules with 85 W of power
- Two RJ45 ports (1000BASE-T), Wi-Fi 6E (802.11ax) and Bluetooth 5.2
- Two integrated 20 W speakers and a six-microphone array with onboard echo cancellation
What to plan before the panel arrives
At 150 lb (68 kg), the panel needs a wall whose load capacity is checked before fixing. The VESA pattern is M8 at 800 × 600 mm, and the unit has four handles for lifting. A wall mount (SMART part WM-SBID-200) is listed as an optional accessory. Our free site survey lets the SmartRooms Qatar team check the wall, access route and cabling before installation.
Power is rated at 100 to 240 V AC, 50 to 60 Hz, with typical consumption of 149 W and 0.2 W on standby. Operating temperature is 5 to 35°C with 5 to 80% relative humidity, non-condensing. In Qatar's summer, the room must stay within this range, so the panel should sit in an air-conditioned space rather than near an uncooled window or at an open entrance. Leave space around the display for ventilation, as the unit ships upright.
Where it fits in Qatar
- A lecture hall at a university in Education City, where a lecturer shares lab data from a laptop and students at the back can still read the annotations.
- A boardroom in West Bay used for bilingual Arabic and English meetings that connect with teams abroad, mounted on a wall that has been surveyed for its weight.
- A training room in the Industrial Area for safety inductions and operator briefings, where the large screen and 20 W speakers serve a full room.
Optional accessories listed by the manufacturer include the SMART SoundLift voice amplification kit, the SMART MultiStylus kit, the SMART Ultra HD Camera 120 and the SoundFlow audio broadcasting system. Warranty terms vary by region, so your quotation will confirm the coverage that applies to your order.
Request a quote
SmartRooms Qatar supplies the MX086-V5 across Qatar, delivers to all 8 municipalities, arranges professional installation and usually issues quotations within one working day. We accept purchase orders and LPOs, government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote and we will confirm the stock-based lead time, the mounting plan and the accessories your room needs.
Highlights
- 86-inch 4K UHD LED panel at 3840 × 2160 resolution
- 400 cd/m² brightness with bonded anti-glare glass
- iQ 4 on Android 15 with an upgrade path to Android 17
- HyPr Touch with up to 50 touch points on Windows and Mac
- Two integrated 20 W speakers and a six-microphone array
- 68 kg (150 lb) with an 800 × 600 mm VESA mount pattern
Classroom fit
At 86″ the farthest student should sit within about 6.4 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
116 specifications · Source: manufacturer · checked Oct 2026
Display13
- Screen sizes (diagonal)
- 55", 65", 75", 86"
- Backlight
- LED
- Aspect ratio
- 16:9
- Maximum display resolution
- 4K UHD (3840 × 2160)
- Refresh rate
- 60 Hz
- Minimum lifespan
- 50,000 hours
- Brightness
- 55": 300 cd/m²; 65", 75", 86": 400 cd/m²
- Viewing angle
- 178°
- Glass
- 55": Full heat-tempered, Anti-glare, Anti-fingerprint, 65", 75", 86": Full heat-tempered, Anti-glare, Anti-fingerprint, Bonded
- Frame color
- White
- Convenience buttons
- Power, Home, Volume, Input select, Screen shade, Freeze frame
- Sensors
- Proximity, Ambient light, Infrared
- Audio
- 55": 2 integrated 15 W speakers; 65", 75", 86": 2 integrated 20 W speakers; Integrated linear six-microphone array with support for onboard acoustic echo cancellation
Interactive experience8
- Touch technology
- HyPr Touch with Advanced IR
- Touch features
- Simultaneous tool differentiation; Object Awareness
- Typical touch response time
- ≤ 5 ms
- Accuracy
- 1 mm
- Minimum object size
- 2 mm
- Multitouch capabilities
- 50 – Windows; 50 – Mac; 32 – Android; 16 – Chrome OS
- Tools included
- Pens (×2)
- Tool holders
- Magnetic, Frame‑mounted
Software2
- Included
- iQ embedded Android OS; SMART Notebook; SMART Control
- Optional
- SMART Notebook Plus; Lumio; SMART Control Signage
iQ embedded Android OS9
- Operating system
- Android version 15; Supports an automatic update to Android 17
- CPU
- Octa-core
- Memory
- 8 GB DDR4
- OS architecture
- 64-bit
- Storage
- 64 GB (up to 576 GB)
- User interface
- 4K UHD (3840 × 2160)
- Other features
- Personalized home screen and settings; Input select; Split screen; Picture-in-picture ( PIP ) with touch pass-through; Interactive widgets; Templates, graphic organizers, and manipulatives; File and app libraries
- Languages supported
- Arabic, Basque, Catalan, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (UK), Estonian, Finnish, French, Gaelic, Galician, German, Greek, Hindi (India), Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian (Bokmål), Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Latin America), Spanish (Spain), Swedish, Turkish, Ukrainian, Vietnamese, Welsh
- Updates
- Automatic over‑the‑air ( OTA )
PC computing3
- OPS support
- SMART PCM modules
- PC module power supported OPS
- 85 W
- Optional computing module
- See smarttech.com/accessories
Inputs12
- OPS PC accessory slot
- Front: –; Back: 1
- microSD slot with security cover
- Front: –; Back: 1
- HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support
- Front: 1; Back: 3
- VGA video
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- RS-232 (DB-9 connector)
- Front: –; Back: 1
- RJ45 (LAN In)
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery
- Front: 1; Back: –
- USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery
- Front: –; Back: 1
- USB 2.0 Type-A
- Front: –; Back: 1
- USB 3.2 Gen 1 Type‑A
- Front: 2; Back: 2
- USB 3.2 Gen 1 Type‑B
- Front: 1; Back: 3
Outputs5
- HDMI 2.1 4K @ 60Hz with HDCP 2.3 support
- Front: –; Back: 1
- USB Type-C 4K @ 60Hz DisplayPort 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery
- Front: –; Back: 1
- Stereo 3.5 mm (variable)
- Front: –; Back: 1
- S/PDIF optical (fixed)
- Front: –; Back: 1
- RJ45 (LAN Out)
- Front: –; Back: 1
Included cables and accessories10
- Country-specific power cable
- 1
- 16' 5" ( 5 m ) USB 2.0 A to B cable
- 1
- 6' ( 1.8 m ) USB 3.2 Gen 1 Type-C cable, 5A
- 1
- Pens
- 2
- External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas
- 2
- Remote control
- 1
- AAA batteries
- 2
- SMART ID cards (for NFC sign in to a SMART Account)
- 2
- Illustrated installation instructions
- 1
- Important information document
- 1
Connectivity3
- Wired
- RJ45 (×2) 1000BASE-T
- Wi-Fi
- IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols
- Bluetooth
- 5.2 dual mode
Storage and operating requirements4
- Power requirements
- 100V to 240V AC, 50 Hz to 60 Hz
- Operating temperature
- 41–95°F ( 5–35°C )
- Storage temperature
- -4–140°F ( -20–60°C )
- Humidity
- 5–80% relative humidity, non‑condensing
Power consumption2
- Typical
- 55": 72 W; 65": 90 W; 86": 149 W
- Standby
- 0.2 W
Certification and compliance6
- Notes
- Product availability may vary by region. This product has received additional certifications not listed here.
- Regulatory models
- IDX55‑5, IDX65‑5, IDX75‑5, IDX86‑5
- US / Canada
- UL, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
- EU / EEA / EFTA / UK
- CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
- Australia / New Zealand
- RCM, RSM
- Performance standards
- ENERGY STAR, HDMI, HDCP, EPEAT
Purchasing information1
- _text
- Note; Order numbers may vary by region.
Purchasing information – Order numbers4
- MX255-V5
- SMART Board MX055-V5 interactive display with iQ
- MX265-V5
- SMART Board MX065-V5 interactive display with iQ
- MX275-V5
- SMART Board MX075-V5 interactive display with iQ
- MX286-V5
- SMART Board MX086-V5 interactive display with iQ
Purchasing information – Optional accessories6
- WM-SBID-200
- SMART Wall Mount for SMART MX series interactive displays
- SWC-120UHD
- SMART Ultra HD Camera 120
- SMS-TE-IQ4
- SMART MultiStylus with Tool Explorer (V2) Technology accessory kit
- SND-FL
- SMART SoundFlow audio broadcasting system
- SND-LK
- SMART SoundLift voice amplification solution
- Other accessories
- See smarttech.com/accessories
SMART Warranty1
- _text
- Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.
Installation, dimensions, and weights1
- Notes
- All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) . All dimensions and weight values are preliminary and subject to change. Product ships upright. Leave space around the display to ensure adequate ventilation.
Installation, dimensions, and weights – 55" models6
- Dimensions
- Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)
- Weight
- 71 lb. ( 32 kg )
- Shipping dimensions (including pallet)
- 56 1/8" × 43 3/4" × 6 1/4" ( 142.5 cm × 111 cm × 16 cm )
- Shipping weight
- 103 lb. ( 47 kg )
- VESA mount
- M8, 400 × 400 mm
- Handles
- –
Installation, dimensions, and weights – 65" models6
- Dimensions
- Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 89 lb. ( 40 kg )
- Shipping dimensions (including pallet)
- 63 3/4" × 45 7/8" × 6 1/4" ( 162 cm × 116.5 cm × 16 cm )
- Shipping weight
- 124 lb. ( 56 kg )
- VESA mount
- M8, 600 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 75" models6
- Dimensions
- Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 119 lb. ( 54 kg )
- Shipping dimensions (including pallet)
- 71 5/8" × 50 5/8" × 6 1/4" ( 182 cm × 128.5 cm × 16 cm )
- Shipping weight
- 159 lb. ( 72 kg )
- VESA mount
- M8, 800 × 400 mm
- Handles
- 2
Installation, dimensions, and weights – 86" models6
- Dimensions
- Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)
- Weight
- 150 lb. ( 68 kg )
- Shipping dimensions (including pallet)
- 85 1/4" × 56 7/8" × 6 1/4" ( 216.5 cm × 144.5 cm × 16 cm )
- Shipping weight
- 207 lb. ( 94 kg )
- VESA mount
- M8, 800 × 600 mm
- Handles
- 4
MX286-V52
- description
- SMART Board MX086-V5 interactive display with iQ
- spec_page
- SMART Board MX (V5) series with iQ specifications
Downloads
0 files from the manufacturerNo downloadable files are listed for this model yet. Ask us and we will send the datasheet.
Questions about MX286-V5
What is the SMART Board MX086-V5 best suited for?
The MX086-V5 is an 86-inch interactive display for rooms where a large shared screen matters most. It suits a university lecture hall in Education City, where students at the back must read annotations, or a boardroom in West Bay where a group shares one display. It is a fixed wall installation rather than a portable screen, so plan the room around it before ordering.
What are the screen size, resolution and brightness?
The panel measures 86 inches diagonally in a 16:9 format with 4K UHD resolution of 3840 × 2160. It uses an LED backlight with a 60 Hz refresh rate, a brightness rating of 400 cd/m² and a 178° viewing angle. The glass is full heat-tempered, anti-glare, anti-fingerprint and bonded, and the manufacturer gives a minimum lifespan of 50,000 hours.
How many people can write and touch at the same time?
HyPr Touch with Advanced IR supports up to 50 touch points on Windows and Mac, 32 on Android and 16 on Chrome OS. Typical touch response is 5 ms with 1 mm accuracy, and the smallest detectable object is 2 mm. Simultaneous tool differentiation lets several people write, erase and touch at once without clashing, which helps in collaborative lessons and workshops.
Which operating system and software does it run?
The display runs the iQ 4 embedded Android OS on Android 15, with an octa-core CPU, 8 GB DDR4 memory and 64 GB of storage. It includes SMART Notebook and SMART Control, and the manufacturer lists automatic over-the-air updates with an upgrade path to Android 17. Some units may ship with Android 13 and update to Android 15 over the air, so confirm the software version when you request a quote.
Can it support bilingual Arabic and English lessons and meetings?
Arabic is among the interface languages listed for the iQ operating system, alongside English (UK) and many others. Split screen and picture-in-picture with touch pass-through let a teacher show Arabic material from a laptop beside an English resource. For an Arabic-curriculum school in Al Rayyan or a ministry office in Doha, confirm the language setup with the SmartRooms Qatar team before installation.
What inputs and outputs are on the front and back?
The front has one HDMI 2.1 input, one 27 W USB-C port and several USB ports. The back adds three more HDMI inputs, a VGA input, RS-232, a 65 W USB-C port, an OPS slot and a microSD slot. Outputs include HDMI, USB-C display output, a 3.5 mm stereo output, S/PDIF optical and RJ45 LAN out, so the display can feed other equipment as well as receive sources.
Can I add a computer inside the display or use a separate PC?
Yes, through the back OPS slot, which supports SMART PCM computing modules with up to 85 W of power. The manufacturer lists these modules as optional accessories. A laptop or PC connected over HDMI or USB-C works without an internal module, so define your software needs before ordering a module.
Is it rated for Qatar's 240 V mains supply?
The source rates the power input at 100 to 240 V AC and 50 to 60 Hz, which includes the 240 V, 50 Hz supply used in Qatar. A country-specific power cable is included. Typical consumption is 149 W and standby is 0.2 W. Ask the SmartRooms Qatar team to confirm that the plug fits the BS 1363 (Type G) sockets in your room before installation.
How should it be placed in Qatar's summer heat?
The operating range is 5 to 35°C (41 to 95°F) at 5 to 80% relative humidity, non-condensing, and storage is rated from -20 to 60°C. With outdoor temperatures above 45°C in summer, the display should sit in an air-conditioned room, away from uncooled windows, loading bays and open entrances. Leave space around the unit for ventilation and confirm room conditions with SmartRooms Qatar before fixing it to the wall.
How heavy is it and what wall does it need?
The panel weighs 150 lb (68 kg), with a shipping weight of 207 lb (94 kg). It measures 78 inches wide, 47 1/4 inches high and 3 1/2 inches deep. The VESA pattern is M8 at 800 × 600 mm, and an optional wall mount (WM-SBID-200) is listed. A free site survey checks wall load, access and cabling, which matters for a boardroom in West Bay or a hall in an older building.
What network and wireless connections does it have?
The display offers two RJ45 ports rated 1000BASE-T for wired networking. Wi-Fi uses IEEE 802.11ax (Wi-Fi 6E) with two external tri-band antennas covering 2.4, 5 and 6-7.2 GHz, and supports WPA, WPA2, WPA3 PSK and 802.1X EAP authentication. Bluetooth 5.2 dual mode is also built in. A wired connection is a sensible choice when many devices share the room.
How can a school or ministry order several units on an LPO?
SmartRooms Qatar accepts purchase orders and LPOs, along with government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Send a room list and mounting details for each site so the quotation reflects every location. Quotations are usually issued within one working day, and any lead time is an estimate confirmed in that quotation based on stock. Request a quote to start.
