What this 86-inch model is for

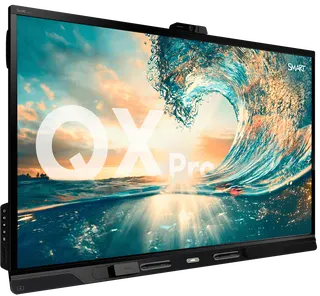

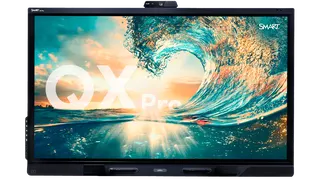

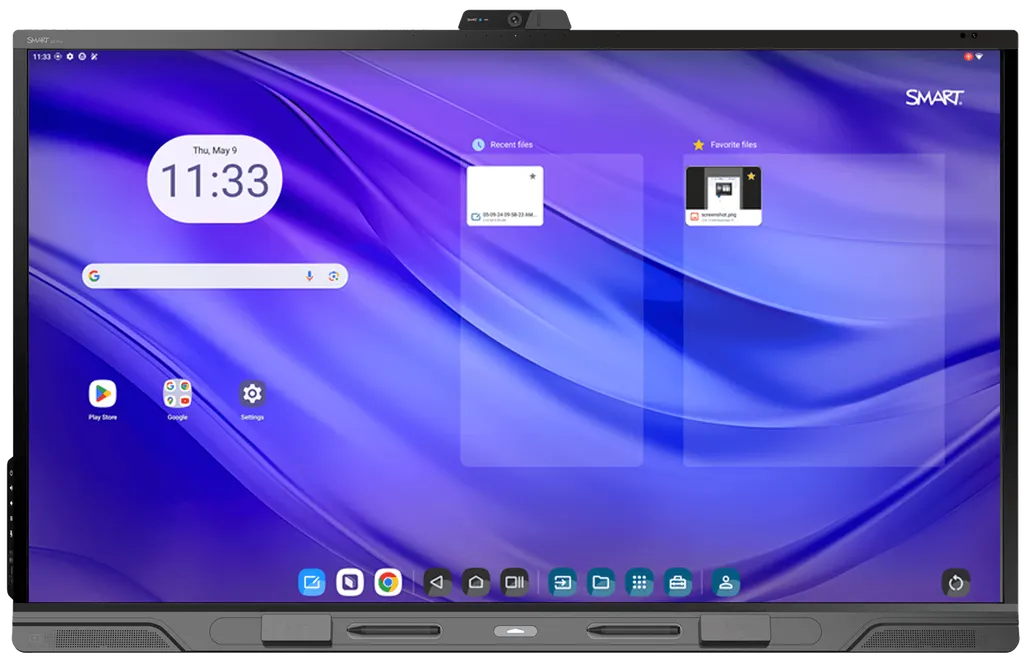

The SMART Board QX086-V2 Pro is the largest model in the QX V2 Pro line, an all-in-one interactive display for rooms where one large touch surface has to serve a full group. It brings together a 4K LED panel, infrared touch, a built-in conferencing camera, speakers, a microphone array and an embedded Android system called iQ. Because these parts sit in one unit, a boardroom, lecture hall or training room can run a meeting or lesson without first assembling a separate PC, webcam and sound bar.

Specifications that shape the buying decision

• Panel: 86-inch, 16:9, 3840 × 2160 resolution, 490 cd/m² brightness and a 178° viewing angle, with optically bonded, anti-glare glass.
• Touch: up to 50 touch points depending on the operating system, 1 mm accuracy and a 2 mm minimum object size.
• Audio and camera: two 20 W speakers, a 15 W subwoofer, an eight-microphone array with echo cancellation support, and a SMART Camera UHD 120 with 4K video and a 120° field of view.

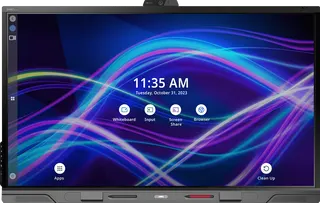

• Computing: iQ on Android 15 with an octa-core processor and 8 GB DDR4 memory, plus a back-panel OPS slot that supports modules rated up to 100 W.

Writing is handled by two multi-colour styluses with fine erasers, palm rejection and pen identification, so presenters can change tools without opening a menu. SMART Ink lets people annotate Microsoft Office and PDF files directly, and the source data lists a room licence and ten personal licences as included.

Connecting laptops, video sources and networks

The front panel offers an HDMI 2.1 input, a USB-C port with 65 W power delivery and DisplayPort 1.2, and USB 3.2 Gen 1 ports for peripherals. The back panel adds three more HDMI 2.1 inputs, a VGA input, an OPS slot, RS-232 control, two RJ45 LAN ports and a USB-C port rated for 15 W, along with an HDMI 2.1 output. Wireless connectivity covers 802.11ax (Wi-Fi 6e) with two external dual-band antennas and Bluetooth 5.2, so rooms with mixed Windows and Mac laptops need fewer adapters.

Planning the installation in a Qatar building

At 154 lb (70 kg), the unit ships at 190 lb (86 kg) on its pallet, so the wall, the lifting route and the delivery access should be checked before the day of delivery. SmartRooms Qatar offers a free site survey that covers wall suitability, the 800 × 600 mm VESA pattern, cable routes and the power outlet position. The optional SMART wall mount, model WM-SBID-200, and height-adjustable mobile stands are listed in the manufacturer data. The display ships upright and needs open space around it for ventilation.

Where it fits in Qatar

• An executive boardroom in West Bay: leaders join calls with colleagues in Doha and overseas offices from one screen, using the built-in camera and audio rather than separate kit.
• A lecture or training room in Education City or the Industrial Area: a whole cohort sees the same annotated material at once, and trainers can save annotations into PDF and Office files.
• A large classroom in Lusail or Al Wakrah: a private school fitting out teaching spaces can standardise one large display per room, with the Arabic interface question confirmed before ordering.

Room conditions and power

The operating range is 5–35°C with 5–80% relative humidity, non-condensing. Summer temperatures in Qatar can exceed 45°C, so the display belongs in an air-conditioned room, away from direct sun through windows. The power input is rated 100–240 V AC at 50–60 Hz, and the typical draw for this model is 122 W, with standby below 0.5 W. The box includes one country-specific power cable, which should be confirmed with the SmartRooms Qatar team before multi-unit orders.

Request a quote from SmartRooms Qatar for the SMART Board QX086-V2 Pro. Quotations are usually issued within one working day, and the team can deliver to all eight municipalities of Qatar, install the unit professionally and work with purchase orders or tender paperwork. The product is covered by the manufacturer's warranty.
