SBID-6275S-V3-P

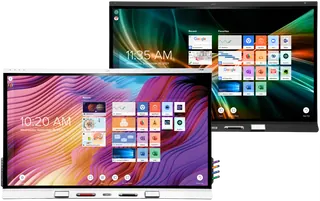

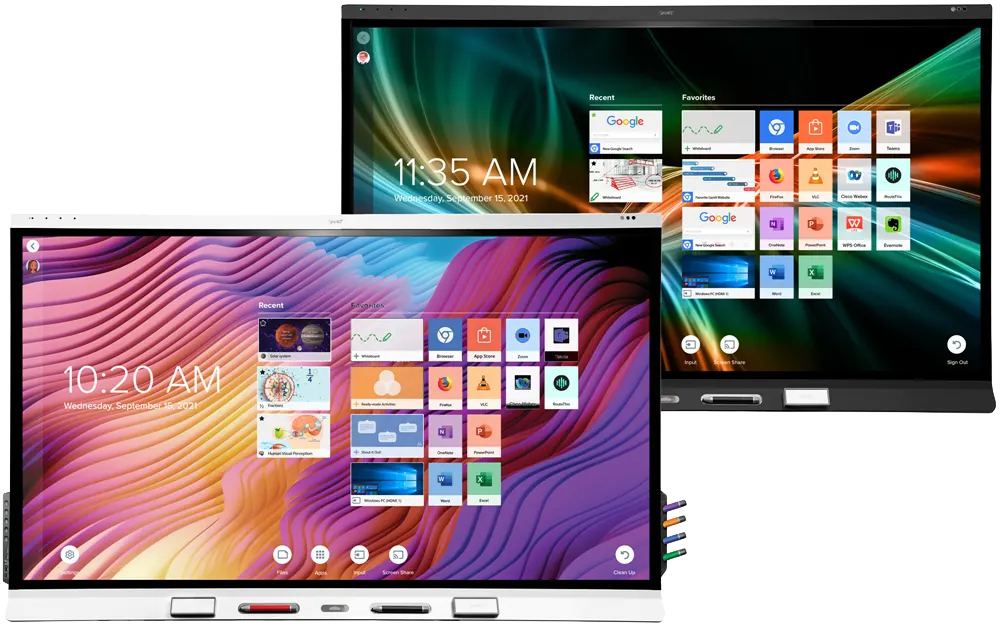

A 75-inch 4K touch display for rooms that share one screen

The SMART Board 6075S-V3 Pro with iQ is a 75-inch interactive display built on a 3840 × 2160 LED panel with a 16:9 aspect ratio. Its maximum brightness is rated at least 350 cd/m², and its 178° viewing angle keeps content readable for people seated at the sides and back of a room. The front glass is heat-tempered and anti-glare, which helps it cope with daily handling and fingerprints, and the rated lifespan is at least 50,000 hours.

Touch runs on HyPr Touch with InGlass technology, with a 150 Hz frame rate, ±1 mm accuracy and detection of objects as small as 2 mm. Up to 40 touch points are supported depending on the operating system, so several people can write or move objects at the same time. Two pens and two erasers are included, and the tool holders sit on the frame and hold pens magnetically.

The iQ system and what the Pro licences add

iQ is the built-in Android 11 system, with 6 GB of DDR memory and 32 GB of storage. It updates automatically over the air, connects to Google Drive and OneDrive, and includes file and app libraries and a customisable home screen. The Pro edition includes a SMART Meeting Pro Room licence and ten Meeting Pro personal licences. The listed interface languages cover English, French, German, Spanish, Chinese and many others, but Arabic is not on the list, so confirm your language needs before ordering.

Ports and computing: planning the front and back connections

The front has one HDMI 2.1 input, one USB Type-C port with 4K at 60 Hz, DisplayPort 1.2 and 65 W power delivery, one USB 3.0 Type-A port and one USB 2.0 Type-B port. The back adds two more HDMI 2.1 inputs, VGA, a 3.5 mm stereo input, RS-232, two RJ45 ports, a second USB Type-C port with 65 W power delivery, two USB 3.0 Type-A ports, three USB 3.0 Type-B ports, one USB 2.0 Type-A port, and HDMI, stereo and S/PDIF outputs.

The single OPS slot on the back accepts SMART PCM computing modules and supplies them with up to 60 W, so a compatible module can run inside the panel instead of on a separate desk. Computing modules are optional and listed at smarttech.com/accessories. Certified cable lengths are limited to 7 m for HDMI, 5 m for USB 2.0, 3 m for USB 3.0 and 2 m for USB Type-C, so plan cable routes before installation.

Connectivity includes dual-band Wi-Fi 802.11 a/b/g/n/ac with 2 × 2 MIMO on 2.4 and 5 GHz, supporting WEP, WPA, WPA2 PSK and 802.1X EAP authentication, plus Bluetooth 5.0 dual mode and an integrated NFC reader and writer. Three external antennae are included.

Where it fits in Qatar

• A boardroom in West Bay or Msheireb where leaders join calls with colleagues abroad. The brightness and wide viewing angle help when some daylight reaches the room, though the panel should not face a window directly.
• A mid-sized classroom in a private school in Al Wakrah or Al Sadd, where pupils at the back need to read small text and the teacher writes with the pens directly on the screen.
• A training room at Education City or in the Industrial Area, where a trainer runs sessions from the panel and a computing module in the OPS slot replaces a separate computer.

What to plan before ordering

• Weight is 143 lb (65 kg). Walls or stands need checking before mounting. A WM-SBID-200 wall mount is included, with a VESA M8 pattern of 600 × 400 mm and two handles.
• Dimensions are 175.8 cm wide, 108.2 cm high and 12.4 cm deep. Leave space around the screen for ventilation.
• Typical power use is 134 W, with 0.4 W in standby. The input range is 100 V to 240 V AC at 50 to 60 Hz, and a country-specific power cable is included.
• The operating range is 5 to 35°C at 5 to 80% humidity, non-condensing, so install it in an air-conditioned room.

Send SmartRooms Qatar your room size, wall details and the connections you need. The team usually returns a quotation within one working day and includes a free site survey before installation. Request a quote today.
