SBM787V

SMART Board M787V 87-inch Interactive Whiteboard

Resolution: Approximately 32
Touch: Advanced IR with Object…
Warranty: Three-year limited equipment…

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

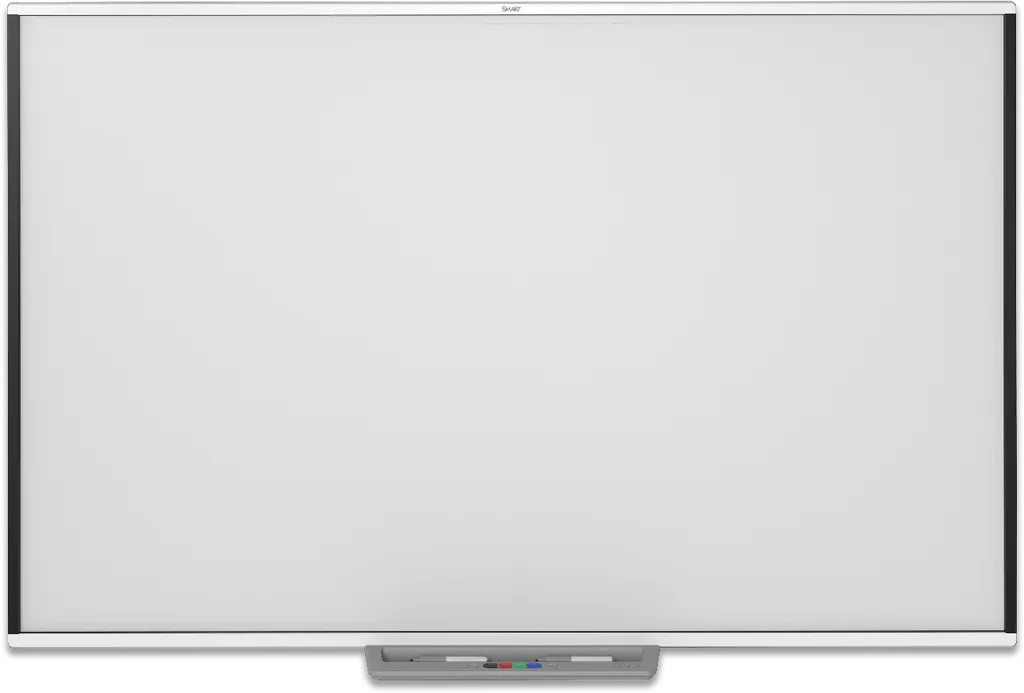

The SMART Board M787V is an 87-inch interactive whiteboard designed for wall mounting with front projection. Its projection area measures 73 3/4 by 46 1/8 inches in a 16:10 format. It supports up to 20 simultaneous touches for two users, distinguishes pen, finger, eraser and palm, and includes SMART Notebook software with no subscription required. Suited to classrooms and meeting rooms in Qatar that use a projector. Request a quote.

What the SMART Board M787V does

The SMART Board M787V is an 87-inch interactive whiteboard built for wall mounting with front projection. A projector displays the computer image onto the board, and the surface responds to touch, so you can open applications, browse files, edit documents, visit websites and play video clips directly on the screen. Anything written over an application is saved as digital ink, which can be kept for later reference or shared with others.

Touch input built for two people

The board supports up to 20 simultaneous touches and up to two users at the same time. Two people can write, erase, move objects or use gestures together without switching modes or opening menus. Its IR touch technology with Object Awareness distinguishes a finger, a pen, the eraser and a palm, so a palm resting on the surface is treated as an eraser rather than as ink. The digitizing resolution is approximately 32,767 by 32,767.

Dimensions, surface and what is in the box

The M787V measures 76 7/8 inches (195.3 cm) wide, 49 5/8 inches (126.2 cm) high and 4 1/4 inches (11 cm) deep, and weighs 33 lb (15 kg). Its projection area is 73 3/4 by 46 1/8 inches (187.5 cm by 117.1 cm). The surface is hard-coated steel, optimized for projection and compatible with dry-erase markers, set in a white frame.

One 5 m USB cable
Two passive pens
One pen ledge, 19 1/2 inches (49.6 cm) wide
Illustrated installation instructions and an important information document

This V variant uses a pen ledge in place of the active pen tray supplied with the standard M787, so compare the two models if active pen tray functions matter for your room.

Where it fits in Qatar

An 87-inch board with a wide projection area suits large rooms where several people need to reach the screen at once. Three examples:

A private school in Al Wakrah refitting a multipurpose hall, where two pupils write on the board together during a lesson.
A government meeting room in West Bay, where agendas, budgets and draft reports are reviewed and annotated on screen, with the ink saved for the minutes.
A training centre in Education City or Lusail, where a facilitator and a participant work on the same surface during workshops.

Climate matters. The rated operating range is 5 to 35 degrees Celsius, while Qatar's outdoor summer temperatures can exceed 45 degrees Celsius. Install the board in air-conditioned rooms and keep it away from windows and direct sunlight.

What to plan before installation

A wall-mounted unit of 33 lb needs solid wall structure and suitable fixings, so a site survey before installation day is worth arranging. SmartRooms Qatar offers free site surveys, professional installation and delivery to all eight municipalities of Qatar. Check these points during the survey:

Wall strength and fixing points for a 15 kg unit
Projector position that covers the full 73 3/4 by 46 1/8 inch area
Computer running SMART Notebook version 20 or later on Windows or Mac, or 11.1 on Linux
SMART Product Drivers 12.16 or later, or 12.17 for Ubuntu 20.04
Reach of the 5 m USB cable between board and computer

The board carries a three-year limited equipment warranty and holds certifications including UL, FCC, CE, UKCA and EAC. Government bodies and schools can order against a purchase order (LPO) or take part in tenders through Monaqasat. Request a quote from SmartRooms Qatar and include your room dimensions and projector details so the right setup can be confirmed.

Highlights

87-inch model with a 73 3/4 by 46 1/8 inch projection area
Up to 20 simultaneous touches for two users
Object Awareness separates pen, finger, eraser and palm
SMART Notebook included, no subscription required
Operating range 5°C to 35°C; storage -20°C to 60°C
Three-year limited equipment warranty

Classroom fit

At 87″ the farthest student should sit within about 6.5 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

64 specifications · Source: manufacturer · checked Oct 2026

Overview1

_text: The SMART Board M700 series interactive whiteboards are wall-mounted, front projection interactive whiteboards.; These interactive whiteboards let you do everything you can do at your computer by touching the interactive screen with your finger or the included pen: open and close applications, browse through files, hold meetings with others, create new documents or edit existing ones, visit websites, play video clips, and more. When you connect your interactive whiteboard to a computer and a projector, your computer image is displayed on the interactive screen. You can write over any applicati

Interactive experience4

Touch technology: Advanced IR with Object Awareness (distinguishes between pen, finger, eraser, and palm)
Touch and gesture support: Write and erase digital ink; Perform mouse functions; Use gestures
Multitouch capabilities: Support for up to 20 simultaneous touches and up to two users
Digitizing resolution: Approximately 32,767 × 32,767

Hardware2

Screen surface: Durable hard-coated steel surface; Optimized for projection; Compatible with dry-erase markers
Frame finish: White

Software3

SMART Notebook: Included
SMART Ink and SMART Product Drivers: Included
SMART Learning Suite: Optional

Included cables and accessories6

16' 5" ( 5 m ) USB cable: 1
Pens (passive): 2
Pen tray: 1
Self-adhesive cable clips: 5
Illustrated installation instructions: 1
Important information document: 1

Computer requirements – Windows and Mac3

SMART Notebook minimum version: 20
SMART Product Drivers minimum version: 12.16
Other requirements: See SMART Notebook 20 software for Windows and Mac

Computer requirements – Linux3

SMART Notebook minimum version: 11.1 for Linux
SMART Product Drivers minimum version: 12.17 (required for Ubuntu 20.04)
Other requirements: See docs.smarttech.com/kb/ 171706

Power and computer connection3

Power source: Obtains power from the computer through the USB cable on Windows and Mac computers
Power consumption: < 2.5 W (500 mA at 5V)
Computer connection: 12 Mbps USB connection (full‑speed USB 2.0)

Storage and operating requirements3

Operating temperature: 41°F to 95°F ( 5°C to 35°C )
Storage temperature: -4°F to 140°F ( -20°C to 60°C )
Humidity: Up to 80% humidity, non‑condensing

Certification and compliance4

Notes: Product availability may vary by region. This product has received additional certifications not listed here.
US / Canada: UL, FCC, ISED, CONEG Packaging, Cal Prop 65
EU / EEA / EFTA / UK: CE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, Packaging
EAEU: EAC

Purchasing information4

Order number: SBM777‑43: SMART Board M777-43 interactive whiteboard
Order number: SBM787: SMART Board M787 interactive whiteboard
Order number: SBM794‑169: SMART Board M794-169 interactive whiteboard
Order number: SBM797: SMART Board M797 interactive whiteboard

Warranty1

SMART Warranty: Three-year limited equipment warranty (see smarttech.com/warranty for more information)

Dimensions and weights1

_text: Note; All dimensions ± 1/8" ( 0.3 cm ) . All weights ± 2 lb. ( 0.9 kg ) .

Dimensions and weights – SBM777-436

Dimensions: Width: 64 3/4" (164.4 cm); Height: 49 5/8" (126.2 cm); Depth: 5 3/8" (13.6 cm); Pen tray width: 22 1/2" (57.2 cm)
Projection area: 61 5/8" × 46 1/4" ( 156.5 cm × 117.4 cm )
Aspect ratio: 4:3
Weight: 29 lb. ( 13 kg )
Shipping dimensions: 69 1/4" × 58" × 3 5/8" ( 175.9 cm × 147.3 cm × 9.2 cm )
Shipping weight: 46 lb. ( 21 kg )

Dimensions and weights – SBM7876

Dimensions: Width: 76 7/8" (195.3 cm); Height: 49 5/8" (126.2 cm); Depth: 5 3/8" (13.6 cm); Pen tray width: 22 1/2" (57.2 cm)
Projection area: 73 3/4" × 46 1/8" ( 187.5 cm × 117.1 cm )
Aspect ratio: 16:10
Weight: 33 lb. ( 15 kg )
Shipping dimensions: 81 1/2" × 58" × 3 5/8" ( 206.9 cm × 147.3 cm × 9.2 cm )
Shipping weight: 53 lb. ( 24 kg )

Dimensions and weights – SBM794-1696

Dimensions: Width: 85 3/8" (216.9 cm); Height: 49 5/8" (126.2 cm); Depth: 5 3/8" (13.6 cm); Pen tray width: 22 1/2" (57.2 cm)
Projection area: 82" × 46 1/8" ( 208.3 cm × 117.2 cm )
Aspect ratio: 16:9
Weight: 39 lb. ( 18 kg )
Shipping dimensions: 89 7/8" × 58" × 3 5/8"( 228.4 cm × 147.3 cm × 9.2 cm )
Shipping weight: 59 lb. ( 27 kg )

Dimensions and weights – SBM7976

Dimensions: Width: 85 3/8" (216.9 cm); Height: 54 7/8" (139.4 cm); Depth: 5 3/8" (13.6 cm); Pen tray width: 22 1/2" (57.2 cm)
Projection area: 82 1/4" × 51" ( 209.5 cm × 129.6 cm )
Aspect ratio: 16:10
Weight: 51 lb. ( 23 kg )
Shipping dimensions: 89 7/8" × 63 1/4" × 3 5/8"( 228.4 cm × 160.7 cm × 9.2 cm )
Shipping weight: 74 lb. ( 33 kg )

SBM787V2

description: SMART Board M787V interactive whiteboard
spec_page: SMART Board M700V series specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about SBM787V

Does the SMART Board M787V need a projector?

Yes. The M787V is a wall-mounted, front projection whiteboard, so a projector must display the computer image onto its surface. The projection area measures 73 3/4 by 46 1/8 inches in a 16:10 format, and the board connects to the computer through the supplied 5 m USB cable. Choose a projector and mounting position that fill this area, and confirm the setup during the site survey before installation.

How many people can use the board at the same time?

Up to two users at once, with support for up to 20 simultaneous touches. Two people can write, erase, move objects or use gestures together without switching modes, toolbars or menus. Object Awareness tells a finger, a pen, the eraser and a palm apart, so a palm resting on the surface is treated as an eraser rather than ink. This lets a teacher keep the lesson moving while students use the board.

What is the difference between the M787V and the standard M787?

The M787V uses a pen ledge in place of the active pen tray supplied with the standard M787. The ledge is 19 1/2 inches (49.6 cm) wide, and the M787V is 4 1/4 inches (11 cm) deep compared with 5 3/8 inches on the standard model. Both share the same 87-inch size and 16:10 projection area. Check which accessories your room needs before ordering, and request a quote for the version you require.

How much wall space and strength does the M787V need?

The board measures 76 7/8 inches (195.3 cm) wide, 49 5/8 inches (126.2 cm) high and 4 1/4 inches (11 cm) deep, and weighs 33 lb (15 kg). The shipping carton measures 81 1/2 by 54 1/4 by 4 inches and weighs 52 lb. Allow space for the USB cable run and the projector mount, and confirm wall strength and fixings before installation day. SmartRooms Qatar offers free site surveys for this.

Which computers and software versions does it need?

SMART Notebook is included with no subscription, and SMART Ink and SMART Product Drivers are supplied as well. On Windows and Mac, use SMART Notebook version 20 or later and SMART Product Drivers 12.16 or later. On Linux, Notebook 11.1 and Product Drivers 12.17 are required for Ubuntu 20.04. SMART Learning Suite is an optional extra, so ask for it in your quotation if you need it.

Can the board cope with Qatar's summer heat?

The rated operating range is 5°C to 35°C, with storage between -20°C and 60°C and humidity up to 80 percent, non-condensing. Outdoor summer temperatures in Qatar can exceed 45°C, so the board should be installed in air-conditioned rooms, away from direct sunlight and window glare. Confirm that the room's cooling can hold the space within the operating range before installation.

Is the M787V suitable for a classroom in Al Wakrah?

It suits larger classrooms and multipurpose halls rather than small rooms. A private school in Al Wakrah refitting a hall could use the 73 3/4-inch-wide projection area so two pupils can write or move objects at the same time during a lesson. Because the board draws power from the computer over USB on Windows and Mac systems, plan the cable route before installation. Request a quote with your room dimensions.

Would it work in a government meeting room in West Bay?

Yes, for reviewing agendas, budgets and draft reports directly on screen. Two participants can annotate at the same time, and the ink can be saved and distributed after the meeting. Government buyers can order against a purchase order (LPO) or take part in tenders through Monaqasat, and SmartRooms Qatar supplies, delivers and installs the board. Send your room layout with your quotation request.

Is it a good fit for a training centre in Education City or Lusail?

Yes, for workshops where a facilitator and a participant need to work on the same screen. The board handles two users and up to 20 simultaneous touches, and Notebook files can be saved and sent after each session. Plan the projector position so it covers the full surface, and keep the USB cable path clear of walking routes. Request a quote with the number of workshop rooms you need.

Can it be used in a conference room at a hotel on The Pearl or in Lusail?

It works well for client presentations where the speaker writes over slides in real time. However, the 5°C to 35°C operating range means the room must be climate-controlled throughout use. The unit weighs 33 lb and is wall-mounted, so venue management should approve the fixing method before installation. Start with a free site survey, and SmartRooms Qatar will then send a quotation.

Would it suit an industrial company's training room in Mesaieed or Ras Laffan?

It suits training sessions, safety briefings and supplier reviews held in an air-conditioned office block. It should not be mounted in plant areas or unconditioned spaces, because the rated operating range is 5°C to 35°C. Ask for a quote, and the team can confirm the most suitable room during a site survey.
