SMART Interactive Flat Panels Current

SIP-727-AM60

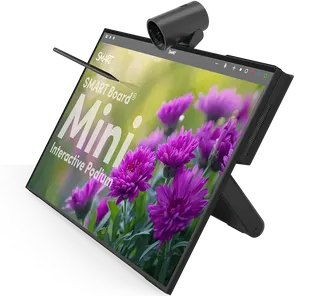

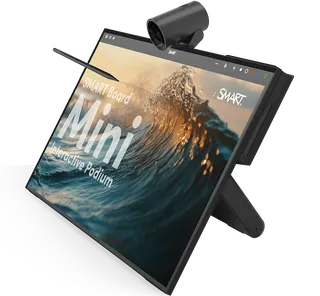

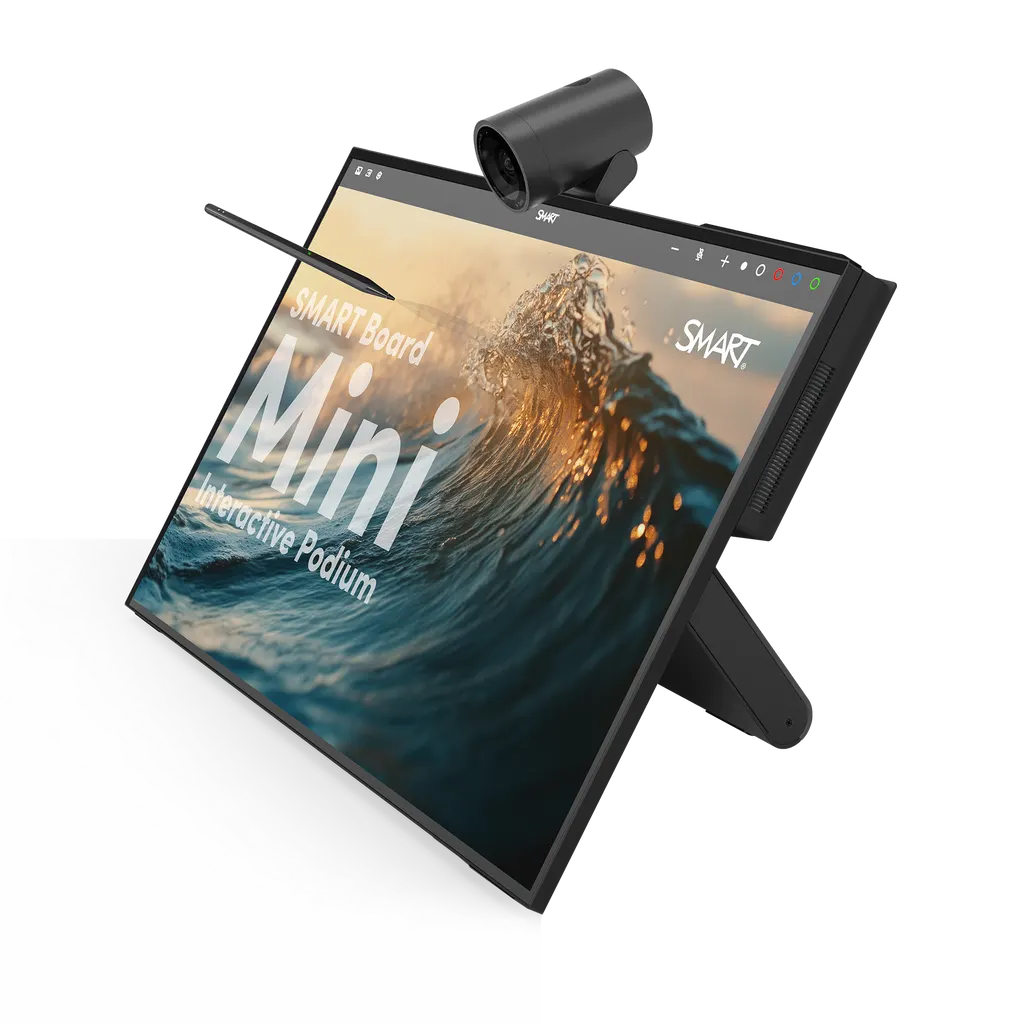

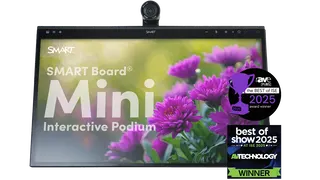

SMART Board Mini SIP-727-AM60 27-inch Interactive Podium with iQ Appliance

Screen size: 27"
Resolution: 4K UHD (3840 × 2160)
Touch: PCAP
Brightness: 500 cd/m²

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

Overview

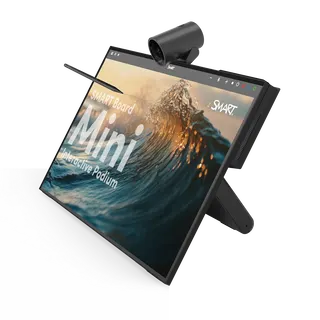

The SMART Board Mini SIP-727-AM60 is a 27-inch 4K touch podium supplied with the AM60 iQ appliance, so SMART's iQ classroom environment runs on the podium itself. It pairs 10-point touch and a 4,096-level active stylus with a 4K camera, an eight-microphone array and 12 W of sound, for teachers and presenters in Qatar who run hybrid lessons or meetings. Request a quote from SmartRooms Qatar.

What the AM60 iQ bundle adds to a 27-inch podium

The SIP-727-AM60 is the SMART Board Mini 727 interactive podium supplied with the AM60 iQ appliance. The base SIP-727 is sold without this appliance, while this bundle runs SMART's iQ classroom environment directly on the podium, with the same layout teachers know from SMART's full-size interactive displays. That makes it a practical choice for a school that wants one consistent teaching environment from room to room.

Display, touch and writing on a 4K panel

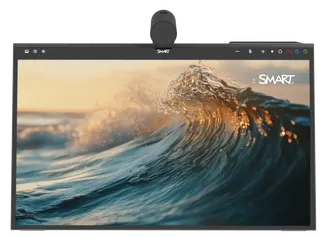

The LED panel measures 27 inches with 3840 × 2160 resolution, a 16:9 aspect ratio, 500 cd/m² brightness and a 178° viewing angle. It has optically bonded, anti-glare glass and an ambient light sensor. Ten-point PCAP touch with palm rejection responds to objects as small as 1.5 mm. The active stylus uses Microsoft Pen Protocol with 4,096 pressure levels, a right-click button and a fine eraser. It charges inside the bezel, and two magnetic holders on the left and right keep pens close at hand.

Camera, microphones and speakers for hybrid sessions

A 4K camera with a 118° field of view covers the front of the room, with auto-focus, user-controllable auto-framing and 5× digital zoom. An integrated privacy shutter covers the lens when it is not needed. The eight-microphone array includes acoustic echo cancellation, and two 6 W speakers deliver 12 W of enhanced sound. Together these support a teacher in a Doha classroom who is also teaching students joining from home, or a manager briefing staff while colleagues join from abroad.

Ports, power and planning for a Qatar installation

Video: HDMI 2.1 input and output at 4K 60 Hz, plus USB-C input and output with DisplayPort 1.4a.
Power and data: the USB-C input delivers 65 W, and the OPS slot is rated 65 W.
Connectivity: RJ45 LAN with pass-through, two USB 3.0 Type-A ports and a 3.5 mm stereo output.

The power input is rated 100 V to 240 V AC at 50 to 60 Hz, with typical consumption under 50 W and standby under 0.5 W. The operating range is 5 to 35°C (41 to 95°F) at 20 to 90% humidity, non-condensing. Outdoor temperatures in Qatar can pass 45°C in summer, so the room needs air conditioning that holds the podium within its range. Leave clearance around the unit for ventilation.

Where this podium fits in Qatar

Three scenarios suit the bundle well. A university lecture hall in Education City can use the camera and microphones for remote students. A private school in Al Wakrah fitting out its hall can run assemblies from the iQ environment. A corporate boardroom in West Bay can use the podium as a presenter station, with a laptop connected by a single USB-C cable. In each case the 27-inch panel suits rooms where the presenter stands close to the audience.

Planning your order with SmartRooms Qatar

Before ordering, confirm the power outlet, the cable route to the display, and whether the podium will sit on a lectern, a desk or a VESA monitor arm (75 × 75 mm or 100 × 100 mm). SmartRooms Qatar offers free site surveys to check these points. Purchase orders for schools and government bodies are accepted, including tenders through Monaqasat. Request a quote from SmartRooms Qatar, and we will usually return the quotation within one working day.

Highlights

27-inch 4K UHD LED panel with 500 cd/m² brightness
Bundle includes the AM60 iQ appliance for SMART's iQ environment
10-point PCAP touch with palm rejection
4K camera, eight-microphone array and 12 W sound
HDMI 2.1 and USB-C inputs with 65 W power delivery
Operating range 5 to 35°C; power input 100 V to 240 V AC

Classroom fit

At 27″ the farthest student should sit within about 2.0 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

88 specifications · Source: manufacturer · checked Oct 2026

Display12

Screen size (diagonal): 27"
Backlight: LED
Aspect ratio: 16:9
Maximum display resolution: 4K UHD (3840 × 2160)
Refresh rate: 60 Hz
Brightness: 500 cd/m²
Glass: Optically bonded, Anti-glare, Anti-fingerprint
Display response time: 14 ms
Viewing angle: 178°
Frame color: Black
Sensors: Ambient light
Audio: Integrated enhanced 6 W speakers (×2); Integrated eight-microphone array with built-in acoustic echo cancellation

Interactive experience6

Touch technology: PCAP
Touch features: Palm rejection
Minimum object size: ≥1.5 mm
Multi-touch capability: 10 points
Tools included: Stylus
Tool holders: Magnetic holder, left and right

Stylus8

Stylus technology: Microsoft Pen Protocol (MPP 2.0)
Stylus type: Active
Pressure sensitivity: 4096 levels of pressure
Button: Mouse right-click function
Fine eraser: Yes
Indicator light: Charging, Status
Material: Black aluminum
Charging: In-bezel charging

Camera9

Resolution: 4K UHD (3840 × 2160)
Frame rate: 30 Hz @ 4K resolution
Field of view: 118°
Aspect ratio: 16:9
Tilt range: -16–90°
Auto-focus: Yes
Auto-framing: Yes (user-controllable)
Digital zoom: 5× ePTZ
Privacy shutter: Integrated privacy shutter

PC computing3

SMART OPS Modules: SMART PCM modules or AM60 appliance
OPS power: 65 W
More information: See  smarttech.com/accessories

Inputs6

OPS PC accessory slot: 1
HDMI 2.1 4K @ 60 Hz with HDCP 1.4 and HDCP 2.3: 1
USB Type-C 4K @ 60 Hz Display Port 1.4a, HDCP 2.3, USB 2.0 (UFP) for touch and audio, USB 3.0 (DFP) for peripherals, 65 W power delivery: 1
USB 3.0 Type-A: 2
USB 3.0 Type-B for touch ingest and peripherals: 1
RJ45 (LAN IN): 1

Outputs3

HDMI 2.1 4K @ 60 Hz with HDCP 1.4 and HDCP 2.3: 1
USB Type-C 4K @ 60 Hz Display Port 1.4a, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for audio, USB 2.0 (DFP) for touch ingest and peripherals: 1
Stereo 3.5 mm (variable): 1

Included cables and accessories13

Power adapter with country-specific cable: 1
10' (3 m) USB 2.0 Type-A-to-B cable: 1
6' (1.8 m) USB Type-C: 1
VESA mounting plate: 1
VESA plate mounting screws: 2
Stylus with fine eraser and tether: 1
Replacement nibs: 4
4K camera: 1
Camera security screws: 2
Remote control: 1
AAA batteries: 2
Illustrated installation instructions: 1
Important information document: 1

Connectivity1

Wired: RJ45 (×1), 1000BASE-T, pass-through

Storage and operating requirements4

Power requirements: 100V to 240V AC, 50 Hz to 60 Hz
Operating temperature: 41–95°F ( 5–35°C )
Storage temperature: -4–140°F ( -20–60°C )
Humidity: 20–90% relative humidity, non-condensing

Power consumption2

Typical: < 50 W
Standby: < 0.5 W

Security1

Security feature: Kensington Security Slot

Certification and compliance6

Regulatory models: SP7-1
US / Canada: cULus, FCC, ISED, TSCA, CONEG Packaging, Proposition 65
EU / EEA / EFTA / UK: CE, LVD, CB, EMCD, REACH, RoHS, Battery, WEEE, Packaging, POP, Ecodesign
Australia / New Zealand: RCM
Performance standards: ENERGY STAR, HDMI, HDCP
Energy label: See  eprel.ec.europa.eu/qr/2379427

Purchasing information1

_text: Note; Order numbers may vary by region.

Purchasing information – Order number4

SIP-727: SMART Board Mini 727 interactive podium
SIP-727-PCMi5: SMART Board Mini 727 interactive podium with OPS PC, PCMi5 with SMART Meeting Pro - bundle
SIP-727-PCMi7: SMART Board Mini 727 interactive podium with OPS PC, PCMi7v with SMART Meeting Pro - bundle
SIP-727-AM60: SMART Board Mini 727 interactive podium with iQ appliance, AM60 - bundle

Purchasing information – Optional accessories1

Other accessories: See smarttech.com/accessories

SMART Warranty1

_text: Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Installation, dimensions, and weights1

Notes: All dimensions ± 0.3 cm. All weights ± 0.9 kg. Product ships upright. Leave space around the display to ensure adequate ventilation

Installation, dimensions, and weights – SIP-7274

Weight: 13 1/2 lb. ( 6.1 kg )
Shipping dimensions (not including pallet): 29 5/8" × 19 3/16" × 6 1/8"; ( 75.3 cm × 48.8 cm × 15.6 cm )
Shipping weight: 23 5/16 lb. ( 10.5 kg )
VESA mount: M4 | 75 × 75 mm; M4 | 100 × 100 mm

SIP-727-AM602

description: SMART Board Mini 727 interactive podium with iQ appliance, AM60 - bundle
spec_page: SMART Board Mini 727 interactive podium specifications

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about SIP-727-AM60

What does the AM60 iQ appliance add to this bundle?

The AM60 is an OPS appliance that runs the iQ teaching environment SMART offers on its full-size interactive displays, so teachers find the same tools and layout in every room. It installs in the podium's OPS slot, which is how the bundle provides iQ on the podium itself. The manufacturer confirms that iQ runs on this appliance, which is the key difference from the base SIP-727.

How does the AM60 bundle differ from the base SIP-727?

The SIP-727 is the base podium, while the SIP-727-AM60 is sold with the AM60 iQ appliance. Both share the same specification sheet, including the 27-inch 4K display, the 4K camera, the eight-microphone array and the port layout. Choose the AM60 bundle if you want iQ running on the podium, and the base model if your rooms already rely on a computer or appliance you prefer.

Is SMART Ink included with this podium?

Yes. SMART Ink comes with every SMART Board Mini purchase. It lets teachers and presenters write directly into PDF and Microsoft Office files such as PowerPoint, Word, Excel and OneNote, and over browsers and other applications, then save the notes inside the original file. A teacher in Doha can share a marked-up lesson without rebuilding it.

What touch and stylus features should I check before buying?

The 27-inch 4K UHD panel has 10-point PCAP touch with palm rejection and responds to objects as small as 1.5 mm. The active stylus uses Microsoft Pen Protocol with 4,096 pressure levels, a right-click button and a fine eraser, and it charges inside the bezel. The package includes a stylus with tether, four replacement nibs and two magnetic tool holders.

Will remote students see the teacher clearly in a lecture hall at Education City?

The built-in 4K camera has a 118° field of view, auto-focus, auto-framing that users can control, and 5× digital zoom. A privacy shutter covers the lens when it is not needed. The eight-microphone array includes acoustic echo cancellation, and two 6 W speakers provide 12 W of sound. Before the first session, test the framing and microphone pickup in the actual lecture hall.

How should a school in Al Wakrah handle summer heat with a podium in a classroom?

The operating range is 5 to 35°C (41 to 95°F) with 20 to 90% humidity, non-condensing, and storage ranges from -20 to 60°C. Outdoor temperatures in Qatar can exceed 45°C in summer, so keep the podium in a well air-conditioned classroom, away from windows that take direct sun. Leave space around the unit for ventilation as the manufacturer advises.

Does the power supply suit Qatar's 240 V mains?

The power input accepts 100 V to 240 V AC at 50 to 60 Hz, and the power adapter ships with a country-specific cable. Typical consumption is under 50 W and standby is under 0.5 W. Confirm the plug type and cable with SmartRooms Qatar when you request a quote, so the supplied cable matches your socket.

Can it be wall or arm mounted in a boardroom in West Bay?

The package includes a VESA mounting plate and two plate screws, and the supported patterns are 75 × 75 mm and 100 × 100 mm. The unit can sit on a monitor arm or stand free with up to 120° of tilt. It weighs about 6.1 kg. Before any wall or arm mounting, SmartRooms Qatar offers a free site survey to check the wall structure, cable routes and sightlines.

Can a laptop connect with one cable in a meeting room in Lusail?

Yes. The USB-C input carries 4K video at 60 Hz over DisplayPort 1.4a, provides touch and audio over USB 2.0, and delivers 65 W of power, so a compatible laptop can charge while connected. A 1.8 m USB Type-C cable is included. Confirm that your laptop supports video output over USB-C and 65 W charging before you order.

Can a school in Doha order several units on one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those issued through Monaqasat, and payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and delivery covers all eight municipalities of Qatar. Tell us how many units you need and which rooms they will serve, so the quotation matches your order.

What warranty and support apply to this podium in Qatar?

Products are covered by the manufacturer's warranty. The manufacturer states that warranty terms and upgrade options vary by region, so ask for the terms that apply in Qatar when you request a quote. The manufacturer also provides 24/7 global technical support. Keep the serial numbers and your purchase order in your asset register for future support requests.

How much room does the podium need in a training room in Msheireb?

The unit measures approximately 28.5 × 15 × 2 inches and weighs 6.1 kg, and it ships upright. On a lectern or desk, leave clearance around the unit for ventilation and check the tilt movement, which goes up to 120°. Position the podium so the camera and microphones face the front row, then confirm the placement during the site survey.
