CT-22GS

What the CT-22GS adds to a Specktron display

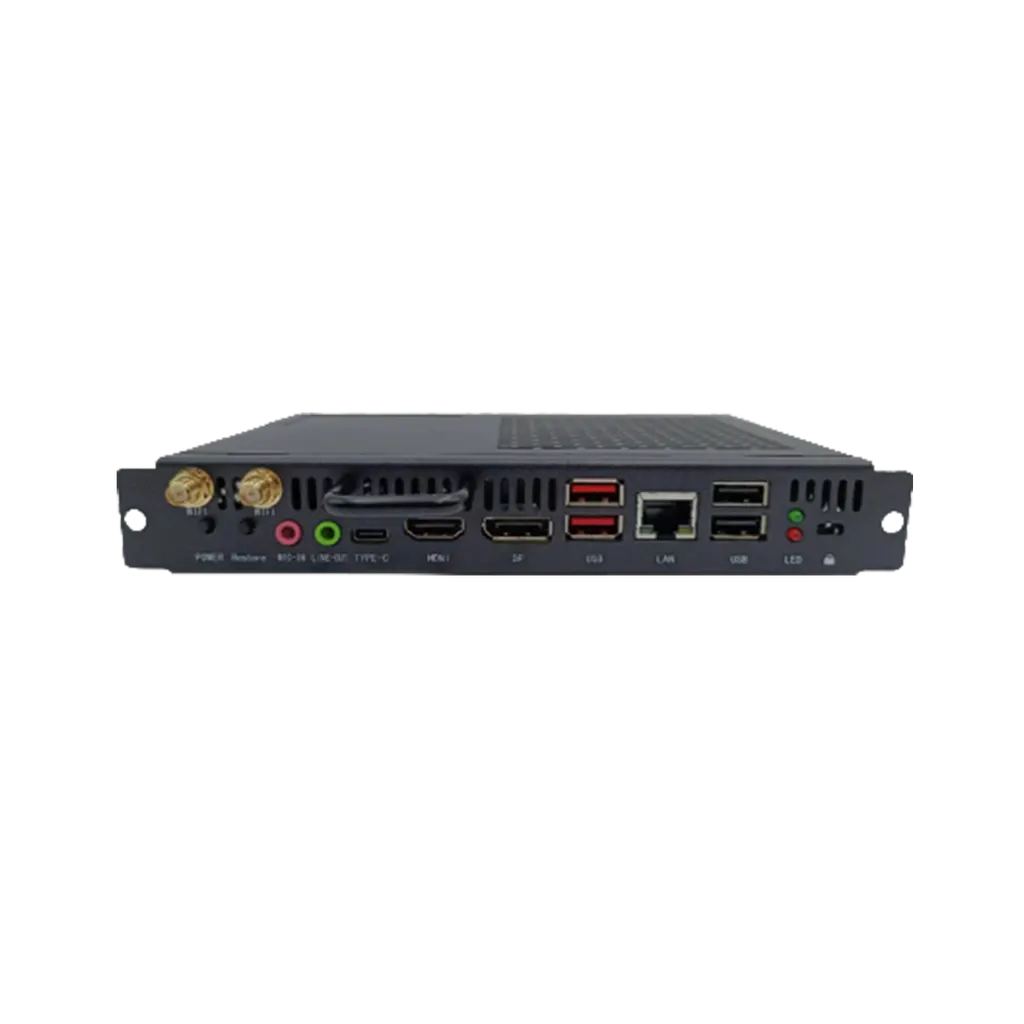

The CT-22GS is an OPS PC module, a computer that slots into a compatible Specktron interactive display so the screen itself becomes the workstation. Rather than running a separate desktop PC or a laptop connected by cable to the panel, the computing sits inside the display unit. At 119 x 180 x 30 mm, the module is compact enough to plan around when you specify the room.

Processor, memory and storage

The module is built around an Intel Core i5 12th Generation processor with 8GB of DDR5 memory and a 256GB SSD, with Intel Iris Xe Graphics for the visuals. The manufacturer lists Windows 11 as supported. This combination suits staff who open presentations, shared documents, browser-based tools and video content in the same session. Heavier jobs, such as large video editing or many applications running at once, should be checked against the specification before you order.

Ports, wireless and audio

Most IT teams will check the connectivity list first:

• 1x HDMI out and 1x DisplayPort out for an external display
• 2x USB 3.2 and 2x USB 2.0 for keyboards, presenters and drives
• 1x USB-C, plus one LAN-in with Gigabit LAN for wired networking
• Wi-Fi 802.11ac (2.4GHz and 5GHz) and Bluetooth 5.2
• Mic-In and Line-Out sockets, backed by a Realtek ALC 897 sound card rated 5.1 channel

The manufacturer rates power at 60W (±10W) with a 19V / 4.7A supply. The manufacturer also says the module can extend or mirror the screen, which helps when a room needs an additional display.

Where it fits in Qatar

In a private school in Al Wakrah fitting out new classrooms, a display with its own computer means one unit to set up, one set of cables and one screen for the teacher to manage in each room.

At a government authority in West Bay, a boardroom can run presentations, shared files and browser-based tools from the display itself, without carrying a laptop into every session. Staff who switch between Arabic and English documents can use the same screen for both.

In a hotel meeting room in The Pearl hosting full-day conferences, the module can act as the presentation computer, which reduces the number of devices organisers need to bring in.

What to plan before ordering

Confirm that your Specktron display model accepts an OPS module before ordering, because compatibility depends on the display. Check the module footprint, the 60W (±10W) rating and whether your network has Wi-Fi 802.11ac coverage or a wired LAN point near the panel. The operating temperature range is not in the manufacturer data we hold, so confirm the installation environment with the SmartRooms Qatar team, particularly for sun-facing or dusty locations.

SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar, arranges professional installation and offers free site surveys. We accept purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order.

Request a quote for the CT-22GS with your display model and room details. Send the requirements and we will reply with a quotation, usually within one working day.
