Specktron DSCDX86IE5 · Price in Qatar

Name: Specktron CDX-i 86-inch Interactive Display (DSCDX86IE5)
Brand: Specktron
SKU: specktron-dscdx86ie5
Availability: InStock

Overview

The Specktron CDX-i 86-inch (DSCDX86IE5) is a floor-standing 4K UHD interactive display for large classrooms, lecture theatres and boardrooms. It offers 450 nits of brightness, a 4000:1 contrast ratio, a 50-point touch layer, Android 14 with Google EDLA certification, and 8GB RAM with 64GB storage. It suits Qatari schools, universities and corporate teams that need one large screen in front of a big group.

An 86-inch 4K panel for large rooms

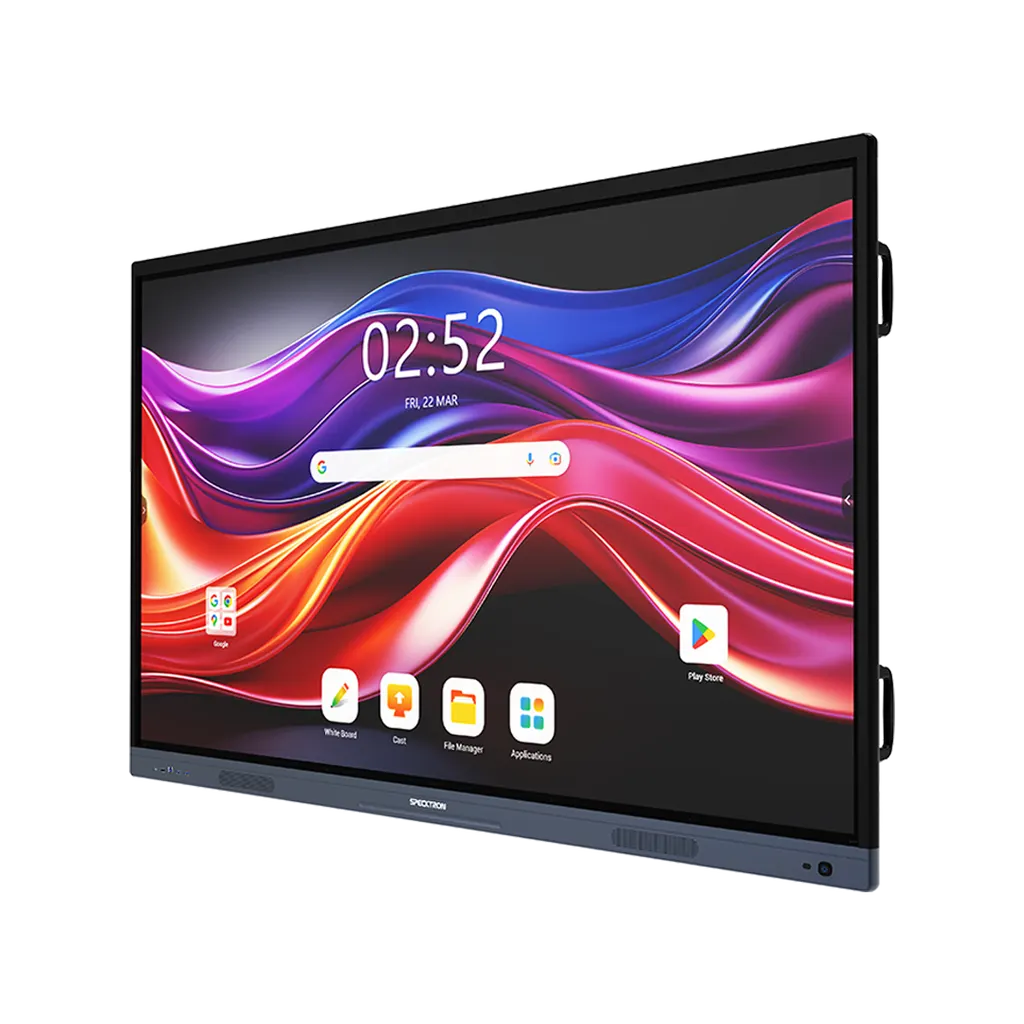

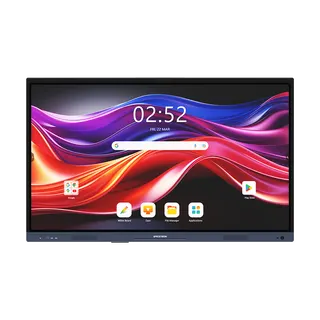

The Specktron CDX-i 86-inch, model DSCDX86IE5, is a floor-standing interactive display with a 3840 × 2160 (4K UHD) panel. It is designed for lessons, lectures and meetings where a large group needs to read the same content from the back of the room. Within the CDX-i range, this model carries a 450 nits brightness rating, higher than the 400 nits listed for the 65-inch and 75-inch sizes, which helps content stay readable in rooms with daylight.

Display, touch and sound

A 4000:1 contrast ratio gives dark scenes more depth, and the 178/178 viewing angle keeps text readable for people seated at the sides. The 50-point multi-touch layer uses adaptive technology and accepts a finger, a stylus or the palm, so a presenter can write while a colleague moves an image with a finger. The toughened 9H anti-glare glass helps in bright rooms. Two 20 W speakers are built in; for a large hall, confirm audio coverage during the site survey.

Software, connectivity and sharing

The panel runs Android 14, which is upgradable, and carries Google EDLA certification with Play Store access. Optional Windows configurations with i5 or i7 processors, up to 16GB RAM and a 512GB SSD, are available for teams that need desktop software; specify the Windows option in your quotation. Wireless screen sharing with touchback works from Windows, Mac, Android and iOS devices, and BYOM support lets visitors present from their own device. Over-the-air updates arrive automatically.

Two HDMI inputs and one VGA input for laptops and other sources
Two LAN ports, two USB 3.0 ports, three USB 2.0 ports, two USB-C data-only ports and two USB touch ports
Audio in and audio out, SPDIF, RS232 and a TF card slot

Where it fits in Qatar

Three realistic settings suit a panel of this size:

A university lecture theatre in Education City, where a lecturer presents slides and annotates them for students in the back rows.
A boardroom in West Bay or Msheireb, where a presenter shares documents wirelessly from a visitor's device and the group marks them up at the panel.
A training centre in the Industrial Area running safety inductions from Sunday to Thursday, with one display shared by several instructors.

What to plan before the panel arrives

An 86-inch floor-standing unit needs a clear route from the entrance to its final position, and the floor and any wall fixings must suit its weight. Dimensions and weight are not listed in the source data for this model, so ask for them with your quotation and request a free site survey from SmartRooms Qatar before ordering, especially for narrow doors, small lifts or ground-floor lobbies with windows. The optional 48MP AI camera, the OPS Windows module and stands are listed as compatible accessories, so settle the stand choice at the same time. The operating temperature range is not in the data for this model, so ask our team to review summer heat above 45°C and dust exposure near windows before choosing a position.

SmartRooms Qatar supplies the CDX-i 86-inch across Qatar, including all eight municipalities, with professional installation, and quotations are usually issued within one working day. Government buyers can order by LPO or through Monaqasat tenders, and payment is accepted by bank transfer, cheque or purchase order. Request a quote for the DSCDX86IE5 with your room size and quantity.

Highlights

86-inch 4K UHD display at 3840 × 2160 resolution
450 nits brightness with 4000:1 contrast ratio
50-point multi-touch with finger, stylus and palm input
Android 14 with Google EDLA certification and Play Store access
Wireless sharing with touchback for Windows, Mac, Android and iOS
Two 20W speakers and 9H toughened anti-glare glass

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

14 specifications · Source: manufacturer · checked Oct 2026

Specifications14

Available Sizes: 65", 75", 86"
Resolution: 3840 × 2160 (4K UHD)
Brightness: 400 nits (65”, 75”) | 450 nits (86”)
Contrast Ratio: 4000:1
Viewing Angle: 178/178
Touch Technology(IR): 50-Point Multi-Touch with Adaptive Technology
RAM / Storage: 8GB RAM / 64GB ROM
Processor: Quad-Core
Operating System: Android 14 (Upgradable), Optional Windows (i5/i7 configurations with up to 16GB RAM + 512GB SSD)
Speakers: 2 x 20W
Glass: 9H Toughened Anti-Glare
Wireless Connectivity: BYOM Support, Wireless Screen Sharing with Touchback, Wireless Dongle
Updates: OTA (Over-the-Air)
Input/Output Ports: 2x HDMI In, 1x VGA-In, 1x Audio In, 1 xAudio Out, 3x USB 2.0, 2x USB3.0, 2x USB-C (Data only), 2x USB Touch, 1x SPDIF, 1xRS232, 2X LAN, 1xTF Card

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about DSCDX86IE5

Who is the Specktron CDX-i 86-inch DSCDX86IE5 best suited for?

It suits organisations that need one large, floor-standing screen in front of a group, such as a university lecture theatre, a school hall or a boardroom. With an 86-inch 4K UHD panel and a 450 nits brightness rating, it is aimed at rooms where many people sit some distance from the screen. If your room is smaller, the 65-inch or 75-inch CDX-i models may fit better, and we can compare the options in your quotation.

How bright is this model compared with the 65-inch and 75-inch versions?

The 86-inch model is rated at 450 nits, while the 65-inch and 75-inch CDX-i models are rated at 400 nits. The higher figure helps content stay visible in rooms with daylight coming through windows, which is common in office and school buildings in Doha. Window position and room layout still matter, so ask the SmartRooms Qatar team to review the space during a site survey before choosing a size.

What resolution, contrast and viewing angle does it offer?

The panel has a 3840 × 2160 (4K UHD) resolution, a 4000:1 contrast ratio and a 178/178 viewing angle. The wide viewing angle keeps slides and spreadsheets readable for students or staff seated at the sides of a lecture theatre. The contrast ratio helps dark text and video scenes keep their depth, which matters in lectures that mix diagrams with photographs.

How does the touch function work?

The display offers 50-point multi-touch with adaptive technology and accepts input from a finger, a stylus or the palm. A lecturer can write with a pen while a colleague uses a finger to move an image, which suits group sessions in universities and training centres. Touch input works alongside the built-in Android system, so presenters can annotate content without switching to a separate computer.

Which operating system does it use, and can it run Windows?

The panel runs Android 14, which is upgradable, and carries Google EDLA certification with Play Store access. Optional Windows configurations with i5 or i7 processors, up to 16GB RAM and a 512GB SSD are also available. If your organisation needs desktop software, specify the Windows option in your quotation, because the configuration determines which applications will run on the panel.

Can staff present from their own laptops or phones without cables?

Yes. The panel supports wireless screen sharing with touchback and BYOM, with mirroring from Windows, Mac, Android and iOS devices. A wireless dongle is listed as a compatible accessory. In a boardroom in West Bay, a visiting director can share from an iPhone and mark up the slides at the panel without a cable. Ask the SmartRooms Qatar team which wireless accessory suits your network before ordering.

Which ports are available on the panel?

The panel has two HDMI inputs, one VGA input, audio in and audio out, SPDIF, RS232, two LAN ports, two USB 3.0 ports, three USB 2.0 ports, two USB-C data-only ports, two USB touch ports and a TF card slot. This gives a room several routes for connecting laptops, network links and control systems, so you can plan cable runs around the teaching position rather than the panel.

Are the 48MP AI camera and the OPS Windows module included with the panel?

The source data lists the 48MP AI camera, the OPS Windows module and stands as compatible accessories, not as standard items. Ask SmartRooms Qatar to confirm in your quotation which of these are included and which are supplied separately, and check that your chosen configuration supports each one before the order is placed.

What should we check before fitting an 86-inch panel in a lecture hall at Education City?

Request a free site survey first. Check the delivery route from the entrance, lift and door dimensions, floor and wall suitability for a floor-standing unit, the position of power points near the front of the hall, and the room's air conditioning. Dimensions and weight are not in the source data for this model, so obtain them with the quotation, which is usually issued within one working day.

Can it be used in a hall with windows and summer heat above 45°C?

The source data does not list an operating temperature range for this model, so we cannot state one. Before choosing a position, confirm the room's cooling capacity, its distance from windows and direct sunlight, and the dust exposure in the building. The SmartRooms Qatar team can review these conditions during the site survey and advise on placement before you commit to an order.

We are a government school in Al Khor and want to equip several halls. How do we order?

Send your room list and quantities, and SmartRooms Qatar will prepare a quotation, usually within one working day, with a free site survey if needed. Government schools can issue a purchase order (LPO) or work through a Monaqasat tender. Payment is accepted by bank transfer, cheque or purchase order, and products are covered by the manufacturer's warranty.
