Trend TD-100ID20U-A · Price in Qatar

Name: Trend TD-100ID20U-A 100-inch Interactive Display, 20 Touch Points
Brand: Trend
SKU: trend-td-100id20u-a
Availability: InStock

Overview

The Trend TD-100ID20U-A is a 100-inch 4K UHD interactive display with an infrared touch frame that registers 20 touch points at once and runs Android 6.0 on its own. Its 450 cd/m² brightness and 2000:1 contrast suit lecture halls and boardrooms in Doha, Lusail and Education City. Schools and conference teams that want several people writing together will find it a practical fit. Request a quote.

What the TD-100ID20U-A is built to do

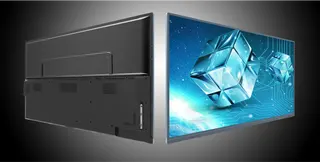

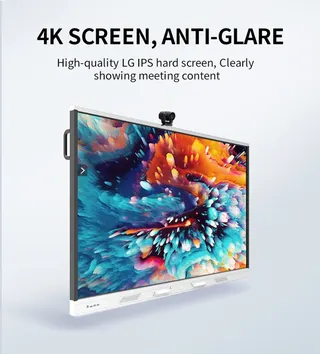

The TD-100ID20U-A is a 100-inch interactive display for rooms where a group needs to work on one large screen at the same time. Its 16:9 panel runs at 3840×2160 (4K UHD) at 60 Hz, and an infrared touch frame registers up to 20 touch points, so several people can annotate, drag and select without passing a pen around. Android 6.0 runs on an onboard quad-core Cortex-A53 processor at 1.5 GHz, so apps can be opened directly on the panel.

The specifications that matter for a purchase decision

Brightness is rated at 450 cd/m² with a contrast ratio of 2000:1, and viewing angles are 178° horizontally and 178° vertically, so people seated towards the sides of a room still see a readable image. The touch frame is rated at 2 mm accuracy across more than 90% of the touch area. The glass is 4 mm tempered glass with transmittance above 88%. The standard Android configuration has 1.5 GB DDR3 memory and 32 GB storage, with 4 GB or 8 GB memory and 64, 128 or 256 GB storage listed as options.

Video inputs: three HDMI inputs and a VGA input on the Android side, plus AV input and output.
Connectivity: two RJ45 Ethernet sockets, two USB 3.0 sockets, one USB 2.0 socket and an SD card slot.
Audio: two built-in 6 Ω, 5 W speakers.
Accessories: remote control, base or bracket, and a Wi-Fi accessory, with a manual, warranty card and certificate of conformity supplied.

Where it fits in Qatar

At 100 inches the panel suits large spaces where a smaller screen would leave people at the back struggling to read. Three typical situations in Qatar:

A private school in Al Wakrah fitting out a lecture room, where a teacher and a small group of students can work through a problem together on the same board.
A training centre in Education City running workshops in which small teams collaborate on the screen rather than watching a single presenter.
A government or corporate meeting room in West Bay that joins Doha and overseas colleagues on a video call, with a laptop connected through HDMI and the network connected by Ethernet.

What to plan before installation

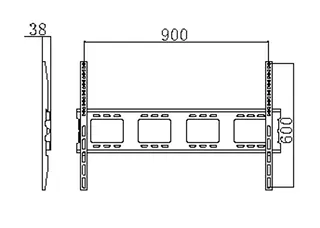

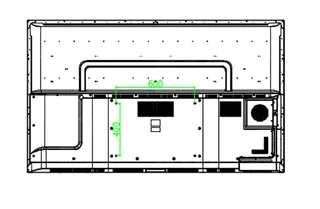

The panel measures 1960.6 × 1161.8 × 96.8 mm and weighs 67 kg, or 72 kg gross with packaging, so a wall mount needs a structure rated for that load. SmartRooms Qatar provides a free site survey, which is worth booking before a wall-mounted panel of this size is fixed. The unit can be installed on a wall, on a movable floor stand or on a fixed floor stand; the floor stand and wall bracket are optional extras.

Heat is the main environmental factor to plan for. The operating range is 0°C to 50°C, and humidity during operation should stay between 20% and 80% without condensation. Summer temperatures in Qatar can exceed 45°C, so the room should be air-conditioned and the installation position confirmed with the SmartRooms Qatar team, particularly for any spot near a window or a glazed entrance. The temperature-controlled fan manages internal heat, but it does not change the rated operating range.

The power supply is rated AC 100–240 V, 50/60 Hz, and the power cord is included. Qatar's 240 V, 50 Hz supply falls inside that range, but the plug and socket arrangement should be confirmed as part of the quotation for each room.

Request a quote

Send the room dimensions, the mounting preference and any options you need, including the conference camera, conference microphone, wireless presentation kit, floor stand or wall bracket. The SmartRooms Qatar team usually returns quotations within one working day. We supply and deliver to all eight municipalities of Qatar, install professionally, and accept purchase orders (LPOs), government tender submissions through Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote today and the team will confirm the right configuration for your room.

Highlights

100-inch 4K UHD panel at 60 Hz (3840×2160)
Up to 20 touch points via infrared touch frame
Android 6.0 with quad-core Cortex-A53 at 1.5 GHz
450 cd/m² brightness and 2000:1 contrast
Three HDMI inputs, two RJ45 Ethernet ports, USB 3.0
One-year warranty; wall or floor stand mounting

Classroom fit

At 100″ the farthest student should sit within about 7.5 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-100ID20U-A
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black

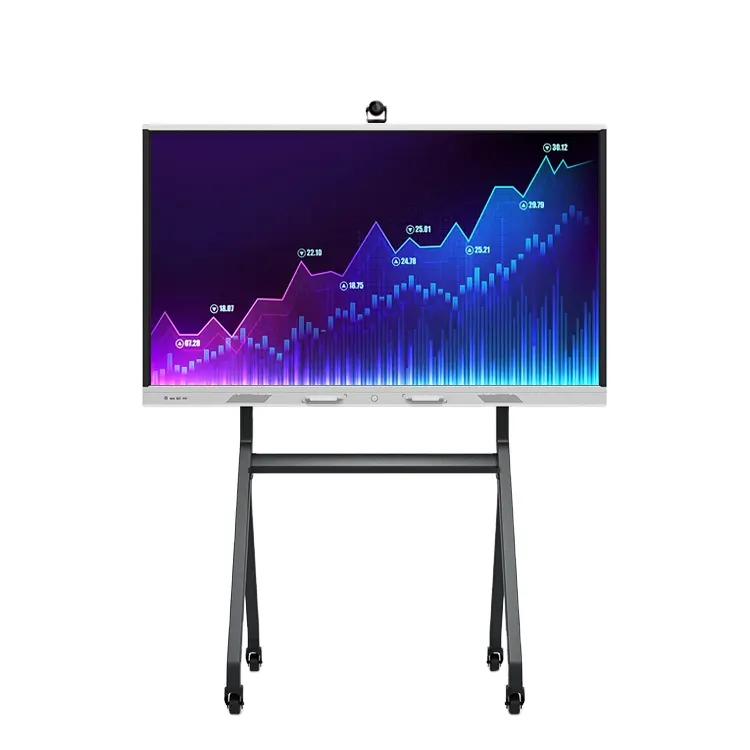

Installation type: On Wall, Movable or Fixed Floor Standing

Technical49

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

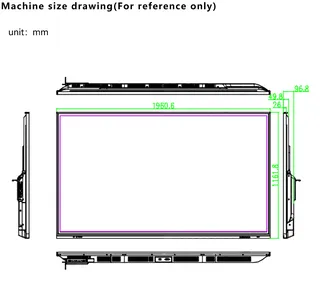

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android)
Response Time: 8ms
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional)
Size: 100 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-100ID20U-A_Datasheet.pdf 557 KB

Questions about TD-100ID20U-A

Who is the TD-100ID20U-A best suited for?

It suits organisations that need a large shared screen for groups rather than a single presenter, such as schools, universities, training centres and conference teams in government and private offices. At 100 inches with 4K UHD resolution, it works best in lecture rooms and boardrooms where people sit several metres from the panel. If the room is small, ask the SmartRooms Qatar team to check whether a smaller panel would suit it better.

How many people can write on the screen at the same time?

The infrared touch frame supports up to 20 touch points, so up to 20 touch inputs can be registered at once. The source data specifies 2 mm accuracy across more than 90% of the touch area, which helps when writing or annotating small text. Keep the frame edges free of obstructions so that touches register as expected during lessons and meetings.

Does it need a separate computer to run?

No. The panel runs Android 6.0 on a quad-core Cortex-A53 processor at 1.5 GHz, with 1.5 GB DDR3 memory and 32 GB storage in the standard Android configuration, so apps can be used directly on the screen. The manufacturer lists 4 GB or 8 GB memory and 64, 128 or 256 GB storage as options, so confirm the configuration you need in your request. A laptop can still be connected through HDMI when required.

Which ports are available for laptops and other devices?

On the Android side the panel offers three HDMI inputs, one VGA input, AV input and output, two RJ45 Ethernet sockets, two USB 3.0 sockets, one USB 2.0 socket and an SD card slot. Three HDMI inputs let a meeting room keep a presenter laptop and a second source connected without swapping cables each time.

Will the screen be bright enough for a lecture theatre in Education City?

The panel is rated at 450 cd/m² brightness and 2000:1 contrast, with viewing angles of 178° in both directions. Those figures support lecture and seminar rooms in Education City where students sit at different distances and daylight enters from windows. The source data gives no glare rating, so for rooms with strong direct sunlight, ask the SmartRooms Qatar team to review the room layout during the site survey.

Can it operate in a Doha boardroom during summer?

The operating temperature range is 0°C to 50°C, and summer temperatures in Qatar can pass 45°C. Keep the boardroom air-conditioned and avoid placing the panel in a hot corner or an enclosed cabinet. Operating humidity is rated at 20% to 80% without condensation. Ask the team to confirm the wall position, especially if it faces a window or glazed wall in a West Bay office tower.

Is it suitable for an outdoor or open lobby installation?

The data does not state an outdoor rating or weatherproofing, so do not plan it for outdoor use. It lists a light-resistance feature, an operating range of 0°C to 50°C and a storage range of -20°C to 60°C. Dust storms are common in Qatar, so confirm the enclosure type and exact location with the SmartRooms Qatar team before you request a quote for any entrance or lobby site.

What mounting options are available and how heavy is the panel?

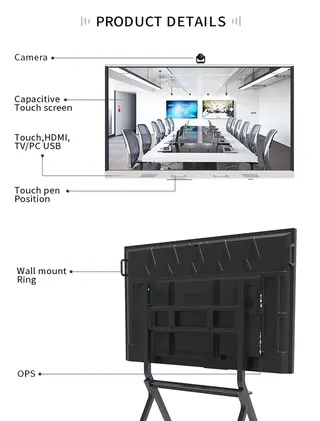

The panel can be wall-mounted or installed on a movable or fixed floor stand. Its dimensions are 1960.6 × 1161.8 × 96.8 mm, with a net weight of 67 kg and a gross weight of 72 kg. A floor stand and wall bracket are available as optional extras. Because the panel is heavy, SmartRooms Qatar offers a free site survey to check the wall structure and panel position before wall mounting.

Can it run on Qatar's electricity supply?

The power input is rated AC 100–240 V at 50/60 Hz, and a power cord is included. Qatar's mains supply is 240 V at 50 Hz, which falls within that range. The plug and socket arrangement in each room should be confirmed during the quotation so the correct cable and outlet are planned before installation.

What comes in the box, and which options can be added?

The standard accessories include a remote control, a base or bracket and a Wi-Fi accessory, along with the power cord, user manual, warranty card and certificate of conformity. The manufacturer lists optional extras as a 1080p conference camera, a conference microphone, a wireless presentation kit, a movable or fixed floor stand and a wall bracket. Include the options you need in your request so the quotation covers the full set.

What warranty comes with the TD-100ID20U-A?

The manufacturer provides a one-year warranty on this model, and the warranty card is supplied with the panel. The source data does not list further warranty terms, so ask the SmartRooms Qatar team to confirm the conditions that apply to your order before you commit. Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty.

Can a school or ministry order several units through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including submissions through Monaqasat, and accepts payment by bank transfer, cheque or purchase order. For a school fitting out several classrooms with this 100-inch panel, list each room's size and mounting type in the request so the quotation can be assessed room by room. Quotations are usually provided within one working day.
