Trend TD-100ID20U-Di3 100-inch Interactive Display

Name: Trend TD-100ID20U-Di3 100-inch Interactive Display
Brand: Trend
SKU: trend-td-100id20u-di3
Availability: InStock

Overview

The Trend TD-100ID20U-Di3 is a 100-inch interactive display with 3840×2160 resolution, 20 touch points and two selectable operating systems, Android and Windows. The Windows side uses an Intel i3 processor. Its 2000:1 contrast, 178° viewing angle and built-in speakers suit large classrooms, lecture halls and boardrooms in Qatar where one screen must serve a full room.

What the Trend TD-100ID20U-Di3 is

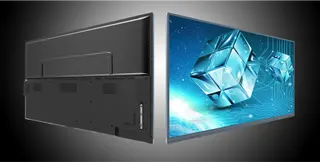

The Trend TD-100ID20U-Di3 is a 100-inch interactive display for teaching rooms, lecture halls and meeting spaces that need one large, touch-enabled screen. It uses a 3840×2160 (4K UHD) TFT-LCD panel in a 16:9 format, with a contrast ratio of 2000:1 and a 178° viewing angle, so people seated at the sides can read the same content as those in front.

Touch input that suits group work

An infrared touch frame recognises up to 20 touch points at once, which lets several people write or move objects during the same session. The manufacturer rates more than 90% of the touch area at 2mm accuracy, and touch input needs zero pressure. Stylus writing is supported. The front is 4mm tempered glass, and the display has an 8ms response time.

Android and Windows in one unit

The panel can run Android 6.0 or Windows 7, 8 or 10, and it can be set up for one system or both. The Android side has a quad-core Cortex A53 processor at 1.5GHz, 1.5GB DDR3 memory and 32GB storage, with higher memory and storage options. The Windows side uses an Intel i3 processor with Intel HD 3000 graphics, 4GB of memory and a 120GB SSD. Windows software and Android apps can therefore both be available on the same screen.

Connections for classrooms and conference rooms

The panel includes three HDMI inputs, a VGA input, AV input and output, a USB touch connection and two RJ45 Ethernet ports. The Android side adds two USB 3.0 ports, a USB 2.0 port and an SD card slot. Network options on the Windows side include cable, WiFi and 3G or 4G as optional extras. Built-in speakers and a remote control are included. A wireless presentation module, a conference microphone and a 1080p conference camera are available as add-on options that can be quoted with the panel.

Where it fits in Qatar

Lecture hall or seminar room in Education City: a university or training centre using one 100-inch screen so students in the back row can read detailed slides and annotated material.
Boardroom in West Bay or Msheireb: a ministry or company holding meetings with colleagues abroad can add the conference camera and microphone options and connect over a wired Ethernet link.
Classroom block in Al Rayyan: a private school fitting out several rooms can order multiple units under one LPO, using the same mounting plan across rooms.

Planning the installation

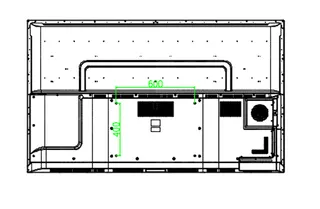

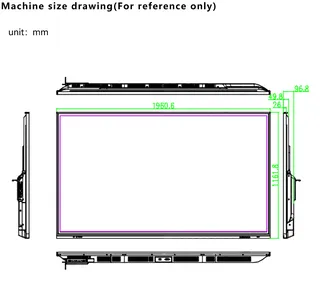

The panel measures 1960.6 × 1161.8 × 96.8 mm and weighs 67kg, or 72kg gross. It can be wall mounted or used on a movable or fixed floor stand, with a wall bracket and floor stand available as options. Before fixing a panel of this weight, arrange a free site survey to check the wall structure, cable route and power outlet. The listed operating temperature is 0°C to 50°C, and summer temperatures in Qatar can exceed 45°C, so keep the room air-conditioned and confirm the environment with the SmartRooms Qatar team before installation. Power input is listed as AC 100–240V at 50/60Hz. The manufacturer's warranty is one year.

SmartRooms Qatar supplies the TD-100ID20U-Di3 across all 8 municipalities of Qatar, with professional installation available. Quotations are usually issued within one working day, and we accept purchase orders and government tenders. Request a quote to receive a configuration, mounting option and installation plan for your room.

Highlights

100-inch 3840×2160 (4K UHD) display in a 16:9 format
20-point infrared touch frame with zero-pressure touch input
Android 6.0 and Windows 7, 8 or 10 on one panel
Windows side with Intel i3 processor, 4GB memory and 120GB SSD
Three HDMI inputs, two RJ45 Ethernet ports and built-in speakers
2000:1 contrast ratio and 178° viewing angle
Listed operating range 0°C to 50°C with one-year warranty

Classroom fit

At 100″ the farthest student should sit within about 7.5 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-100ID20U-Di3
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat
Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I3/31100M/3130M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 100 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-100ID20U-Di3_Datasheet.pdf 570 KB

Questions about TD-100ID20U-Di3

What is the Trend TD-100ID20U-Di3 designed for?

It is a 100-inch interactive display for classrooms, lecture halls, meeting rooms and reception areas where a whole group needs to see and touch one screen. With 3840×2160 resolution, 2000:1 contrast and 20 touch points, it suits teaching and presentations in larger spaces, including schools, universities, government offices and company meeting rooms across Qatar.

How many touch points does it support and how accurate is the touch?

The infrared touch frame supports 20 touch points at the same time. The manufacturer states that more than 90% of the touch area has 2mm accuracy, and touch input needs zero pressure, so light contact is enough. Stylus writing is also supported. This suits group sessions where several people work on the board together, such as reviewing a project or working through a maths problem with students.

Can I run Android and Windows on the same panel?

Yes. The unit can be set up for a single operating system or for dual systems, Android 6.0 and Windows 7, 8 or 10. The Android side runs on a quad-core Cortex A53 processor at 1.5GHz with 1.5GB DDR3 memory and 32GB storage. The Windows side uses an Intel i3 processor. This lets staff move between lesson apps and office software from the same screen.

What are the Windows specifications?

The Windows side uses an Intel i3 processor with Intel HD 3000 graphics, 4GB of memory and a 120GB SSD. Higher memory and larger storage are available as options, including 8GB or 16GB of memory. If you plan to run heavier software in a meeting room, confirm the configuration with the SmartRooms Qatar team before ordering so the quotation reflects the specification you need.

Which ports and inputs does it have?

The display lists three HDMI inputs, a VGA input, AV input and output, a USB touch connection, two RJ45 Ethernet ports and a headphone output. The Android side adds two USB 3.0 ports, one USB 2.0 port and an SD card slot. Check that laptops, document cameras and media players in your room connect through these ports before ordering, and ask us to review the cable plan with you.

Is it suitable for a lecture hall at a university in Education City?

In a hall of this size, a 100-inch screen lets students in the back rows read the same slides and annotated material as those at the front. The 178° viewing angle and 2000:1 contrast help the image stay readable from side seats, and the lecturer can mark up diagrams by touch during class. Before ordering, confirm the room layout and viewing distance, and request a site survey to set the mounting height.

Can it support video conferencing in a boardroom in West Bay?

A 1080p conference camera and a conference microphone can be quoted as add-on options, both useful for hybrid meetings with colleagues abroad. The panel includes 2×6Ω, 5W built-in speakers. Ethernet gives a wired network route, and WiFi is listed among the accessories. Add the camera and microphone to your quote request so the proposal covers every component you need for the meeting room.

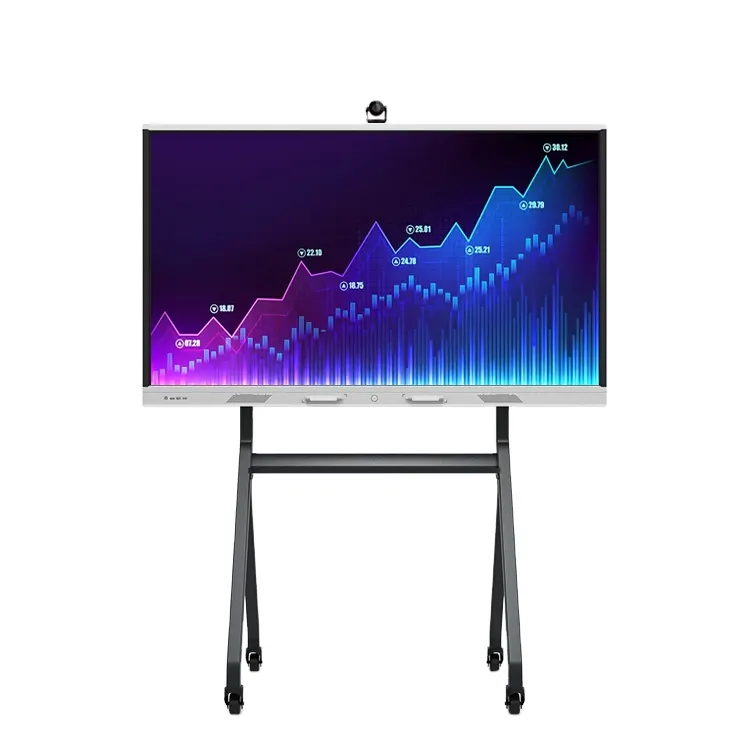

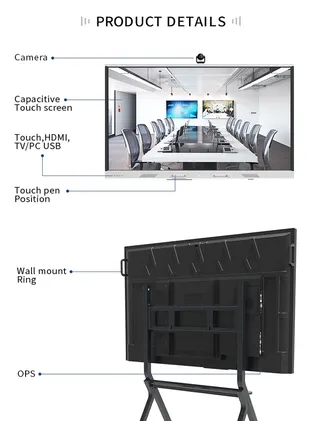

Can it be wall mounted or placed on a floor stand?

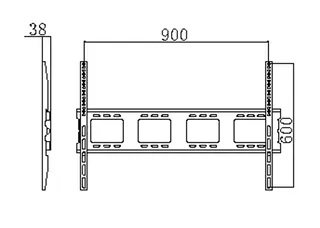

The display is listed for on-wall installation as well as movable or fixed floor standing, and a wall bracket and floor stand are available as options. For a wall installation, confirm the wall can carry 67kg and has room for a panel about 2 metres wide. A free site survey checks the wall structure, fixings, cable routes and power points before installation, which is important for a panel of this size.

How much space and weight should I plan for?

The display measures 1960.6 × 1161.8 × 96.8 mm and weighs 67kg, with a gross weight of 72kg. The package measures 2060 × 1264 × 190 mm. Plan for at least two people to lift it and check the width of corridors, doors and lifts on the delivery route. In a school in Al Rayyan or a hotel in Lusail, confirm access before delivery so the unit reaches the room intact.

Will it operate in a classroom in Al Wakrah during summer?

The listed operating temperature is 0°C to 50°C, with an operating humidity range of 20% to 80% without condensation. Summer temperatures in Qatar can exceed 45°C, so the room must stay air-conditioned and within that range. Keep the panel away from direct sunlight and window glare. The listed storage range is -20°C to 60°C. Confirm the room conditions with the SmartRooms Qatar team when you request a quote.

What power supply does it need in Qatar and what is in the box?

Power input is listed as AC 100–240V at 50/60Hz, a range that covers Qatar's 240V, 50Hz mains. The package includes a remote control, the base or bracket, a WiFi accessory, a power cord, the user manual, the warranty card and a certificate of conformity. The manufacturer's warranty is one year. Ask SmartRooms Qatar to confirm the plug type for your order before installation.

Can a school in Al Rayyan order several units under one LPO?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. For several classrooms, send the number of rooms, your mounting choice for each one and any add-ons, so the quotation covers every unit. Quotations are usually issued within one working day.
