Trend TD-100ID20U-Di7 · Price in Qatar

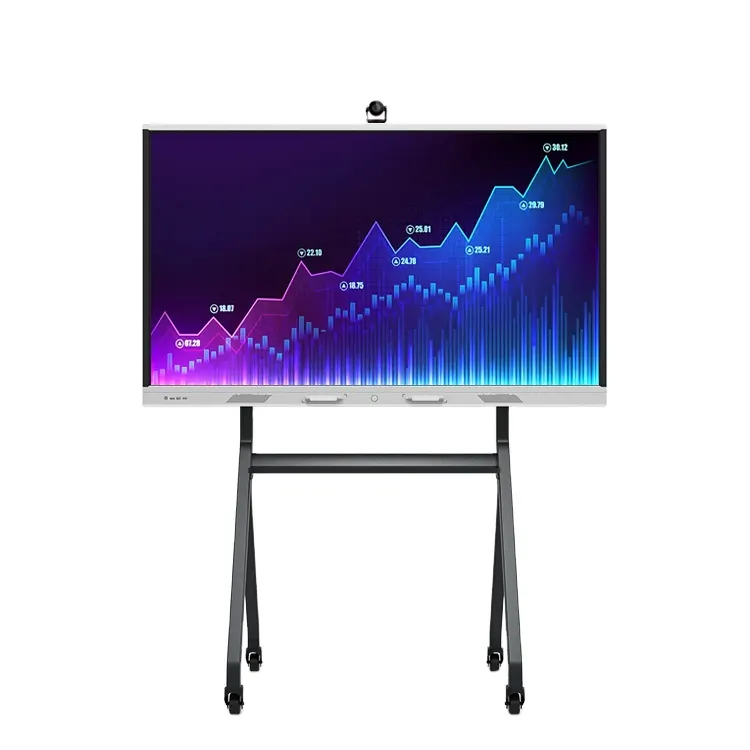

Name: Trend TD-100ID20U-Di7 100-inch Interactive Display with Android and Windows
Brand: Trend
SKU: trend-td-100id20u-di7
Availability: InStock

Overview

The Trend TD-100ID20U-Di7 is a 100-inch UHD interactive display with 20 infrared touch points and two operating systems, Android 6.0 and Windows, in one unit. It has a 3840×2160 panel, 450 cd/m² brightness and a 178-degree viewing angle, plus three HDMI inputs and built-in speakers. It suits lecture theatres, boardrooms and government briefing rooms across Qatar that need one large shared screen. SmartRooms Qatar can supply, deliver and install it on request.

A 100-inch 4K touch display with two operating systems

The TD-100ID20U-Di7 is a 100-inch interactive display built around a 3840×2160 UHD panel running at 60 Hz. Its infrared touch frame tracks 20 touch points, so several presenters can write or annotate at the same time. Each unit combines two computers: an Android 6.0 side on a quad-core Cortex A53 processor at 1.5 GHz, and a Windows side (Windows 7, 8 or 10) built on an Intel i7 processor. Staff can choose the platform that suits each session.

Specifications that matter for a room decision

Brightness is rated at 450 cd/m² with a 2000:1 contrast ratio and a 178-degree viewing angle, so people seated at the sides of a lecture hall or boardroom see the same image. The front is 4 mm tempered glass. More than 90% of the touch area is accurate to 2 mm, and touch works with zero pressure. The rated touch life is 6 million activations, and MTBF is above 60,000 hours.

Connectivity is broad: three HDMI inputs, a VGA input, AV input and output, a USB touch port, USB 2.0 and USB 3.0 ports, two RJ45 Ethernet sockets, a headphone output and an SD card slot on the Android side. Built-in speakers are rated 2 × 6Ω, 5W. Wi-Fi is listed among the included accessories, and the Windows side supports cable, Wi-Fi, 3G and 4G network connections as options.

Where it fits in Qatar

Lecture theatres in Education City or on university campuses: students in the back rows can read slides and worked examples from a 100-inch screen.
Boardrooms in West Bay or Lusail: teams that work in Arabic and English can share one surface, and with the optional 1080p conference camera, calls with colleagues abroad become simpler.
Government reception and training rooms: the touch interface suits briefing sessions where an officer marks up a plan or document in front of visitors.

What to plan before installation

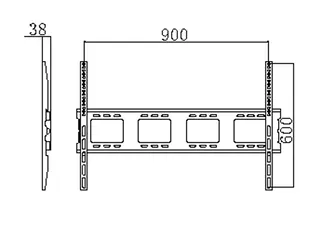

At 67 kg net, this is a heavy panel. Wall mounting needs a check that the wall can carry the load, and SmartRooms Qatar offers a free site survey to confirm the wall or floor, access route and power point before delivery. The unit can be wall mounted or placed on a movable or fixed floor stand, and each option is a separate choice in the configuration.

The operating range is 0 °C to 50 °C with 20% to 80% humidity, non-condensing. Qatar summers regularly pass 45 °C outdoors, so install the panel in an air-conditioned room, away from direct sun through windows. The rated input of 100–240 V, 50/60 Hz covers Qatar's 240 V, 50 Hz supply; confirm the plug type with the SmartRooms Qatar team before ordering.

Ordering from SmartRooms Qatar

We supply the TD-100ID20U-Di7 with professional installation and delivery to all eight municipalities of Qatar. Schools and government buyers can issue a purchase order or LPO, and tenders through Monaqasat are supported. Payment is by bank transfer, cheque or purchase order, and quotations usually arrive within one working day. Request a quote for the panel and any optional camera, microphone, wireless presentation kit, wall bracket or floor stand you need.

Highlights

100-inch UHD panel at 3840×2160 and 60 Hz
20 infrared touch points, with over 90% of the area accurate to 2 mm
Dual system: Android 6.0 and Windows on an Intel i7 processor
450 cd/m² brightness, 2000:1 contrast and 178-degree viewing angle
Three HDMI inputs, VGA, dual RJ45 Ethernet and USB touch port
One-year warranty, with manual and certificate of conformity included

Classroom fit

At 100″ the farthest student should sit within about 7.5 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-100ID20U-Di7
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

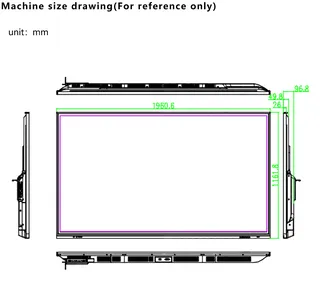

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I7/3520M/3540M(Windows)
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 100 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-100ID20U-Di7_Datasheet.pdf 569 KB

Questions about TD-100ID20U-Di7

Who is the Trend TD-100ID20U-Di7 built for?

It suits spaces where one large shared screen does the work of several smaller ones: lecture theatres, boardrooms, training rooms and government reception areas. The 100-inch 4K panel and 20 touch points let several people write or annotate at once, and the 178-degree viewing angle keeps content readable from wide seating positions across the room.

How does the dual operating system work on this model?

Each unit runs Android 6.0 on a quad-core Cortex A53 processor at 1.5 GHz, with 1.5 GB DDR3 memory and 32 GB storage as standard. The Windows side runs Windows 7, 8 or 10 on an Intel i7 platform with 4 GB memory and a 120 GB SSD as standard. Memory and storage upgrades are available, and presenters choose the side that suits each session.

Will the screen work in a bright meeting room in West Bay with large windows?

The rated brightness is 450 cd/m² with 2000:1 contrast. For rooms with large windows, position the panel away from direct sunlight and close blinds during presentations. The glass transmittance is above 88%, and the manufacturer notes that higher transmittance depends on surface treatment, so ask the SmartRooms Qatar team to review the room before you choose a location.

How accurate is the touch, and how many people can write at once?

The infrared frame supports 20 touch points, and more than 90% of the touch area is accurate to 2 mm. Touch works with zero pressure, so light strokes register. The rated touch life is 6 million activations. In a class or workshop where several people annotate at once, the 20-point capacity matters as much as the screen size.

Which inputs and ports does the TD-100ID20U-Di7 have?

The panel has three HDMI inputs, a VGA input, AV input and output, and a USB touch port. The Android side adds USB 2.0 and USB 3.0 ports, an SD card slot, and two RJ45 Ethernet sockets are fitted across the unit. A headphone output is also included. Confirm which connector your laptop or source device needs before ordering cables.

Can the display be used in portrait orientation in a reception lobby?

The manufacturer states that the unit supports horizontal and portrait display modes when it boots. The panel itself is a 16:9 format, so a portrait layout is a configuration detail to confirm with the SmartRooms Qatar team when you request a quote, particularly for a lobby in Msheireb or a government reception area.

Will it work with Qatar mains power?

The rated power input is AC 100–240 V ±10%, 50/60 Hz, which covers the 240 V, 50 Hz supply used across Qatar. The unit includes a power cord. Qatar sockets follow the BS 1363 (Type G) standard, so confirm the cord plug matches your outlet and plan a dedicated outlet close to the mounting point.

Can it be placed in a hot hall or outdoors during Qatar summers?

Use it indoors only. The operating range is 0 °C to 50 °C with 20% to 80% humidity, non-condensing. Summer temperatures in Qatar regularly exceed 45 °C outside, so the panel should sit in an air-conditioned space such as a lecture theatre or boardroom. If cooling at the site is weak, have the SmartRooms Qatar team review the location before installation.

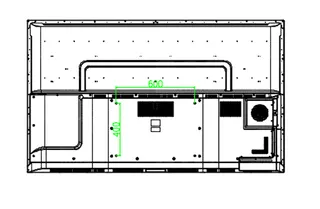

How should we plan wall mounting a 67 kg panel in an office or school?

Plan for a net weight of 67 kg and a body size of 1960.6 × 1161.8 × 96.8 mm. Check the wall structure, fixing points and the route for lifting the panel in, including lifts and stairs. SmartRooms Qatar offers a free site survey before installation, which helps confirm these points for an office building in Msheireb or a school in Al Wakrah.

Does the package include a camera or microphone for video meetings?

No. The included accessories are a remote control, base or bracket, Wi-Fi and the power cord, along with a manual, warranty card and certificate of conformity. A 1080p conference camera, a conference microphone, a wireless presentation kit, a wall bracket and a movable or fixed floor stand are available as configuration options. List the options you need when you request a quote.

What warranty applies to this display?

The manufacturer provides a one-year warranty on the TD-100ID20U-Di7. Each unit ships with a user manual, warranty card and certificate of conformity. SmartRooms Qatar supplies the display by quotation, so the warranty details are confirmed in the quotation before you place an order.

Can a school in Qatar order several units on an LPO?

Yes. Schools and government buyers can order by purchase order or LPO, and tenders through Monaqasat are supported. When fitting out several classrooms or lecture spaces, ask for one quotation that lists each unit, its wall or floor mount, and any camera or microphone for each room. Payment is by bank transfer, cheque or purchase order.
