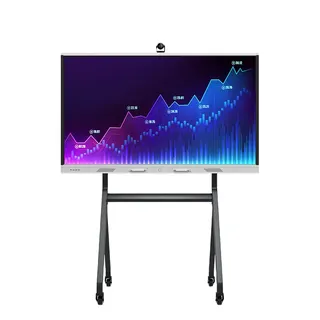

Name: Trend TD-55ID20U-A 55-inch Interactive Display with 20 Touch Points
Brand: Trend
SKU: trend-td-55id20u-a
Availability: InStock

Overview

The Trend TD-55ID20U-A is a 55-inch interactive display with a 3840×2160 UHD panel, an infrared touch frame that registers 20 touch points and built-in Android 6.0. It offers 2000:1 contrast, 178-degree viewing angles and two built-in 5W speakers, suiting classrooms, training rooms and corporate meeting rooms in Doha and across Qatar. Request a quote for wall, movable or fixed floor mounting.

What the TD-55ID20U-A does in a classroom or meeting room

The TD-55ID20U-A pairs a 55-inch LCD panel with an infrared touch frame and an Android 6.0 computer, so a teacher or presenter can write, annotate and open files directly on the screen. The panel runs at 3840×2160 resolution with a 60Hz refresh rate, and its 20 touch points let more than one person work at the board at the same time. Input can come from a stylus, handwriting or the on-screen keyboard, which suits lessons, brainstorming sessions and client presentations alike.

The specifications that shape the purchase

Panel: 450 cd/m² brightness, 2000:1 contrast, 178° viewing angles and an 8ms response time.
Touch: zero-pressure infrared touch, with more than 90% of the touch area accurate to 2 mm and a rated touch life of 6 million touches.
Computing: quad-core Cortex-A53 at 1.5GHz, 1.5GB memory and 32GB storage as standard, with higher memory and storage options.
Connections: three HDMI inputs, VGA in and out, AV in and out, two RJ45 Ethernet ports, two USB 3.0 ports, one USB 2.0 port and an SD card slot.
Environment: operating range 0°C to 50°C, storage -20°C to 60°C and 20% to 80% humidity without condensation.
Support: one-year manufacturer warranty, with the warranty card and certificate of conformity supplied.

Where it fits in Qatar

Three situations suit this model well. In a school in Al Wakrah fitting out a new classroom, the 55-inch screen works for a room of students where teachers move between lesson files, videos and websites from one surface. In a government office in Msheireb, a reception or public information area can use the touch screen to help visitors find services, with the panel placed away from direct sunlight. In a company meeting room in West Bay or Lusail that connects with teams abroad, the optional 1080p conference camera and conference microphone can be included in the same quotation.

What to plan before the display arrives

Qatar's summer heat regularly passes 45°C, and the 50°C upper operating limit leaves little margin, so install the panel in an air-conditioned room, away from windows and direct sunlight. The unit accepts 100V to 240V at 50/60Hz, which covers Qatar's 240V, 50Hz mains; confirm as part of the quotation that the supplied power cord suits your BS 1363 sockets. Choose between wall mounting, a movable floor stand or a fixed floor stand, with the wall bracket and floor stands available as options. The dimension and weight figures in the manufacturer's data should be checked against the exact unit before any wall mount is designed, so arrange a free site survey with SmartRooms Qatar first.

Schools and government bodies can order against a purchase order or LPO, and payment can be made by bank transfer, cheque or purchase order. SmartRooms Qatar delivers to all eight municipalities of Qatar and provides professional installation. Request a quote for the TD-55ID20U-A today, and the team will confirm the lead time and package in your quotation, usually within one working day.

Highlights

55-inch panel at 3840×2160 UHD resolution and 60Hz
20 touch points on an infrared touch frame
Android 6.0 with 1.5GB memory and 32GB storage
2000:1 contrast and 178° viewing angles
Three HDMI inputs, VGA in and out, two RJ45 Ethernet ports
One-year manufacturer warranty; operating range 0°C to 50°C

Classroom fit

At 55″ the farthest student should sit within about 4.1 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-55ID20U-A
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical49

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

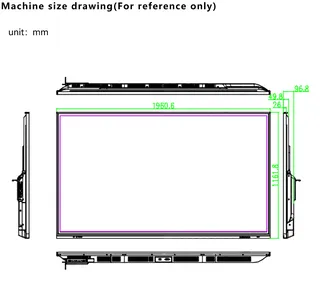

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android)
Response Time: 8ms
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional)
Size: 55 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-55ID20U-A_Datasheet.pdf 567 KB

Questions about TD-55ID20U-A

Is this 55-inch model right for a classroom or small meeting room?

Yes. The 55-inch screen suits a classroom, training room or small meeting room, and the 20 touch points let several students or presenters work at the board together. For a large lecture hall or boardroom with many seats, a bigger panel usually reads better from the back row, so SmartRooms Qatar can advise on the right size when you request a quote.

What do the 20 touch points mean for everyday use?

The infrared frame registers up to 20 touches at once, so several people can write, drag or tap at the same time. The manufacturer's data says more than 90% of the touch area is accurate to 2 mm, touch needs zero pressure, and the rated touch life is 6 million touches. These figures help compare the model with other touch boards during tender evaluation.

Which Android version does it run, and how much storage does it have?

The unit runs Android 6.0 on a quad-core Cortex-A53 processor at 1.5GHz. The standard build has 1.5GB of memory and 32GB of storage, while 4GB or 8GB of memory and 64GB, 128GB or 256GB of storage are available as options. Check that any whiteboard or presentation app you plan to use supports Android 6.0 before ordering.

What inputs and ports are available for laptops and external devices?

The panel has three HDMI inputs, VGA in and out, AV in and out, two RJ45 Ethernet ports, two USB 3.0 ports, one USB 2.0 port and an SD card slot. These inputs suit common lesson and meeting sources such as laptops and media players. List the cables and adapters you need when requesting a quote so the room is ready on installation day.

Can it run video calls with teams abroad from a meeting room in Doha?

The display can be paired with an optional 1080p conference camera and conference microphone, both listed with this model. Video calls depend on your conferencing software and the internet connection in the office, so confirm the network and platform with SmartRooms Qatar before the quotation is finalised. This matters most for a meeting room in West Bay or Lusail that connects daily with teams abroad.

Will it cope with Qatar's summer heat?

The operating range is 0°C to 50°C, so the panel should run in an air-conditioned room rather than an outdoor area or a poorly ventilated space. Summer temperatures in Qatar can exceed 45°C, which leaves a small margin, so keep the unit away from direct sunlight. The storage range is -20°C to 60°C, and humidity should stay between 20% and 80% without condensation.

Does the power supply work with Qatar's 240V mains?

Yes. The source data lists an input of 100V to 240V with a tolerance of plus or minus 10% at 50/60Hz, which covers Qatar's 240V, 50Hz supply. The data does not specify the plug type, so confirm with the quotation that the supplied power cord suits BS 1363 sockets at your site. Sharing your site electrical plan with the request helps confirm the circuit.

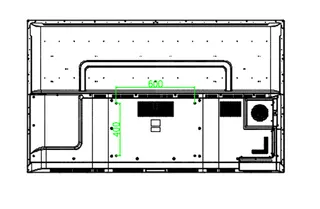

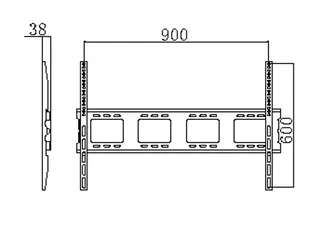

Can it be wall-mounted, and is a site survey needed?

Yes. The panel can be installed on a wall, on a movable floor stand or on a fixed floor stand, and the wall bracket is an optional extra. Because the manufacturer's dimension and weight figures need checking against the exact unit, SmartRooms Qatar recommends a free site survey before any wall mount is fixed. The survey checks wall construction, load capacity and cable routing.

What is the best mounting option for a school fitting out several rooms?

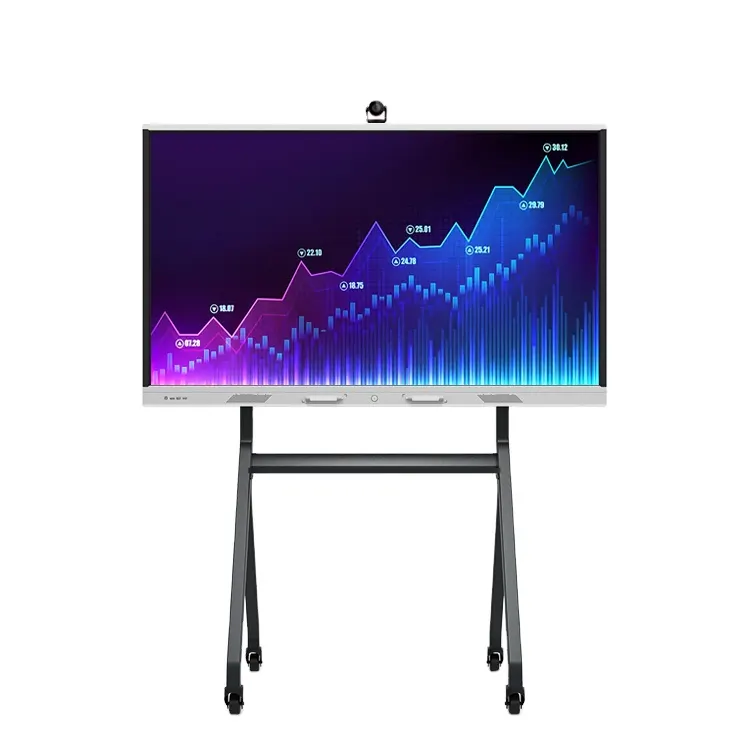

A movable floor stand lets one panel move between rooms or be repositioned for different lessons, while a fixed floor stand suits a room with a set teaching position. Wall mounting saves floor space in narrow classrooms. The stand and bracket are listed as options, and quotations can cover every room on a single purchase order.

What warranty comes with the TD-55ID20U-A?

The manufacturer provides a one-year warranty, and the box includes the user manual, a warranty card and a certificate of conformity. Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. Ask the team to confirm the warranty terms in your quotation, particularly if you are ordering several units for a school or government project.

Can a government ministry or school order this display through an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders and LPOs and handles government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Send the tender specification or your room list when requesting a quote, and the quotation will show the model and options needed for the order.

Will the screen work in a reception area with windows and daylight?

The panel is rated at 450 cd/m² brightness, and the data notes that it has light resistance, which helps in bright rooms. Strong glare from a window can still reduce visibility, so position the display at right angles to the window where possible and use blinds in the afternoon. The 178-degree viewing angles keep content readable for visitors standing to the side.
