Trend TD-55ID20U-Di3 · Price in Qatar

Name: Trend TD-55ID20U-Di3 55-inch Interactive Display with Android and Windows
Brand: Trend
SKU: trend-td-55id20u-di3
Availability: InStock

Overview

The Trend TD-55ID20U-Di3 is a 55-inch 4K interactive display with 20 touch points, an infrared touch frame and two operating systems in one unit: Android 6.0 and Windows with an Intel i3 platform. Its 3840×2160 panel at 450 cd/m² suits classrooms, boardrooms and reception areas across Qatar. Request a quote for supply, delivery and installation.

What this 55-inch unit combines

The Trend TD-55ID20U-Di3 puts a 55-inch screen, a touch layer and a computer into one enclosure. The panel runs at 3840×2160 in a 16:9 format, with a listed brightness of 450 cd/m² and a contrast ratio of 2000:1, which keeps text and content readable in lit rooms. Two systems sit behind the glass: an Android 6.0 side with a quad-core Cortex A53 processor at 1.5GHz, and a Windows 7, 8 or 10 side running on an Intel i3 platform. The unit can be set to a single system or a dual-system configuration, depending on how the room will be used.

Touch performance and what the two systems mean day to day

An infrared touch frame provides 20 touch points, so several people can write or annotate on the screen at the same time. The source data states that more than 90% of the touch area is accurate to 2 mm, and input is listed as stylus writing with keyboard function. Memory and storage differ by system. The Android side ships with 1.5GB DDR3 memory and 32GB storage, with 4GB or 8GB memory and 64GB, 128GB or 256GB storage available as options. The Windows side ships with 4GB memory and a 120GB SSD, with 8GB or 16GB memory and larger SSD or HDD options available at quotation.

Ports, networking and sound for lessons and meetings

HDMI, VGA and AV inputs for laptops, cameras and older video sources
Two RJ45 Ethernet sockets, with optional cable, Wi-Fi, 3G or 4G on the Windows side
USB 3.0 and USB 2.0 sockets, an SD card slot and a dedicated touch USB connection
Two built-in speakers rated 5W each, plus a headphone output

Where it fits in Qatar

In a secondary school in Al Rayyan fitting out a standard classroom or breakout room, a 55-inch panel gives a group a shared board they can work on together, and the touch points let several students write at once. In a meeting room in West Bay or Lusail, the screen works as a display for presentations and video calls, connected over Ethernet or Wi-Fi, while the Windows side runs business software. A government office or bank in Doha can use it in a reception or public information area, where a floor stand option helps when the display needs to move between floors.

Planning the room, power and environment

The listed working temperature range is 0°C to 50°C, and summer temperatures in Qatar can exceed 45°C. Install the unit in an air-conditioned room with clear airflow around the enclosure, and keep it away from sunlit windows. The listed power input is AC 100 to 240V at 50/60Hz, which covers Qatar's 240V, 50Hz supply. The source describes a European-standard cord, so confirm the plug fitting for BS 1363 Type G sockets with the SmartRooms Qatar team before delivery. The listed net weight is 67kg, so a free site survey is recommended before wall mounting, and the manufacturer's warranty is listed as one year. The box includes a remote control, base or bracket, Wi-Fi accessory, power cord, manual, warranty card and certificate of conformity.

Request a quote from SmartRooms Qatar with your room layout and preferred mounting, and our team will return a quotation, usually within one working day.

Highlights

55-inch 3840×2160 UHD panel at 60Hz
20 infrared touch points, 2mm accuracy over 90% of the touch area
Dual systems: Android 6.0 and Windows 7/8/10 with Intel i3
450 cd/m² brightness and 2000:1 contrast ratio
Built-in speakers plus HDMI, VGA, RJ45 and USB ports
1-year warranty; listed operating range 0°C to 50°C

Classroom fit

At 55″ the farthest student should sit within about 4.1 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-55ID20U-Di3
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black

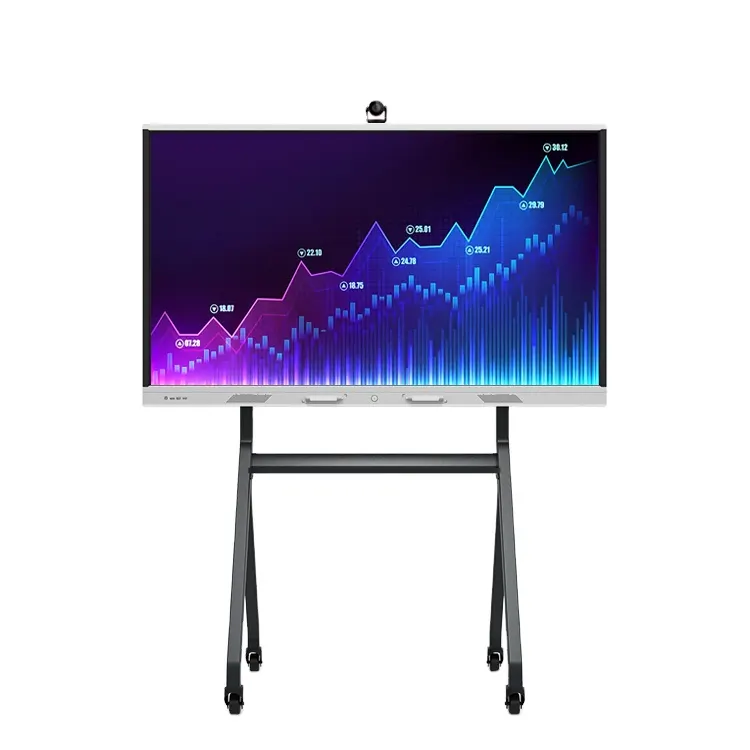

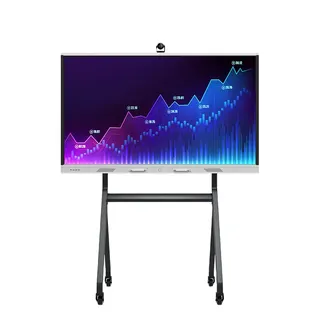

Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

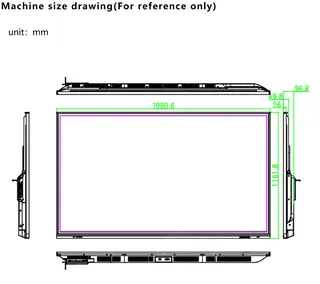

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I3/31100M/3130M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 55 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-55ID20U-Di3_Datasheet.pdf 567 KB

Questions about TD-55ID20U-Di3

Is this 55-inch display suited to a meeting room in Lusail?

Yes, for a meeting room of typical size. The 55-inch 3840×2160 panel at 450 cd/m² keeps text and slides clear in lit rooms. The infrared touch frame lets presenters annotate directly on the screen, and the Windows side runs standard business software. Our team can confirm room size and viewing distance when you request a quote.

How many touch points does the TD-55ID20U-Di3 support?

The unit supports 20 touch points through an infrared touch frame, so several people can write or annotate at once. The source data states that more than 90% of the touch area is accurate to 2mm. Input is listed as stylus writing with keyboard function. Our team can answer further questions about touch setup when you request a quote.

Can I run Android and Windows on the same display?

The source data lists flexible single or dual system settings. The Android side runs Android 6.0 on a quad-core Cortex A53 at 1.5GHz, while the Windows side uses an Intel i3 platform and supports Windows 7, 8 and 10. Each side has its own memory and storage, so plan which system suits each room's applications before you request a quote.

What memory and storage come with each operating system?

Android ships with 1.5GB DDR3 memory and 32GB storage, with 4GB or 8GB memory and 64GB, 128GB or 256GB storage available as options. Windows ships with 4GB memory and a 120GB SSD, with 8GB or 16GB memory and 240GB or 512GB SSD options, or 500GB, 1TB or 2TB HDD options listed in the data. Choose the options you need when you request a quote.

Which ports are available for connecting laptops and cameras?

The unit includes HDMI, VGA and AV inputs, USB 3.0 and USB 2.0 sockets, an SD card slot and two RJ45 Ethernet sockets. The Windows side also lists HDMI, VGA, USB 2.0 and RJ45 connections, with optional cable, Wi-Fi, 3G or 4G networking. Laptops connect over HDMI or VGA, and the dedicated touch USB port carries pen and finger input.

Would this suit a secondary school classroom in Al Rayyan?

A 55-inch panel suits a standard classroom or breakout room where teachers and groups share one board. The touch points let several students work at the screen together, and the Android side runs apps directly. Plan the wall or stand position so students in the back row can read content, and confirm the room layout with our team during a free site survey.

Can I place it in a bank lobby in Doha that receives direct sunlight?

Avoid positions where direct sun or heat reaches the screen. The listed working temperature is 0°C to 50°C, and summer temperatures in Doha can exceed 45°C, so the unit needs an air-conditioned space with clear airflow around its temperature-controlled fan. Keep it away from sunlit windows and check the room's cooling capacity when you request a quote.

Does it work on Qatar's 240V, 50Hz power supply?

Yes. The listed power input is AC 100 to 240V at 50/60Hz, which covers Qatar's 240V, 50Hz mains supply. The source data describes a European-standard cord, so confirm the plug type for BS 1363 Type G sockets with the SmartRooms Qatar team before delivery. Ask for confirmed power consumption figures when you request a quote.

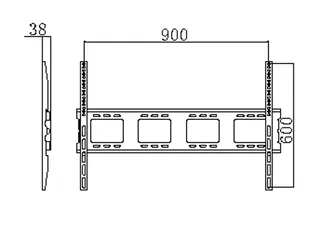

Can it be wall-mounted in a boardroom in West Bay?

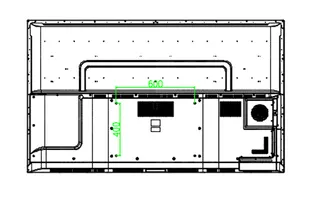

Yes. The unit can be fixed to a wall or set on a floor stand, and both wall bracket and floor stand are available as options. The listed net weight is 67kg, so the wall must carry that load safely. SmartRooms Qatar offers free site surveys, which we recommend before fixing a panel of this weight to a boardroom wall in West Bay.

What comes in the box and what warranty applies?

The listed contents are a remote control, base or bracket, Wi-Fi accessory, power cord, user manual, warranty card and certificate of conformity. The manufacturer's warranty is listed as one year. Products are covered by the manufacturer's warranty, and our quotation will confirm the exact items for your order.

Do I need the conference camera and microphone for a training room in Education City?

Not for basic presentations, since the display handles touch annotation and screen content on its own. If your training room runs remote sessions with participants abroad, the optional 1080p conference camera, conference microphone and wireless presentation kit can be added to the quotation. Tell us the room size and the sessions you run so we can match options.

Can a government office buy this through an LPO or a tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and supplies, delivers to all eight municipalities of Qatar and installs professionally. Payment is by bank transfer, cheque or purchase order. Send your tender reference and the number of 55-inch units when you request a quote, and we will confirm options in the quotation.
