Trend TD-55ID20U-Di5 · Price in Qatar

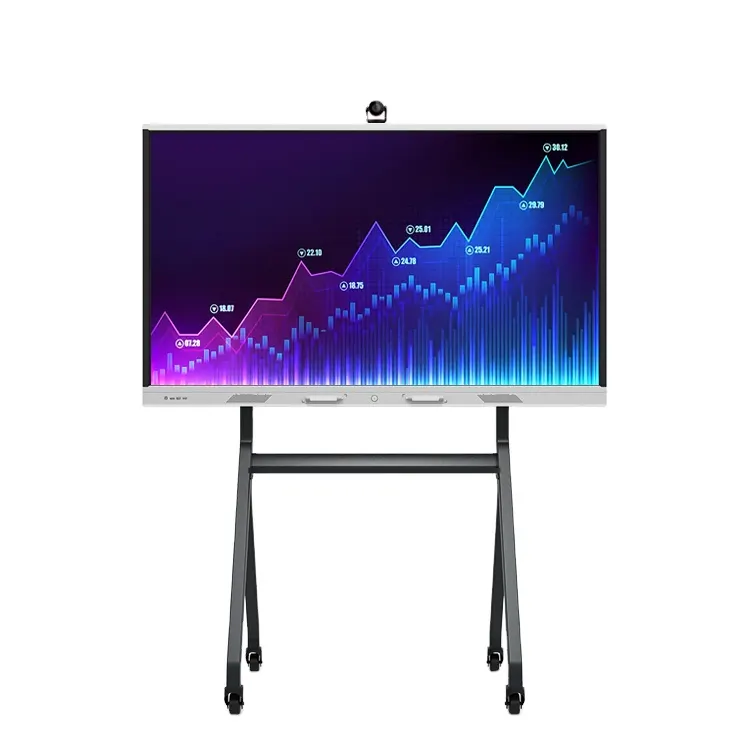

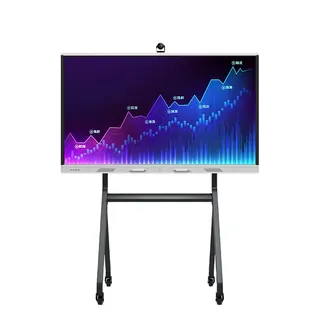

Name: Trend TD-55ID20U-Di5 55-inch Interactive Display with Dual OS
Brand: Trend
SKU: trend-td-55id20u-di5
Availability: InStock

Overview

The Trend TD-55ID20U-Di5 is a 55-inch interactive display with a 4K UHD panel, 20 touch points and a choice of Android or Windows, with Windows running on an Intel i5 platform. Its 450 cd/m² brightness and 178° viewing angle suit classrooms, training rooms and boardrooms in Doha and across Qatar where several people write and present together. Request a quote for installation options and accessories.

What the TD-55ID20U-Di5 does in a room

The TD-55ID20U-Di5 puts a 55-inch 4K display, an infrared touch frame and a built-in computer into one unit. It works as an interactive whiteboard, a presentation screen or a public information board. The touch frame registers up to 20 points, so several people can annotate or navigate at the same time, and the manufacturer rates more than 90% of the touch area at 2 mm accuracy.

Display, processing and operating system choices

Panel: 3840×2160 UHD at 60 Hz, 450 cd/m² brightness, 2000:1 contrast and a 178° viewing angle.
Glass: 4 mm tempered glass rated above 88% light transmittance before any anti-reflective or anti-glare coating.
Android side: Android 6.0 on a quad-core Cortex-A53 at 1.5 GHz, with 1.5 GB DDR3 memory and 32 GB storage.
Windows side: Windows 7, 8 or 10 on an Intel i5 platform, with 4 GB memory and a 120 GB SSD.

The unit can run in single or dual system configurations, so a room can keep Windows for lesson software or conferencing apps and use Android for apps and content playback. Higher memory and storage configurations are listed as options.

Ports and connections for meetings and classrooms

The Android side offers three HDMI inputs, a VGA input, two RJ45 Ethernet ports, two USB 3.0 ports, one USB 2.0 port and an SD card slot. The Windows side adds HDMI, VGA, RJ45 and a USB touch connection. Two built-in 5 W speakers and a headphone output cover audio. WiFi appears in the accessory list, while a 1080p conference camera, a conference microphone and a wireless presentation kit are available as options.

Where it fits in Qatar

Three scenarios suit this model well:

A training room at a centre in Education City, where instructors write on the glass during sessions and run software from the built-in Windows computer.
A sales gallery in Lusail, where a developer shows floor plans and project renders to visitors who walk up and touch the screen.
A meeting room in Msheireb or West Bay used for hybrid meetings, where the 55-inch screen is viewed comfortably from a close distance.

Planning the installation

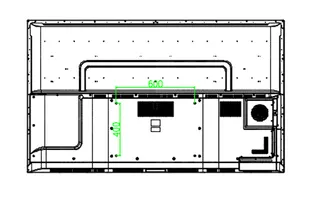

The unit weighs 67 kg (72 kg gross), so it needs a wall that can carry the load or a sturdy floor stand. A site survey is worth booking before mounting: it checks the wall or floor, the cable routes to power and data points, and where the panel sits relative to windows. The rated working temperature is 0 to 50°C with humidity from 20 to 80% and no condensation, so place it in an air-conditioned room away from direct sunlight and glare. Mains power is rated at 100 to 240 V, 50/60 Hz, which covers Qatar's 240 V supply.

Ordering with SmartRooms Qatar

SmartRooms Qatar supplies the TD-55ID20U-Di5 with delivery to all eight municipalities, professional installation and free site surveys. The unit is covered by a 1-year manufacturer's warranty. Purchase orders and government tenders, including Monaqasat, are accepted, and quotations usually arrive within one working day. Request a quote with your room size, mounting type and any optional camera, microphone or wireless presentation kit, and our team will confirm stock-based timing with the quotation.

Highlights

55-inch 3840×2160 UHD display at 60 Hz
20 touch points using an infrared touch frame
Android 6.0 and Windows 7, 8 or 10 in single or dual system setup
Intel i5 Windows side with 4 GB memory and 120 GB SSD
450 cd/m² brightness and 178° viewing angle
AC 100–240 V, 50/60 Hz power and a 1-year warranty

Classroom fit

At 55″ the farthest student should sit within about 4.1 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-55ID20U-Di5
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black

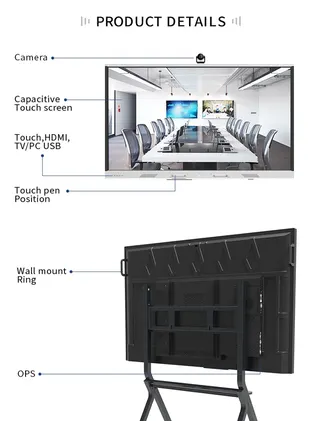

Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

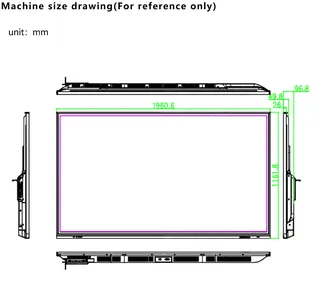

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I5/3210M/3230M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 55 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-55ID20U-Di5_Datasheet.pdf 569 KB

Questions about TD-55ID20U-Di5

What is the Trend TD-55ID20U-Di5 best used for?

It is a 55-inch interactive display that combines a 4K panel, a 20-point touch frame and a built-in computer. In Qatar it suits classroom teaching, training rooms, boardroom presentations and reception information boards in government offices and banks. Its 450 cd/m² brightness and 178° viewing angle help people seated at different points in the room read the content clearly.

How many people can write on the screen at the same time?

The infrared touch frame supports 20 touch points, so several users can write, annotate or navigate at once. The manufacturer rates more than 90% of the touch area at 2 mm accuracy, which helps with handwriting and small on-screen controls. Touch works with light contact and needs no firm pressure on the glass.

Can I run both Android and Windows on this unit?

Yes. The unit supports single or dual system settings. The Android side runs Android 6.0 with 1.5 GB DDR3 memory and 32 GB storage, while the Windows side runs Windows 7, 8 or 10 on an Intel i5 platform with 4 GB memory and a 120 GB SSD. A school can keep Windows for lesson software and use Android for apps and content.

Will the 55-inch size work in a classroom in Doha?

It suits small to medium classrooms, training rooms and meeting rooms in Doha, where students or attendees sit at a moderate distance from the panel. The 4K resolution keeps text and diagrams sharp at that range. Large lecture halls usually need a bigger screen, and the SmartRooms Qatar team can review your room dimensions before you request the quotation.

How does the unit handle Qatar's summer heat?

The rated working temperature is 0 to 50°C, with humidity from 20 to 80% and no condensation, and the unit uses a temperature-controlled fan to cool itself. Because summer temperatures in Qatar can exceed 45°C, install it in an air-conditioned room away from west-facing windows and direct sun. For lobbies or areas facing outdoors, confirm the environment with the SmartRooms Qatar team before ordering.

Is it compatible with Qatar's 240 V mains supply?

Yes. The power supply is rated for AC 100 to 240 V at 50/60 Hz, which covers the 240 V, 50 Hz mains used across Qatar. The power cord is listed as part of the unit's supplied items. During the site survey, the installer can confirm the socket position at the mounting point so the cable reaches the display without strain.

Which ports are available for laptops, cameras and video conferencing?

The Android side provides three HDMI inputs, a VGA input, two RJ45 Ethernet ports, USB 3.0 and USB 2.0 ports and an SD card slot. The Windows side adds HDMI, VGA, RJ45 and a USB touch connection. A 1080p conference camera and conference microphone are optional, and they can be added to the quotation for video calls with teams abroad.

Can it be wall-mounted, or does it need a floor stand?

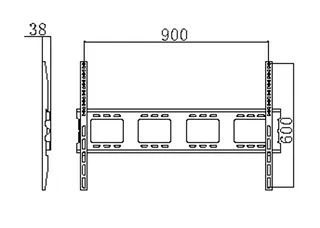

The unit can be installed on a wall, as a movable floor stand or as a fixed floor stand. A wall bracket and a floor stand are offered as options. Because the unit weighs 67 kg, a site survey should confirm wall strength or floor support before mounting, and two people should handle the panel during installation.

What warranty applies, and what does SmartRooms Qatar provide with it?

The unit is covered by a 1-year warranty and is supplied with a user manual, warranty card and certificate of conformity. SmartRooms Qatar supplies it with delivery to all eight municipalities of Qatar and professional installation. Quotations usually arrive within one working day, so you can compare options before committing to the purchase.

Can a ministry or school buy this display through a purchase order or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment can be made by bank transfer, cheque or purchase order. A school fitting out several rooms with the same specification can cover all units on one LPO. Send the room list and mounting type with your request so the quotation reflects each location.

How does this model compare with a larger interactive display for a boardroom?

The 55-inch size suits smaller rooms, while larger panels suit bigger boardrooms. Before choosing, compare the distance from seats to the screen and the room dimensions. The 178° viewing angle helps people seated off-centre see the content, and the 2000:1 contrast and 450 cd/m² brightness support clear viewing in a room with controlled lighting.

How accurate is the touch, and how fast does the screen respond?

The manufacturer rates more than 90% of the touch area at 2 mm accuracy, and the response time is 8 ms. The touch frame uses infrared sensing with 20 touch points. These figures make handwriting and quick annotations practical in lessons and meetings, and the SmartRooms Qatar team can answer further questions with your quotation.
