Trend TD-65ID20U-Di3 · Price in Qatar

Name: Trend TD-65ID20U-Di3 65-inch Interactive Display with Dual Android and Windows
Brand: Trend
SKU: trend-td-65id20u-di3
Availability: InStock

Overview

The Trend TD-65ID20U-Di3 is a 65-inch 4K interactive display with 20 touch points, dual Android and Windows operation and an Intel i3 platform for the Windows side. Its 450 cd/m² panel suits classrooms, meeting rooms and reception areas in Qatar where several people write or present at once. Infrared touch with zero-pressure input, built-in speakers and multiple video inputs make it practical for schools, government offices and corporate teams. Request a quote and our team will confirm the mounting and configuration for your site.

What the Trend TD-65ID20U-Di3 is

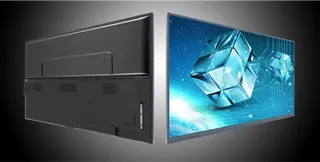

The Trend TD-65ID20U-Di3 is a 65-inch interactive display for teaching, presentations and collaborative meetings. Its 3840×2160 UHD LCD panel sits behind an infrared touch frame that registers up to 20 touch points at once, so a group can annotate, drag and write on the same screen. The unit runs two operating environments: Android 6.0 and Windows, with the Windows side built around an Intel i3 platform.

Specifications that matter when you compare models

The panel is rated at 450 cd/m² with a 2000:1 contrast ratio, an 8ms response time and a 178°/178° viewing angle, so text and diagrams stay readable from across a room. The touch is zero-pressure, and the manufacturer states that more than 90% of the touch area has an accuracy of 2mm. The front is 4mm tempered glass, and the unit carries a one-year manufacturer warranty.

Android side: 1.5 GB DDR3 memory and 32GB storage, with higher memory and storage options listed.
Windows side: 4GB memory and a 120GB SSD as standard, with larger options listed.
Connectivity: multiple HDMI inputs, VGA, AV, USB touch and USB ports, two RJ45 Ethernet sockets, an SD card slot and a headphone output.
Audio: two built-in 6Ω/5W speakers.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms could use the panel for lessons that draw on several sources, such as a laptop on HDMI and the Windows desktop for teaching software. A government office in Msheireb could mount it in a reception hall to show service guides and public notices. In West Bay, a company with a boardroom linked to colleagues abroad could add the optional 1080p conference camera, conference microphone and wireless presentation accessories to the base unit.

What to plan before installation

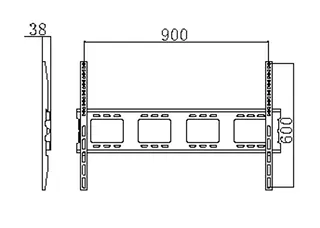

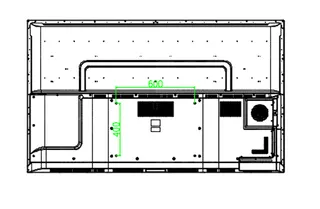

The unit measures 1960.6 mm wide, 1161.8 mm high and 96.8 mm deep, and weighs 67kg (72kg gross). A wall-mounted installation needs a structurally sound wall and a bracket suited to that weight, and the wall bracket is an optional item. Choose the mounting type before ordering, because a floor stand changes the room layout. The operating range is 0°C to 50°C, so the room must be air-conditioned; summer temperatures in Doha often pass 45°C, and the room plan should account for that. The power input is rated for AC 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz supply, and a free site survey lets our team check wall loading, cable routes and socket positions before installation.

Request a quote

Send the number of units, the room sizes and whether you need wall mounting or a floor stand. SmartRooms Qatar will prepare a quotation, usually within one working day, and we accept purchase orders (LPOs) and government tenders, with delivery to all eight municipalities of Qatar. Request a quote for the Trend TD-65ID20U-Di3 today.

Highlights

65-inch 3840×2160 UHD panel rated at 450 cd/m²
20 touch points on an infrared touch frame
Dual Android 6.0 and Windows operation
Intel i3 platform for the Windows side
Two built-in 6Ω/5W speakers

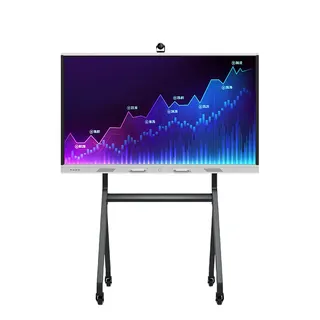

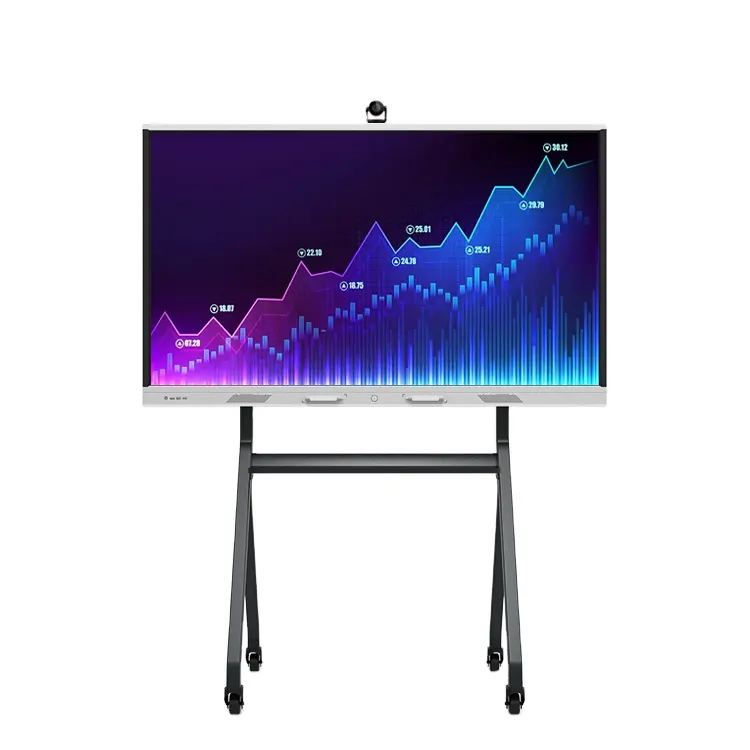

Wall-mounted, movable or fixed floor-standing installation

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-65ID20U-Di3
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

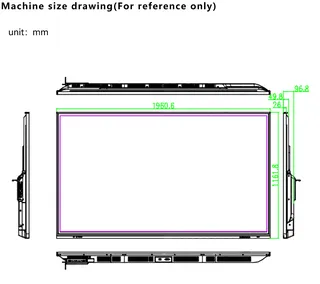

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I3/31100M/3130M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 65 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-65ID20U-Di3_Datasheet.pdf 569 KB

Questions about TD-65ID20U-Di3

What is the Trend TD-65ID20U-Di3 used for?

It is a 65-inch interactive display for teaching, meetings, reception areas and public information points. A 3840×2160 panel and 20 touch points let several people annotate, drag and present on the same screen. A school in Education City could use it for group lessons, while a corporate reception desk in Lusail could use it to show company information. It suits rooms where content must be shared and written on, not just viewed.

How many touch points does it support, and how accurate is the touch?

The model supports 20 touch points through an infrared touch frame, so up to 20 simultaneous touches can register. The manufacturer states that more than 90% of the touch area is accurate to 2mm, and the touch uses zero-pressure input, so a light touch registers. The front is 4mm tempered glass. If your users write small text, check the touch behaviour in the room during the site survey before the quotation is finalised.

Does it run Android and Windows, and what hardware is behind each?

Yes. The display runs Android 6.0 and Windows 7, 8 or 10. The Android side has a quad-core Cortex A53 processor at 1.5GHz, 1.5 GB DDR3 memory and 32GB storage, with higher memory and storage options. The Windows side uses an Intel i3 platform with 4GB memory and a 120GB SSD, with 8GB or 16GB memory and larger SSD or hard disk options available. Choose the configuration that matches your software needs before ordering.

Is 450 cd/m² bright enough for a classroom with large windows?

The panel is rated at 450 cd/m² with a 2000:1 contrast ratio and a 178°/178° viewing angle. That is a practical level for indoor rooms with controlled lighting. For a classroom with large windows facing the afternoon sun in Doha, place the display so the glass does not sit directly behind the screen, and use blinds. Ask our team to review the room layout before the mounting position is confirmed in your quotation.

Can it be used in a Qatar summer without overheating?

The operating temperature is 0°C to 50°C, with humidity from 20% to 80% and no condensation. Storage is rated from -20°C to 60°C. Summer heat in Doha often passes 45°C, so install this model in an air-conditioned indoor room that keeps the space within its operating range. The data does not list it for outdoor use. Our team can confirm the room environment during the site survey before you approve the quotation.

Does it work with Qatar's 240 V mains supply?

The power input is rated AC 100-240V, ±10%, at 50/60Hz. Qatar's mains supply is 240 V at 50 Hz, which falls inside that range. A power cord is listed with the unit. Before installation, the installer should confirm that a suitable socket is available near the mounting point and that the socket type matches the cord supplied, so the panel can be connected safely on the day.

Which inputs and ports does it provide?

The source lists multiple HDMI inputs, VGA, AV in and out, a USB touch connection, a USB multimedia port, two RJ45 Ethernet sockets, USB 2.0 and USB 3.0 ports on the Android side, an SD card slot and a headphone output. Wi-Fi and 3G or 4G network access are listed as optional. In a meeting room, a laptop can connect over HDMI while the USB touch link handles touch control. Confirm the exact port layout with the quotation.

Can it be wall-mounted in a boardroom in West Bay?

Yes. Installation types include on-wall mounting, movable floor stand and fixed floor standing. The unit measures 1960.6 mm by 1161.8 mm by 96.8 mm and weighs 67kg, or 72kg gross in packaging. A wall bracket is an optional accessory. A free site survey lets our team check the wall structure, bracket fixing points and cable route before the panel is hung, which matters for a glass-walled boardroom where the wall may not be solid.

What accessories come with it, and what can be added?

The accessories list includes a remote control, a base or bracket, and Wi-Fi. Optional items in the configuration are a movable or fixed floor stand, a wall bracket, a 1080p conference camera, a conference microphone and a wireless presentation kit. The user manual, warranty card and certificate of conformity are supplied with the unit. Tell us which options you need, and we will include them in the quotation so the order matches the room.

What warranty applies to this model?

The manufacturer provides a one-year warranty on this model, and a warranty card is included with the unit. SmartRooms Qatar supplies the display under that manufacturer warranty. For a government ministry or school board working through a procurement cycle, state the warranty requirement in your tender or purchase request so the quotation includes the documentation you need.

Can a school order several units on a purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), bank transfer, cheque and purchase order payment, and delivers to all eight municipalities of Qatar. A school fitting out several classrooms in Al Rayyan could request one quotation covering every unit, the wall or floor mounts and installation. Send the list of rooms and mounting types, and the team will aim to return a quotation usually within one working day.

How long can it run each day, and how durable is the touch?

The source gives a maximum service time of 24 hours per day and an MTBF rating above 60,000 hours. The touch induction life is rated at 6 million times. These are manufacturer ratings, so practical life depends on usage and room conditions. For a busy reception hall in a hospital or a government service centre, keep the unit within its operating temperature range and confirm expected daily hours when you request the quotation.
