Trend TD-65ID20U-Di5 · Price in Qatar

Name: Trend TD-65ID20U-Di5 65-inch Interactive Display with Android and Windows
Brand: Trend
SKU: trend-td-65id20u-di5
Availability: InStock

Overview

The Trend TD-65ID20U-Di5 is a 65-inch interactive display with 20 touch points, an infrared touch frame and two operating environments, Android 6.0 and Windows 7, 8 or 10 with an Intel i5 processor. Its 3840×2160 panel and 2000:1 contrast suit government reception areas, meeting rooms and classrooms across Doha, Lusail and Education City. Supplied by quotation with delivery across Qatar.

What this 65-inch interactive display is built for

The Trend TD-65ID20U-Di5 is a 65-inch touch display for rooms where people write, annotate and open files directly on the screen. It pairs a 3840×2160 panel with an infrared touch frame that registers 20 touch points, so several people can work on the same slide. The 16:9 format suits presentations, spreadsheets and video content alike.

Processing, operating systems and touch accuracy

The unit is listed with two operating environments: Android 6.0 and Windows 7, 8 or 10. The Windows configuration uses an Intel Core i5 processor with Intel graphics. Storage and memory can be specified at quotation, with the base Windows setup listed at a 120 GB SSD and 4 GB of memory, and larger options available. The touch frame is zero-pressure, and more than 90% of the touch area is rated at 2 mm accuracy, which helps when writing small text or drawing fine diagrams.

Display and connection facts worth checking

Resolution: 3840×2160 at 60 Hz, with a 178° viewing angle.
Contrast: 2000:1, with a 4 mm tempered glass front.
Inputs: three HDMI inputs, VGA, a USB touch port, AV in and out, and a headphone output.
Network: two RJ45 Ethernet sockets, with Wi-Fi listed among the accessories.
Audio: two built-in 5 W speakers.

Where it fits in Qatar

In a government ministry or authority reception area in Msheireb, the display can show a visitor directory or public information service, while staff manage content from a PC. In a private school in Al Wakrah or a training centre in Education City, a classroom with 20 touch points lets teachers and students share work without moving between a board and a laptop. In a West Bay or Lusail company meeting room, the display becomes the main screen for presentations, and the optional 1080p conference camera and conference microphone listed by the manufacturer can be quoted alongside it.

What to plan before installation

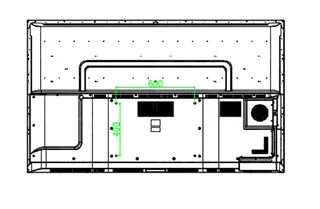

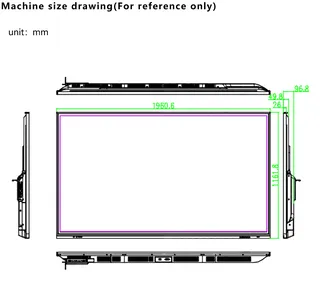

The listed net weight is 67 kg and the gross weight is 72 kg, with dimensions of 1960.6 × 1161.8 × 96.8 mm. Wall fixings must therefore be rated for that load, and the wall must be structurally suitable. The installation options listed are on-wall, movable floor standing or fixed floor standing, and the wall bracket and floor stand are chosen at quotation. The working range is 0°C to 50°C, storage runs from -20°C to 60°C, and humidity should stay between 20% and 80% without condensation. Summer heat in Doha is high, so the screen should sit in an air-conditioned room away from direct sunlight, and the installer should confirm the location against those limits. The listed power input is 100–240 V at 50/60 Hz, so confirm the power lead suits the BS 1363 sockets used in Qatar when you request a quote. SmartRooms Qatar offers a free site survey to check wall construction, cable routes and the lift route into the building.

The manufacturer's warranty is one year. To request a quote for the TD-65ID20U-Di5, send your room size, preferred mounting and the add-ons you need, and SmartRooms Qatar will return a quotation, usually within one working day.

Highlights

3840×2160 UHD resolution at 60 Hz
20 touch points on an infrared touch frame
Android 6.0 and Windows 7, 8 or 10 environments
Intel Core i5 processor in the Windows configuration
2000:1 contrast and 178° viewing angle

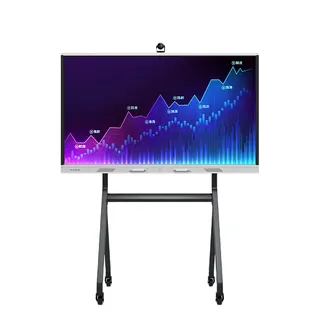

Wall-mount or floor-standing installation options

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-65ID20U-Di5
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat
Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I5/3210M/3230M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 65 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-65ID20U-Di5_Datasheet.pdf 567 KB

Questions about TD-65ID20U-Di5

Who is the TD-65ID20U-Di5 for?

It suits rooms where people share and annotate content on the screen, such as government reception areas, bank and retail information points, company meeting rooms and classrooms. At 65 inches it fits a small to medium room rather than a large lecture hall. The 20 touch points and the choice of Android or Windows environments make it useful where staff present from a PC and also run interactive apps. Confirm room size and viewing distance with the SmartRooms Qatar team before ordering.

How does the touch function work and how accurate is it?

The TD-65ID20U-Di5 uses an infrared touch frame with zero-pressure touch, so light contact registers without pressing on the glass. The listing gives 20 touch points, and more than 90% of the touch area is rated at 2 mm accuracy, which helps when writing small text or drawing fine diagrams. The front is 4 mm tempered glass. In a classroom or training room in Education City, that accuracy lets a presenter annotate a detailed document in front of a group.

What resolution and contrast does it offer?

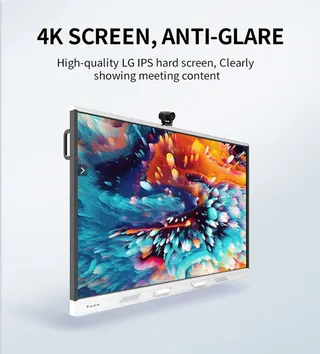

The panel is listed at 3840×2160 (UHD) at 60 Hz in a 16:9 display area, with a 2000:1 contrast ratio and a 178° viewing angle both ways. It is a TFT-LCD panel with WLED backlighting. In a boardroom in West Bay, where people sit off-centre around the table, the wide viewing angle keeps text readable from the sides. Test your own presentation at the real viewing distance before you order.

Can I choose between Android and Windows on this model?

Yes, the listing covers both environments. The Android side runs Android 6.0 on a quad-core Cortex-A53 processor at 1.5 GHz, with 1.5 GB DDR3 memory and 32 GB storage, and higher memory and storage are optional. The Windows side is listed for Windows 7, 8 or 10 with an Intel Core i5 processor, a 120 GB SSD and 4 GB memory, with upgrade options. Ask the SmartRooms Qatar team which environment and storage your quotation includes.

Which ports will we need for laptops and video sources?

The unit lists three HDMI inputs, one VGA input, AV input and output, a USB touch port, two RJ45 Ethernet sockets and a headphone output. The Android side adds USB 3.0 and USB 2.0 ports and an SD-card slot. At a government reception desk, a staff laptop connects over HDMI while the USB touch link returns touch input to it, and Ethernet connects the display to the office network. Confirm the cable set when you request a quote.

Can it be wall-mounted, and how heavy is it?

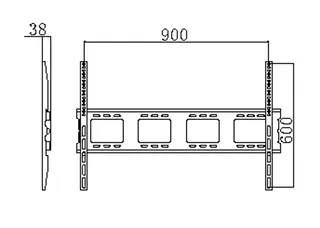

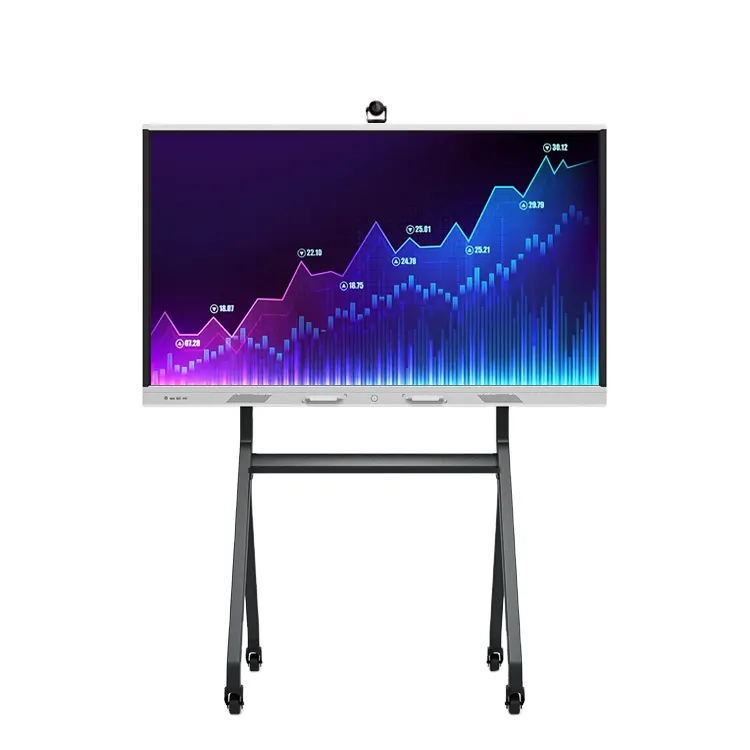

Yes. The listed installation types are on-wall, movable floor standing or fixed floor standing. The net weight is 67 kg and the gross weight is 72 kg, so any wall fixing must be rated for that load and the wall must be structurally suitable. A wall bracket and floor stand are optional extras. SmartRooms Qatar offers a free site survey, which is the right time to check wall construction, cable routes to power and data outlets, and the lift route into the building.

Will it cope with Qatar's summer heat in a lobby?

The listed working temperature range is 0°C to 50°C, with storage from -20°C to 60°C and humidity from 20% to 80% without condensation. A lobby in the Industrial Area or near Hamad International Airport that receives direct sun or hot air through open doors can push conditions toward those limits in summer. Plan for an air-conditioned, shaded position away from direct sunlight and dust entry points, and confirm the site with the team before quoting.

What warranty and accessories come with the display?

The listing gives a one-year warranty and includes a remote control, a base or bracket, a Wi-Fi accessory and a power cord. The user manual, warranty card and certificate of conformity are also supplied. Products are covered by the manufacturer's warranty. Ask the SmartRooms Qatar team to confirm the final accessory list for your configuration, because the wall bracket, floor stand and other add-ons are optional.

Is it suitable for a visitor information point in Msheireb?

Yes. The 65-inch screen and 178° viewing angle work well for visitors who approach from the side, and the touch frame lets them move through a directory or public information service. Staff can manage content from the PC side. The listing gives a maximum service time of 24 hours a day, but the operating temperature range still applies, so the installation position matters. Request a mounting height plan for standing and seated visitors.

Is it right for a school classroom in Al Wakrah?

For a classroom or small meeting room, 65 inches gives a readable display, and the 20 touch points let teachers and students work at the screen together. A private school fitting out several rooms can order them under one purchase order, and SmartRooms Qatar accepts LPOs. Discuss with the team whether the Windows or Android environment suits the apps your teachers use, and confirm the room size and mounting height before ordering.

Can I add a camera and microphone for calls with teams abroad?

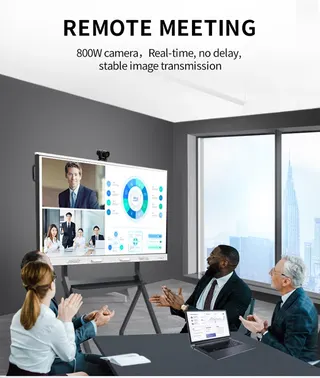

Yes. The manufacturer lists a 1080p conference camera, a conference microphone and a wireless presentation option as add-ons for this model. In a West Bay or Lusail boardroom where Doha staff join teams overseas, the camera and microphone can be included in the quotation with the display so the room is set up for calls. Confirm that your video conferencing platform works with the proposed camera before you request the final quotation.

Can a ministry or company buy it through an LPO or tender?

Yes. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, and accepts payment by bank transfer, cheque or purchase order. When ordering several units for reception and meeting rooms, state the quantity, the environment (Android or Windows), and whether you need a wall bracket or floor stand. A quotation is usually issued within one working day.
