Trend TD-65ID20U-Di7 · Price in Qatar

Name: Trend TD-65ID20U-Di7 65-inch Interactive Display with Android and Windows
Brand: Trend
SKU: trend-td-65id20u-di7
Availability: InStock

Overview

The Trend TD-65ID20U-Di7 is a 65-inch interactive display with 20 touch points, infrared touch and 3840×2160 UHD resolution. It runs Android 6.0 and Windows on one unit, with an Intel i7 processor for the Windows side. Suited to classrooms and meeting rooms in Doha, Lusail and Al Wakrah that need a touch display for group work and shared content.

What the TD-65ID20U-Di7 brings to a room

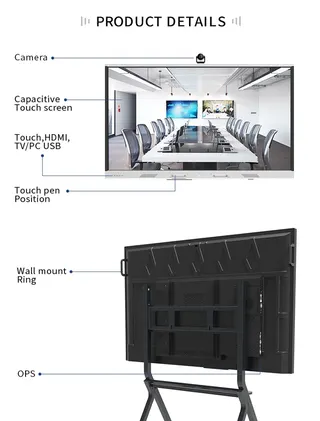

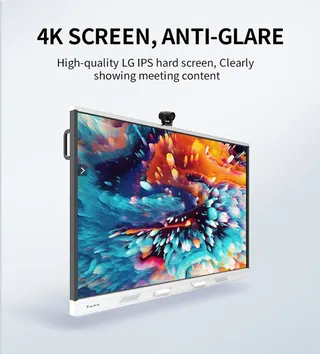

The Trend TD-65ID20U-Di7 packs the screen, touch sensing, speakers and computing into one unit, so a room needs no separate PC or touch overlay. The panel is a 3840×2160 UHD display running at 60Hz, with 450 cd/m² brightness and a 2000:1 contrast ratio. Two operating systems are installed: Android 6.0 and Windows, with Windows 7, 8 and 10 listed as supported versions.

Touch, picture and sound

The infrared touch frame recognises up to 20 touch points at the same time, so several students or participants can write or move objects together. The manufacturer states that more than 90% of the touch area is accurate to 2 mm, and the frame responds without pressure. The 4 mm tempered glass front has a light transmittance above 88%, and a 178°/178° viewing angle keeps the picture readable from the side of a room. Two built-in 5 W speakers handle audio for lessons and short calls, though a separate sound system is worth considering for large halls.

Ports, wireless and computing

The Android side offers three HDMI inputs, a VGA input, AV input and output, two USB 3.0 ports, a USB 2.0 port, two RJ45 Ethernet sockets and an SD card slot. The Windows side provides HDMI, VGA, USB 2.0, RJ45 and the USB touch connection, so a teacher's laptop can be attached directly. A Wi-Fi item is listed in the accessories, and a 3G or 4G network card is available as an option for the Windows side. The Windows system runs on an Intel i7 processor with 4GB of memory (8GB or 16GB optional) and a 120GB SSD. Android has 1.5GB of DDR3 memory and 32GB of storage.

Where it fits in Qatar

A private school in Al Wakrah refitting a classroom for group work is a typical case. A 65-inch screen suits a classroom of moderate size, and the 20 touch points let students solve a problem at the board together rather than taking turns. A government ministry meeting room in Msheireb could use the Windows side for presentation files, connect a laptop through HDMI, and use the touch frame during workshops. A company reception area in Lusail can use the touch screen for a visitor directory, and the wide viewing angle helps visitors read it from the side of the desk.

What to plan before you order

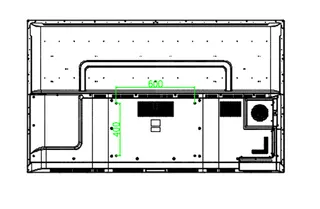

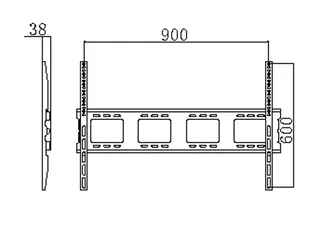

Plan the weight and the mount first. The listed weight is 67 kg and the listed dimensions are 1960.6 × 1161.8 × 96.8 mm, so a free site survey is worth booking before any wall fixing. A wall bracket and a movable or fixed floor stand are both available as options, and the choice depends on the wall structure and where the power outlet sits.

Heat is the second check. The listed operating range is 0°C to 50°C, with humidity from 20% to 80% without condensation. Qatar summers can exceed 45°C, so place the unit in an air-conditioned room away from direct sun and glass. The listed power input is 100 to 240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply, and a power cord is included. Confirm the plug fitting for BS 1363 sockets when you request the quote.

A 1080p conference camera, conference microphone, wireless presentation kit and wall bracket are offered as options and can be added to the quotation. The unit carries a 1-year manufacturer warranty.

Buying through SmartRooms Qatar

SmartRooms Qatar supplies this display, delivers it to all eight municipalities of Qatar, and arranges professional installation. Schools, ministries and companies can order against a purchase order (LPO) or a government tender, including Monaqasat, and pay by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and stock and lead time are confirmed on the quotation.

If you are planning a specific room, send its dimensions and mounting plan with your request so the quotation includes the right stand or bracket. Request a quote for the Trend TD-65ID20U-Di7 today and our team will prepare it.

Highlights

3840×2160 UHD panel at 60Hz with 450 cd/m² brightness
20 infrared touch points, over 90% of area accurate to 2 mm
Android 6.0 and Windows on one unit
Intel i7 processor with 4GB Windows memory standard
2000:1 contrast ratio and 178°/178° viewing angle
1-year manufacturer warranty, wall or floor mounting

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-65ID20U-Di7
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black

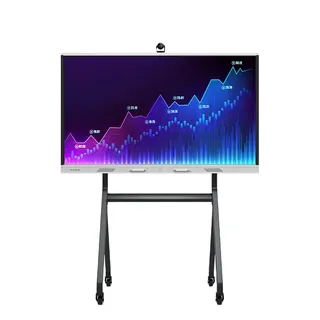

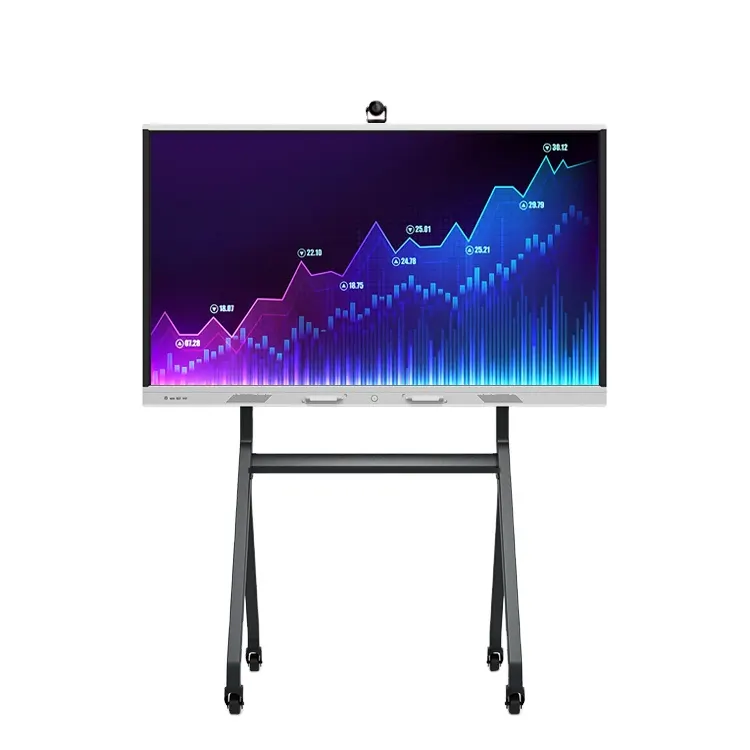

Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

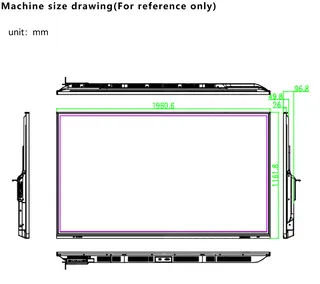

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I7/3520M/3540M(Windows)
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 65 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-65ID20U-Di7_Datasheet.pdf 569 KB

Questions about TD-65ID20U-Di7

What is the Trend TD-65ID20U-Di7 used for?

It is a 65-inch interactive display for teaching, meetings and presentations where several people need to write, annotate or move content on one screen. Its 20 touch points let a group work at the same board together. The listed application areas include government agencies, banks and company reception rooms, so it suits Doha offices as well as classrooms.

Which operating systems and Windows versions does it support?

The unit includes an Android 6.0 system and a Windows system, and the Windows side is listed for Windows 7, Windows 8 and Windows 10. The Windows side runs an Intel i7 processor with 4GB of memory and a 120GB SSD as standard. Android has 1.5GB of DDR3 memory and 32GB of storage. If your staff rely on a particular application, check it against the listed version when you request a quote.

How accurate and responsive is the touch?

The infrared touch frame supports 20 touch points, and the manufacturer states that more than 90% of the touch area is accurate to 2 mm. The frame needs no pressure to register input, and the panel has an 8ms response time. Listed input modes include stylus writing and keyboard input, which helps teachers write directly on the display during a lesson.

Will the display cope with Qatar's summer heat?

The listed operating range is 0°C to 50°C, with storage from -20°C to 60°C and humidity from 20% to 80% without condensation. Qatar summer temperatures can exceed 45°C, which leaves little margin, so install it in an air-conditioned room away from direct sun and glass. For a lobby with windows, confirm the position with the SmartRooms Qatar team during the site survey.

Does it work on Qatar's 240 V mains supply?

The listed power input is 100 to 240 V AC plus or minus 10% at 50/60 Hz. Qatar's 240 V, 50 Hz supply falls within that range, and a power cord is included. The source data does not state the plug type, so confirm the plug arrangement for BS 1363 sockets before ordering.

How do I connect a teacher's laptop?

Use an HDMI cable into one of the three HDMI inputs on the Android side, or the HDMI port on the Windows side. A VGA input is also fitted, and the USB touch connection carries touch data back to the computer. Check which port your laptop needs before installation, and send the list of devices with your request so the team can confirm the cables.

Is Wi-Fi included?

A Wi-Fi item is listed in the accessories, together with the remote control and base or bracket. For wired networking, the Android side has two RJ45 Ethernet sockets and the Windows side has an RJ45 socket. A 3G or 4G network card is an optional extra for the Windows side. Agree the network plan with your IT team before installation, especially for a school or ministry network.

Can it be wall-mounted or placed on a floor stand?

The listed installation types are on-wall, movable floor standing or fixed floor standing. A wall bracket and a movable or fixed floor stand are offered as options. The listed weight is 67 kg, so wall mounting should follow a free site survey that checks the wall structure against the listed dimensions of 1960.6 × 1161.8 × 96.8 mm.

Is 65 inches the right size for a meeting room in Msheireb?

A 65-inch panel suits a meeting room or boardroom of moderate size, where attendees sit within a comfortable viewing distance of the screen. For a government meeting room in Msheireb, measure the seating distance and wall width, then compare options with the SmartRooms Qatar team. Larger rooms with a broad audience usually call for a bigger screen.

Can a private school in Al Wakrah use it for group work?

Yes, refitting a classroom for group work is a realistic use. The 20 touch points let several students work at the board at the same time, and the 2 mm accuracy across most of the touch area suits handwriting. Two built-in 5 W speakers cover lessons in a classroom, and a larger sound system can be discussed at quotation stage if the room needs more volume.

Can it serve as a visitor display in a Lusail reception area?

Company reception rooms are among the listed application areas. The 178° viewing angle helps visitors read the screen from the side of a desk, and the touch screen can show a building directory or visitor information. If the reception faces glass that receives direct sun, keep the unit out of direct light and check the operating range during the site survey.

How do we buy it through an LPO or a government tender?

SmartRooms Qatar supplies the Trend TD-65ID20U-Di7 against purchase orders (LPO) and government tenders, including Monaqasat. Payment is by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, and the unit carries a 1-year manufacturer warranty. Send the room details and mounting plan with your request so the purchase order matches the configuration.
