Name: Trend TD-75ID20U-A 75-inch Interactive Display with 20 Touch Points
Brand: Trend
SKU: trend-td-75id20u-a
Availability: InStock

Overview

The Trend TD-75ID20U-A is a 75-inch 4K interactive display with infrared touch for 20 touch points and Android 6.0 built in. It delivers 3840×2160 resolution, 450 cd/m² brightness and 2000:1 contrast, with three HDMI inputs and dual Ethernet ports. Suited to classrooms, boardrooms and government reception areas across Qatar, it is supplied with a remote, base or bracket and WiFi. Request a quote for delivery and installation.

What the TD-75ID20U-A is built to do

The Trend TD-75ID20U-A is a 75-inch interactive display for teaching, meetings and public-facing rooms. Touch input comes from an infrared frame that tracks up to 20 touch points, so more than one person can work on the same surface. Android 6.0 runs on the panel itself, so lessons, presentations and web content can be opened without connecting a separate computer. The 16:9 TFT-LCD panel uses WLED backlighting and offers a 178°/178° viewing angle, so content stays readable for a seated audience.

Display and touch figures that matter on a shared screen

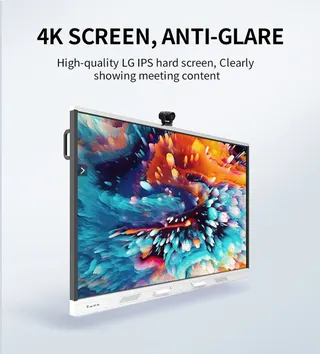

The panel resolution is 3840×2160 at 60Hz, which gives the UHD detail needed for spreadsheets, engineering drawings and small text at 75 inches. Brightness is rated at 450 cd/m² with a 2000:1 contrast ratio, and the 4mm tempered glass front has a transmittance above 88%. Touch accuracy is specified so that more than 90% of the touch area registers within 2mm, with zero-pressure touch and an induction life of 6 million times. Response time is 8ms.

Inputs, network and storage for daily use

Three HDMI inputs and one VGA input for laptops and external sources
Two RJ45 Ethernet sockets for wired network access
Two USB 3.0 ports, one USB 2.0 port and an SD card slot on the Android side
WiFi is listed among the supplied accessories

The standard configuration includes 1.5GB DDR3 memory and 32GB storage. Higher memory and storage options are available, so specify the configuration in your quotation if you need more local files or applications.

Where this 75-inch panel fits in Qatar

A training centre in Education City could install the panel in a seminar room where instructors annotate course material and trainees take turns at the screen. A government unit in Msheireb could use it in a public information area to show service guidance, while a company reception in West Bay could display visitor information and company introductions. The listed application areas include government agencies, banks, shopping centres and company reception rooms, which map well to these settings.

Planning the mounting, power and environment

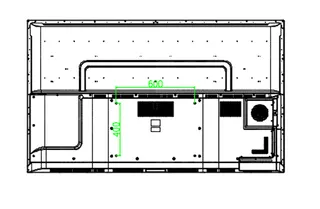

The panel measures 1960.6×1161.8×96.8mm and weighs 67kg, so wall mounting needs a structural check. Wall brackets and a movable or fixed floor stand are available as options. SmartRooms Qatar provides a free site survey before installation to confirm wall strength, cable routes and sightlines. The power supply accepts AC 100-240V at 50/60Hz, which covers Qatar's 240V 50Hz mains, and the power cord is supplied. Confirm during the survey that the cord fits BS 1363 sockets. The rated operating range is 0℃ to 50℃, with storage from -20℃ to 60℃. Keep the display away from direct sun and dust, and make sure the room is air-conditioned, since summer temperatures in Qatar can exceed 45°C.

Ordering through SmartRooms Qatar

Schools, ministries and companies ordering several units can request one quotation covering the panels, floor stands, wall brackets and optional conference camera, microphone or wireless presentation kit. SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar, arranges professional installation, and accepts purchase orders (LPOs) and government tenders. Quotations are usually issued within one working day. Request a quote with your room size and preferred mounting, and the team will confirm lead times with the quotation based on stock.

Highlights

75-inch panel with 3840×2160 UHD resolution at 60Hz
Infrared touch supporting 20 touch points with zero-pressure input
Android 6.0 on a quad-core Cortex-A53 1.5GHz processor
450 cd/m² brightness and 2000:1 contrast ratio
Three HDMI inputs, VGA, dual Ethernet and a touch USB port
Wall, movable or fixed floor stand installation; 1 Year warranty

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-75ID20U-A
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical49

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

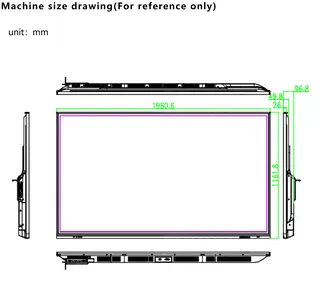

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android)
Response Time: 8ms
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional)
Size: 75 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-75ID20U-A_Datasheet.pdf 569 KB

Questions about TD-75ID20U-A

What is the Trend TD-75ID20U-A used for?

It is a 75-inch interactive display for teaching, conferences and public information. Its built-in Android 6.0 system and infrared touch frame let presenters annotate, open files and browse online without a separate computer. The source lists uses in government agencies, schools, banks, shopping centres and company reception rooms, making it a practical choice for shared rooms in Qatar.

How many touch points does it support and how accurate is the touch?

The infrared frame supports 20 touch points, and more than 90% of the touch area is accurate to 2mm. The touch function requires zero pressure, and the manufacturer rates the induction life at 6 million times. For classroom annotation and meeting use, this means taps and handwriting register precisely across most of the 75-inch surface.

Which operating system and hardware does it run on?

The panel runs Android 6.0 on a quad-core Cortex-A53 processor at 1.5GHz. The standard configuration includes 1.5GB DDR3 memory and 32GB storage. The source lists 4GB or 8GB memory and 64GB, 128GB or 256GB storage as options, so specify the configuration in your quotation if you expect heavy app use or large local files.

Can I connect a PC or use an OPS module with it?

The product description states that OPS and pull-type PC options are available, which lets you pair the display with a computer module. Standard connections include three HDMI inputs and one VGA input for laptops. Ask the SmartRooms Qatar team to confirm which PC option matches your existing computers and software before ordering, because the source does not name a specific module for this model.

What ports does the TD-75ID20U-A have?

On the input side there are three HDMI inputs, one VGA input, AV in and out, an earphone output and a USB port for touch. The Android side adds two RJ45 Ethernet sockets, two USB 3.0 ports, one USB 2.0 port and an SD card slot. Use the Ethernet sockets for a wired network connection and the HDMI inputs for laptops and media players.

Is 450 cd/m² bright enough for a room with windows?

The panel is rated at 450 cd/m² with a 2000:1 contrast ratio and a glass transmittance above 88%, which suits rooms where daylight is controlled by blinds. The 178°/178° viewing angle lets people seated at the sides read content clearly. If direct sun falls on the screen, position the panel away from the window and close the blinds during presentations.

Can it operate in Qatar's summer heat?

The rated operating temperature is 0℃ to 50℃, with humidity of 20% to 80% and no condensation. That range covers an air-conditioned room, but outdoor or unconditioned spaces in Qatar can exceed 45°C in summer. Plan for a cooled, dust-controlled room, keep the panel out of direct sunlight, and confirm the environment with the SmartRooms Qatar team during the free site survey.

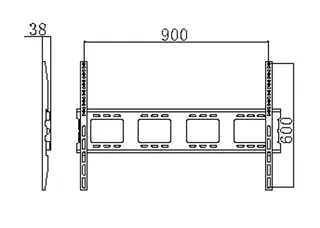

Which mounting options are available for this model?

The product supports on-wall, movable and fixed floor-standing installation. Wall brackets and a 75-inch movable or fixed floor stand are offered as options. The panel measures 1960.6×1161.8×96.8mm and weighs 67kg, so confirm wall structure or floor loading before mounting. SmartRooms Qatar provides a free site survey to check these points before installation is scheduled.

What power does it need and will it work with Qatar's sockets?

It accepts AC 100-240V at 50/60Hz, which covers Qatar's 240V 50Hz mains supply, and the power cord is included. Qatar uses BS 1363 (Type G) sockets, so confirm during the site survey that the supplied cord fits the planned outlets and whether any adapter or extension is needed at the wall position.

Which optional accessories can be added to the quotation?

Options listed for this model include a 1080p conference camera, a conference microphone, a wireless presentation kit, a wall bracket and a movable or fixed floor stand. Request them in one quotation so that mounting and meeting equipment are planned together. Each option appears as a separate line in the quotation, and the team can advise which combination suits your meeting room layout.

Is it suitable for a government office or public information point?

Yes. The listed application areas include government agencies and units for public information, as well as company reception rooms. In a ministry lobby or service centre in Msheireb, the panel can display service information and visitor guidance, with touch available for staff or members of the public. Plan the content and the mounting position together during the site survey.

Can we buy it through an LPO or government tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat tenders, with payment by bank transfer, cheque or purchase order. For a school or ministry buying several TD-75ID20U-A panels, the quotation can list the units, floor stands and optional camera and microphone together. The product is covered by the manufacturer's 1 Year warranty.
