Trend TD-75ID20U-Di5 · Price in Qatar

Name: Trend TD-75ID20U-Di5 75-inch Interactive Display, Android and Windows
Brand: Trend
SKU: trend-td-75id20u-di5
Availability: InStock

Overview

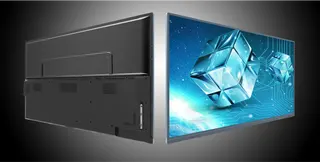

The Trend TD-75ID20U-Di5 is a 75-inch interactive display with a 4K UHD panel and a 20-point infrared touch frame. It runs Android 6.0 and Windows side by side, with an Intel i5 processor on the Windows side, and includes built-in speakers, a remote control and a 1-year manufacturer warranty. It suits mid-sized classrooms, training rooms and meeting rooms in Doha that need one screen for both teaching and video calls.

A 75-inch touch display for rooms that teach and meet

The TD-75ID20U-Di5 is a 75-inch interactive display built around a 3840×2160 (4K UHD) LCD panel at 60 Hz. An infrared touch frame reads up to 20 touch points at once, so several people can write, annotate or move content on the glass at the same time. The manufacturer rates touch accuracy at 2 mm across more than 90% of the touch area, and the 4 mm tempered glass front has a light transmittance above 88%.

Two operating systems and the hardware behind them

Each unit carries an Android 6.0 environment and a Windows environment, with Windows 7, 8 and 10 listed as supported. The Windows side is powered by an Intel i5 processor with 4 GB of memory and a 120 GB SSD as the base configuration. The Android side uses a quad-core Cortex-A53 processor at 1.5 GHz, 1.5 GB of DDR3 memory and 32 GB of storage. Larger memory and storage options are offered for both systems, which matters when a school or office needs heavier software or large media libraries kept on the device.

Picture, sound and ports that matter on site

The panel is rated at 450 cd/m² brightness and 2000:1 contrast, with a 178° horizontal and 178° vertical viewing angle and an 8 ms response time. Built-in 5 W speakers cover small and mid-sized rooms without extra audio hardware.

Video inputs include three HDMI ports, plus VGA and AV inputs. The Android side adds two RJ45 Ethernet sockets, USB 3.0 and USB 2.0 ports, an SD card slot and a headphone output, while a USB touch connection links the touch signal to a computer. Compare these ports with your presenters' laptops and cables before ordering, especially if their devices rely only on USB-C.

Where it fits in Qatar

A private school in Al Wakrah fitting out a mid-sized classroom for Arabic and English lessons, using the touch surface for group work and the Windows side for lesson software.
A company meeting room in West Bay where the team joins calls with colleagues abroad through a conference camera and microphone, both available as options for this model.
A training room in Msheireb for a government office running workshops in Arabic and English, where the 4K panel and 20-point touch let several trainees work at once.

What to plan for before installation

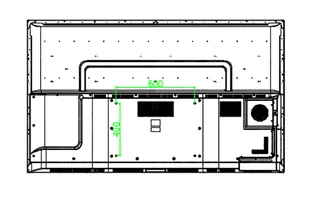

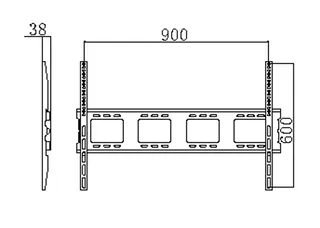

At 67 kg net, this is a heavy panel. Wall mounting needs a wall that can carry the load, so SmartRooms Qatar carries out a free site survey before a bracket is fixed. A floor stand, movable or fixed, is also available as an option, which suits rooms where walls cannot be drilled. The stated working range is 0°C to 50°C with 20% to 80% humidity and no condensation, so keep the unit in an air-conditioned room away from direct sunlight and dust. The power rating of 100–240 V, 50/60 Hz covers Qatar's 240 V, 50 Hz supply.

Request a quote for your room layout

Send your room dimensions, mounting preference and number of units to the SmartRooms Qatar team. We usually return a quotation within one working day, with each option listed as a separate line. We deliver to all eight municipalities of Qatar, install professionally, and accept purchase orders (LPOs), government tenders through Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote today.

Highlights

75-inch 4K UHD panel at 3840×2160 and 60 Hz
20-point infrared touch frame with 2 mm accuracy over most of the surface
Dual operating system: Android 6.0 and Windows 7, 8 or 10
Intel i5 processor on the Windows side
450 cd/m² brightness and 2000:1 contrast
1-year manufacturer warranty, wall or floor-standing installation

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-75ID20U-Di5
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

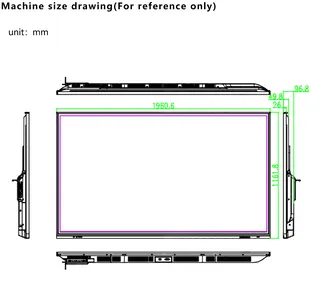

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I5/3210M/3230M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 75 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-75ID20U-Di5_Datasheet.pdf 569 KB

Questions about TD-75ID20U-Di5

Who is this 75-inch display best suited to in Qatar?

It suits mid-sized rooms where a 75-inch screen reads well from the back, such as a secondary classroom in Al Wakrah, a company meeting room in West Bay or a training room in Msheireb. Larger lecture halls and boardrooms usually need a bigger screen, and the SmartRooms Qatar team can advise on the right size for your room.

How many people can write on the screen at the same time?

The infrared touch frame supports 20 touch points, so up to 20 touches can register together. The manufacturer rates accuracy at 2 mm across more than 90% of the touch area. In a maths lesson at a school in Education City, several students can solve problems on the glass while the teacher runs the lesson from the same display.

Can I switch between Android and Windows on the same unit?

Yes. The display carries an Android 6.0 environment and a Windows environment, with Windows 7, 8 and 10 listed as supported. Presenters can use Android for apps and media, and Windows for office software and computer-based lesson tools. Confirm which Windows version your software needs before you order.

What processor and memory does it have?

The Windows side uses an Intel i5 processor with 4 GB of memory and a 120 GB SSD as the base configuration, with 8 GB or 16 GB memory options. The Android side uses a quad-core Cortex-A53 at 1.5 GHz with 1.5 GB DDR3 memory and 32 GB storage, with 4 GB or 8 GB memory and larger storage as options. State the configuration you need when requesting your quote.

What are the screen resolution and brightness?

The panel runs at 3840×2160 (4K UHD) and 60 Hz, with 450 cd/m² brightness, 2000:1 contrast and an 8 ms response time. In a Lusail office where daylight comes through the windows, the brightness helps with daytime presentations, but the screen should still be positioned to avoid direct sun falling on the glass.

Which ports are included?

The inputs include three HDMI ports, a VGA input and an AV input. The Android side adds two RJ45 Ethernet sockets, USB 3.0 and USB 2.0 ports, an SD card slot and a headphone output. These are the ports listed in the manufacturer data. Before ordering, list your presenters' laptops and cables to check they match.

Will it work with Qatar's power supply?

The power rating is 100–240 V, 50/60 Hz, which covers Qatar's standard 240 V, 50 Hz mains supply. The source data lists the power cord among the included items. Confirm the electrical connection arrangement for your site with the SmartRooms Qatar team when you request a quote.

Can it be wall mounted, and is a floor stand available?

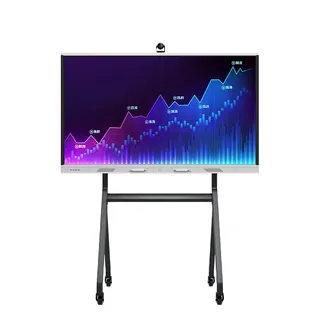

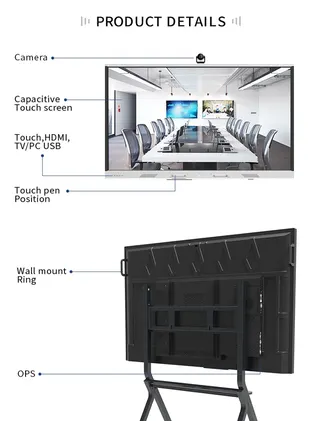

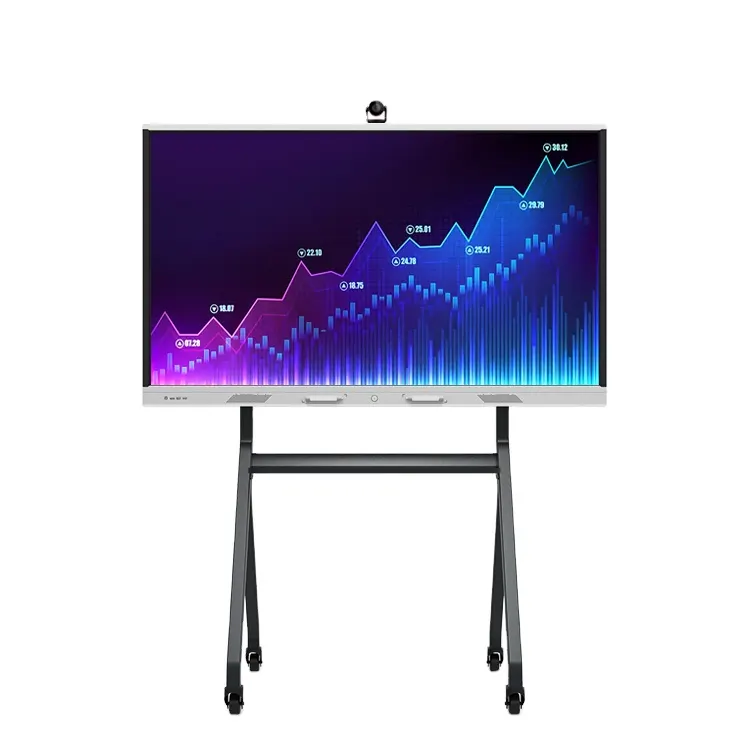

Yes. The listed installation types are on-wall, movable or fixed floor standing. A wall bracket and a 75-inch movable or fixed floor stand are available as options. At 67 kg net, the wall must carry the weight, so SmartRooms Qatar offers a free site survey before a bracket is fixed in a Doha office or school.

How hot can the room get for this display?

The stated working temperature range is 0°C to 50°C, with humidity of 20% to 80% and no condensation. Storage is rated from -20°C to 60°C. In summer, when outdoor temperatures in Doha can exceed 45°C, keep the display in an air-conditioned room away from windows and dust, and ask the team to check the location during the site survey.

Is the display covered by a warranty?

The manufacturer data gives a 1-year warranty. The package includes the user manual, warranty card and certificate of conformity. SmartRooms Qatar supplies the unit, delivers it to all eight municipalities and handles professional installation, and the team can confirm the warranty details with your quotation.

Can I add a conference camera and microphone?

Yes. A 1080p conference camera and a conference microphone are listed as options, along with a wireless presentation option. They suit a hybrid meeting where a team in Doha joins colleagues abroad by video. Ask for them to be included in the same quotation so the room is installed as one system.

Can a government office or school buy this with an LPO or through Monaqasat?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those on Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. A school or ministry buying several units can include this model in a single LPO or tender submission.
