Name: Trend TD-75ID20U-Di7 75-inch Interactive Display with 20 Touch Points
Brand: Trend
SKU: trend-td-75id20u-di7
Availability: InStock

Overview

The Trend TD-75ID20U-Di7 is a 75-inch interactive display with a UHD 3840×2160 panel, 20 infrared touch points and two operating systems, Windows and Android 6.0, in one black unit. The Windows side runs on an Intel i7 processor, the panel reaches 450 cd/m² brightness, and the manufacturer provides a 1-year warranty. It suits schools, universities, government offices and meeting rooms in Doha that need one display for teaching, presentations and collaborative sessions.

One Frame, Two Operating Systems

The Trend TD-75ID20U-Di7 is a 75-inch interactive display built around a panel with a 3840×2160 resolution at 60Hz. Rather than pairing a separate computer with a screen, the unit houses a Windows environment on an Intel i7 processor and an Android 6.0 environment for apps and web content. Both systems are available on the same panel, which helps rooms where teachers or presenters move between lesson software and online material during one session.

The screen is an S-PVA TFT-LCD with 450 cd/m² brightness, 2000:1 contrast and a 178°/178° viewing angle, so text and graphics remain readable from across a room. An 8ms response time and a WLED backlight complete the display specification. The front uses 4mm tempered glass with a transmittance above 88 percent, according to the manufacturer.

Touch Performance and Daily Use

Touch input is handled by an infrared frame that tracks 20 touch points at once, so several people can write, annotate or move objects together. The manufacturer states that more than 90 percent of the touch area is accurate to 2 mm and that the surface registers touch with zero pressure. Input modes include stylus and keyboard entry, which suits both handwritten annotations and typed content.

Where It Fits in Qatar

Classrooms and seminar rooms: a private school in Al Wakrah fitting out new teaching spaces can use a 75-inch panel where students sit several metres back.
Government and corporate meeting rooms: a ministry or energy company in West Bay or Lusail can run briefings from the Windows system and open web-based material from Android.
Lobbies and reception areas: a bank or real estate office in Msheireb or The Pearl can use the panel for visitor information, provided the room is air-conditioned.

Planning the Installation

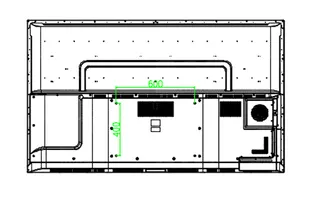

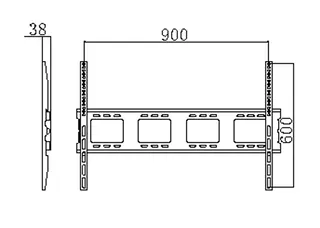

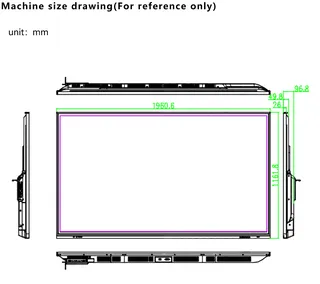

The unit weighs 67 kg net, 72 kg gross, and measures 1960.6 × 1161.8 × 96.8 mm. The source lists wall-mounted, movable and fixed floor-standing installation, and a wall bracket and movable or fixed floor stand are available as options for this model. Because of its size and weight, a free site survey is recommended to check wall structure, cable routes and socket position before installation. The operating range is 0 to 50 degrees Celsius with 20 to 80 percent humidity without condensation, so confirm that the room stays within these conditions, particularly during summer.

Request a Quote

If you are planning a classroom, meeting room or public-facing display in Qatar, request a quote from SmartRooms Qatar. Include the model TD-75ID20U-Di7, the quantity, the site location and any optional items you need, and the team will prepare a quotation for your review.

Highlights

75-inch UHD panel at 3840×2160 resolution and 60Hz
20 infrared touch points with zero-pressure touch
Windows with Intel i7 processor alongside Android 6.0
450 cd/m² brightness and 2000:1 contrast
Three HDMI inputs, VGA, and two RJ45 Ethernet ports

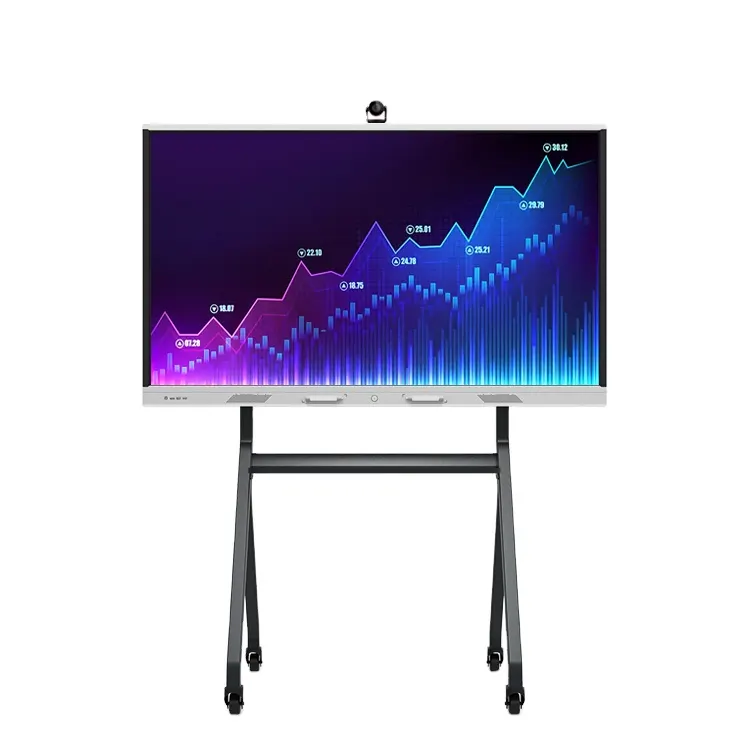

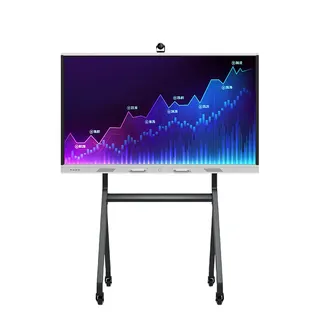

Wall-mounted, movable or fixed floor-standing installation

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-75ID20U-Di7
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat
Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I7/3520M/3540M(Windows)
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 75 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-75ID20U-Di7_Datasheet.pdf 569 KB

Questions about TD-75ID20U-Di7

Who is the Trend TD-75ID20U-Di7 designed for?

It suits organisations that need one large touch display for teaching, presentations and meetings without a separate computer on the desk. In Qatar, that includes government offices running briefings, private schools fitting out classrooms and corporate boardrooms in West Bay or Lusail. The 75-inch 16:9 panel with 20 touch points works well where several people write or annotate together during the same session.

How do the Windows and Android systems work on one panel?

The unit runs Windows 7, 8 or 10 on an Intel i7 processor, with 4GB memory and a 120GB SSD as the base configuration. Android 6.0 runs on its own processor with 1.5GB DDR3 memory and 32GB storage. The manufacturer lists single and dual system settings, so you can use Windows for lesson or meeting software and Android for web apps and online content.

How accurate is the touch on this model?

The infrared frame supports 20 touch points, and the manufacturer states that more than 90 percent of the touch area is accurate to 2 mm. Zero-pressure touch means a light touch registers without pressing into the glass. This is practical for handwritten annotations during a lesson or for moving objects during a team session. Ask the SmartRooms Qatar team which software your lessons or meetings need before you order.

Is 75 inches the right size for a classroom in Doha?

A 75-inch panel suits a medium to large classroom, a seminar room or a training room where students sit several metres from the screen. Smaller rooms may be better served by a smaller model. For a lecture hall at Education City or a boardroom in The Pearl, the size gives readable text across the room. Measure seating distance and available wall width before you decide.

Can it cope with summer heat in Qatar?

The manufacturer gives a working temperature range of 0 to 50 degrees Celsius, a storage range of -20 to 60 degrees and a humidity range of 20 to 80 percent without condensation. Summer temperatures in Qatar can exceed 45 degrees, so install the panel in an air-conditioned room and keep it out of direct sunlight from windows. Confirm your room conditions with SmartRooms Qatar before installation.

Will it run on Qatar mains power?

The power input is rated AC 100 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz mains supply. A power cord is included in the package. The source data does not state the plug type, so the SmartRooms Qatar team can confirm the plug and socket arrangement for your site. Plan for a suitable socket near the mounting point before the unit arrives.

Which connections are available for laptops and external sources?

The panel includes three HDMI inputs, a VGA input, AV input and output, a USB touch port, two RJ45 Ethernet sockets, USB 2.0 and USB 3.0 ports, an SD card slot and a headphone output. A laptop can connect over HDMI while the USB touch port handles touch input. Check which outputs your laptop or presentation source uses before ordering any additional cables.

Can it host meetings with teams abroad?

The panel has built-in speakers rated 2 x 6 ohm, 5 W each, and two RJ45 Ethernet sockets for a wired network connection. The manufacturer lists WiFi as an accessory and offers an optional network card supporting cable, WiFi, 3G and 4G access. For video calls with teams abroad, SmartRooms Qatar can quote the 1080p conference camera and conference microphone listed as options for this model.

What should I plan before wall mounting it?

The unit weighs 67 kg net and 72 kg gross, and measures 1960.6 by 1161.8 by 96.8 mm. Because of this weight, check wall structure, mounting height and cable routes before installation. SmartRooms Qatar offers a free site survey, which is useful for wall-mounted panels in lobbies, lecture halls and boardrooms, and a wall bracket or movable floor stand can be quoted for the chosen layout.

What comes in the box and what warranty applies?

The package includes a remote control, base or bracket, WiFi accessory, power cord, user manual, warranty card and certificate of conformity. The manufacturer provides a 1-year warranty on this model, and the product is covered by that warranty. SmartRooms Qatar can quote the wall bracket or movable floor stand separately if your installation requires them.

Can a government office or school buy it through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Send the model name TD-75ID20U-Di7, the quantity and the delivery location, and a quotation is usually issued within one working day. Multi-unit school orders can be quoted together with delivery, professional installation and a free site survey.
