Trend TD-86ID20U-Di3 · Price in Qatar

Name: Trend TD-86ID20U-Di3 86-inch Interactive Display with 20 Touch Points
Brand: Trend
SKU: trend-td-86id20u-di3
Availability: InStock

Overview

The Trend TD-86ID20U-Di3 is an 86-inch interactive display with a 4K UHD panel, an infrared touch frame that registers 20 touch points, and two operating systems: Android 6.0 and Windows 7, 8 or 10 on an Intel i3 configuration. Its 450 cd/m² brightness and 2000:1 contrast suit lecture halls, boardrooms and training rooms across Doha and the wider country. Wall, mobile and floor-standing installation is listed, and SmartRooms Qatar can quote the full package.

What the TD-86ID20U-Di3 brings to a room

The TD-86ID20U-Di3 is an 86-inch interactive display built around a 4K UHD panel at 3840×2160 and 60Hz. An infrared touch frame registers up to 20 touch points at once, so several people can write, drag and annotate on the same surface. It suits rooms where a group needs to work from one large screen rather than passing a laptop around.

Two systems share one housing. The Android side runs Android 6.0 on a quad-core Cortex A53 processor at 1.5GHz. The Windows side runs Windows 7, 8 or 10 on an Intel i3-based configuration. Teachers and presenters get a touch-first Android environment, and full Windows software is available when a lesson or meeting needs desktop applications.

Display, touch and audio figures that matter

The panel is rated at 450 cd/m² brightness and 2000:1 contrast, with a 178° horizontal and vertical viewing angle and an 8ms response time. It uses an S-PVA panel type with a WLED backlight and a 4mm tempered glass front, with transmittance stated above 88%. The touch is zero-pressure, and the manufacturer states that more than 90% of the touch area is accurate to 2mm. Two built-in 5W speakers handle room audio for classroom and meeting use.

Memory, storage and connections

Base memory is 1.5GB on the Android side with 32GB storage, and 4GB on the Windows side with a 120GB SSD. Higher memory and storage options are listed for both systems. Video inputs include three HDMI inputs and VGA on the Android side, with additional AV, PC and LVDS connections listed for the Windows side. Two RJ45 Ethernet sockets, USB 3.0 and USB ports including touch, an SD card slot and a headphone output complete the list. A WiFi accessory is included with the display.

Planning the installation in Qatar

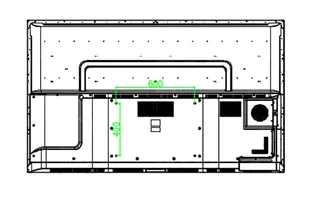

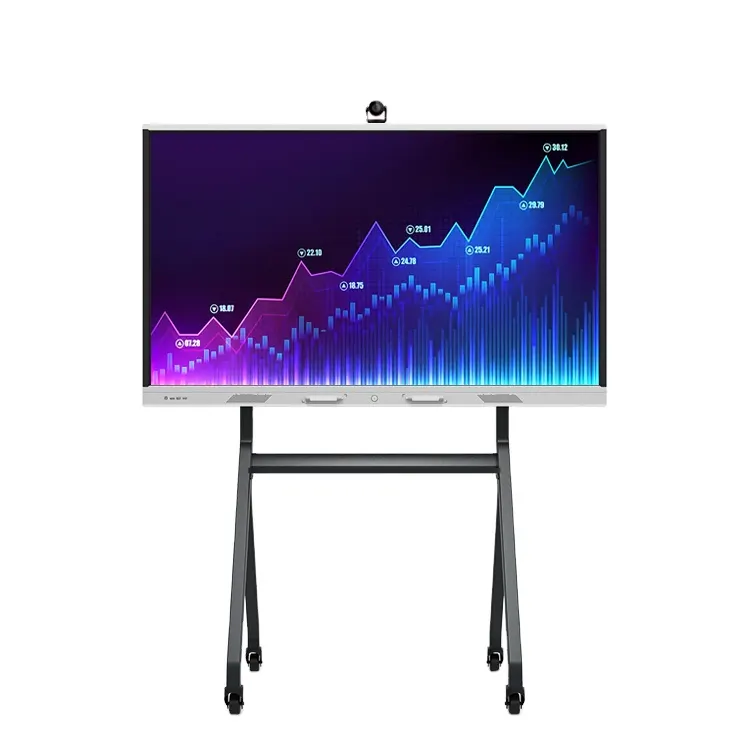

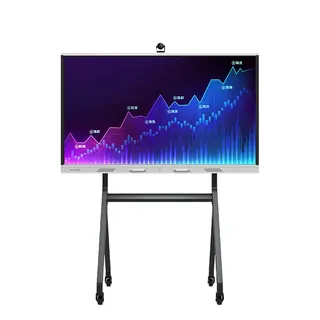

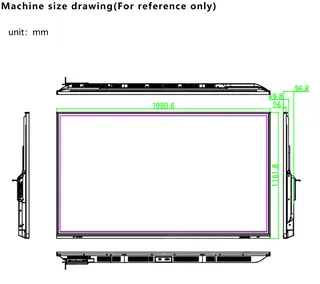

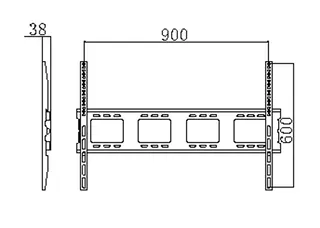

The unit measures 1960.6 × 1161.8 × 96.8 mm and weighs 67kg, or 72kg gross. It can be wall-mounted, moved on a mobile stand or fixed to a floor stand. A wall bracket, floor stand, 1080p conference camera, conference microphone and wireless presentation kit are listed as optional configurations, so the mounting choice and add-ons can be set in one quotation. Before wall mounting, the SmartRooms Qatar team offers a free site survey to check the wall structure, the cable route and the position of the power outlet.

The working temperature range is 0°C to 50°C, with humidity of 20% to 80% without condensation. Summer temperatures in Qatar can exceed 45°C, so place the display in an air-conditioned room, away from direct sun and dust. The listed power input is 100 to 240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The source does not specify a plug type, so the team will confirm the plug and cable before delivery.

Where it fits in Qatar

A university lecture hall in Education City can use the 86-inch panel so a presenter and a group of students annotate the same screen. A boardroom in West Bay can switch between a Windows application for financial reports and the Android side for a shared whiteboard session. A training room in the Industrial Area can use the 20 touch points for group exercises. Share the room dimensions, the mounting preference and any add-ons with SmartRooms Qatar and request a quote. Quotations usually arrive within one working day, and we supply against LPOs and government tenders.

Highlights

86-inch 4K UHD panel at 3840×2160 and 60Hz
Infrared touch frame with 20 touch points
Dual Android 6.0 and Windows 7, 8, 10 systems
Intel i3 Windows configuration with 120GB SSD base
450 cd/m² brightness and 2000:1 contrast
Wall, mobile or floor-standing installation; 1-year warranty

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-86ID20U-Di3
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat
Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I3/31100M/3130M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 86 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-86ID20U-Di3_Datasheet.pdf 573 KB

Questions about TD-86ID20U-Di3

What is the TD-86ID20U-Di3 best suited for in Qatar?

The TD-86ID20U-Di3 suits rooms where a larger group needs to view and touch the same screen, such as a lecture hall at a university in Education City, a boardroom in West Bay or a training room in an industrial area office. Its 86-inch 4K panel and 20 touch points let several presenters write and annotate together. Ask SmartRooms Qatar to confirm the room layout before you order.

Does the display run both Android and Windows?

Yes. The Android side runs Android 6.0 on a quad-core Cortex A53 processor at 1.5GHz with 1.5GB memory and 32GB storage. The Windows side supports Windows 7, 8 and 10 on an Intel i3-based configuration, starting with 4GB memory and a 120GB SSD. The source describes switching between single and dual systems as part of its modular design. Confirm which system your applications need before ordering.

How many touch points does it support and how accurate is the touch?

The infrared touch frame registers up to 20 touch points at once. The manufacturer states that more than 90% of the touch area is accurate to 2mm, and the touch is zero-pressure, so light contact is enough. Input options listed include stylus writing. For a classroom or meeting, this means several people can annotate the same screen without pressing hard.

Will the screen stay readable in a bright bank lobby in Msheireb?

The panel is rated at 450 cd/m² brightness with 2000:1 contrast and has a 4mm tempered glass front with transmittance stated above 88%. The source notes that higher transmittance depends on glass surface treatments such as AR or AG, which this listing does not specify. In a bright lobby, place the screen away from direct sunlight through glass and ask the SmartRooms Qatar team for placement advice.

Is it compatible with Qatar's 240 V mains supply?

The power specification lists AC 100 to 240 V with a plus or minus 10% tolerance at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The included item is a power cord, and the source does not state a plug type. SmartRooms Qatar will confirm the plug and cable with your quotation so the unit is ready for installation.

Can it be installed in a hot room during Qatar's summer?

The working temperature range is 0°C to 50°C, with humidity of 20% to 80% without condensation, and the storage range is -20°C to 60°C. Summer temperatures in Qatar can exceed 45°C, so install it in an air-conditioned room and keep it away from direct sun and dust. Confirm your room conditions with SmartRooms Qatar before the unit is mounted.

Can it be wall-mounted, or does it need a floor stand?

It is listed for on-wall, movable and fixed floor-standing installation. The unit measures 1960.6 × 1161.8 × 96.8 mm and weighs 67kg, or 72kg gross. A wall bracket and a floor stand are optional extras. Because the panel is heavy, SmartRooms Qatar offers a free site survey to check the wall structure before mounting, especially in a reception lobby or a new fit-out.

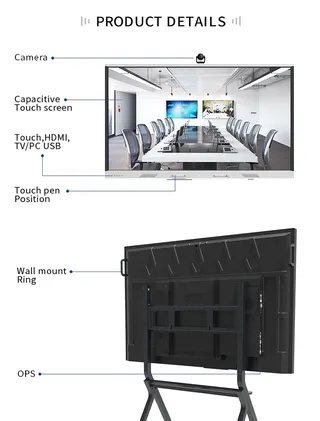

Which ports and inputs does it provide?

On the Android side, the listed inputs include three HDMI inputs, one VGA input, AV in and out, and an SD card slot. The Windows side lists HDMI, VGA, AV, PC and LVDS inputs with an RJ45 port. Both sides have two RJ45 Ethernet sockets, and the USB ports include touch connectivity and USB 3.0 on the Android side. Share your source devices with us so we can confirm the connection layout.

Does it support wireless connection?

A WiFi accessory is listed in the package contents, and the Windows configuration lists network card options for cable, WiFi and optional 3G or 4G access. For meeting rooms that rely on a stable connection, a wired Ethernet link is a sensible choice because two RJ45 sockets are provided. Specify your preferred network setup in your quote request.

Will a hotel conference room in Lusail be able to use it for bilingual sessions?

A hotel or serviced apartment conference room in Lusail often hosts sessions in both Arabic and English. The dual system lets event staff run Android-based presentation software or full Windows applications on one touch screen. The 86-inch panel and 20 touch points suit interactive sessions for groups. Send your room size and session format to SmartRooms Qatar to receive a quotation.

Can I add a camera, microphone and wireless presentation kit?

Yes. The manufacturer lists a 1080p conference camera, a conference microphone and a wireless presentation option as configuration choices alongside the wall bracket and floor stand. These can be included in one quotation, which keeps the mounting and conferencing hardware matched to the same room. Tell the team which add-ons you need when you request a quote.

What warranty and documents come with the display?

The product is listed with a 1-year warranty. The package includes a user manual, warranty card and certificate of conformity. SmartRooms Qatar supplies the display under the manufacturer's warranty. If your organisation needs the warranty terms for an internal approval, ask our team to include them with your quotation.

Can a school or ministry in Qatar buy it through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. For several units, such as a set of displays for an Arabic-curriculum school in Al Rayyan, send the full list with mounting details and the team will prepare one quotation, usually within one working day.
