Trend TD-86ID20U-Di5 · Price in Qatar

Name: Trend TD-86ID20U-Di5 86-inch Interactive Display with Dual OS
Brand: Trend
SKU: trend-td-86id20u-di5
Availability: InStock

Overview

The Trend TD-86ID20U-Di5 is an 86-inch interactive display with 20 touch points, a 4K UHD panel and two operating systems, Android and Windows, with an Intel i5 processor on the Windows side. Its infrared frame, 450 cd/m² brightness and built-in speakers suit teaching rooms, boardrooms and reception areas in Doha, Lusail and Education City. Request a quote from SmartRooms Qatar for wall or floor mounting.

What the panel does in a shared room

The TD-86ID20U-Di5 combines an 86-inch 3840×2160 panel, an infrared touch frame and two operating systems in one unit. It is designed for teaching and meeting use, so one screen can serve as a writing surface and a presentation display without a separate desktop computer beside it.

Touch performance and screen specifications

The infrared frame registers up to 20 touch points at the same time. The manufacturer states that more than 90% of the touch area is accurate to 2 mm, and the surface needs zero pressure to respond. Input is by finger or stylus, and the response time is listed as 8 ms. The 4 mm tempered glass protects the front. For picture quality, the screen is rated at 450 cd/m² brightness and 2000:1 contrast, with viewing angles of 178° both horizontally and vertically.

Choosing between the Android and Windows sides

The Android side runs Android 6.0 on a quad-core Cortex-A53 processor at 1.5 GHz, with 1.5 GB DDR3 memory and 32 GB storage. The Windows side runs Windows 7, 8 or 10 on an Intel i5 processor with Intel graphics, 4 GB memory and a 120 GB SSD. The data lists larger memory and storage options for both sides. Android suits apps and simple content sharing, while Windows suits staff who rely on desktop software. The data does not describe running both systems at once, so confirm how switching works with the SmartRooms Qatar team before ordering.

Connections for Qatar teaching and meeting rooms

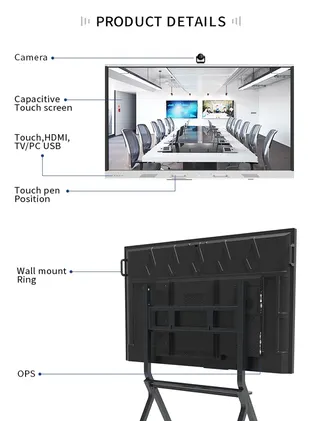

Inputs include HDMI, VGA and AV, along with a USB touch output, USB 3.0 and USB 2.0 ports, an SD card slot, an earphone socket and two RJ45 Ethernet sockets. The HDMI inputs handle 3840×2160 at 60 Hz. When a meeting links Doha with teams abroad, the wired network ports give a stable connection. Two built-in 5 W speakers cover small rooms, and a 1080p conference camera and conference microphone are available as options.

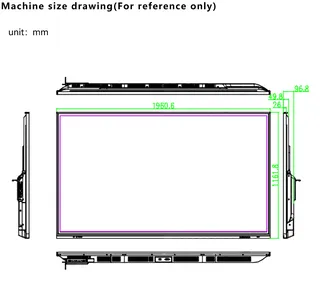

Size: 1960.6 × 1161.8 × 96.8 mm, net weight 67 kg.
Packaging: 2060 × 1264 × 190 mm, so check doorways and lifts on delivery day.

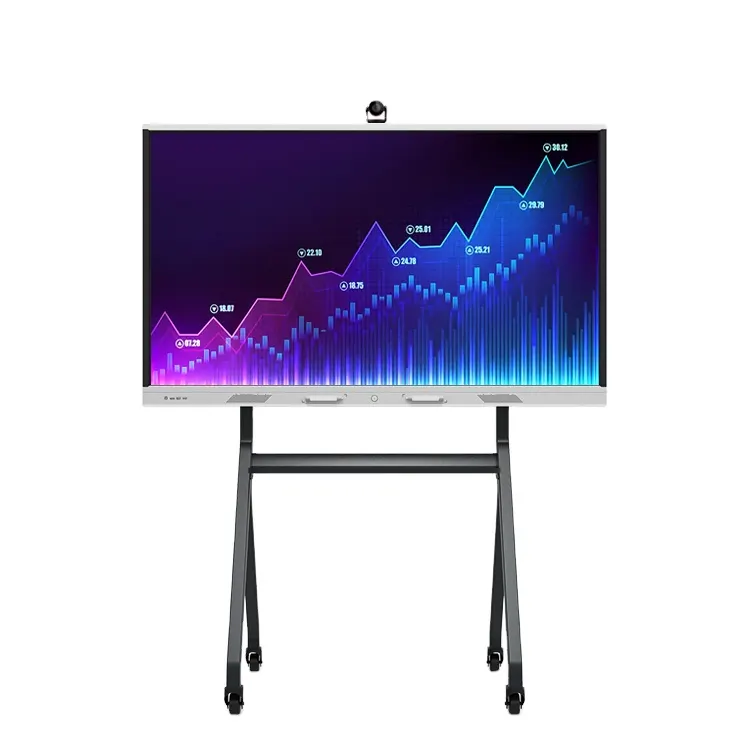

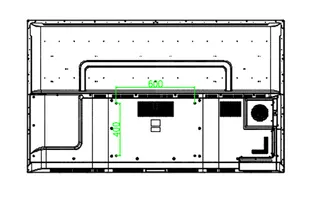

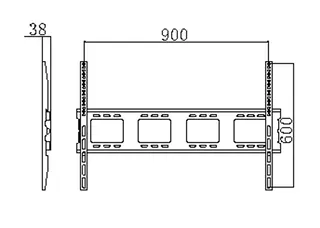

Mounting: on wall, movable or fixed floor standing. Wall bracket and floor stand are optional.
Environment: operating range 0 to 50°C, 20 to 80% humidity without condensation. Plan for an air-conditioned room.
Power: input 100 to 240 V, 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply.

Because of its weight, we recommend a free site survey before wall mounting to check the wall structure and access route. SmartRooms Qatar delivers to all eight municipalities and provides professional installation. Send your room measurements and mounting preference, and the SmartRooms Qatar team will return a quotation, usually within one working day.

Highlights

86-inch 3840×2160 UHD display at 60 Hz
20-point infrared touch with zero-pressure input
Dual operating system: Android 6.0 and Windows 7/8/10
Intel i5 processor on the Windows side
450 cd/m² brightness and 2000:1 contrast
Two RJ45 Ethernet sockets and HDMI inputs
One-year warranty listed by the manufacturer

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-86ID20U-Di5
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black
Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat
Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I5/3210M/3230M
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 86 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-86ID20U-Di5_Datasheet.pdf 572 KB

Questions about TD-86ID20U-Di5

Which rooms in Qatar suit the TD-86ID20U-Di5?

It suits larger teaching and meeting spaces where people sit farther from the screen, such as a lecture room in Education City or a boardroom in West Bay. The 86-inch 4K panel gives a readable image from the back row, and the 20-point touch lets several presenters write on the glass at once. Check rooms with heavy daylight for glare before mounting the screen near windows.

How accurate and responsive is the touch?

The infrared frame supports 20 touch points, and the manufacturer states that more than 90% of the touch area is accurate to 2 mm. The screen needs zero pressure to register input, and the response time is listed as 8 ms. For classrooms that rely on handwriting and quick annotation, these figures mean fine lines and steady input without pressing hard.

Can I run Android and Windows, and how do I choose between them?

The unit includes two operating systems: Android 6.0 and Windows 7, 8 or 10. Android suits apps and simple presentation work, while Windows suits staff who need desktop software. The data does not describe running both at the same time, so confirm how switching works with the SmartRooms Qatar team, and choose memory and storage options for the side you will use most.

What inputs and resolution does it accept from a laptop?

Inputs include HDMI, VGA, AV and a USB touch output, with two RJ45 Ethernet sockets and an SD card slot. The panel runs at 3840×2160 at 60 Hz, and the data lists decoding at the same resolution. A teacher's laptop can connect over HDMI for UHD content if the laptop outputs it, and the Ethernet ports help when a meeting links Doha with teams abroad.

Will the screen cope with Qatar's summer heat?

The stated operating range is 0 to 50°C with 20 to 80% humidity and no condensation, and storage is rated from -20°C to 60°C. Rooms can get far hotter in summer if air conditioning fails, so install the screen in an air-conditioned space rather than a glazed lobby in direct sun. The unit has a temperature-controlled fan. Agree a cooling plan with the team when you request a quote.

Does the power supply match Qatar's mains?

The power input is listed as 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. A power cord is included. The data does not describe the plug type, so confirm that the supplied cord suits BS 1363 sockets before installation, and ask SmartRooms Qatar to check this within the quotation so the electrician can plan the outlet position.

Can it be wall-mounted in an office, and what does installation involve?

Yes. The model is listed for on-wall, movable and fixed floor-standing use, and a wall bracket is available as an option. At 67 kg net, it needs a solid wall and at least two people to lift. SmartRooms Qatar offers a free site survey to check wall structure and access, followed by professional installation. Send your wall measurements and room layout with the quote request.

How much space and access route do I need?

The panel measures 1960.6 × 1161.8 × 96.8 mm, and the shipping package measures 2060 × 1264 × 190 mm. Check doorways, lifts and corridors in advance, especially in older buildings with narrow access. Measure the wall height too, so the centre of the screen can sit at a comfortable level for seated viewers. Include these dimensions in your quote request.

What is included in the box?

The listed accessories are a remote control, a base or bracket, and WiFi. The package also includes the power cord, a user manual, the warranty card and a certificate of conformity. The specification does not list a stylus among the accessories, so confirm with SmartRooms Qatar whether a pen is supplied or needs to be added to your order.

Which optional accessories can I add?

The listed options are a movable or fixed floor stand, a wall bracket, a 1080p conference camera, a conference microphone and a wireless presentation kit. A camera and microphone suit boardrooms where remote participants join from abroad. Add the options you need to one quotation so the screen and accessories are planned and installed together.

Can a ministry or school buy several units with a purchase order or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school fitting out several classrooms can issue one LPO covering all units, and quotations are usually issued within one working day. Ask for the wall-mount option and the site survey to be included in the quotation.

What warranty applies to this model?

The source data lists a one-year warranty, and products are covered by the manufacturer's warranty. Warranty terms beyond the one-year period listed by the manufacturer are best confirmed with the SmartRooms Qatar team when you request a quote. Keep the warranty card and the certificate of conformity with your asset records.
