Trend TD-86ID20U-Di7 · Price in Qatar

Name: Trend TD-86ID20U-Di7 86-inch Interactive Display with 20 Touch Points
Brand: Trend
SKU: trend-td-86id20u-di7
Availability: InStock

Overview

The Trend TD-86ID20U-Di7 is an 86-inch interactive display with 3840×2160 UHD resolution, 20 touch points and a 2000:1 contrast ratio. It pairs Android 6.0 with Windows, and the Windows side uses an Intel i7 processor. Wall and floor-stand mounting is supported, with a remote control in the box. It suits boardrooms and lecture halls in Doha, Lusail and Education City. Request a quote.

What the TD-86ID20U-Di7 does for a room

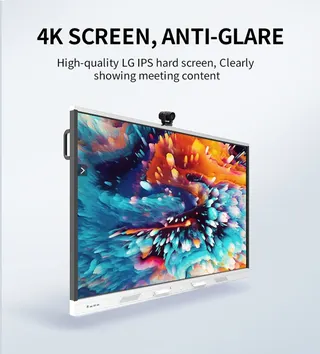

The TD-86ID20U-Di7 is an 86-inch interactive display with a 3840×2160 UHD panel refreshing at 60Hz. Its S-PVA panel is rated at a 2000:1 contrast ratio and a 178° viewing angle, so participants seated at the sides of a long table can still read slides, spreadsheets and handwritten annotations. An infrared touch frame provides 20 touch points, and the specification states that more than 90% of the touch area is accurate to 2mm. Touch registers with zero pressure.

Two operating systems on one unit

Many interactive panels depend on a separate computer. This model carries its own. The Android side runs Android 6.0 with 1.5 GB DDR3 memory and 32GB storage, while the Windows side runs Windows 7, 8 or 10 on an Intel i7 processor with 4GB memory and a 120G SSD. Higher memory and storage options are listed for both sides. Because both systems are built in, a school can run classroom apps on Android while an office user opens Windows software from the same screen, provided the setup is confirmed before ordering.

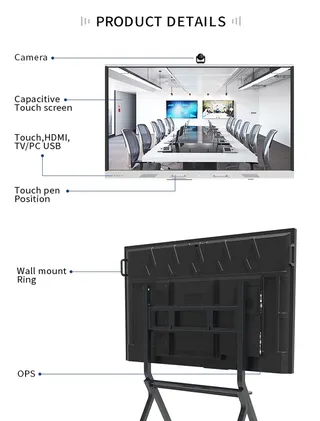

Connections, audio and accessories

The rear ports include three HDMI inputs, one VGA input, a USB touch connection and two RJ45 Ethernet sockets. The Android side adds two USB 3.0 ports, one USB 2.0 port and an SD card slot. Two 5W speakers and a headphone output are built in. The package includes a remote control, a base or bracket, a Wi-Fi accessory, a power cord, the manual and the certificate of conformity. A 3G or 4G network card is an optional extra on the Windows side.

Planning the installation in Qatar

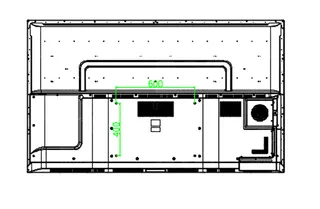

At 1960.6 × 1161.8 × 96.8 mm and 67kg net (72kg gross), this panel is a heavy item for wall mounting. Choose wall mounting or the movable or fixed floor stand based on the wall structure and room layout. SmartRooms Qatar offers free site surveys before installation, which is the right step for checking wall load, cable routes to the nearest outlet and sightlines from the seating area.

The stated operating range is 0°C to 50°C with 20% to 80% humidity, non-condensing. In Qatar, where outdoor temperatures can pass 45°C in summer, the room housing this display needs to be air-conditioned and kept within that range. The stated power input of 100 to 240V at 50/60Hz covers the 240V, 50Hz supply used in Qatar. The team will confirm the socket type on the quotation.

Where it fits in Qatar

University seminar room in Education City: a lecturer connects a laptop through HDMI, and students at the front annotate in turn using the 20 touch points.
Government ministry meeting room in Msheireb: bilingual Arabic and English presentations run from a Windows machine during Sunday to Thursday working sessions, with live markup on the same screen.
Hotel business centre in West Bay: a large display for client presentations and training sessions, where the Android side handles web content and the Windows side runs office software.

Options and next steps

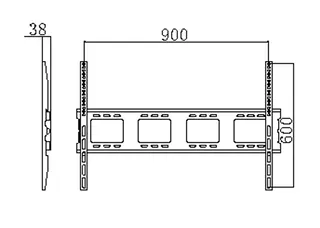

Optional items include a 1080p conference camera, a conference microphone, a wireless presentation kit, a wall bracket and a movable or fixed floor stand. The manufacturer warranty for this model is one year. SmartRooms Qatar supplies to all 8 municipalities, provides professional installation, usually issues quotations within one working day, and accepts LPOs, government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote with your room size, mounting preference and the add-ons you need.

Highlights

86-inch 3840×2160 UHD display refreshing at 60Hz
20 touch points on an infrared touch frame
Android 6.0 and Windows 7, 8 or 10 in one unit
Intel i7 processor on the Windows side
2000:1 contrast ratio and 178° viewing angle
Manufacturer warranty of one year

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Quick Details13

Brand Name: Trend Displays
Model Number: TD-86ID20U-Di7
Resolution: 3840×2160 (UHD) @60hz
Brightness: 450cd/m²
Contrast: 2000:1
Warranty: 1 Year
Input mode: Stylus writes keyboard
GPU: T720MP2(Android)
Touch Function: Infrared touch frame
Backlight: WLED
Speaker: 2×6Ω/5W(built in )
Color: Black

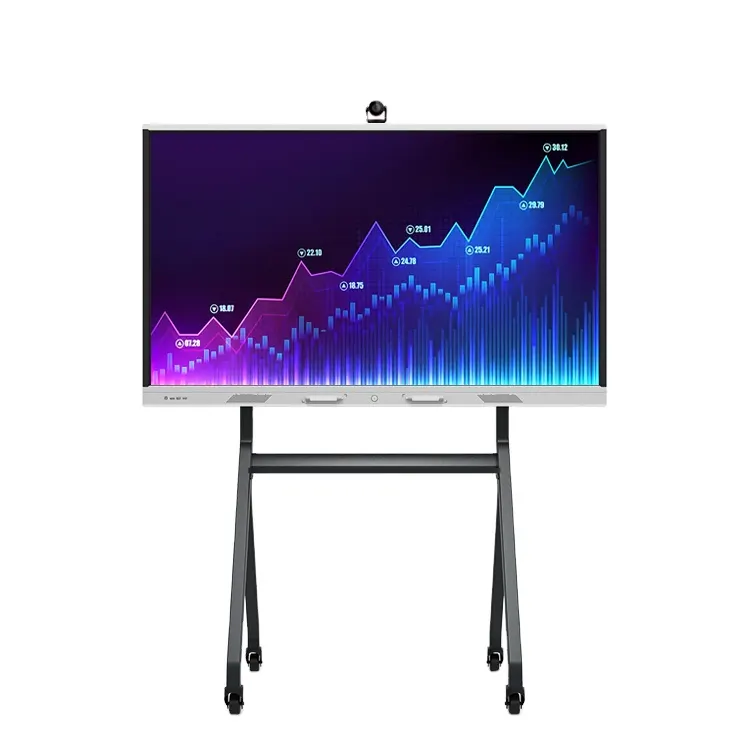

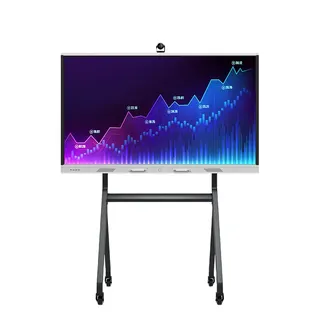

Installation type: On Wall, Movable or Fixed Floor Standing

Technical55

Accessories: Remote control, base/bracket, WiFi
Accuracy: More than 90% of the touch area is 2mm
ATV: NTSC,PAL,SECAM
Audio: Windows: The integrated sound card
Audio and video Input: MPEG1/2 layer I/II,AAC-Lc,WMA…
Cable: The power cord
Cooling system: Temperature-controlled fan dissipates heat

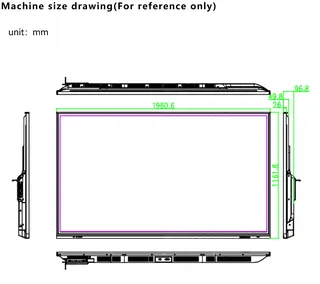

Dimension: 1960.6×1161.8×96.8mm
Display mode: S-ips, often black display, transmission
Display output function: Windows: HDMI*1 VGA*1 USB2.0*1 RJ45*1 USBTOUCH*1 AV*1 PC*1 LVDS*1 RF input headphones audio output
DTV: DTMB
Ethernet: X2 RJ45 Standard socket
Glass: 4mm tempered glass
Glass transmittance: > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Gross Weight: 72kg
I/O Ports: DZ-58-PTV : UNRT X1 DB9 Standard socket VGA IN x1 DB15 ,x1 external Standard socket AV IN x1 Small socket AV OUT x1 Small socket HDMI IN X3 HDMI in Standard socket, X1 pin USB(multimedia ) x1 USB 2.0 Standard socket USB(touch screen) x1 standard Type B building ，x1 external Earphone *1 Standard headphone socket. Android: Ethernet X2 RJ45 Standard socket VGA IN x1 DB15 ,x1 external Standard socket VGA
Induction life: 6 million times
Interface: USB 2.0(Full speed)
Maximum service time (hours/day): 24 hours
Network: Windows: Network support Support boot horizontal screen and portrait two display mode
Network Card: Windows: Support for the cable／WiFi／3G and 4G access (optional)
Number of infrared induction lines (W D): 32767×32767
Object induction number (IR): Touch at 20
Package size: 2060×1264×190mm
Power interface: 1W
Power supply: Full duplex usb-powered DC +5V up to 500mA
Shell material (face frame/back shell): Plastic/Sheet metal
Store humidity: 10%~90%(No condensation)
Switching power supply: Switching power supply European standard 220V two - phase three - wire system
System platform: Windows: QS77
The light resistance: It has light resistance
To protect the glass: 4mm toughened glass/level 7 earthquake resistant
Touch the strength: Zero pressure touch
User manual: Manual, warranty card, certificate of conformity
VGA: x1 DB15 ,x1 external Standard socket
Video: MPEG-2/4,AVS,H.264,H.265,TS,Realmedia…
Operating system: Windows: Windows7 / Windows8 / Windows10 Android: Android6.0
Type: TFT-LCD S-PVA
Viewing Angle: 178°/178°
CPU: Cortex A53*4 1.5GHz(Android) A77-I7/3520M/3540M(Windows)
Response Time: 8ms
Video Card: Windows: IntelCore graphicsIntel HD 3000
Power Consumption: AC100-240V~(+/-10%),50/60Hz
Decoding resolution: 1920*1080/60Hz ；3840*2160/60Hz(DZ-58-PTV ) 1920*1080/60Hz ；3840*2160/60Hz(Android)
Hard disk: Android: 32GB (Optional: 64/128/256 GB) Windows: 120G SSD (Optional: 240/512G SSD or 500G/1TB/2TB HDD)
Memory: Android: 1.5 GB DDR3 (4GB/8GB Optional) Windows 4GB (8GB/16GB Optional)
Size: 86 Inch
Standby Power Consumption: 385W
Display area: 16:9
MTBF: >60000H
Weight: 67kg
Working Temperature: 0℃~50℃
Chipset: MSD6190HB(DZ-58-PTV ) MSD648(Android) Intel(Windows)
Storage Temperature: -20℃~60℃
Humidity: 20%~80%(No condensation)

Downloads

1 file from the manufacturer

PDF Datasheets TD-86ID20U-Di7_Datasheet.pdf 572 KB

Questions about TD-86ID20U-Di7

Who is the TD-86ID20U-Di7 designed for?

It suits boardrooms, lecture halls and teaching spaces where a group needs to annotate and share content from one large screen. At 86 inches with 3840×2160 resolution, it works in rooms where people sit several metres back. Schools, universities, ministries and corporate offices in Doha, Lusail and Education City are typical buyers. For a smaller meeting room, compare a 65-inch model before ordering.

How many touch points does it support and how accurate is the touch?

The infrared touch frame supports 20 touch points. The specification states that more than 90% of the touch area is accurate to 2mm, and that touch works with zero pressure. This helps when several people write or drag content at the same time during a workshop or a classroom group activity. Confirm the touch setup with SmartRooms Qatar when requesting a quote.

Does it really run two operating systems?

Yes. The source data lists Android 6.0 and Windows 7, 8 or 10 as operating systems for this model. The Android side has 1.5 GB DDR3 memory and 32GB storage, while the Windows side has an Intel i7 processor, 4GB memory and a 120G SSD. Before ordering, ask the SmartRooms Qatar team which system should be the default for your classroom or boardroom setup.

What memory and storage options are available?

Android memory starts at 1.5 GB DDR3, with 4GB or 8GB listed as options, and storage starts at 32GB with 64, 128 or 256GB options. On the Windows side, memory starts at 4GB with 8GB or 16GB options, and storage starts at a 120G SSD with 240G or 512G SSD and 500G, 1TB or 2TB HDD options. Choose higher options for heavy desktop software or large files, and confirm the configuration on your quotation.

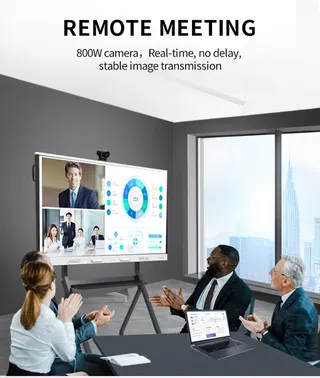

Can I connect a laptop, a camera or a video conferencing system?

The rear ports include three HDMI inputs and one VGA input for laptops and external sources. The USB touch connection links the touch frame to a computer. Two RJ45 Ethernet sockets are provided, and the Android side has additional USB ports. A conference camera, conference microphone and wireless presentation kit are available as optional add-ons that SmartRooms Qatar can include in your quotation.

Is Wi-Fi included with this display?

A Wi-Fi accessory is listed in the package contents. The Windows side also supports cable connectivity, and a 3G or 4G network card is available as an optional extra. For a boardroom in Lusail where the IT team prefers wired access, the two RJ45 Ethernet sockets give a fixed connection. Ask SmartRooms Qatar to confirm the accessories supplied with your unit at quotation stage.

Can it be wall-mounted in a meeting room?

Yes. The source data lists wall mounting as well as a movable or fixed floor stand. The panel measures 1960.6 × 1161.8 × 96.8 mm and weighs 67kg net, or 72kg gross. Because of that weight, SmartRooms Qatar offers a free site survey to check the wall structure, cable routing and sightlines before mounting. A wall bracket and a floor stand are available as optional items.

How will it cope with Qatar summer heat?

The stated operating range is 0°C to 50°C with 20% to 80% humidity, non-condensing, and storage from -20°C to 60°C. Summer temperatures in Qatar can exceed 45°C outdoors, so the room should be air-conditioned and kept within the operating range. Keep the panel out of direct sunlight from windows. Confirm the room environment with the SmartRooms Qatar team before ordering.

What power supply does it need?

The source data lists a power input of 100 to 240V at 50/60Hz, and a power cord is included. That range covers Qatar's 240V, 50Hz mains supply. The site survey will check the socket and circuit near the mounting position, so plan for a suitable outlet close to where the panel will sit.

Is it a good fit for a university seminar room in Education City?

For a medium-sized seminar room, the 86-inch screen lets students at the back read slides clearly, and the 20 touch points allow several people to annotate in turn. The lecturer can connect a laptop through HDMI, while the Android side handles apps and web content. Plan the power and network connections during the site survey so the room is ready for installation.

Can a government ministry buy this display through a tender?

Yes. SmartRooms Qatar supplies government ministries and authorities through LPOs and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. The manufacturer warranty for this model is one year, and the certificate of conformity is included in the package for your procurement file. Request a quote with your tender reference.

What comes in the box?

The source data lists a remote control, a base or bracket, a Wi-Fi accessory, a power cord, the user manual, a warranty card and a certificate of conformity. Optional items include a 1080p conference camera, a conference microphone, a wireless presentation kit, a wall bracket and a movable or fixed floor stand. Ask SmartRooms Qatar to confirm which items are supplied with the unit and which should be added to your quotation.
