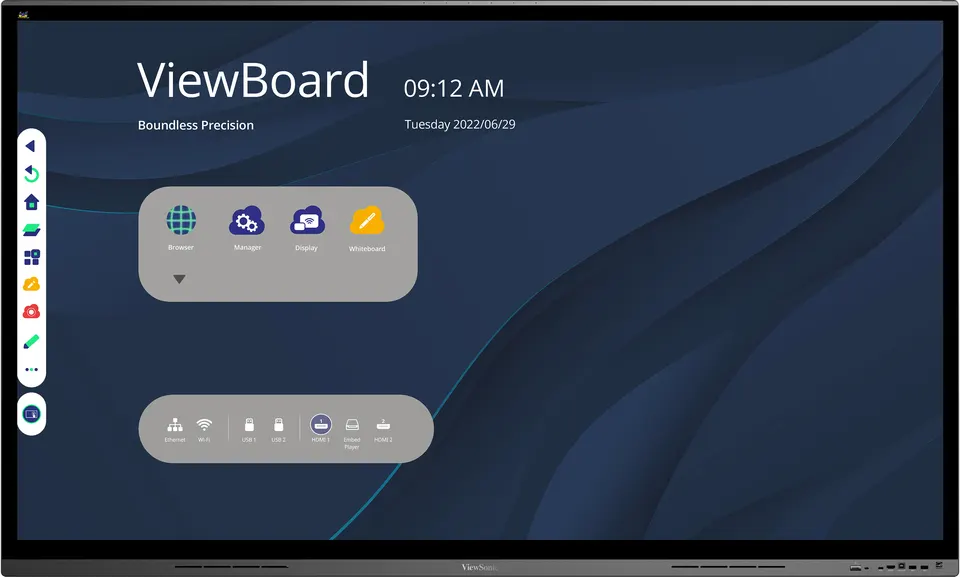

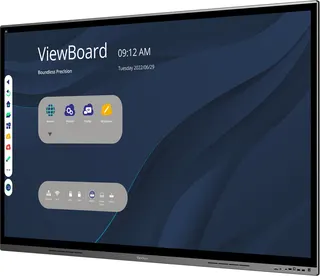

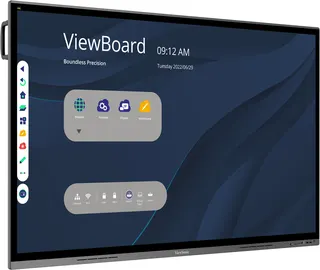

ViewSonic ViewBoard 7562 75-inch Interactive Display

Screen size: 75"
Resolution: UHD 3840x2160
Memory: 3GB DDR4
Storage: 32GB eMMC

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic ViewBoard 7562 is a 75-inch interactive display with a 4K UHD panel, 20-point touch and an Android system. A USB-C port delivers 65W power and video through one cable, and myViewBoard Manager lets IT teams update and control several displays from one place. It suits boardrooms, training rooms and classrooms in Doha, West Bay and Education City where teams write, share and join video calls on one screen. Request a quote for supply and installation across Qatar.

What the ViewBoard 7562 Is

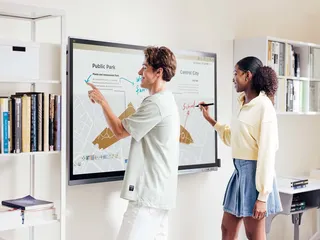

The ViewSonic ViewBoard 7562 is a 75-inch interactive display that combines a large 4K UHD screen, multi-user touch and a built-in Android system. It is designed for rooms where people write, annotate and share content together, and where the same screen must also handle video calls and wireless presentations. The display area measures 1650.24 mm by 928.26 mm.

Picture, Touch and Audio Performance

The 3840 x 2160 panel delivers a typical brightness of 400 nits and a typical contrast ratio of 5000:1, with an 8.5 ms response time. The surface is rated 9H pencil hardness, which suits everyday pen use in busy rooms. Touch is projected capacitive with 20 touch points, so several people can write at the same time. Two passive styluses are included with the unit.

Bezel measurements: top 38.7 mm, bottom 63.6 mm, and 31.1 mm on each side.
Audio: 12W x 2 speakers and a 15W subwoofer, with a six-element microphone array that picks up voices from up to 8 meters.

Connectivity and Meeting Tools

Four HDMI inputs, one VGA input, a PC audio input, RS232, Wi-Fi and an OPS slot give the room flexibility for laptops, document cameras and control systems. The USB-C port supplies 65W power delivery alongside the picture, so one cable can serve a compatible laptop. Wireless sharing uses ViewBoard Cast, where up to four attendees can cast their screens at once in a split-screen layout, and myViewBoard Display, which projects through a browser without a dongle or pre-registration.

The unit is listed as compatible with the ViewSonic VB-AUD-201 conference speakerphone and VB-CAM-201 video conference camera, so a room can be built around the display as a complete meeting setup. Neither accessory is part of this model's package contents, so confirm the pairing with your quotation.

Where It Fits in Qatar

A boardroom in Msheireb or West Bay is a good match for the 7562. A senior team can annotate a shared plan on the screen while a colleague abroad joins through a video call, and the built-in speakers and microphone array provide a starting point for basic calls.

A training room at a centre in Education City can use myViewBoard Manager to update software on every display from one point. During group exercises, up to four trainees can share their screens with ViewBoard Cast.

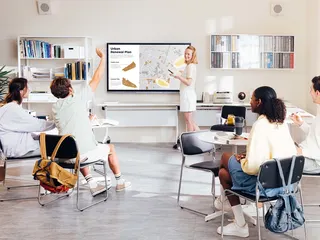

A private school in Al Wakrah fitting out a seminar room can use the touch surface for lessons, with the Android system and the bundled annotation software for teachers.

Planning the Installation

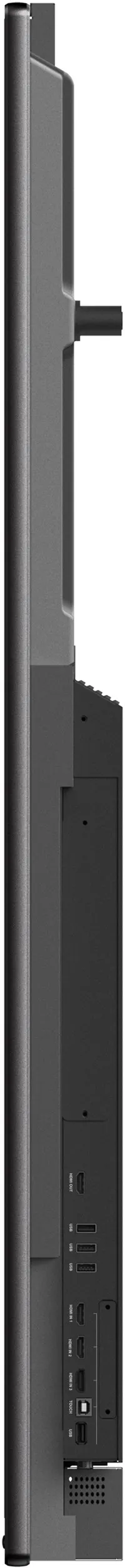

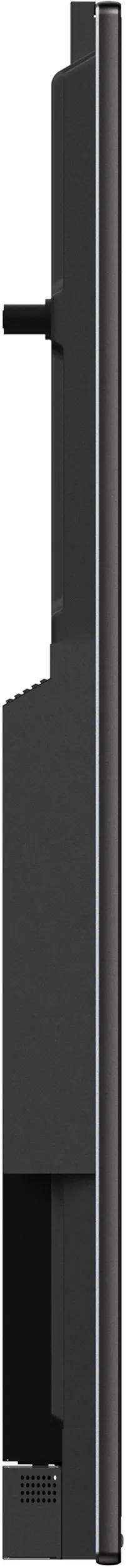

Physical size: 1712 x 1031 x 78 mm.
Weight: 50.05 kg net and 66.3 kg gross, so plan a safe lifting team and a wall rated for the load.
Environment: operating range 0°C to 40°C and 20% to 80% RH non-condensing. In Qatar summers, use air-conditioned rooms only.
Power: 100-240VAC wide range, 160W typical when on and under 0.5W when off.
Mounting: a plate, five clamps and eight screws are included.

A free site survey checks wall structure, viewing height and cable routes before installation. Products are covered by the manufacturer's warranty, and SmartRooms Qatar supplies through purchase orders (LPOs) and government tenders, including Monaqasat. Delivery covers all eight municipalities of Qatar.

Request a Quote

Send your room size, number of units and intended mounting location. The SmartRooms Qatar team will return a quotation, usually within one working day. Request a quote for the ViewSonic ViewBoard 7562 today.

Highlights

Large 4K UHD panel at 3840 x 2160 resolution
20-point projected capacitive multi-touch with two passive styluses
Embedded Android system with myViewBoard WhiteBoard included
USB-C port delivers 65W power and video on one cable
12W x 2 speakers, 15W subwoofer and six-element microphone array
Centralized myViewBoard Manager for IT scheduling and control

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

49 specifications · Source: manufacturer · checked Oct 2026

Display12

Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1650.24(H) x 928.26(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07G (8bits + FRC )
Brightness: 400 nits (typ.)
Contrast Ratio: 5000:1 Typ.
Response Time: 8.5ms
Viewing Angles: ( R/L 178 (Min.), U/D 178 (Min.))
Surface Treatment: Hardness: 9H pencil
Bezel: Top: 38.7 mm Bottom: 63.6 mm Left: 31.1 mm Right:31.1 mm

Platform3

Processor: ARM Cortex A73 *2+ A53*2
RAM: 3GB DDR4
Storage: 32GB eMMC

Touch3

Type/ Tech: Ultra Fine Touch Plus Technology (Projected Capacitive)
Touch Resolution: 32767 x 32767
Touch Point: 20

INPUT7

HDMI: x4
RGB / VGA: x1
Audio: 1x PC-Audio IN
MIC(Microphone): Full band 6-element MEMS microphone array
RS232: x1
OPS: x1
WiFi: x1

OUTPUT3

HDMI: x1
Audio: x1
SPDIF: x1

LAN1

RJ45: x2

USB3

Type A: x6
Type B: x2
Type C: x1

SPEAKERS1

Value: 12W x 2 + 15W x 1 Subwoofer

Embedded OS1

Value: Android

Bundle Software3

Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display & AirServer

Special Features1

Simple LAN sharing between IFP and slot-in device: Yes

Power2

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On:160W( typ.) / Off:

OPERATING CONDITIONS2

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

DIMENSIONS (W x H x D)2

Physical (inch / mm): 67.4 x 40.6 x 3.1 in / 1712 x 1031 x 78 mm
Packaging (inch / mm): 72.8 x 44.1 x 10.6 in / 1848 x 1121 x 270 mm

WEIGHT2

Net (lb / kg): 110.34 lb / 50.05 kg
Gross (lb / kg): 146.17 lb / 66.3 kg

REGULATIONS1

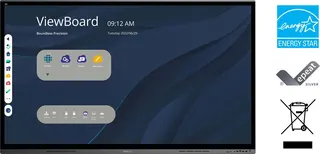

Value: cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM, Mexico Energy, EMC/CE, CB/LVD, GOST-R / EAC, UkrSEPRO, UKCA, LBL, Green BOM, RoHS, ErP, REACH, SCIP, WEEE, TPCH, CA65, PAIA

PACKAGE CONTENTS1

Value: 1. Power cable (by ship area) 2. Remote control 3. AAA battery X2 4. USB cable Type C 5. Passive stylus x 2 6. Quick Start Guide 7. Compliance statement 8. RS232 adapter 9. Plate 10. Clamp x 5 11. Screw x 8 (4 for wall mount ,4 for plate) 12. HDMI cable 13. Touch USB cable

Compatible Slot-in PC1

Value: VPC12-WPO, VPC2C-O, VPC25-O, VPC27-O series

Downloads

15 files from the manufacturer

Questions about 7562

Who is the ViewBoard 7562 built for?

It suits meeting rooms, boardrooms, classrooms and training rooms where several people need to write, annotate and share content on one large screen. The 75-inch size suits a medium-sized room, while a large lecture hall would need a bigger panel. The 4K UHD panel gives a clear view across the room, and its 20-point touch allows several users to write at the same time.

Can it be used in a hot, non-air-conditioned space in Qatar?

No. The operating range is 0°C to 40°C with 20% to 80% relative humidity, non-condensing. Summer temperatures in Qatar can exceed 45°C, so install the display only in air-conditioned rooms and keep it away from open lobbies, sun-facing glass walls and outdoor areas. Confirm your room conditions with the SmartRooms Qatar team before requesting installation.

What are the screen resolution, brightness and contrast?

The panel has a 3840 x 2160 UHD resolution in a 16:9 aspect ratio, with a typical brightness of 400 nits and a typical contrast ratio of 5000:1. Response time is 8.5 ms, viewing angles are at least 178 degrees horizontally and vertically, and the surface is rated 9H pencil hardness. Colour depth is listed as 1.07 billion colours using 8-bit with FRC.

Does the 7562 run Windows or Android?

The display runs Android as its embedded operating system and includes myViewBoard WhiteBoard for Android for basic annotation. For Windows applications, the 7562 has one OPS slot that works with the VPC12-WPO, VPC2C-O, VPC25-O and VPC27-O slot-in PC series. A slot-in PC is not listed in this model's package contents, so confirm with the SmartRooms Qatar team whether you need one.

What ports are available for laptops, cameras and room systems?

Inputs include four HDMI, one VGA, one PC audio input, one RS232, one OPS slot and Wi-Fi, plus two RJ45 LAN ports. Outputs include one HDMI, one audio and one S/PDIF. USB has six Type-A, two Type-B and one Type-C port. This gives a room enough connections for a laptop, a document camera and a control system at the same time.

Does one USB-C cable charge a laptop and show the picture?

The USB-C port supports 65W power delivery, so one cable can carry the picture from a compatible laptop and charge it at the same time. Check that your laptop's USB-C charging supports 65W power delivery before relying on it, since 65W is the maximum the panel supplies over that port.

Is it compatible with ViewSonic's speakerphone and camera?

Yes. The product data lists compatibility with the ViewSonic VB-AUD-201 conference speakerphone and VB-CAM-201 all-in-one video conference camera. The built-in speakers are 12W x 2 with a 15W subwoofer, and the six-element microphone array is rated to collect voices from up to 8 meters. Neither accessory is in the box, so confirm the pairing and room layout with SmartRooms Qatar.

How do IT teams manage several displays at a school or ministry?

myViewBoard Manager is a web-based tool that lets administrators control multiple displays from one place. Tasks such as software updates, screen on or off, power off and media broadcast can be scheduled ahead of time across devices. Administrators can also restrict user access to features and devices, and all data is consolidated for clear usage insights. This suits a ministry or school group running a fleet of displays across several rooms.

Does it suit Qatar's 240 V mains supply?

The power input is listed as 100-240VAC with a wide range of plus or minus 10%, which covers the 240 V supply used in Qatar. Typical consumption when on is 160W, and standby draws under 0.5W. The supplied power cable depends on the shipping region, so confirm the plug matches the BS 1363 Type G socket in your room before installation.

What size and weight should I plan for when wall mounting?

Physical dimensions are 1712 x 1031 x 78 mm, with a net weight of 50.05 kg and a gross packaged weight of 66.3 kg. The package includes a plate, five clamps and eight screws, four for the wall mount and four for the plate. Book a free site survey to check that the wall can carry the load and that the mounting height suits your seating, and plan a team to lift the panel.

Can a school or government body order through an LPO or tender?

Yes. SmartRooms Qatar supplies the 7562 on purchase orders (LPOs) and through government tenders, including Monaqasat. Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order. Delivery covers all eight municipalities of Qatar, and professional installation is available for units ordered for several rooms.

What does the box contain?

The package includes a power cable matched to the shipping region, a remote control with two AAA batteries, a USB Type-C cable, two passive styluses, a quick start guide, an RS232 adapter, an HDMI cable and a touch USB cable. Wall mounting parts, a plate and five clamps are also included. Check this list against your quotation to see which accessories, such as a camera or speakerphone, you still need.
