ViewSonic Interactive Flat Panels Current

8662

ViewSonic ViewBoard 8662 86-inch 4K Interactive Flat Panel

Screen size: 86"
Resolution: UHD 3840x2160
Memory: 3GB DDR4
Storage: 32GB eMMC

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic ViewBoard 8662 is an 86-inch interactive display with a 3840x2160 UHD panel, 20-point multi-touch and built-in Android. It combines annotation, wireless presentation and video conferencing on one screen, with a USB-C port rated for 65W power delivery and an OPS slot. It suits lecture halls and boardrooms across Qatar that need one large display for teaching, meetings and calls. Request a quote.

An 86-inch display for rooms that write, present and call at once

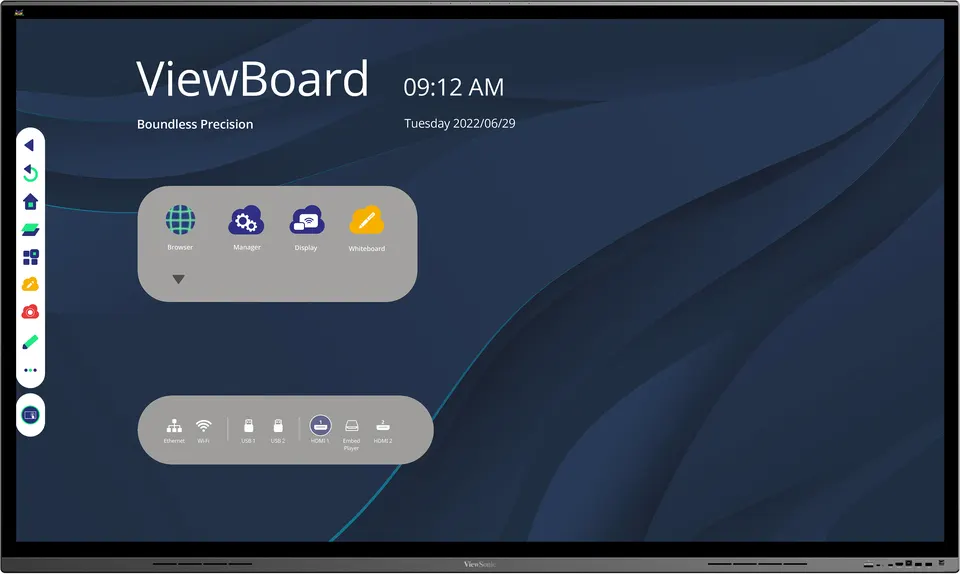

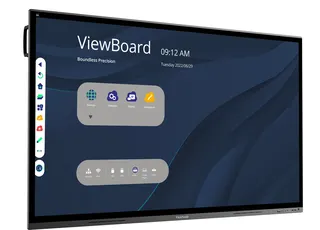

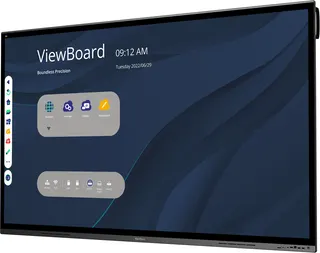

The ViewSonic ViewBoard 8662 is a large-format interactive flat panel built around an 86-inch TFT LCD with DLED backlight and 3840x2160 UHD resolution. It is designed to replace a separate whiteboard, a presentation screen and a video conferencing set-up with one touch display. Typical brightness is 400 nits and typical contrast is 1200:1, rising to 5000:1 maximum with dynamic contrast enabled. The surface has an anti-glare coating and 9H pencil hardness.

Touch, pens and the specifications that shape daily use

The projected capacitive touch layer, branded Ultra Fine Touch Plus, supports 20 simultaneous points, so several people can annotate or move content at the same time. The panel shows 1.07 billion colours at 10-bit depth, with an 8ms response time and 178-degree horizontal and vertical viewing angles, which keeps text and diagrams readable from the back of a room. Two passive styluses are included, useful where pens are shared.

Audio: 12W x 2 speakers plus a 15W subwoofer, with a six-element MEMS microphone array built in.
Platform: Android with a 3GB DDR4 memory and 32GB eMMC storage.
Power: 100-240 VAC wide-range input, 160W typical in use and under 0.5W when off.

Connecting sources, conferencing and wireless sharing

The panel offers four HDMI inputs, one VGA input, a PC audio input, RS232, an OPS slot and Wi-Fi, plus two RJ45 LAN ports and six USB Type-A ports. The USB-C port supports 65W power delivery and display over one cable, so a presenter's laptop can charge while it shows content. The ViewBoard 8662 is listed as compatible with the VB-AUD-201 speakerphone and the VB-CAM-201 all-in-one camera, whose 121-degree field of view suits multi-person calls. For wireless sharing, ViewBoard Cast allows up to four attendees to show their screens at once in a split view.

Where it fits in Qatar

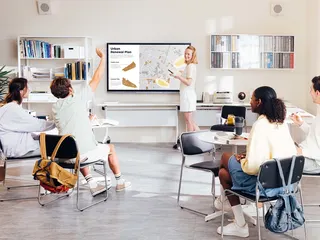

A university lecture hall in Education City where one screen handles slides, annotation, recorded material and a live link to a remote lecturer.
A boardroom in West Bay where executives join calls with teams abroad and share documents without cables.
A ministry meeting room in Msheireb where agendas move between Arabic and English documents and visiting staff share from their own laptops.

Planning the installation before the panel arrives

At 63.7 kg net and 84.25 kg gross, with dimensions of 1960 x 1171 x 80 mm, the panel needs a wall that can carry it and a team that can lift it safely. The box includes a mounting plate, five clamps and screws for both the wall mount and the plate. SmartRooms Qatar offers a free site survey to check wall structure, access routes and the power point before delivery. The panel is rated for operating temperatures of 0 to 40 degrees Celsius at 20 to 80 percent humidity, non-condensing. Summer temperatures in Qatar can exceed 45 degrees, so plan for an air-conditioned room and confirm conditions with the SmartRooms Qatar team. Request a quote and we will respond with a proposal usually within one working day.

Highlights

86-inch 3840x2160 UHD TFT LCD with DLED backlight
20-point multi-touch with Ultra Fine Touch Plus technology
Built-in Android with 3GB DDR4 RAM and 32GB eMMC storage
OPS slot, four HDMI inputs and two RJ45 LAN ports
USB-C port with 65W power delivery and display over one cable
Rated operating range 0 to 40 degrees Celsius, 20 to 80 percent RH

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

49 specifications · Source: manufacturer · checked Oct 2026

Display12

Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04 (H) x 1065.96 (V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07 Billon colors, 10bit(D)
Brightness: 400 nits (typ.)
Contrast Ratio: 1200:1 Typ. / 5000:1 Max.(DCR enable)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Surface Treatment: Hardness: 9H pencil & Anti-Glare Coating
Bezel: Top: 38.8 mm Bottom: 63.9 mm Left: 31.5 mm Right:31.5 mm

Platform3

Processor: ARM Cortex A73 *2+ A53*2
RAM: 3GB DDR4
Storage: 32GB eMMC

Touch3

Type/ Tech: Ultra Fine Touch Plus Technology (Projected Capacitive)
Touch Resolution: 32767 x 32767
Touch Point: 20

INPUT7

HDMI: x4
RGB / VGA: x1
Audio: 1x PC-Audio IN
MIC(Microphone): Full band 6-element MEMS microphone array
RS232: x1
OPS: x1
WiFi: x1

OUTPUT3

HDMI: x1
Audio: x1
SPDIF: x1

LAN1

RJ45: x2

USB3

Type A: x6
Type B: x2
Type C: x1

SPEAKERS1

Value: 12W x 2 + 15W x 1 Subwoofer

Embedded OS1

Value: Android

Bundle Software3

Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display & AirServer

Special Features1

Simple LAN sharing between IFP and slot-in device: Yes

Power2

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On:160W( typ.) / Off:

OPERATING CONDITIONS2

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

DIMENSIONS (W x H x D)2

Physical (inch / mm): 77.2 x 46.1 x 3.1 in / 1960 x 1171 x 80 mm
Packaging (inch / mm): 83.2 x 50.8 x 10.6 in / 2113 x 1290 x 270 mm

WEIGHT2

Net (lb / kg): 140.43 lb / 63.7 kg
Gross (lb / kg): 185.74 lb / 84.25 kg

REGULATIONS1

Value: cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM, Mexico Energy, EMC/CE, CB/LVD, GOST-R / EAC, UkrSEPRO, UKCA, LBL, Green BOM, RoHS, ErP, REACH, SCIP, WEEE, TPCH, CA65, PAIA

PACKAGE CONTENTS1

Value: 1. Power cable (by ship area) 2. Remote control 3. AAA battery X2 4. USB cable Type C 5. Passive stylus x 2 6. Quick Start Guide 7. Compliance statement 8. RS232 adapter 9. Plate 10. Clamp x 5 11. Screw x 8 (4 for wall mount ,4 for plate) 12. HDMI cable 13. Touch USB cable

Compatible Slot-in PC1

Value: VPC12-WPO, VPC2C-O, VPC25-O, VPC27-O series

Downloads

15 files from the manufacturer

Questions about 8662

Who is the ViewBoard 8662 best suited for?

The 86-inch screen suits a lecture hall, boardroom or training room where a larger audience needs to read writing and video from a distance. Public and private schools fitting out larger teaching spaces, university rooms in Education City and executive boardrooms in West Bay are typical fits. For a small meeting room, a smaller panel may be a better match. Request a quote and we can help compare sizes for your room.

How many people can write on the screen at once?

The touch layer supports 20 simultaneous touch points, so several people can annotate or move content at the same time. Two passive styluses come in the box, and finger touch works too. In a classroom or workshop this lets a group work through a task together at the panel instead of waiting for one person to hold the pen.

Is it compatible with ViewSonic's conference speakerphone and camera?

Yes. The product data lists compatibility with the VB-AUD-201 conference speakerphone and the VB-CAM-201 all-in-one video conference camera. The camera has a 121-degree field of view, and the speakerphone includes echo cancellation. These are separate items, so specify them in your quote if you want a complete meeting set-up for a Doha boardroom.

Can I add a PC inside the display?

The panel has one OPS slot, and the data lists compatible slot-in PC series as VPC12-WPO, VPC2C-O, VPC25-O and VPC27-O. The display also offers simple LAN sharing between the panel and a slot-in device. Before ordering, ask SmartRooms Qatar to confirm which series suits your software and your room layout.

How many wireless presenters can share at once?

ViewBoard Cast lets up to four attendees cast their screens at the same time in a split-screen view. myViewBoard Display allows a user to project from an internet browser without dongles or pre-registration. This suits a ministry meeting room in Msheireb where visiting staff bring their own laptops and want to share a document without connecting cables.

Which ports does it have?

Inputs include four HDMI, one VGA, a PC audio input, one RS232, one OPS slot and one Wi-Fi. Outputs include one HDMI, one audio and one SPDIF. There are two RJ45 LAN ports, six USB Type-A, two USB Type-B and one USB Type-C. The USB-C port supports 65W power delivery, so a laptop can charge while it displays through one cable.

How heavy is the panel, and what does wall mounting involve?

The panel measures 1960 x 1171 x 80 mm and weighs 63.7 kg net, or 84.25 kg gross in packaging. The box includes a plate, five clamps, four wall mount screws and four plate screws. Because of the weight, SmartRooms Qatar offers a free site survey to check the wall structure, lifting access through the building and the nearby power point before installation.

What power does it need?

The power input is 100-240 VAC with a wide range tolerance of plus or minus 10 percent. Typical consumption is 160W when on and below 0.5W when off. Because the input covers Qatar's 240 V supply, the main requirement is a suitable outlet on a circuit that can carry the load. Have a licensed electrician confirm the outlet location during the site survey.

Can it operate in a hot space during Qatar's summer?

The rated operating temperature is 0 to 40 degrees Celsius, with humidity of 20 to 80 percent RH, non-condensing. Summer temperatures in Qatar can exceed 45 degrees, so install it in an air-conditioned room. Spaces near windows or lobbies with frequent door openings need extra checking, so confirm the room conditions with the SmartRooms Qatar team before the panel is installed.

How does the IT team manage several displays?

myViewBoard Manager is web-based software for IT teams and administrators. It can schedule software updates, screen on and off, power off, and media broadcasts across multiple devices. It also consolidates usage data and manages which users can access features. A school group or a company with several rooms can therefore control the displays from one place.

What software is included with the panel?

The bundle includes myViewBoard WhiteBoard for Android for basic annotation, and myViewBoard WhiteBoard for Windows for pro annotation when used with a compatible slot-in PC. Wireless presentation tools are ViewBoard Cast, myViewBoard Display and AirServer. The panel runs Android as its embedded operating system, so confirm your required applications during the quote process.

How can a government entity or school order one?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. Lead times are estimates confirmed with the quotation based on stock. The product is covered by the manufacturer's warranty, so request a quote with your room details and quantity.
