IFP6533-G

A 65-inch 4K IPS panel for lessons and meetings

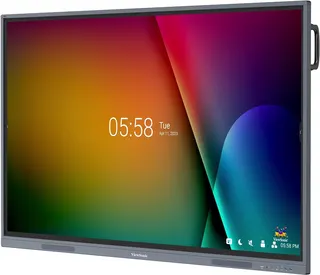

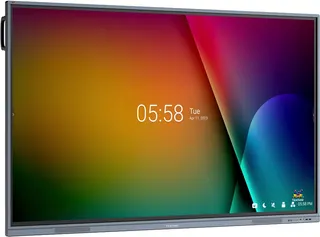

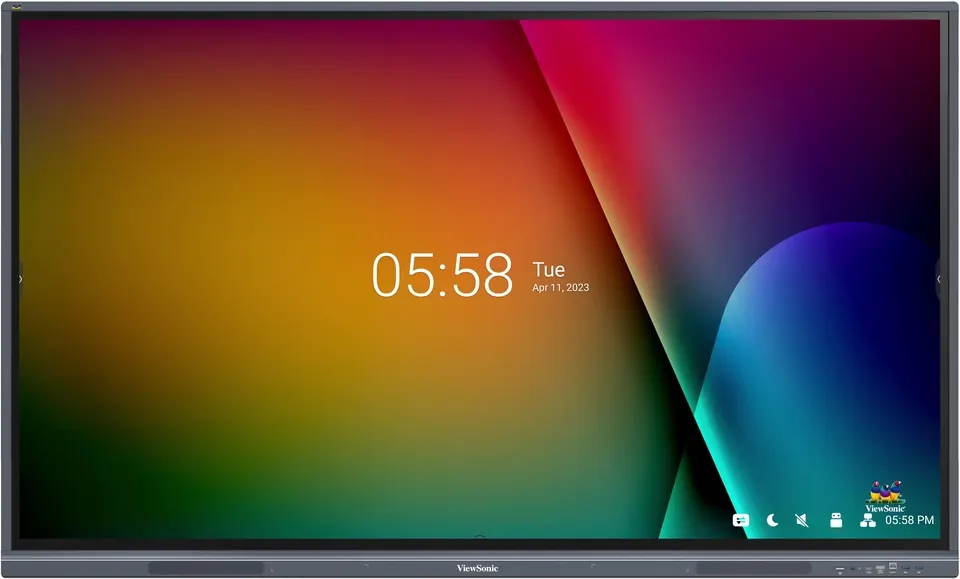

The IFP6533-G gives teachers and presenters a 65-inch screen with a 3840x2160 IPS panel, enough resolution to show spreadsheets, maps and fine diagrams clearly. The panel is rated at 400 nits, with a maximum contrast ratio of 5000:1 when dynamic contrast control is enabled. Its 9H anti-glare coating reduces reflections from overhead lights, and a light sensor is built in. The display covers 1.07 billion colours, and its backlight is rated for at least 30,000 hours.

Viewing angles are rated at 178 degrees both horizontally and vertically, so people seated at the sides of a classroom or boardroom see an image close to that seen from the front. The panel is designed for landscape use.

Touch, pen and one USB-C cable

The 40-point touch surface, built on Ultra Fine Touch Technology, accepts finger input and the two touch pens supplied with the unit. Several people can write or tap at once, which suits group work at the board or a training session where a team annotates the same document.

The front USB-C port provides 65W Power Delivery, a DisplayPort 1.2 signal, USB 2.0 data and 10/100M network sharing. A laptop can connect with a single cable, charging while it shows its screen, which keeps cables tidy at the front of the room.

Android 11, myViewBoard and an optional Windows slot

The panel runs Android 11 on a quad-core ARM processor with 8GB RAM and 128GB storage. myViewBoard is preinstalled for lesson delivery and device management, and the launcher offers split-screen and picture-in-picture modes. Wireless presentation software and Viewboard Cast are included.

When staff need Windows applications, an optional Intel standard OPS slot accepts a compatible slot-in PC. The source data lists the VPC2-O series, VPC2-O-1B series and VPC12-WPO-15/16 as compatible. An optional Wi-Fi module is also available, listed as VB-WIFI-002, VB-WIFI-004 or VSB-050.

Where the IFP6533-G fits in Qatar

A private school in Al Wakrah fitting out new classrooms can use the three HDMI 2.0 inputs to connect several sources to one panel, and the 40-point touch lets teachers and pupils share the same screen during bilingual lessons. In a seminar room at Education City, the panel supports small-group discussions where students annotate slides directly.

In a meeting room in West Bay that connects with colleagues abroad, the top camera plate, webcam support, front speakers and two RJ45 network ports help build a hybrid meeting setup. The camera is chosen separately, and the quotation can include it.

Planning the installation

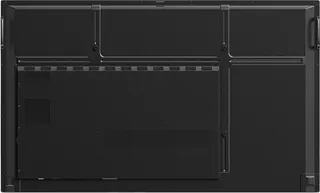

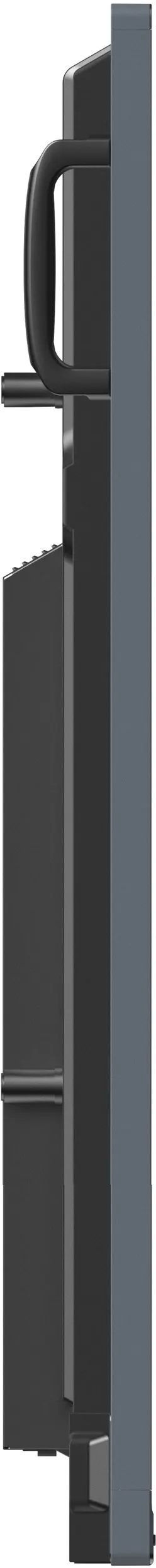

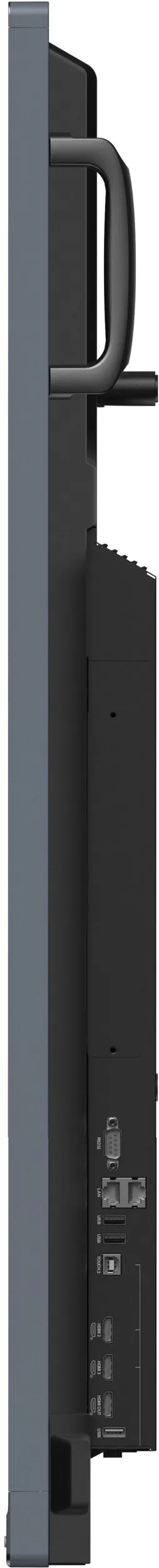

The panel measures 1488 x 897 x 88 mm and weighs 34.95 kg net (77.1 lb), so the wall or support structure should be checked before delivery. The VESA pattern is 600 x 400 mm, and the mounting hardware should be confirmed in the quotation. Operating temperature is 0 to 40 degrees Celsius with 20 to 80 percent humidity, non-condensing, so the panel belongs in an air-conditioned room away from direct sunlight through unshaded glass. Qatar summer temperatures can exceed 45 degrees Celsius, so a free site survey from SmartRooms Qatar is a good way to confirm room conditions. Power draw is 99W on and 0.5W or less off, with a 100 to 240V AC input.

To receive a quotation for the IFP6533-G, including delivery to any of Qatar's eight municipalities, professional installation and a free site survey, request a quote from SmartRooms Qatar. Quotations usually arrive within one working day, and orders can be placed by LPO, bank transfer, cheque or purchase order.
