ViewSonic IFP6563-2C 65-inch 4K Interactive Display

Screen size: 65"
Resolution: UHD 3840x2160
Touch: 50 Android: 50
Memory: 32GB LPDDR

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic IFP6563-2C is a 65-inch 4K UHD interactive display with 50-point PCAP touch, palm rejection, Android 15 with EDLA certification and 32GB of RAM. It suits classrooms and meeting rooms in Doha, Lusail and Al Rayyan where hybrid sessions need annotation, wireless screen sharing and centrally managed devices. A built-in 8-array microphone, speakers and a top USB-C camera port keep the room set-up simple. Request a quote from SmartRooms Qatar.

A 65-inch 4K panel sized for classrooms and meeting rooms

The IFP6563-2C combines a 65-inch TFT LCD panel with a UHD resolution of 3840 x 2160, 450 nits typical brightness and a 5000:1 contrast ratio. Viewing angles are rated at 178 degrees horizontally and vertically, so people seated at the side of a table can still read the content. The surface carries a 9H pencil-hardness rating plus anti-glare, anti-fingerprint and antibacterial treatment, which suits a panel touched by many people every day.

Writing, annotation and touch on the glass

The PCAP touch layer recognises up to 50 touch points on Windows and Android, and palm rejection works with both passive and active pens. Two touch pens are included. A teacher can write over a live slide while students use their fingers at the board, and Write Away support keeps ink responsive without visible lag. The built-in TeamOne whiteboard and myViewBoard annotation software let teams sketch and mark up ideas during hybrid sessions.

Android 15 platform, sign-in and fleet management

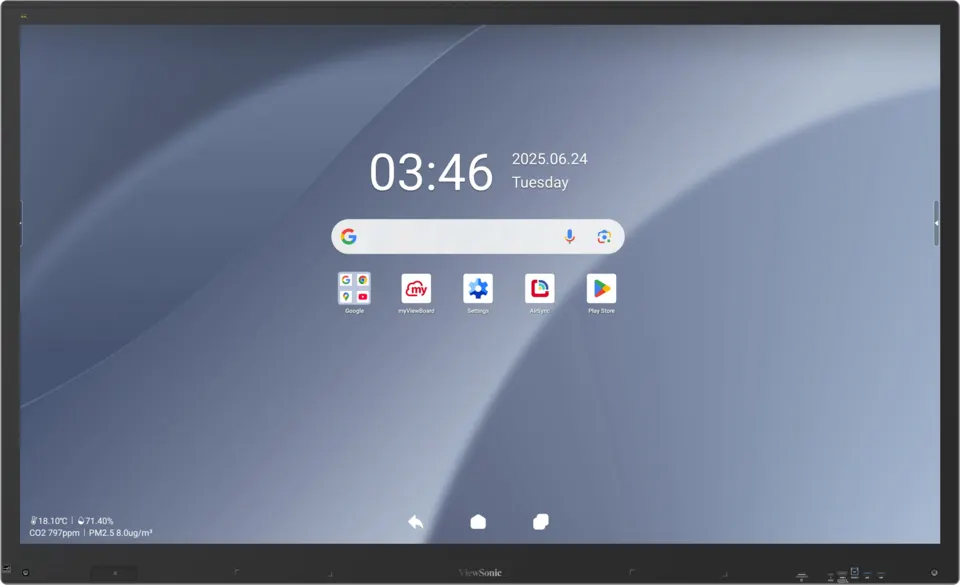

The panel runs Android 15 with EDLA certification on an octa-core processor, supported by 32GB of LPDDR RAM and 128GB of eMMC storage. Staff can add apps from the Google Play Store, including Google Workspace, Microsoft 365 and Zoom. An NFC reader lets each user tap a badge to load personal settings in a shared room. IT teams can use ViewSonic Manager, a web dashboard, to control networked displays, schedule power and ECO modes and configure AirSync across a fleet.

Connections for laptops, cameras and room audio

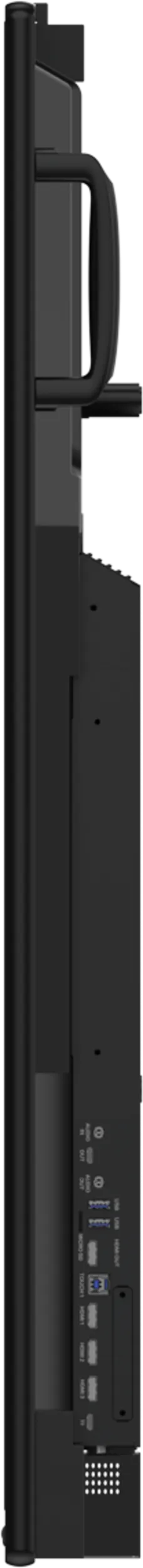

Four HDMI 2.1 inputs (one front, three rear) and a DisplayPort 1.2 input cover the usual sources. The front and rear USB-C ports carry video, touch and Ethernet with 65W and 100W power delivery, while a top-mounted USB-C port with 15W supports a camera without a separate adapter. The TWC101 camera is listed as compatible over USB-C. An 8-array microphone, two 20W speakers and a 20W subwoofer handle room audio, and an OPS slot and WiFi slot allow slot-in modules.

Planning a Qatar installation

Plan the room around the panel's limits before ordering. These points most often shape an installation in Qatar:

Environment: keep the panel in an air-conditioned room. The operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing.

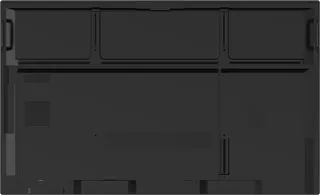

Wall and weight: net weight is 42.1 kg and gross weight is 50.3 kg. The VESA pattern is 600 x 400, so confirm the wall structure during a free site survey.
Power: the input accepts 100 to 240VAC and draws 88.5W when on. Check the supplied power cord against the sockets in the room.

Where it fits in Qatar

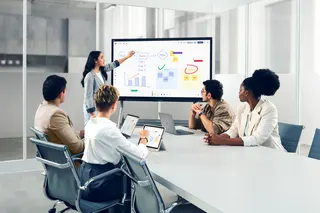

A private school in Al Wakrah fitting out new classrooms can use the 65-inch size in each room, with panels mounted at the same height so teachers move between rooms easily. A government office in Msheireb holding hybrid meetings with colleagues abroad can use NFC sign-in and AirSync for shared sessions. A training centre in Education City running short courses can use the annotation tools for group exercises.

Send your room dimensions, mounting wall and number of units to SmartRooms Qatar and we will prepare a quotation, usually within one working day. Request a quote today and our team will confirm the right configuration for your site.

Highlights

65-inch 4K UHD panel at 3840x2160 with 450 nits typical brightness
50-point PCAP touch with palm rejection for passive and active pens
Android 15 EDLA platform with octa-core CPU, 32GB RAM and 128GB storage
NFC badge sign-in and ViewSonic Manager for central device control
Top-mounted USB-C camera port plus 8-array microphone and 20W speakers

Classroom fit

At 65″ the farthest student should sit within about 4.9 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Size: 65"
Panel Type: TFT LCD module with DLED backlight, ADS
Display Area (mm): 1428.48(H) × 803.52(V)(64.5” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07G colors (8-bit+FRC)
Brightness: 450 nits (typ.)
Contrast Ratio: 5000:1
Response Time: 6.5ms
Viewing Angles: H = 178, V = 178 (Typ.)
Backlight Life: 50,000hrs (Typ.)
Surface Treatment: Pencil Hardness 9H with AG+AF+Anti-bacteria
Bezel: 3.8/3.8/11.3/32.5
Orientation: Landscape

Platform3

Processor: Octa-Core CPU (A76*4 + A55*4)
RAM: 32GB LPDDR
Storage: 128GB eMMC

Touch4

Type/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: Windows: 50 Android: 50
Palm Rejection: both passive and active pens

INPUT7

HDMI: FRONT x1 (HDMI 2.1) (HDMI support CEC) REAR x3 (HDMI 2.1) (HDMI 1 support CEC, ARC) (HDMI 2.1) (HDMI 2, 3 support CEC)
DisplayPort: 1 (DP1.2)
Audio: 1 (3.5mm phone jack, mic in)
RS232: x1
SD/SDHC: MicroSD card slot x1
OPS: OPS slot x1
WiFi: WIFI slot x1

OUTPUT3

HDMI: x1 (4K@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (Optical)

LAN1

RJ45: x2 (Speed: 10/100/1000Mbps, WOL supported, ProAV vendor & ViewSonic protocol supported)

USB3

Type A: REAR x1 (USB 2.0 support OTG) REAR x2 (USB 3.2 Gen 1) FRONT x2 (USB 3.2 Gen 1)
Type B: FRONT x1 (USB 2.0) REAR x2 (TOUCH 1: USB 3.0; TOUCH 2: USB 2.0)
Type C: FRONT x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 65W) REAR x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 100W) Top x1 (USB 3.2 Gen 1 + PD15W to support Camera mounting)

SPEAKERS1

Value: 20W x 2 + 20W x 1 (Subwoofer)

MICROPHONE1

Value: Built-in 8 Array Microphone

Top Camera Plate1

Value: Yes

COMPATIBILITY2

HDMI: 3840x2160 @ 60Hz
DisplayPort: 3840x2160 @ 60Hz

Embedded OS1

Value: Android 15 EDLA

Bundled Software6

Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Pro Whiteboarding Software: TeamOne
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes

Special Features7

All-in-one USB port: USB 3.2 Gen1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
PIR Sensor: Yes
NFC Reader: Yes
Pen Sensor for supporting Write Away: Yes
Environmental Sensor: Temperature Sensor x1, Humidity Sensor x1, eCO2 Sensor x1, VOCs Sensor x1, PM2.5 Sensor x1

Power2

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 88.5W / Off:

ERGONOMICS1

Wall Mount (VESA® ): 600 x 400

OPERATING CONDITIONS2

Temperature (º C): 0℃ ~ 40℃
Humidity: 20% ~ 80% RH non-condensing

DIMENSIONS (W x H x D)2

Physical (inch / mm): 58.8 x 35.8 x 3.1in/ 1493.3 x 909.3 x 78.8 mm
Packaging (inch / mm): 64.1 x 40.9 x 7.3in/ 1628 x 1040 x 185 mm

WEIGHT2

Net (lb / kg): 92.8lb / 42.1kg
Gross (lb / kg): 110.9lb/ 50.3kg

REGULATIONS1

Value: cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS DoC, WEEE, ErP, Flicker Free, Low Blue Light

Energy Star version1

Value: ES8.0

EEI rating1

Value: Level F

PACKAGE CONTENTS1

Value: 1. 3m power cord by ship area 2. Type C cable 1.8m(USB-IF certified) 3. 3m touch USB cable(USB 2.0) 4. Touch pen x 2 (VB-PEN-101-2C) 5. RS232 adapter 6. Quick Start Guide 7. Screw x 10 (camera 2+4, wall mount 4) 8. HDMI cable 3m(HDMI LA certified) 9. Remote control 10. AAA Battery x 2 1`. Compliance statement

Compatible Slot-in PC1

Value: VPC3X Series/ VPCF5-2A Series/ VPCF5 Series/ VPC-A31-O1

Downloads

6 files from the manufacturer

PDF Datasheets IFP6563-2C_Datasheet.pdf 416 KB PDF Manuals & guides IFP63_QSG.pdf 44.4 MB PDF Manuals & guides IFP63_UG_ENG.pdf 23.1 MB PDF Certificates & compliance VS20634_BSMI_RoHS.pdf 100 KB PDF Certificates & compliance VS20634_CE_DoC.pdf 149 KB URL Software & firmware · Opens on manufacturer site Multi_touch_Driver_for_MacOS

Questions about IFP6563-2C

Is the ViewSonic IFP6563-2C right for a classroom or meeting room in Qatar?

Yes, the 65-inch size suits classrooms in Al Wakrah or Education City and meeting rooms in Doha, Lusail and Al Rayyan. Its 4K UHD panel, 50-point touch and Android 15 platform let presenters and annotators share one screen. For larger halls, we recommend discussing the viewing distance and room layout with our team before ordering.

Will the screen be readable in a room with large windows?

The panel has 450 nits typical brightness, a 5000:1 contrast ratio and an anti-glare surface. In a west-facing office in West Bay or a classroom with a glazed wall, we recommend a free site survey to check where sunlight falls before choosing the wall position. Keeping the screen out of direct afternoon sun is the simplest way to keep content readable.

Can it run in a hot Qatari summer without air conditioning?

No. The operating range is 0°C to 40°C with 20% to 80% relative humidity, non-condensing. Qatar summer temperatures can rise above 45°C, so install the panel in an air-conditioned room and confirm the cooling and ventilation with the SmartRooms Qatar team before ordering. Avoid unconditioned lobbies, sunrooms and outdoor areas.

How many touch points does it support and does palm rejection work with pens?

The PCAP touch layer supports 50 simultaneous touch points on both Windows and Android, so several people can write at the board at once. Palm rejection works with both passive and active pens, and the package includes two touch pens. A presenter can rest a hand on the glass while writing, which matters in busy lessons and brainstorming sessions.

Which apps can I install and what hardware runs the platform?

The panel runs Android 15 with EDLA certification and has direct access to the Google Play Store, where staff can download tools such as Google Workspace, Microsoft 365 and Zoom. The platform has an octa-core processor, 32GB of LPDDR RAM and 128GB of eMMC storage, with support for a future OS upgrade.

How does NFC sign-in work in a shared boardroom?

The built-in NFC reader lets each user tap a badge to sign in, which loads their own settings, files and profiles onto the display. In a shared boardroom in Msheireb this cuts setup time between meetings and limits access to corporate data to authorised users. Confirm your badge format during planning so the rollout matches your access control policy.

Can people share laptop screens wirelessly, and which methods are supported?

Built-in AirSync lets people share their screen from a web browser on a laptop or phone, without cables or extra apps. AirSync also supports split, extended and grouped display modes. The panel is compatible with AirPlay, Miracast and Chromecast, so mixed device fleets can present in the same room.

Which inputs and ports are available for a classroom or boardroom setup?

There are four HDMI 2.1 inputs, one at the front and three at the rear, plus a DisplayPort 1.2 input, a 3.5mm audio input and an RS232 port. USB-C ports at the front and rear carry video, touch and Ethernet with 65W and 100W power delivery. The HDMI output supports 4K at 60Hz for a connected display.

Can a camera or slot-in PC be added to the panel?

Yes. A top-mounted USB-C port with 15W supports camera integration without a separate adapter, and the source data lists the TWC101 camera as compatible over USB-C. The panel has an OPS slot and a WiFi slot. Listed compatible slot-in PCs include the VPC3X Series, VPCF5-2A Series, VPCF5 Series and VPC-A31-O1, so confirm the exact module with our team.

How much wall space and weight should we plan for?

The physical size is 1493.3 x 909.3 x 78.8 mm and the net weight is 42.1 kg, or 50.3 kg gross. The VESA pattern is 600 x 400, and the package includes 10 screws, four of which are for wall mounting. Because of the weight, request a free site survey so the installation team can check the wall structure and bracket before the panel is hung.

What power supply does it need, and is it suitable for Qatar mains?

The power input accepts 100 to 240VAC across a wide range, and the display draws 88.5W when on and less than 0.5W when off. A 3m power cord is included for the shipping area. Check that the plug type matches the sockets in your room before installation, and ask our team to confirm the cord for your order.
