ViewSonic IFP7553-ED · Price in Qatar

Name: ViewSonic ViewBoard IFP7553-ED 75-inch EDLA-Certified Interactive Flat Panel
Brand: ViewSonic
SKU: viewsonic-ifp7553-ed
Availability: InStock

Overview

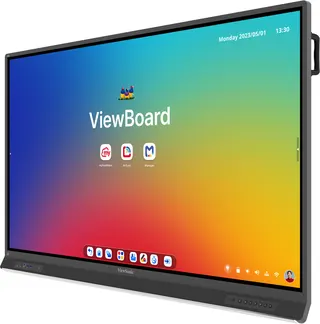

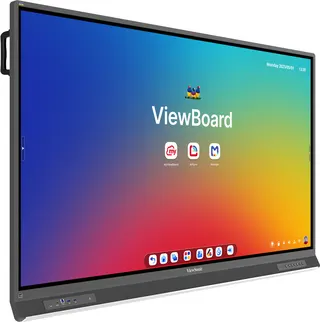

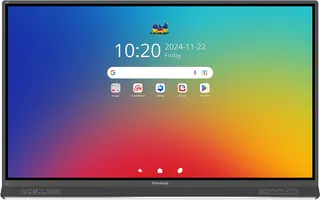

The ViewSonic IFP7553-ED is a 75-inch interactive flat panel with a 3840x2160 UHD panel, 450 nits typical brightness and an anti-glare coating for lit classrooms and boardrooms. It runs Android 14 on an octa-core processor with 16GB RAM and 128GB storage, carries EDLA certification, and includes NFC card sign-in and four-colour quick annotation. Suited to schools, universities and Doha offices that want a large, self-contained touch display.

What the ViewSonic IFP7553-ED is

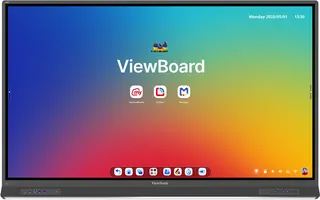

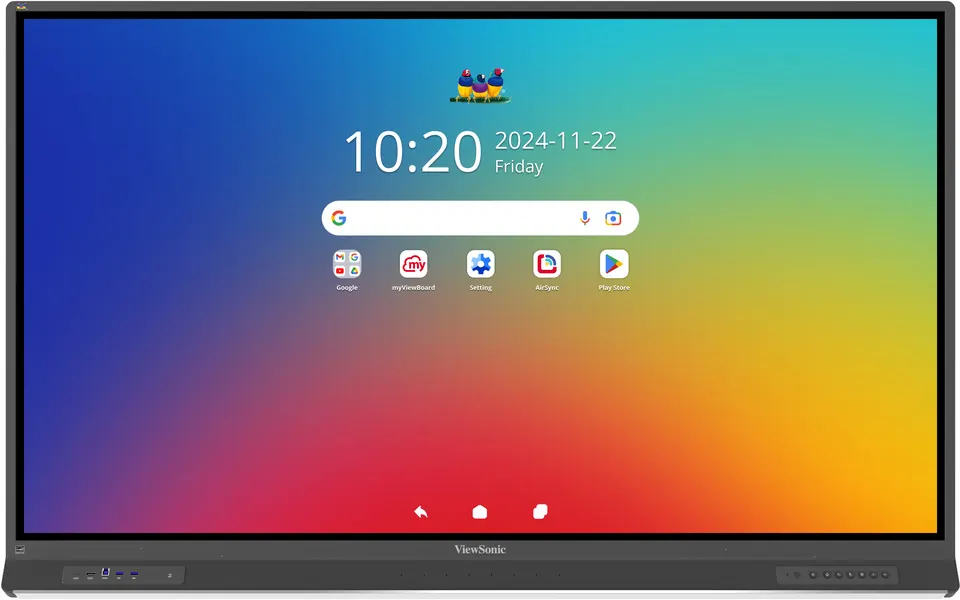

The ViewSonic IFP7553-ED is a 75-inch interactive flat panel from the ViewBoard IFP53 Series. It combines a large UHD touch display with an Android 14 system, so teachers and presenters can write, annotate and open apps without a separate computer. The EDLA-certified platform also adds protection features, including automatic updates, Google Play Protect and data encryption.

Panel and touch performance for lit rooms

The 75-inch panel offers 3840x2160 resolution, 1.07 billion colours, 450 nits typical brightness and a typical contrast ratio of 5500:1. An anti-glare coating and 7H surface hardness help reduce reflections in rooms with overhead lighting or daylight from windows. Touch uses UFT technology with 40 touch points on Windows and 20 on Android, which suits group work at the board.

Platform, sign-in and annotation

The octa-core processor, 16GB RAM and 128GB storage run Android 14 with a launcher designed for quick starts. An NFC card tap or SSO sign-in opens personal settings and cloud files, while a Guest Login option lets visitors work without reaching saved data. Annotation starts as soon as the stylus is picked up, and the optional VB-PEN-010 stylus switches between four colours with one click. The bundle includes myViewBoard for Android and Windows, AirSync wireless casting and ViewSonic Manager for fleet control.

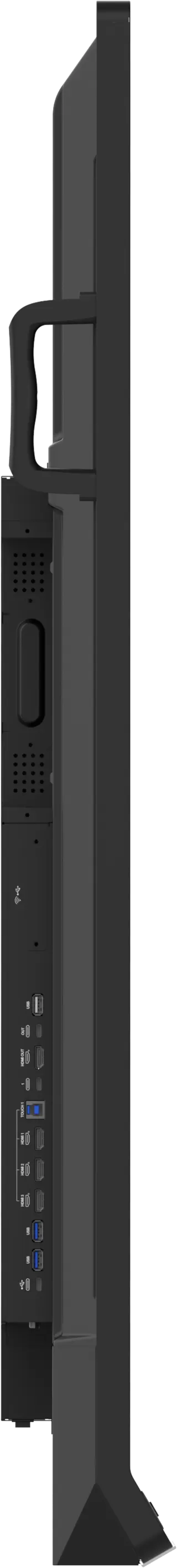

Connectivity, audio and slot-in PC options

Four HDMI inputs, one of them on the front panel
One OPS module slot for compatible slot-in PCs
Four USB-C ports, with the front port rated for 100W power delivery
Two RJ45 LAN ports for wired network access
Built-in 8-microphone array with 16W x 2 front soundbar and 20W subwoofer

Where it fits in Qatar and what to plan for

In a secondary school in Al Rayyan, a 75-inch panel suits a large classroom or science lab where a whole class needs to see the same content. In a boardroom in West Bay or Lusail, it can serve as the main presentation screen, paired with a conference camera or video bar from the accessory range for hybrid meetings. In a seminar room at Education City, it supports teaching and group annotation.

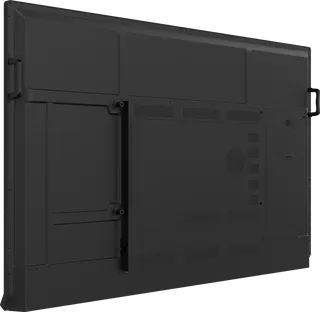

Plan the wall first. The panel weighs 51.7 kg net and 63.9 kg gross, its VESA pattern is 800 x 400 and its physical size is 1707 x 1059.2 x 118.4 mm. Check wall structure, clearance and cable routing before delivery, which our free site survey covers. The rated operating range is 0°C to 40°C with 20 to 80% non-condensing humidity, so install it in an air-conditioned room rather than a hot or unventilated space. Qatar summers can exceed 45°C, so confirm the environment with the SmartRooms Qatar team before fixing a unit near glazing or outdoor-facing areas.

For multi-room projects, such as a school fitting out several classrooms, send your room list and requirements and we will prepare a quotation, usually within one working day, suitable for LPO or tender use. Request a quote from SmartRooms Qatar to confirm the slot-in PC, accessories and mounting for each room.

Highlights

75-inch UHD 3840x2160 panel with 450 nits typical brightness
Android 14 platform with EDLA certification
Octa-core CPU, 16GB RAM and 128GB storage
40 touch points on Windows, 20 on Android
Four HDMI inputs and one OPS slot for slot-in PCs
Operating range 0°C to 40°C, 20-80% humidity non-condensing

Classroom fit

At 75″ the farthest student should sit within about 5.6 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

58 specifications · Source: manufacturer · checked Oct 2026

Display13

Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1650.24 (H) x 928.26 (V) (74.5" diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brightness: 450 nits (typ)
Contrast Ratio: 5500:1(Typ.) 5000:1(Min. with DCR enabled)
Response Time: 6.5 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hrs (typ).
Surface Treatment: Hardness: 7H. Anti-glare coating
Orientation: Landscape

Platform3

Processor: Octa-Core CPU
RAM: 16GB
Storage: 128GB

Touch3

Type/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 40 points touch, Android: 20 points touch

INPUT6

HDMI: x4 (Frontx1:HDMI2.1 with CEC ; Rearx3:(HDMI2.1 with CEC)x2 & (HDMI2.1 with CEC,ARC)x1
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1

OUTPUT3

HDMI: x1
Audio: x1 (Earphone out)
SPDIF: x1

LAN1

RJ45: x2

USB3

Type A: USB3.2 Gen 1x4 (Frontx2; Rearx2) USB2.0x1 (Rear)
Type B: USB3.2 Gen 1x3(Frontx1; Rearx2)
Type C: Input:x3 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.2 Gen 1, PD 15W) Output:x1, DP

SPEAKERS1

Value: 16W x 2 front soundbar + 20W x 1 subwoofer

MICROPHONE1

Value: built-in 8-array microphone

Top Camera Plate1

Value: Yes

Embedded OS1

Value: EDLA-Certified with Android 14

Bundled Software5

Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes

Special Features5

All-in-one USB port: USB3.2 Gen 1 “SmartPort USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor: Yes

Power2

Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On:101.77W / Off:

ERGONOMICS1

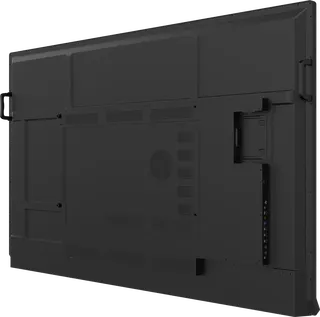

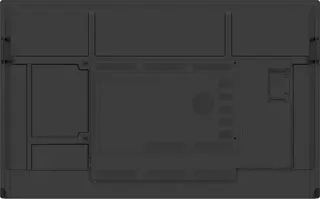

Wall Mount (VESA® ): 800 x 400

OPERATING CONDITIONS2

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

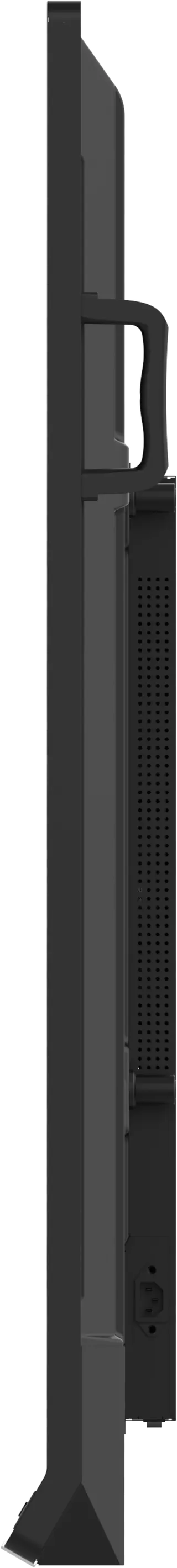

DIMENSIONS (W x H x D)2

Physical (inch / mm): 67.21 x 41.7 x 4.66 in / 1707 x 1059.2 x 118.4 mm
Packaging (inch / mm): 74.8 x 45.67 x 8.46 in / 1900 x 1160 x 225 mm

WEIGHT2

Net (lb / kg): 113.98 lb / 51.7 kg
Gross (lb / kg): 140.87 lb / 63.9 kg

REGULATIONS1

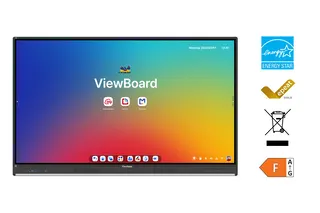

Value: DOE EPEAT, DOE Energy Star, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP (2009/125/EC), REACH SVHC List & DoC, EEL, WEEE, BSMI, Green Mark

PACKAGE CONTENTS1

Value: 1. 3m power cord by ship area 2. Type C cable 1.8m(USB-IF certified) 3. Remote control with AAA battery (new VS remote control) 4. 3m touch USB cable(USB 2.0) 5. Touch pen x 2 6. Quick Start Guide 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable 3m(HDMI LA certified) 12. AAA Battery x 2 13. Compliance statement

Compatible Slot-in PC1

Value: VPCF5-W33-G1 VPC37-W53-G1 VPC35-W53-G1 VPC-A31-O1

Downloads

7 files from the manufacturer

PDF Datasheets IFP7553-ED_Datasheet.pdf 443 KB PDF Manuals & guides IFP53-ED_UG_ENG.pdf 20.9 MB PDF Manuals & guides IFP53_QSG.pdf 1.0 MB URL Drawings & CAD · Opens on manufacturer site IFP7553_IFP7553-ED 3D drawing(zip) PDF Software & firmware ViewBoard_Network_Requirements_ENG.pdf 2.9 MB URL Software & firmware · Opens on manufacturer site IFP7553-ED_Firmware_Pack_20260130 PDF Other documents IFP7553_IFP7553-ED_2D.pdf 1.6 MB

Questions about IFP7553-ED

Who is the ViewSonic IFP7553-ED best suited for?

It suits schools, universities and offices that need one large touch display for teaching, presentations or group work. The 75-inch screen works well in large classrooms, lecture rooms and medium-to-large meeting rooms, where people at the back still need to read annotations. The unit runs Android 14 natively, so teachers and presenters can open apps and write without connecting a laptop first.

How bright is the screen and how does it handle reflections?

The panel is rated at 450 nits typical brightness with a typical contrast ratio of 5500:1, and it has an anti-glare coating with 7H surface hardness. These figures help in rooms with overhead lighting or daylight from windows, where glare can wash out text. Because brightness is a typical value, test the unit in your room and check its position relative to windows before finalising the installation.

Can the IFP7553-ED be used for hybrid meetings in a boardroom in West Bay or Lusail?

Yes, as the display and audio point. The built-in 8-microphone array, the 16W x 2 front soundbar and the 20W subwoofer handle sound within the room. The unit can be paired with a conference camera or the TeamJoin 4K video bar from the accessory range so remote participants can see and hear the room. Decide on camera placement before ordering, and ask the SmartRooms Qatar team to confirm the right accessory for your room size.

How do NFC card sign-in and guest login work?

The panel has an NFC reader, so a user taps a registered card to sign in and reach a personalised launcher, cloud files and app settings. SSO sign-in through a myViewBoard account is also supported. The Guest Login option gives visitors quick access without exposing saved data or settings, which suits a school reception area or a hotel meeting room where staff and guests share one display.

What is the OPS slot for, and which slot-in PCs are compatible?

The unit has one OPS module slot, which takes a slot-in PC so the display can run Windows applications alongside Android. The data lists four compatible models: VPCF5-W33-G1, VPC37-W53-G1, VPC35-W53-G1 and VPC-A31-O1. The slot-in PC is not included in the panel package, so confirm the exact model you need with the SmartRooms Qatar team before ordering.

Which ports are available for laptops and USB devices?

The panel has four USB-C ports. The front port supports up to 100W power delivery with DisplayPort 1.2 and 100M Ethernet, and a rear port provides 65W power delivery with the same display and Ethernet support. A third rear port supplies 15W. Four HDMI inputs, an RGB/VGA input, a DisplayPort input, two RJ45 LAN ports and an RS232 control port help connect teaching laptops and control systems.

How much does the panel weigh and what does it need for wall mounting?

The net weight is 51.7 kg and the gross weight with packaging is 63.9 kg. It mounts on a VESA pattern of 800 x 400, and its physical size is 1707 x 1059.2 x 118.4 mm. Because of its weight, check the wall structure, bracket rating and cable route before delivery; our free site survey covers this. If a mobile setup suits the room better, a height-adjustable trolley cart with 360° silent wheels is available in the accessory range.

Can the panel be installed in a hot lobby or near a window in Qatar?

Its rated operating range is 0°C to 40°C with 20% to 80% humidity, non-condensing. Qatar summer temperatures can go above 45°C, so the panel should sit in an air-conditioned room rather than an unventilated lobby, a sun-facing window bay or an outdoor area. Confirm the final location with the SmartRooms Qatar team during the site survey, especially for a lobby exposed to dust storms.

Which software comes with the panel?

The bundle includes myViewBoard for Android as basic annotation software, myViewBoard for Windows embedded in the slot-in PC as pro annotation software, AirSync for wireless presentation, ViewSonic Manager for device management and the ViewSonic Launcher. AirSync supports browser-based casting for guests as well as split, extended and grouped screen casting. The panel runs Android 14 on an EDLA-certified platform.

How can an IT team manage several panels across a campus?

ViewSonic Manager is a centralised web platform for remote control, maintenance and media broadcasting to network displays. It also allows remote on and off switching and ECO mode control, which supports energy saving across rooms. For a school in Al Wakrah or Al Khor fitting out several classrooms, this lets the IT team monitor and update each unit from one place.

What power does it need, and does it suit Qatar's mains supply?

The power input is rated 100-240VAC with a plus or minus 10% tolerance, so the unit accepts Qatar's 240 V mains within its stated range. Typical power draw is 101.77W when on and under 0.5W when off. The package includes a 3m power cord matched to the shipping area, and we will confirm it suits the BS 1363 socket in your room before installation.

Can we buy it through an LPO or a government tender?

Yes. SmartRooms Qatar supplies on purchase orders (LPO) and government tenders, including those published on Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day. Send the quantity, room list and any slot-in PC or accessory needs so the quotation covers the complete package. Products are covered by the manufacturer's warranty.
