IFP7563-1C

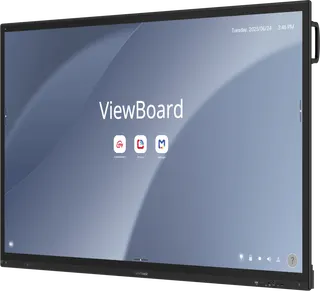

ViewSonic IFP7563-1C 75-inch 4K Interactive Flat Panel
- Screen size
- 75"
- Resolution
- UHD 3840x2160
- Touch
- 50 Android: 50
- Memory
- 16GB LPDDR
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The ViewSonic IFP7563-1C is a 75-inch 4K UHD interactive display with 50-point PCAP touch and EDLA-certified Android 15. An octa-core processor and 16GB RAM handle multitasking, NFC badge login suits shared rooms, and USB-C ports offer up to 100W charging. It suits boardrooms, university lecture halls and training rooms across Qatar where teams need secure, hybrid collaboration. Request a quote for supply, installation and delivery.
What the IFP7563-1C is built to do
The ViewSonic IFP7563-1C is a 75-inch interactive display with a 3840 x 2160 UHD panel, made for rooms where people write, annotate and share content at the same time. Its PCAP touch layer tracks up to 50 touch points on Windows and Android, and palm rejection works with both passive and active pens, so a presenter can rest a hand on the glass while writing.

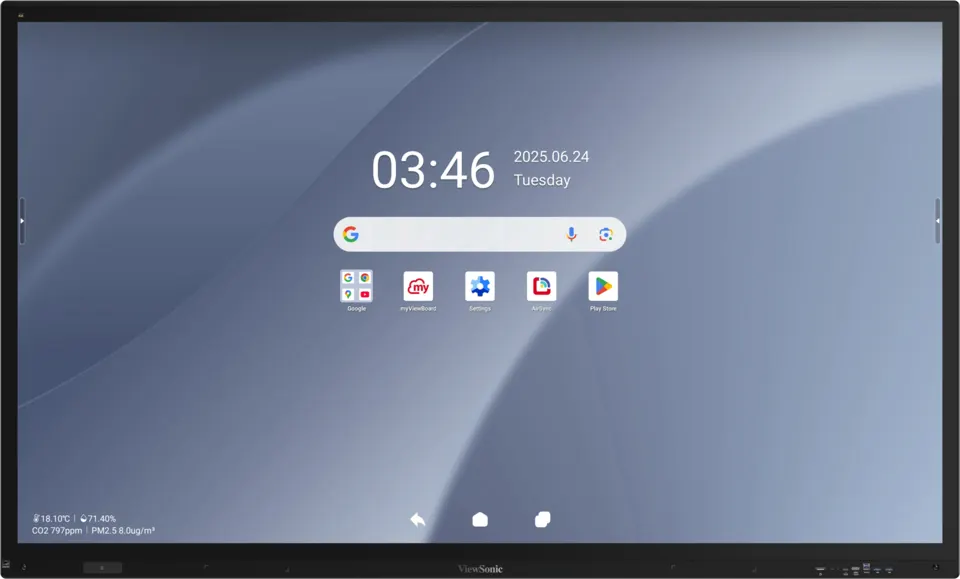

Android 15 runs on the panel itself, supported by an octa-core processor, 16GB of LPDDR memory and 128GB of eMMC storage. The platform is EDLA-certified, which helps IT teams keep the display within a managed security policy.
Specifications that shape the purchase
- Image: 450 nits typical brightness, 5000:1 contrast ratio, 6.5ms response time and a 9H surface with anti-glare, anti-fingerprint and antibacterial treatment.
- Inputs: one front and three rear HDMI 2.1 ports, one DisplayPort 1.2 input and two RJ45 LAN ports rated 10/100/1000Mbps.
- USB-C: front and rear ports carry video, touch, Ethernet and USB 3.2 Gen 1, with PD 65W at the front and PD 100W at the rear. A top port with PD 15W supports a camera.
- Audio and sound capture: two 20W speakers, a 20W subwoofer and an eight-array microphone.
- Expansion: an OPS slot and a WiFi slot, plus a list of compatible VPC slot-in PCs for the series.
Where it fits across Qatar
In a West Bay or Lusail boardroom, the 75-inch format lets a larger group read a shared document or a live sketch from across the table. NFC badge login means each executive can sign in to their own profile without sharing a password, and ViewSonic Manager lets an IT team monitor and configure several panels from one web dashboard.
At a university training centre in Education City, an instructor can annotate slides directly on the panel, while a camera on the top plate sends the room to remote students. The built-in microphone array and speakers help those students hear the discussion clearly.
In a private school in Al Wakrah fitting out new classrooms, the panel can host a lesson where students come to the board in turn, using the two pens included in the box. AirSync also lets students share their work from their own devices without installing software.
What to plan before installation
- Wall load: the panel weighs 56.1 kg net and 69 kg gross, so the wall and bracket must be checked before mounting.

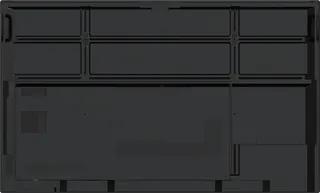

- Mount pattern: the VESA pattern is 800 x 400, and the panel measures 1714.3 x 1032.4 x 79.1 mm.
- Room climate: the rated operating range is 0 to 40°C at 20 to 80% relative humidity, non-condensing. Summer temperatures in Qatar can pass 45°C, so keep the display in an air-conditioned room, away from direct sun.
- Power: the unit accepts 100 to 240VAC and draws 101.1W when on and under 0.5W when off. Check that the supplied 3m power cord suits the BS 1363 sockets in the room.
- Cables and pens: the box includes a 3m HDMI cable, a 3m touch USB cable, a 1.8m USB-C cable, two touch pens and an RS232 adapter.
A free site survey from SmartRooms Qatar can confirm wall structure, sightlines and cable routes before the unit arrives. Where a school or ministry needs several panels, one LPO can cover the whole order.
Request a quote for your room
Tell the SmartRooms Qatar team the room size, the number of units and whether you need a camera or slot-in PC, and we will send a quotation, usually within one working day. Request a quote for the IFP7563-1C today.
Highlights
- 75-inch 4K UHD panel with 50-point PCAP touch
- EDLA-certified Android 15 with octa-core CPU and 16GB RAM
- NFC badge login for shared rooms and offices
- USB-C ports with up to 100W charging on the rear
- Built-in ViewSonic Manager, AirSync and TeamOne software
- EPEAT Gold certified, Energy Star ES8.0 and EEI Level F
Classroom fit
At 75″ the farthest student should sit within about 5.6 m (6× the screen height).
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
68 specifications · Source: manufacturer · checked Oct 2026
Display14
- Panel Size
- 75"
- Panel Type
- TFT LCD module with DLED backlight, ADS
- Display Area (mm)
- 1650.24 (H) x 928.26 (V) (74.5” diagonal)
- Aspect Ratio
- 16:9
- Resolution
- UHD 3840x2160(Pixels)
- Colors
- 1.07G colors (8-bit+FRC)
- Brightness
- 450 nits (typ.)
- Contrast Ratio
- 5000:1
- Response Time
- 6.5ms
- Viewing Angles
- H = 178, V = 178 (Typ.)
- Backlight Life
- 50,000hrs (Typ.)
- Surface Treatment
- Pencil Hardness 9H with AG+AF+Anti-bacteria
- Bezel
- 3.8/3.8/11.3/32.5
- Orientation
- Landscape
Platform3
- Processor
- Octa-Core CPU (A76*4 + A55*4)
- RAM
- 16GB LPDDR
- Storage
- 128GB eMMC
Touch4
- Type/ Tech
- PCAP
- Touch Resolution
- 32767 x 32767
- Touch Point
- Windows: 50 Android: 50
- Palm Rejection
- both passive and active pens
INPUT7
- HDMI
- FRONT x1 (HDMI 2.1) (HDMI support CEC) REAR x3 (HDMI 2.1) (HDMI 1 support CEC, ARC) (HDMI 2.1) (HDMI 2, 3 support CEC)
- DisplayPort
- 1 (DP1.2)
- Audio
- 1 (3.5mm phone jack, mic in)
- RS232
- x1
- SD/SDHC
- MicroSD card slot x1
- OPS
- OPS slot x1
- WiFi
- WIFI slot x1
OUTPUT3
- HDMI
- x1 (4K@60Hz)
- Audio
- x1 (Earphone out)
- SPDIF
- x1 (Optical)
LAN1
- RJ45
- x2 (Speed: 10/100/1000Mbps, WOL supported, ProAV vendor & ViewSonic protocol supported)
USB3
- Type A
- REAR x1 (USB 2.0 support OTG) REAR x2 (USB 3.2 Gen 1) FRONT x2 (USB 3.2 Gen 1)
- Type B
- FRONT x1 (USB 2.0) REAR x2 (TOUCH 1: USB 3.0; TOUCH 2: USB 2.0)
- Type C
- FRONT x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 65W) REAR x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 100W) Top x1 (USB 3.2 Gen 1 + PD15W to support Camera mounting)
SPEAKERS1
- Value
- 20W x 2 + 20W x 1 (Subwoofer)
MICROPHONE1
- Value
- Built-in 8 Array Microphone
Top Camera Plate1
- Value
- Yes
COMPATIBILITY2
- HDMI
- 3840x2160 @ 60Hz
- DisplayPort
- 3840x2160 @ 60Hz
Embedded OS1
- Value
- Android 15 EDLA
Bundled Software6
- Basic Annotation Software
- myViewBoard for Android
- Pro Annotation Software
- myViewBoard for Windows (embedded in VPC)
- Pro Whiteboarding Software
- TeamOne
- Wireless Presentation
- AirSync
- Device Management
- Manager
- ViewSonic Launcher
- Yes
Special Features7
- All-in-one USB port
- USB 3.2 Gen1 “SmartPort USB” to all channels
- Simple LAN sharing between IFP and slot-in device
- (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
- Light Sensor
- Yes
- PIR Sensor
- Yes
- NFC Reader
- Yes
- Pen Sensor for supporting Write Away
- Yes
- Environmental Sensor
- Temperature Sensor x1, Humidity Sensor x1, eCO2 Sensor x1, VOCs Sensor x1, PM2.5 Sensor x1
Power2
- Voltage
- 100-240VAC +/- 10% Wide Range
- Consumption
- On: 101.1W / Off:
ERGONOMICS1
- Wall Mount (VESA® )
- 800 x 400
OPERATING CONDITIONS2
- Temperature (º C)
- 0℃ ~ 40℃
- Humidity
- 20% ~ 80% RH non-condensing
DIMENSIONS (W x H x D)2
- Physical (inch / mm)
- 67.5 x 40.7 x 3.1in/ 1714.3 x 1032.4 x 79.1mm
- Packaging (inch / mm)
- 73.3 x 45.2 x 8.9in/ 1863 x 1148 x 225mm
WEIGHT2
- Net (lb / kg)
- 123.7lb/ 56.1kg
- Gross (lb / kg)
- 152.1lb/ 69kg
REGULATIONS1
- Value
- cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS DoC, WEEE, ErP, Flicker Free, Low Blue Light
Energy Star version1
- Value
- ES8.0
EEI rating1
- Value
- Level F
PACKAGE CONTENTS1
- Value
- 1. 3m power cord by ship area 2. Type C cable 1.8m(USB-IF certified) 3. 3m touch USB cable(USB 2.0) 4. Touch pen x 2 (VB-PEN-101-2C) 5. RS232 adapter 6. Quick Start Guide 7. Screw x 10 (camera 2+4, wall mount 4) 8. HDMI cable 3m (HDMI LA certified) 9. Remote control 10. AAA Battery x 2 11. Compliance statement
Compatible Slot-in PC1
- Value
- VPC3X Series/ VPCF5-2A Series/ VPCF5 Series/ VPC-A31-O1
Downloads
7 files from the manufacturer
PDF
ViewSonic IFP7563-1C datasheets (PDF, 418 KB)
PDF
ViewSonic IFP7563-1C manuals & guides (PDF, 44.4 MB)
PDF
ViewSonic IFP7563-1C manuals & guides (PDF, 23.1 MB)
RFA
ViewSonic IFP7563-1C drawings & cad (RFA)
PDF
ViewSonic IFP7563-1C certificates & compliance (PDF, 100 KB)
PDF
ViewSonic IFP7563-1C certificates & compliance (PDF, 149 KB)
URL
ViewSonic IFP7563-1C software & firmware (URL)
Questions about IFP7563-1C
Who is the ViewSonic IFP7563-1C best suited for?
The IFP7563-1C suits mid-sized boardrooms, university lecture rooms and corporate training spaces in Qatar where people annotate shared content and work with remote colleagues. Its 75-inch 4K panel and 50-point touch let several people write on the same screen. For hybrid sessions, add a camera on the top plate.
Can it be installed in a sun-facing or open area in Qatar?
It is not recommended. The rated operating range is 0 to 40°C at 20 to 80% relative humidity, non-condensing. Qatar summer temperatures can pass 45°C, so choose an air-conditioned room away from direct glare, and avoid open lobbies and areas exposed to dust.
What wall space and load should I plan for?
The panel measures 1714.3 x 1032.4 x 79.1 mm and weighs 56.1 kg net, or 69 kg in its packaging. The VESA mounting pattern is 800 x 400. Because of the weight, check the wall structure and match the bracket to the VESA pattern before mounting. SmartRooms Qatar offers free site surveys to confirm this first.
Can I run Android apps and Microsoft or Google work tools on it?
Yes. The panel runs EDLA-certified Android 15 and connects to the Google Play Store, where you can download productivity tools such as Google Workspace, Microsoft 365 and Zoom. The Android security framework includes Google Play Protect and managed app updates. Your IT team should confirm which apps your policy allows before rollout.
How do staff sign in on a shared display?
The IFP7563-1C includes an NFC reader, so staff can tap a badge to sign in and load their own settings and files. This suits a government office or bank branch where several people share one room. It also restricts access to corporate data, which helps IT teams meet internal access-control rules.
Can people share their laptop screen wirelessly?
Yes. Built-in ViewSonic AirSync lets people share their screen from laptops and mobile devices through a web browser, with no cables or apps needed. It also supports split, extended and grouped display modes. The panel is compatible with AirPlay, Miracast and Chromecast, so a lecturer can share from a personal device in a university lecture room.
Which ports are available for laptops, cameras and room systems?
The rear has three HDMI 2.1 inputs and one DisplayPort 1.2 input, with one HDMI 2.1 port on the front. The front and rear USB-C ports carry video, touch and Ethernet, with 65W charging at the front and 100W at the rear. A top USB-C port with 15W power supports a camera. Two RJ45 LAN ports and an OPS slot add more options.
Does it support 4K video conferencing with a camera?
The panel supports 4K at 60Hz over HDMI and DisplayPort. Its top camera plate and top port suit a camera such as the ViewSonic TWC101, which the product data notes connects over USB-C. The eight-array microphone and built-in speakers help hybrid calls stay clear. Ask SmartRooms Qatar to match the camera and conferencing software to your platform.
How much power does it use, and does it suit Qatar's mains supply?
The power supply accepts 100 to 240VAC over a wide range, which covers Qatar's 240 V mains. Consumption is rated at 101.1W when on and under 0.5W when off. The included 3m power cord is region-specific, so confirm it suits the BS 1363 sockets in your room before installation.
What accessories come in the box?
The box includes two touch pens, a 3m touch USB cable, a 1.8m USB-C cable, a 3m HDMI cable, an RS232 adapter, a remote control, two AAA batteries and screws for camera and wall-mount fitting. Both pens suit paired writing in a training room where two people annotate at once.
Is a 75-inch panel the right size for a classroom?
A 75-inch panel suits a larger classroom, lecture hall or training room, where students in back rows need to read annotated text. For a small meeting room, a smaller panel may fit better. Check the viewing distance against the room layout before you choose the size.
How do schools and government bodies order several units?
Multiple units can be ordered under one LPO, or as part of a government tender including Monaqasat submissions. Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order. Each unit is covered by the manufacturer's warranty.
