ViewSonic Interactive Flat Panels Current

IFP8641-1

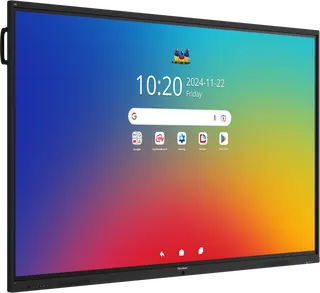

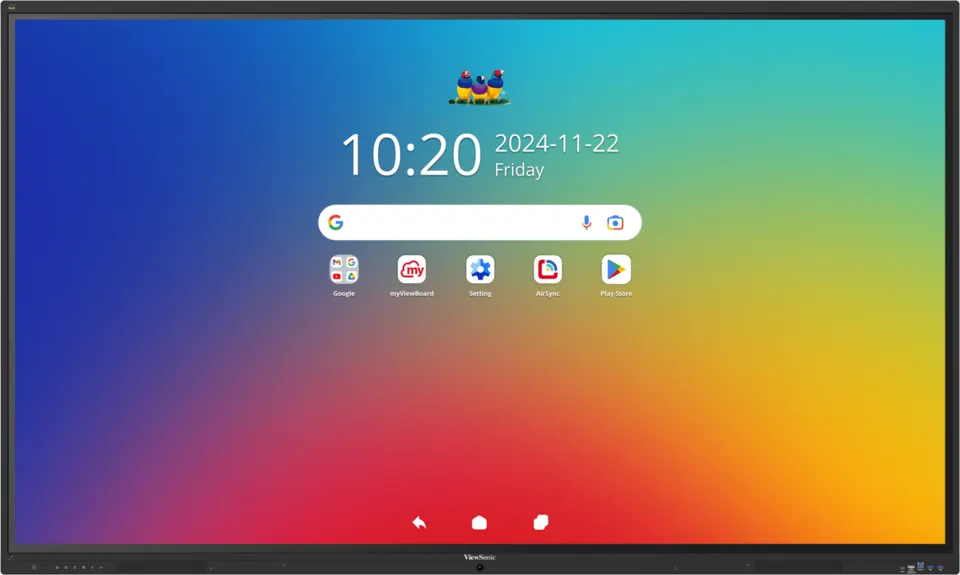

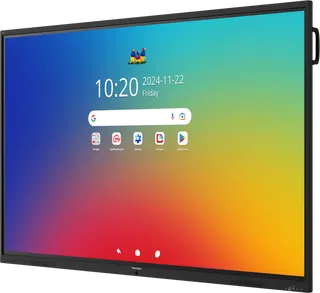

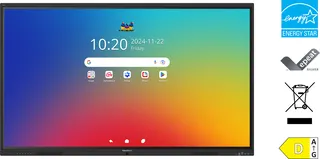

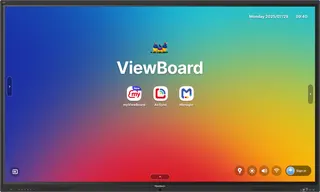

ViewSonic IFP8641-1-1C 86-inch EDLA Interactive Flat Panel

Screen size: 86"
Resolution: UHD 3840x2160
Touch: Up to 64 points of touch
Memory: 8GB

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The ViewSonic IFP8641-1-1C is an 86-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It runs Android 16 with EDLA certification, supports 64-point touch with palm rejection, and includes an 8-microphone array and built-in speakers. The front USB-C port delivers up to 100W, and an OPS slot takes a computer module. Well suited to large Doha classrooms, boardrooms and training centres.

What the ViewSonic IFP8641-1-1C is

The ViewSonic IFP8641-1-1C is an 86-inch interactive flat panel with a 4K UHD screen at 3840x2160 and a 16:9 landscape layout. It uses a TFT LCD panel with DLED backlight, has a 9H hardness anti-glare surface, and the manufacturer rates its backlight life at 50,000 hours. The panel runs Android 16 on an octa-core processor with 8GB RAM and 128GB storage, and it carries EDLA certification. Viewing angles are rated at 178 degrees horizontally and vertically, so people seated at the sides can still read the content.

Touch, annotation and sensors for daily teaching

The infrared touch layer recognises up to 64 points at once and includes palm rejection, so a presenter can rest a hand on the glass while writing. The light sensor adjusts screen brightness to the room, and the PIR motion sensor responds to people nearby, which the manufacturer links to better energy efficiency. Listed power draw is 93.99W when on and under 0.5W when off. Contrast is rated at up to 5000:1 with DCR enabled, so that figure depends on the dynamic contrast setting rather than being a constant value.

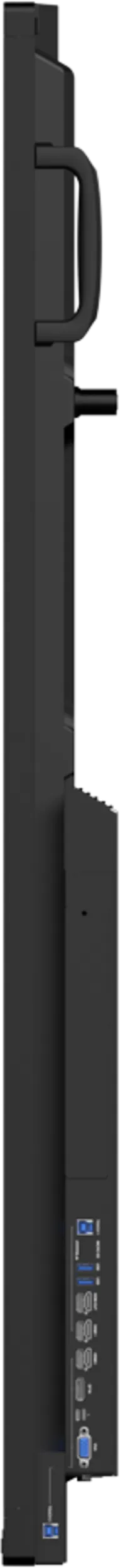

Ports, OPS slot and built-in audio

Video inputs: three HDMI 2.1 inputs at 4K 60Hz (one front, two rear), one DisplayPort input and one VGA input.
USB-C: the front port delivers up to 100W power delivery, the rear port provides 15W, and both carry DisplayPort 1.2 and 100M Ethernet.
Expansion: an OPS slot for a slot-in computer module, two RJ45 LAN ports and a micro SD slot.
Control and audio: RS232, audio input, line output, optical S/PDIF output and an HDMI 2.1 output.
Sound: two 20W front speakers, a 15W subwoofer and an 8-microphone array for voice capture.

Where it fits in Qatar

In a private school in Al Wakrah or Al Rayyan, an 86-inch panel suits a large classroom or science lab where students at the back need to read detailed diagrams. In a lecture room at Education City, a lecturer can connect a laptop over HDMI, and the OPS slot can host a computer module if needed. In a boardroom in West Bay or Lusail, the large screen supports presentations and shared documents in meetings that connect Doha with teams abroad.

Heat, mounting and planning

The stated operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing. Summer temperatures in Doha can exceed 45°C, so install the panel only in air-conditioned rooms, away from direct sun and large glazed walls. The panel weighs 58.2 kg net and 72.9 kg gross, and measures 1956.7 x 1170.5 x 87.4 mm, so the wall or stand must be rated for that load. The package includes four wall-mount screws, a 3-metre HDMI cable, a 3-metre touch cable, a 1.8-metre USB-C cable, two passive touch pens, a remote and two AAA batteries. Book a free site survey so our team can check the wall, mounting pattern, power point and sightlines before installation. We deliver to all eight municipalities of Qatar and can include professional installation in your quotation.

Request a quote from SmartRooms Qatar for one panel or several units. We usually respond within one working day, and we accept purchase orders and government tender submissions.

Highlights

86-inch 4K UHD (3840x2160) 16:9 landscape display
EDLA-certified with Android 16 and an octa-core processor
Up to 64 touch points with palm rejection
Front USB-C port with up to 100W power delivery
Built-in 8-microphone array and 2.1 speaker system
Light and PIR motion sensors for automatic brightness control

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

59 specifications · Source: manufacturer · checked Oct 2026

Display13

Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04mm(H) x 1065.96mm (V)(85.6" diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160
Colors: 1.07B colors
Brightness: 350 nits (typ.)
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 6.5ms
Viewing Angles: H = 178°, V = 178° typ.
Backlight Life: 50,000 hours
Surface Treatment: Hardness:9H, Anti-glare coating
Orientation: Landscape

Platform3

Processor: Octa-Core CPU
RAM: 8GB
Storage: 128GB

Touch4

Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32767×32767
Touch Point: Up to 64 points of touch
Palm Rejection: Yes

INPUT7

HDMI: x3 (Frontx1:HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI 2.1 4K@60Hz with CEC, ARC)x1+(HDMI 2.1 4K@60Hz with CEC)x1]
RGB / VGA: x1
DisplayPort: x1
Audio: x1
RS232: x1
SD/SDHC: TF Card Slot(Micro SD)
OPS: x1 PC Slot

OUTPUT3

HDMI: x1 (HDMI 2.1 4K@60Hz)
Audio: x1 (Line out)
SPDIF: x1 (Optical)

LAN1

RJ45: x2

USB3

Type A: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
Type B: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
Type C: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)

SPEAKERS1

Value: 20W x 2 Front soundbar + 15W x 1 subwoofer

MICROPHONE1

Value: Built-in 8-array microphone

Embedded OS1

Value: EDLA-Certified with Android 16

Bundled Software5

Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes

Special Features4

All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
PIR Sensor: Yes

Power2

Voltage: 100-240V AC +/- 10% Wide Range
Consumption: On:93.99 W ; Off:< 0.5 W

ERGONOMICS1

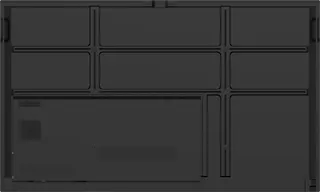

Wall Mount (VESA® ): 800x600

OPERATING CONDITIONS2

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

DIMENSIONS (W x H x D)2

Physical (inch / mm): 77.04 x 46.08 x 3.44 in / 1956.7 x 1170.5 x 87.4mm
Packaging (inch / mm): 82.68 x 50.91 x 6.93 in / 2100 x 1293 x 176 mm

WEIGHT2

Net (lb / kg): 128.31 lb / 58.2 kg
Gross (lb / kg): 160.72 lb / 72.9 kg

REGULATIONS1

Value: cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL

Energy Star version1

Value: 8.0

EEI rating1

Value: D

PACKAGE CONTENTS1

Value: 1. Power Cord x1 3 meters, by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN) 2. USB Type-C cable x1 1.8 meters , USB-IF certified 3. USB Touch cable x1 3 meters 4. Touch pen (Passive pen) x 2 5. Quick Start Guide (With Compliance statement ) 6. Screw x 4 ( wall mount 4) 7. HDMI cable x1 3meters, (HDMI LA certified) 8. Remote controller x1 9. AAA battery x2

Downloads

9 files from the manufacturer

PDF Datasheets IFP8641-1_Datasheet.pdf 767 KB PDF Manuals & guides IFP41-1_QSG.pdf 32.4 MB PDF Manuals & guides IFP41_Series_UG_ENG.pdf 13.4 MB URL Manuals & guides · Opens on manufacturer site IFP8641-1 User Guide (ﺍﻟﻌﺭﺑﻳﺔ) URL Drawings & CAD · Opens on manufacturer site IFP8641 3D drawing(zip) PDF Certificates & compliance VS21064_BSMI_RoHS.pdf 120 KB URL Software & firmware · Opens on manufacturer site IFP8641-1_IFP8641-1-1C_Firmware_Pack_20260709 URL Software & firmware · Opens on manufacturer site Multi_touch_Driver_for_MacOS PDF Other documents Silkscreen_IFP8641_20250917.pdf 2.7 MB

Questions about IFP8641-1

Who is the ViewSonic IFP8641-1-1C best suited for?

It suits rooms where people sit far from the screen, such as lecture halls at Education City, large classrooms and boardrooms. At 86 inches with 4K UHD resolution (3840x2160), diagrams, spreadsheets and video stay legible from the back row, and the 178-degree viewing angles help people seated at the sides. For smaller rooms, our team can suggest a smaller panel size in your quotation.

Does it run Android 16, and is it suitable for school accounts?

Yes. The panel runs Android 16 on an octa-core CPU with 8GB RAM and 128GB storage, and it carries EDLA certification. The manufacturer says it receives regular security updates and gives access to Google Play Store apps. Schools should still set their own account and network policies before rollout, and we can confirm the software setup within your quotation.

How does the touch work, and does palm rejection reduce unintended input?

The touch layer uses infrared recognition and supports up to 64 touch points at once, with palm rejection. That lets several students write together and lets a presenter rest a hand on the glass while writing. The touch resolution is listed as 32767 by 32767, which gives fine control when annotating lessons or meeting notes.

Our Lusail office connects laptops and a PC to one screen. Which inputs are available?

The panel has three HDMI 2.1 inputs at 4K 60Hz (one front, two rear), one DisplayPort input, one VGA input and an OPS slot for a slot-in computer module. Both USB-C ports also carry DisplayPort 1.2 signals, so a laptop can connect over a single cable. Tell us your cable and adapter needs when you request a quote.

What is the OPS slot for, and is a computer module included?

The OPS slot accepts a slot-in PC module, so a computer can run inside the panel without a separate desktop beside it. The panel also supports LAN sharing with the slot-in device at up to 10/100/1000M. The package contents for this model do not list an OPS module, so confirm whether you need one and which module suits your software when requesting a quote.

Can it go in a hot room or near a window in Doha?

Only in an air-conditioned room. The stated operating range is 0°C to 40°C at 20% to 80% relative humidity, non-condensing, while summer temperatures in Doha can exceed 45°C. Keep the panel out of direct sunlight and check glare from large windows before fixing its position. The anti-glare coating reduces reflections, but it does not replace good placement.

Our West Bay boardroom needs an 86-inch panel. What should we check on the wall?

The panel weighs 58.2 kg net and 72.9 kg gross with packaging, and measures 1956.7 x 1170.5 x 87.4 mm, so the wall or bracket must be rated for that load. Four wall-mount screws are included. Our free site survey checks the wall type, mounting pattern, power point and sightlines before installation, so you have a clear plan before ordering.

How much power does it draw, and does it suit Qatar's 240V supply?

The listed consumption is 93.99W when on and under 0.5W when off. The power input is rated 100 to 240V AC plus or minus 10 percent, which covers Qatar's 240V mains. The power cord supplied depends on the shipping region, so confirm the plug type with your quotation.

Can a presenter charge a laptop from the panel?

Yes. The front USB-C port delivers up to 100W power delivery and carries DisplayPort 1.2 and 100M Ethernet, so one cable can charge and connect a compatible laptop. The rear USB-C port provides 15W. Check your laptop's charging requirement before relying on it for a full session.

Can the sensors help a school in Al Khor reduce energy use?

The panel has a light sensor and a PIR motion sensor. The light sensor adjusts screen brightness to the room, and the motion sensor detects people nearby, which the manufacturer links to better energy efficiency. With a listed draw of 93.99W when on and under 0.5W when off, a school can plan more economical use. Ask us to confirm the setup for each classroom in your quotation.

How do we order several panels for a school or government office?

Schools and government offices can order through a purchase order (LPO), and SmartRooms Qatar also responds to government tenders, including Monaqasat. Send the quantity, room list and required sizes, and we usually issue a quotation within one working day. We accept payment by bank transfer, cheque or purchase order, and delivery covers all eight municipalities.

Is this model still current, and is it covered by warranty?

Yes, the model is listed as current. Products sold by SmartRooms Qatar are covered by the manufacturer's warranty, and its terms are set by the manufacturer. Stock and lead time are confirmed in your quotation because they depend on current availability. Ask us for the warranty details before placing an order.
