IFP8652-2F

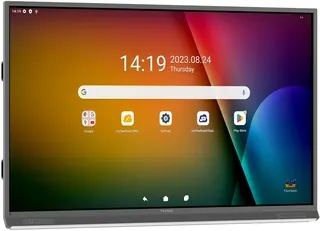

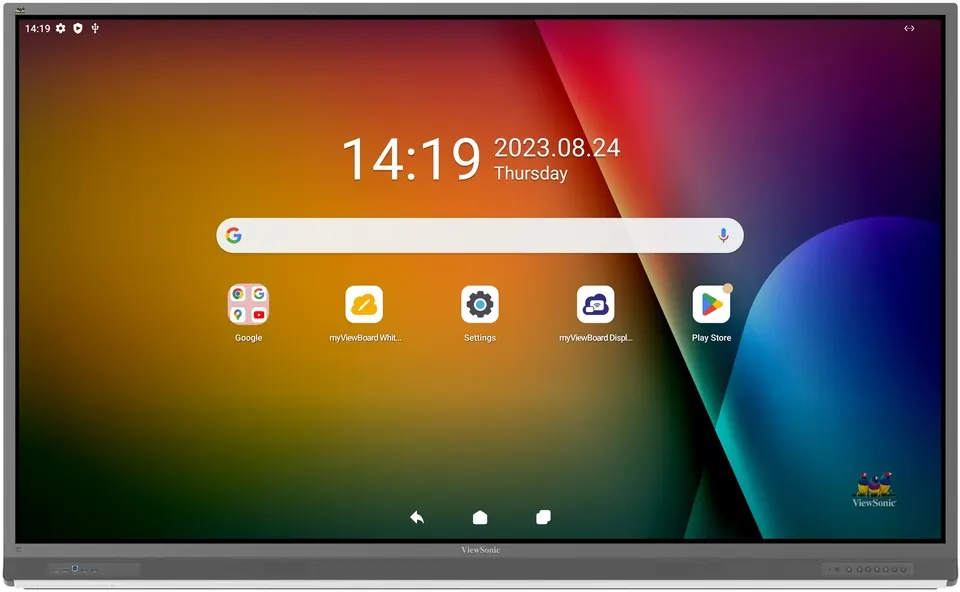

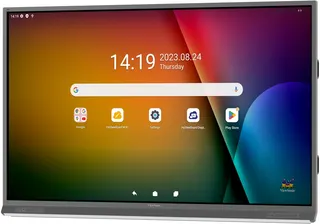

The ViewSonic IFP8652-2F is an 86-inch 4K interactive display built around Android 13. Its EDLA certification, which stands for Android Enterprise Device License Agreement, allows the panel to access Google apps and the Google Play Store, while the bundled myViewBoard software handles annotation and lesson tools. It is designed for rooms where one large screen must serve teachers, presenters and remote participants at the same time.

Android 13 and managed apps on a large panel

The display runs an octa-core processor with 8GB of RAM and 64GB of storage, so staff can install approved apps and keep them updated without a separate computer for every session. Split-screen multitasking shows two windows side by side, letting a presenter annotate in one window while a video or document plays in another. Automatic Android security and app updates reduce the maintenance load on IT teams that look after several rooms.

Image, touch and audio for hybrid lessons

The 3840 x 2160 VA panel shows 1.07 billion colours with a typical contrast ratio of 4000:1 and 350 nits typical brightness. Its anti-glare coating and 7H surface hardness help in rooms with windows or strong overhead lighting. Ultra Fine Touch technology supports 40 touch points on Windows and 20 on Android, and two touch pens are included. An 8-microphone array with noise detection and cancellation, two 15W front speakers and a 15W subwoofer keep remote participants clearly audible.

Connecting laptops, sources and wireless casting

The panel offers three HDMI inputs, one front HDMI 2.0 and two rear inputs (HDMI 2.1 and HDMI 2.0), plus VGA, DisplayPort, PC audio input, RS232 control and an OPS module slot. The three USB-C ports allow one-cable connections: the front port provides 65W power delivery and the rear port 100W, both with USB 3.0, DisplayPort 1.2 and 100M Ethernet, while the third rear port carries USB 3.0 data only. vCast supports simultaneous casting from four devices, and AirSync is included in the wireless presentation bundle. An optional Wi-Fi module is available if the room needs wireless internet access.

Planning installation, power and climate in Qatar

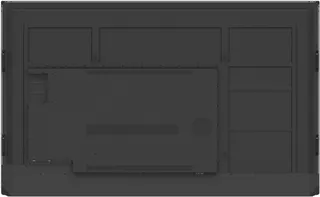

At 1971.16 x 1212.54 x 121.38 mm and 74 kg net (84 kg packed), this panel needs a wall that can carry its weight and a VESA 800 x 600 mount. A site survey before installation confirms wall structure, mounting height and cable routes, and SmartRooms Qatar provides free site surveys and professional installation. The power supply accepts 100 to 240 VAC, which covers Qatar's 240 V mains, with rated consumption of 148.12 W. The operating range is 0°C to 40°C at 20 to 80% humidity, non-condensing. Qatar summer temperatures can exceed 45°C, so the display must sit in an air-conditioned room, away from direct sun, open windows and lobby entrances.

Typical rooms in Qatar

• Classrooms and lecture halls: a university teaching room in Education City or an international school in Lusail where teachers present in English and Arabic and the microphone array captures lessons for students joining from home.
• Boardrooms: an office in West Bay or Msheireb where up to four participants cast laptops at once and the 86-inch screen shows a video conference with a team abroad.
• Training centres: a government training room in Doha where staff run approved apps on the Android platform and the 65W USB-C port charges the presenter's laptop.

Each unit is priced by quotation. Tell the SmartRooms Qatar team your room size, wall and accessory needs, and request a quote covering supply, delivery to any of Qatar's eight municipalities and professional installation. Schools ordering several units can raise a purchase order (LPO).
