IFP8663-1C

An 86-inch 4K display built for shared writing and hybrid meetings

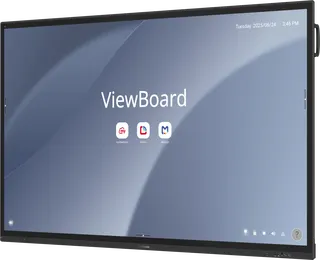

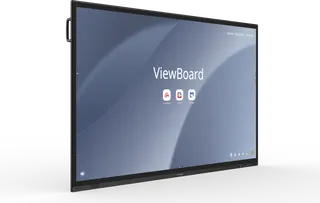

The ViewSonic IFP8663-1C places an 86-inch UHD panel at 3840 x 2160 resolution on a wall or stand, with a touch layer that tracks up to 50 points at once. It suits enterprise boardrooms and university rooms where people write, sketch and annotate on one surface, whether they sit in the room or join remotely. The landscape TFT LCD uses a DLED backlight, is rated at 450 nits typical brightness with a 5000:1 contrast ratio, and offers 178-degree horizontal and vertical viewing angles.

Touch, pens and writing accuracy

The PCAP touch layer offers a 32767 x 32767 touch resolution. Palm rejection works with both passive and active pens, so a presenter can rest a hand on the glass without leaving marks. Two touch pens are included in the box. The glass carries a 9H pencil hardness rating and anti-glare, anti-fingerprint and antibacterial treatment, which matters on a surface that many people touch every day.

• Up to 50 touch points on Windows and Android
• Palm rejection for passive and active pens
• Pen sensor supporting Write Away instant inking

Android 15, EDLA certification and bundled software

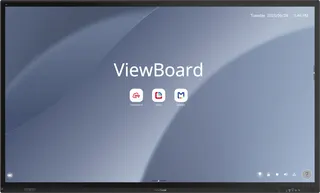

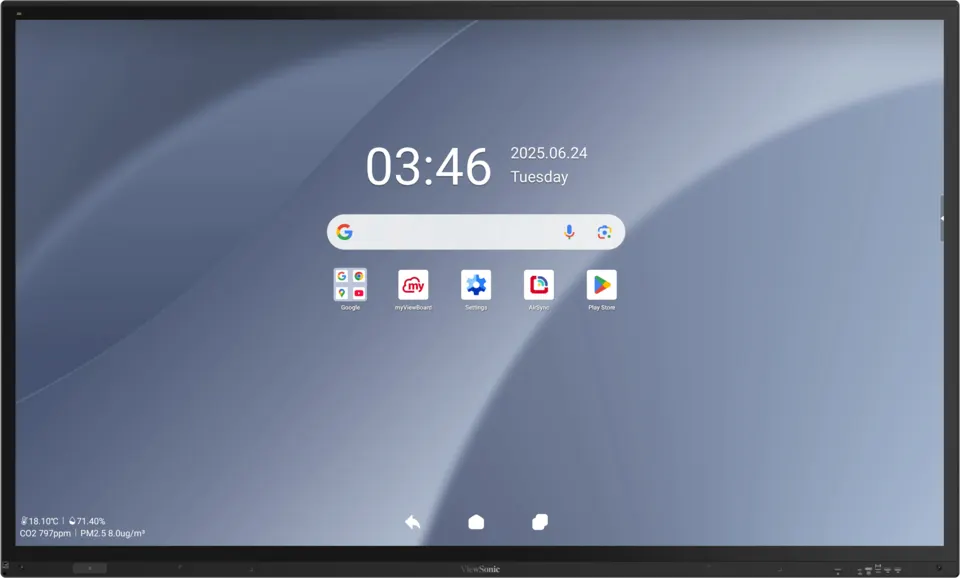

The unit runs Android 15 on an octa-core processor with 16GB LPDDR RAM and 128GB eMMC storage. It is EDLA certified and gives access to the Google Play Store, so teams can install productivity apps such as Google Workspace, Microsoft 365 and Zoom directly on the screen. Bundled software includes myViewBoard for Android, TeamOne for whiteboarding, AirSync for wireless sharing and Manager for remote device control. Android security features include regular security updates, Google Play Protect, managed app updates, two-factor authentication and built-in data encryption.

Where it fits in Qatar

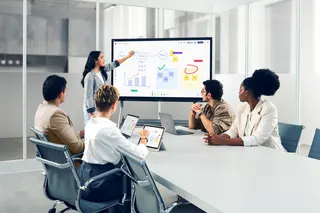

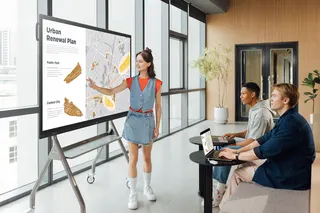

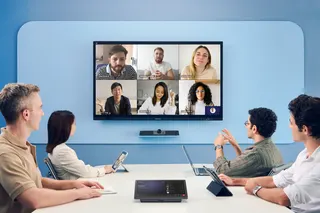

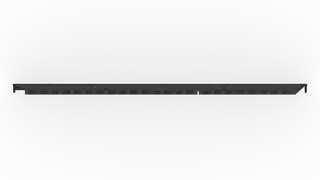

In a lecture hall at a university in Education City, the 86-inch surface lets students at the back read every annotation, while a camera on the top plate connects through a USB-C port rated at 15W for hybrid lessons. In a West Bay or Msheireb boardroom, each executive taps an NFC badge to load personal settings and files, which suits rooms shared by several departments. A private school in Al Wakrah fitting out classrooms could standardise on one model and use ViewSonic Manager to schedule power cycles and ECO mode for every unit from a single dashboard.

Planning the installation and efficiency

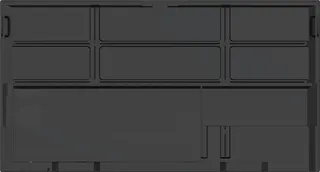

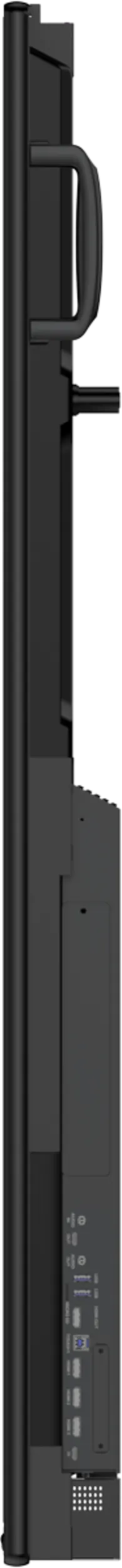

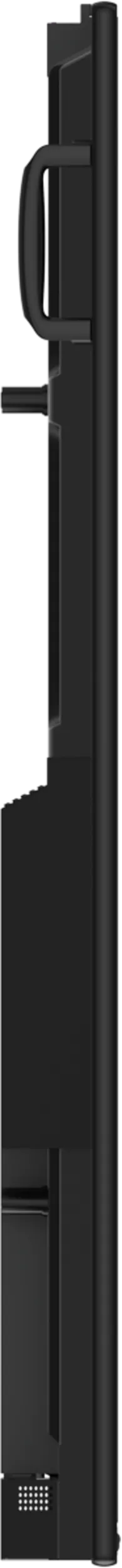

The display measures 1961.9 x 1172.5 x 79.5 mm and weighs 65.1 kg net (84.2 kg gross), so plan for a two-person lift and a wall rated for that load. It uses an 800 x 600 VESA pattern and includes four wall-mount screws. Rated input is 100-240VAC, with power draw of 121.1W when on and under 0.5W when off. The operating range is 0 to 40°C at 20 to 80% relative humidity, non-condensing, so install it in air-conditioned rooms away from direct sun and dust. Built-in sensors include a light sensor, a PIR presence sensor and environmental sensors for temperature, humidity, eCO2, VOCs and PM2.5. The product is listed as EPEAT Gold, Energy Star ES8.0 and EEI Level F.

To plan a ViewSonic IFP8663-1C installation for your Doha office, school or lecture hall, request a quote from SmartRooms Qatar. Quotations usually come within one working day, and we deliver across all eight municipalities of Qatar.
