ViewSonic IN8603-1C · Price in Qatar

Name: ViewSonic ViewBoard IN8603-1C 86-inch 4K Interactive Flat Panel
Brand: ViewSonic
SKU: viewsonic-in8603-1c
Availability: InStock

Overview

The ViewSonic ViewBoard IN8603-1C is an 86-inch 4K UHD interactive flat panel running Android 14 under the Android Enterprise Device License Agreement, with Google Play Store access. It offers 40-point touch, 450 nits brightness, a 9H anti-glare coating and two 20 W speakers. It suits large classrooms, boardrooms and training rooms across Qatar. Request a quote today.

What the ViewBoard IN8603-1C does in a meeting or classroom

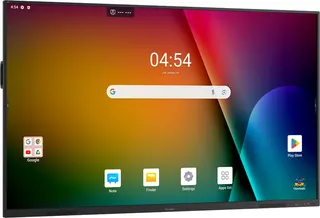

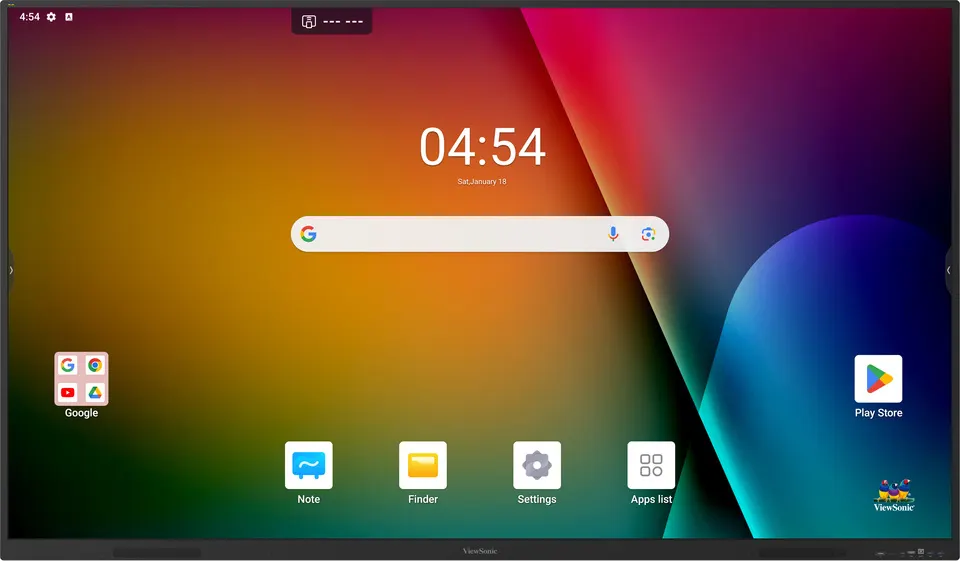

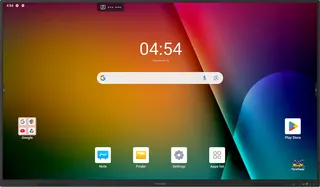

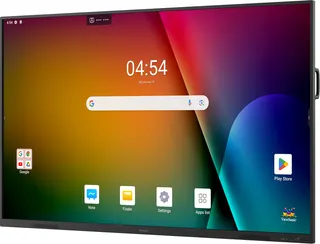

The ViewBoard IN8603-1C combines a large 4K display, a touch surface and a built-in Android 14 system. Because the operating system runs on the panel itself, presenters can open documents, browsers and apps from Google Play Store without bringing a laptop into the room. It works well where one shared screen must handle writing, annotating and sharing.

Display, touch and audio figures worth checking

The panel uses a UHD 3840 x 2160 resolution in a 16:9 landscape format, with a 9H anti-glare coating that reduces reflections from ceiling lights and windows. Its 450 nit brightness and 5,000:1 maximum contrast ratio with DCR enabled suit rooms with controlled lighting. The specification gives no figure for direct sunlight, so rooms with large windows need a site check.

Touch: 40 touch points on both Windows and Android, with finger or dual-tip pen input.
Response: 8 ms response time and 178 degree horizontal and vertical viewing angles.
Audio: two built-in 20 W speakers.
Backlight: rated at 50,000 hours.

Connectivity, storage and optional PC expansion

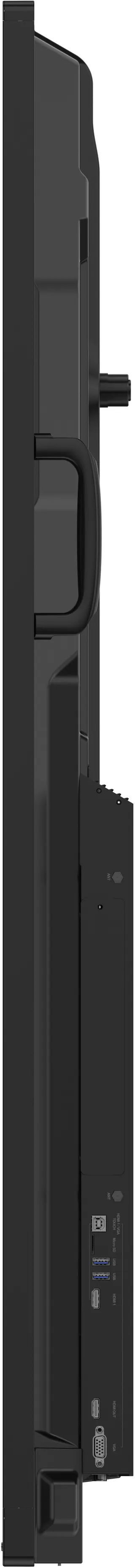

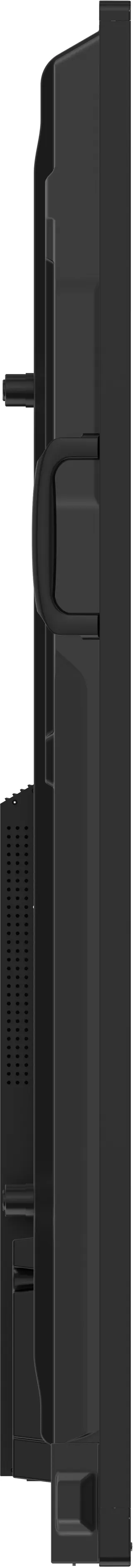

Inputs include two HDMI 2.0 ports (one front, one rear with CEC and ARC), an RGB/VGA input, an RS232 control port and an SD/SDHC card slot. An HDMI output lets you feed a second display. A front USB 2.0 Type C port provides 15 W power delivery, and four USB 3.2 Gen 1 Type A ports (two front, two rear) serve storage and peripherals. An RJ45 LAN port provides wired networking. The unit has 8GB RAM and 128GB storage, plus one optional Intel Standard OPS slot. The specification lists four compatible slot-in PCs: VPCF5-W55-G1, VPCF5-2A, VPC37-W53-G1 and VPC35-W53-G1.

Where it fits across Qatar

A private school in Al Wakrah fitting out a classroom can use the 86-inch format so pupils at the back can read lesson content, while the touch surface supports annotation in front of the class. A boardroom in West Bay or Msheireb can display shared documents during video calls, connected by HDMI or USB-C from a laptop. A training centre in Education City or the Industrial Area can use the OPS slot to fit a PC that matches its software needs.

Planning the installation

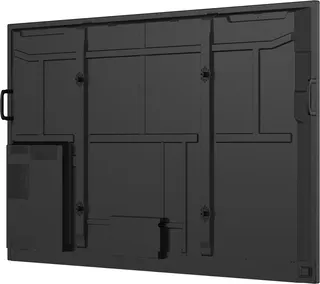

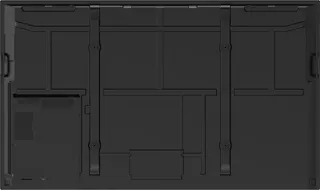

At 53.6 kg net and 1957 mm wide, the panel needs a wall that can carry its weight and a bracket matching its 800 x 600 VESA pattern. The package includes four M8 x 25 mm wall-mount screws, but no bracket is listed, so confirm this when requesting a quote. SmartRooms Qatar offers free site surveys to check wall structure, window glare and cable routes to the power point and sources. Power draw is 240 W in normal use and under 0.5 W when off, within a 100-240V AC input range. The package includes an India-style power plug, so confirm the correct lead for BS 1363 sockets. The operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing. Summer temperatures in Qatar can pass 45 °C, so install it in an air-conditioned room rather than a corridor or covered outdoor area.

Request a quote from SmartRooms Qatar for the ViewSonic ViewBoard IN8603-1C, with delivery to all eight municipalities of Qatar. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders, including Monaqasat.

Highlights

86-inch 4K UHD panel at 3840 x 2160 resolution
Android 14 with Google Play Store access
40-point touch with finger and dual-tip pen input
450 nits brightness with 9H anti-glare coating
Two 20 W speakers and two HDMI 2.0 inputs
Optional Intel Standard OPS slot for a slot-in PC

Classroom fit

At 86″ the farthest student should sit within about 6.4 m (6× the screen height).

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

46 specifications · Source: manufacturer · checked Oct 2026

Display13

Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04 (H) X 1065.96 (V) (85.6")
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07G colors (8-bit + FRC)
Brightness: 450 nits
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 8ms
Viewing Angles: H=178, V=178
Backlight Life: 50,000 Hours
Surface Treatment: Hardness: 9H Anti-glare coating
Orientation: Landscape

Platform4

Processor: Octa-Core CPU (A53*4 + A73*4)
GPU: Mali-G52 MP8
RAM: 8GB DDR4
Storage: 128GB

Touch2

Type/ Tech: Ultra Fine Touch Technology
Touch Point: Windows: 40 Android: 40

INPUT6

HDMI: x2 (Frontx1:HDMI2.0 with CEC ; Rearx1: [HDMI2.0 with CEC/ ARC)x1]
RGB / VGA: x1
Audio: x1
RS232: x1
SD/SDHC: x1
OPS: x1 (Optional Intel Standard OPS)

OUTPUT3

HDMI: x1
Audio: x1
SPDIF: x1

LAN1

RJ45: x1

USB3

Type A: USB3.2 Gen 1:Front x2 , Rear x2 (all support SmartPort) USB2.0:Rear x1
Type B: USB 2.0:Frontx1, Rear x1
Type C: USB 2.0: Front x1 with PD15W

SPEAKERS1

Value: 20W x 2

Embedded OS1

Value: Android 14 (EDLA)

Power2

Voltage: 100-240V AC
Consumption: On: 240W(Normal) ; Off:

ERGONOMICS1

Wall Mount (VESA® ): 800*600

OPERATING CONDITIONS2

Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

DIMENSIONS (W x H x D)2

Physical (inch / mm): 77.1x45.6x3.9(in) / 1957x1159x98.8 (mm)
Packaging (inch / mm): 83.1x50.8x7.3(in) / 2110x1291x185(mm)

WEIGHT2

Net (lb / kg): 118.2lb / 53.6 kg
Gross (lb / kg): 140.7lb / 63.8kg

REGULATIONS1

Value: BIS, Energy Star

PACKAGE CONTENTS1

Value: 1. 3m power India power plug x 1 2. 3m HDMI cable x 1 3. 3m Touch USB cable (USB2.0) x 1 4. Touch pen x 2 5. Remote control x 1 6. AAA battery x 2 7.Wifi Dual band antenna*2 8. Quick Start Guide with Compliance statement 9. Screw x 4 (wall mount M8*25mm)

Compatible Slot-in PC1

Value: VPCF5-W55-G1 / VPCF5-2A / VPC37-W53-G1 / VPC35-W53-G1

Downloads

4 files from the manufacturer

PDF Datasheets IN8603-1C_Datasheet.pdf 233 KB PDF Manuals & guides IN03_Series_QSG.pdf 1.2 MB PDF Manuals & guides IN03_Series_UG_ENG.pdf 16.5 MB PDF Certificates & compliance VS20552_CE_DoC.pdf 149 KB

Questions about IN8603-1C

Who is the ViewSonic IN8603-1C best suited for?

It suits a lecture hall, training room or large boardroom where one shared screen must support writing, presenting and running apps. In an office in Doha or Lusail, the 86-inch 4K panel lets a group read detailed documents and spreadsheets from across the room, and its built-in Android system covers basic tasks without a separate PC.

Does it run apps on its own, and how much storage does it have?

Yes. The panel runs Android 14 under the Android Enterprise Device License Agreement, with Google Play Store access, 8GB RAM and 128GB storage. It also has an SD/SDHC slot for expandable storage. Before requesting a quote, list the apps your school or office needs so we can confirm they install from Google Play and suit the available storage.

How many touch points does it support and what comes in the box?

The touch surface supports 40 points on Windows and 40 on Android, so several people can write at once. The box includes two touch pens, a remote control, two AAA batteries, a 3 m touch USB cable, a 3 m HDMI cable, two dual-band Wi-Fi antennas and a quick start guide. The panel ships with only two pens, so plan pen storage in the room from the start.

Will the screen be readable in a room with large windows?

The panel is rated at 450 nits with a 9H anti-glare coating, which reduces reflections from ceiling lights and window glare. The specification gives no figure for direct sunlight, so a room with west-facing glass may still need blinds or a repositioned screen. SmartRooms Qatar offers free site surveys to check light levels before installation.

What can I connect to it?

The panel has two HDMI 2.0 inputs (one front, one rear with CEC and ARC), an RGB/VGA input, an audio input, an RS232 control port and an HDMI output for a second display. A front USB 2.0 Type C port with 15 W power delivery and four USB 3.2 Gen 1 Type A ports suit laptops, cameras and storage devices. An RJ45 LAN port provides wired network access.

Can I fit a PC inside it?

Yes, through one optional Intel Standard OPS slot. The specification lists the compatible slot-in PCs as VPCF5-W55-G1, VPCF5-2A, VPC37-W53-G1 and VPC35-W53-G1. An OPS PC lets an IT team run desktop software on the panel itself, so the room does not need a separate computer on the desk. Confirm the exact model with your IT team before ordering.

Does it work with Qatar's power supply?

The power input is listed as 100-240V AC, which covers Qatar's 240 V, 50 Hz mains. Normal draw is 240 W and under 0.5 W when off. The package includes a 3 m India-style power plug, which does not match BS 1363 (Type G) sockets, so confirm the correct lead or adapter with SmartRooms Qatar before installation.

Can it be installed in a hot room or outdoors in summer?

No. The operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing. Qatar's summer temperatures can exceed 45 °C, so install the panel in an air-conditioned indoor room. Avoid loggias, covered outdoor areas and rooms where the air conditioning is switched off outside teaching hours.

How heavy is it and what wall mount does it need?

The net weight is 53.6 kg and the panel measures 1957 x 1159 x 98.8 mm. It uses an 800 x 600 VESA pattern. Four M8 x 25 mm wall-mount screws are included, but a mounting bracket is not listed in the package, so confirm the bracket and the wall's load capacity before installation is planned.

How much power does it draw for a school running all day?

According to the specification, it draws 240 W in normal operation and under 0.5 W when switched off. That figure covers the panel as listed, so plan separate sockets for any additional equipment in the room. Your facilities team can add these figures to the room's electrical load when planning sockets and circuits.

Which regulatory approvals does it carry?

The manufacturer lists BIS and Energy Star for this model. If your procurement team needs documentation for a tender file, ask for it when you request your quote. The quick start guide in the box includes a compliance statement.

Can a school or government office buy several units on one purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day and can cover several panels, mounting hardware and installation. Free site surveys are available before a multi-room order is confirmed.
