ViewSonic LB-WIFI-001 · Price in Qatar

Name: ViewSonic LB-WIFI-001 Dual Band Wi-Fi Module for ViewBoard Panels
Brand: ViewSonic
SKU: viewsonic-lb-wifi-001
Availability: InStock

Overview

The ViewSonic LB-WIFI-001 is a dual band wireless module that adds Wi-Fi to compatible ViewBoard IFP50, IFP70 (65-inch and 86-inch) and CDE20 (65 to 86 inches) interactive displays. It covers 2.4GHz and 5GHz under 802.11 a/b/g/n/ac, with a listed maximum of 433.5Mbps and Bluetooth 2.1/3.0/4.0 BLE support. It suits Doha schools and offices where running network cable to the panel is impractical or costly.

What the LB-WIFI-001 adds to a ViewBoard panel

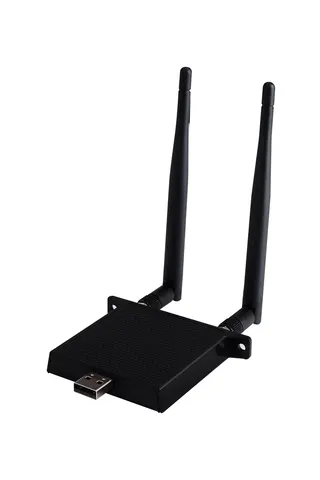

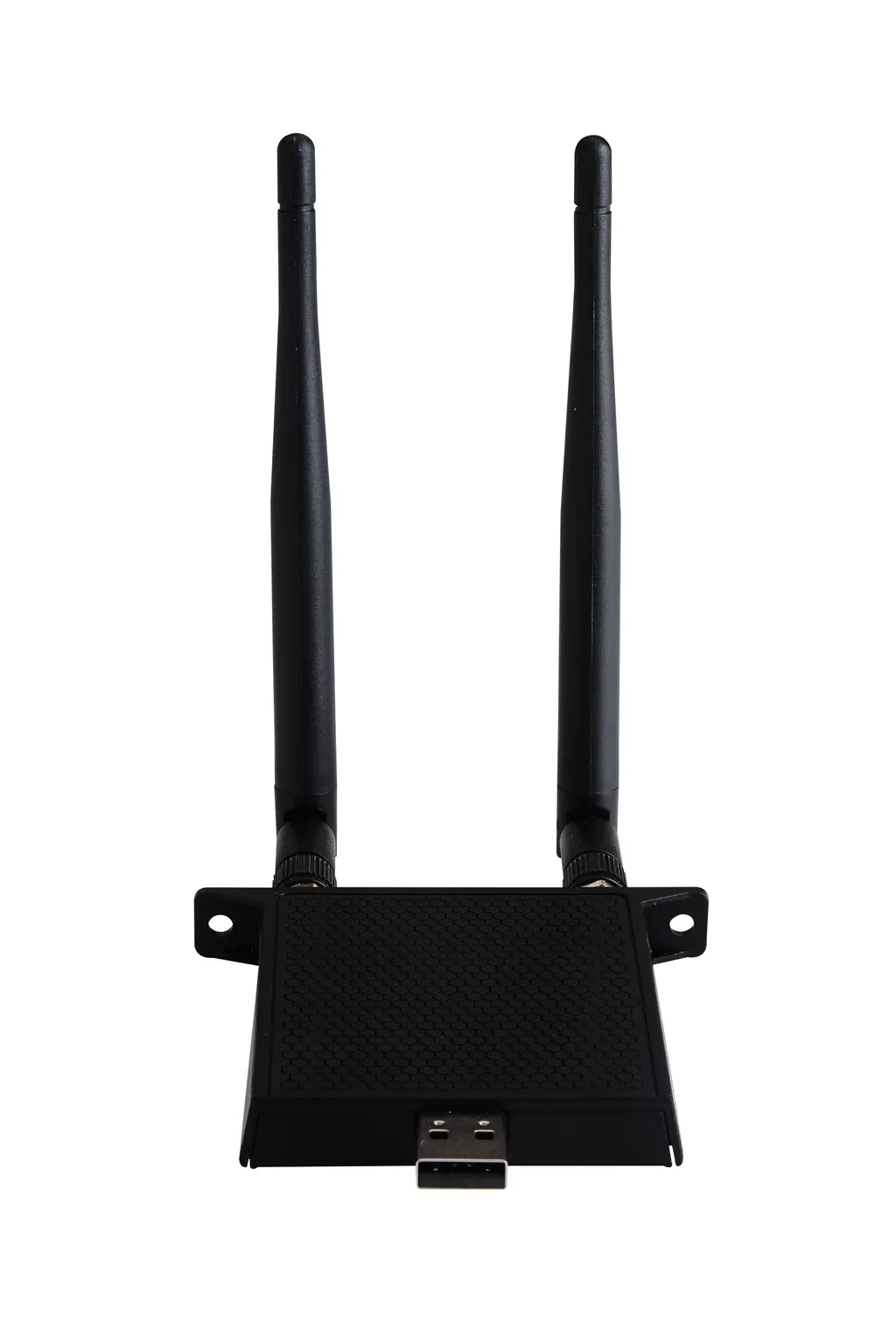

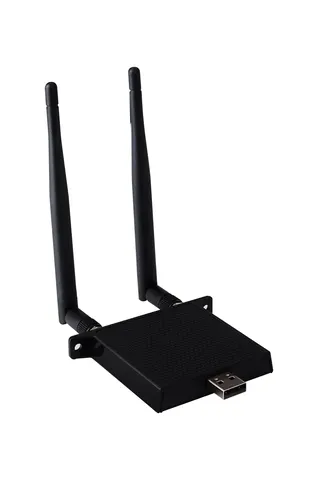

The ViewSonic LB-WIFI-001 is a compact wireless module that gives supported ViewBoard interactive displays a Wi-Fi connection, so a panel can join the network without a network cable running to it. It uses a Realtek RTL8821AU-VS chip, and its specification lists compatibility with the IFP50 series, the IFP70 series in 65-inch and 86-inch sizes, and the CDE20 series from 65 to 86 inches.

Dual band Wi-Fi and what the figures mean in practice

The module operates on both the 2.4GHz and 5GHz bands under the 802.11 a/b/g/n/ac standards, with a listed maximum rate of 433.5Mbps. The 2.4GHz band is well suited to web browsing and presentations, while 5GHz carries more data and is the better choice for high-quality video. The specification lists 5GHz operation across 5150MHz to 5250MHz and 5725MHz to 5825MHz. Bluetooth 2.1, 3.0 and 4.0 BLE support is also listed.

Treat the 433.5Mbps figure as a ceiling for the link, not a guaranteed speed in every room. Real throughput depends on the access point, how many devices share it, and how many walls sit between the panel and the router.

Where it fits in Qatar

Classrooms in an existing school building: A private school in Al Wakrah refitting older classrooms often finds that running data cable to each panel means cutting into finished walls. A 65-inch panel in a smaller classroom can join the existing Wi-Fi network with this module instead.
Lecture halls and boardrooms: An 86-inch panel at the front of a lecture hall in Education City or a boardroom in West Bay takes presentations from laptops and tablets. The 5GHz band handles video-heavy content, and the 2.4GHz band covers documents and browsing.
Multi-floor rollouts: A government authority equipping meeting rooms across several floors in Doha can order one module for each compatible panel under a single purchase order, keeping one list of model codes and one installation plan.

Planning the installation

Confirm the panel model before ordering. The module is listed for the series above, and panels outside them are not covered by this data. The package contains the module and a quick start guide only, and the listed power is 5V DC with consumption below 2.5W. Ask the SmartRooms Qatar team to confirm how the module will be powered and connected to your panel during the quotation.

Environment matters in Qatar. The rated operating range is 0°C to 40°C with 10% to 90% non-condensing humidity. Summer temperatures outdoors can exceed 45°C, so keep the panel and its module in an air-conditioned room, away from dust and direct sun. The module measures 99 x 11 x 77 mm and weighs 30g net, so it adds little load to a wall-mounted panel, but an 86-inch panel still needs a secure wall fixing. The free site survey from SmartRooms Qatar can check the mounting point, the cable route and the access point coverage before installation.

Request a quote for your panel

Send the exact panel model, the number of rooms and their sizes, and the SmartRooms Qatar team will return a quotation, usually within one working day. Supply and delivery cover all 8 municipalities of Qatar, and purchase orders (LPOs) and government tenders, including Monaqasat, are accepted. Request a quote for the LB-WIFI-001 today and confirm compatibility before you place an order.

Highlights

Dual band operation on 2.4GHz and 5GHz under 802.11 a/b/g/n/ac
Listed transmission rate of up to 433.5Mbps
Compatible with IFP50, IFP70 (65-inch and 86-inch) and CDE20 (65 to 86 inches) series
Bluetooth 2.1, 3.0 and 4.0 BLE support listed
Powered at 5V DC with consumption below 2.5W
Operating range 0°C to 40°C, 10% to 90% non-condensing humidity

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

14 specifications · Source: manufacturer · checked Oct 2026

Core1

CPU: Realtek RTL8821AU-VS

Storage1

Interface: USB 2.0

Wireless / Bluetooth1

Value: Wifi Standard: 802.11 a/b/g/n/ac, 2.4G & 5G(5150MHz-5250MHz & 5725MHz-5825MHz), Up to 433.5Mbps Bluetooth: Support 2.1/3.0/4.0 BLE

Power2

Voltage: 5V DC
Consumption: < 2.5W

OPERATING CONDITIONS2

Temperature (º C): 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing

DIMENSIONS2

Physical (inch / mm): 3.90x0.43x3.03 in / 99x11x77mm
Packaging (inch / mm): 3.54x0.63x6.18 in / 90x16x157mm

WEIGHT2

Net (lb / kg): 0.07lb / 30g
Gross (lb / kg): 0.18lb / 80g

REGULATIONS1

Value: FCC, FCC ID, IC ID, CE, RCM

PACKAGE CONTENTS1

Value: 1. LB-WIFI-001 2. QSG

UPC Code1

Value: 76690791011 7

Downloads

2 files from the manufacturer

PDF Datasheets LB-WIFI-001_Datasheet.pdf 457 KB PDF Manuals & guides LB-WIFI-001_QSG_ENG.pdf 1.3 MB

Questions about LB-WIFI-001

What is the LB-WIFI-001 and which panels does it fit?

The LB-WIFI-001 is a dual band Wi-Fi module from ViewSonic made for ViewBoard interactive displays. Its specification lists compatibility with the IFP50 series, the IFP70 series in 65-inch and 86-inch sizes, and the CDE20 series from 65 to 86 inches. Panels outside these series are not covered by the source data, so confirm your exact model with the SmartRooms Qatar team before ordering.

Does it support both 2.4GHz and 5GHz networks?

Yes. The module works on 2.4GHz and 5GHz under the 802.11 a/b/g/n/ac standards. The 2.4GHz band suits web browsing and presentations, while 5GHz is the better choice for streaming high-quality video. The listed 5GHz ranges are 5150MHz to 5250MHz and 5725MHz to 5825MHz, so the band you use depends on the access point's configuration at your site.

What is the maximum wireless speed, and what affects it?

The specification lists a maximum transmission rate of 433.5Mbps. This is a ceiling for the link, not a guaranteed speed in every room. Real performance depends on the access point, the number of devices sharing it and the walls between the panel and the router. In a building in Education City, check the access point's band and channel plan during the site survey.

Does it include Bluetooth?

The specification lists Bluetooth 2.1, 3.0 and 4.0 BLE support. Before you rely on pairing features in a meeting room, confirm with the SmartRooms Qatar team which pairing functions your panel software uses. Bluetooth should not replace a wired connection when a presenter needs a stable link during a live session.

What power does it need?

The module is rated at 5V DC with consumption below 2.5W. The package contents list only the module and a quick start guide, so the source data does not include a power adapter. Ask the SmartRooms Qatar team to confirm how the module will be powered and connected to your panel as part of the quotation.

Can it run in an outdoor or non-air-conditioned space in Qatar?

The source data does not support that. The rated operating range is 0°C to 40°C with 10% to 90% non-condensing humidity. Outdoor summer temperatures in Qatar can exceed 45°C, so keep the panel and its module in an air-conditioned room away from dust and direct sunlight. The site survey can check the room conditions before installation.

How big is the module, and does it affect wall mounting?

The module measures 99 x 11 x 77 mm (3.90 x 0.43 x 3.03 inches) and weighs 30g net, so it adds very little load. The wall fixing itself still matters, especially for an 86-inch panel. The SmartRooms Qatar team can check the mounting point and cable route during the free site survey before any installation work begins.

How would a private school in Al Wakrah use it?

A private school in Al Wakrah refitting classrooms inside an existing building may find that running data cable to each panel means opening finished walls. If a Wi-Fi access point is close to the room, this module lets a compatible 65-inch or 86-inch panel join the network without a new cable run. Ask the team to check access point coverage inside each room during the survey.

Is it suitable for a lecture hall in Education City?

An 86-inch IFP70 at the front of a lecture hall in Education City needs a dependable connection when lecturers share presentations from their own devices. The 5GHz band handles video-heavy material, while the 2.4GHz band covers documents and browsing. Confirm the wireless coverage in the hall and the exact panel model before ordering.

How would a meeting room in West Bay use it?

A meeting room in West Bay with a 65-inch CDE20 panel can use the module to show content from team laptops without reconnecting cables at every meeting. Once the panel is on the network, the 5GHz band suits video content and the 2.4GHz band suits slides and web pages. Plan the network layout with the SmartRooms Qatar team before installation.

Can a government office order it through an LPO or tender?

Yes. A government office or school equipping several rooms with compatible panels can issue one purchase order (LPO) or take part in government tenders, including Monaqasat. Send the panel models and a room list, and the SmartRooms Qatar team will prepare a quotation, usually within one working day. Supply and delivery cover all 8 municipalities of Qatar, and lead times are estimates confirmed with the quotation.

Is the LB-WIFI-001 covered by warranty?

Yes. Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The source data does not give a warranty period or terms, so ask for the exact coverage in your quotation. Keep the model code, serial numbers and invoice together in your asset register so any future support claim can be handled quickly.
