ViewSonic VB-WIFI-005 · Price in Qatar

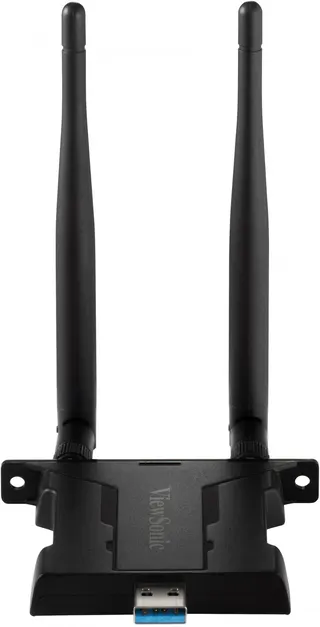

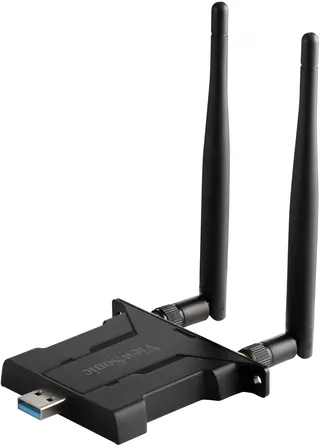

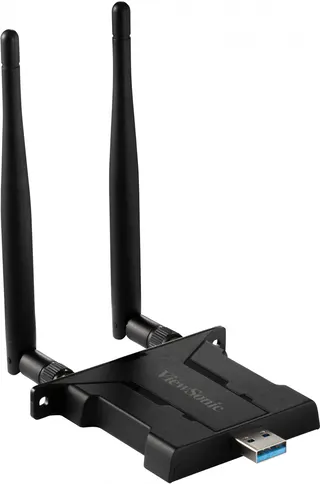

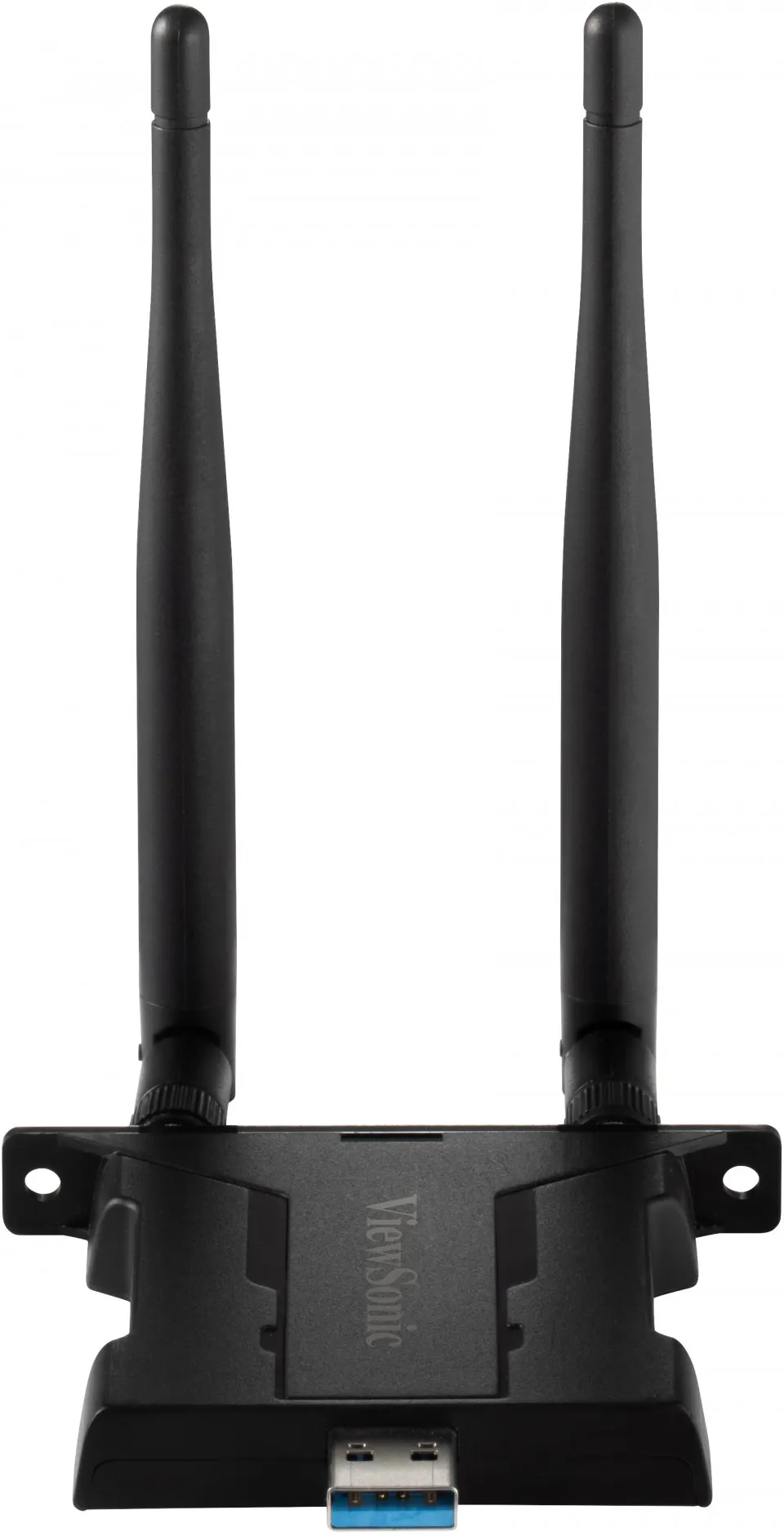

Name: ViewSonic VB-WIFI-005 Wi-Fi 6 Wireless Module for ViewBoard Displays
Brand: ViewSonic
SKU: viewsonic-vb-wifi-005
Availability: InStock

Overview

The ViewSonic VB-WIFI-005 is a wireless module that adds Wi-Fi 6 (802.11ax) and dual-band 2.4GHz and 5GHz connectivity to selected ViewBoard and Presentation Display models. It also supports Bluetooth 5.2 BLE, draws under 4.5W and is rated for 0°C to 40°C. Suited to meeting rooms and classrooms in Doha where cable-free connection saves time. Confirm compatibility with your model before ordering.

What the VB-WIFI-005 adds to a ViewBoard

The VB-WIFI-005 is a wireless module from ViewSonic built for ViewBoard interactive displays and selected Presentation Display models. It gives the display a Wi-Fi link across both the 2.4GHz and 5GHz bands, so content can be shared over the air rather than through cables run to the wall. Its support for the 802.11ax standard, known as Wi-Fi 6, places it in the newer generation of wireless, while the listed standards also include 802.11 a/b/g/n/ac for older access points.

Specifications that matter for planning

Wireless: dual-band 2.4GHz and 5GHz with Wi-Fi 6 (802.11ax)
Bluetooth: versions 2.1, 3.0, 4.0 and 5.2 BLE
Power: 5V DC, 0.9A input, consumption below 4.5W
Size and weight: 99 x 11 x 77 mm, 30g net
Operating conditions: 0°C to 40°C, 10% to 90% humidity, non-condensing
Compliance: CE, FCC, IC, NCC, RoHS, WEEE and REACH

Where it fits in Qatar

Consider a private school in Al Wakrah fitting out new classrooms. Teachers can send lesson files from tablets to a compatible ViewBoard without drilling cable routes through the walls. In a boardroom in Lusail, several executives may join the room network at once during calls with teams abroad, and the dual-band Wi-Fi 6 link suits that kind of demand. A hotel meeting room in West Bay or a training centre in Education City can use the same approach for back-to-back sessions.

Planning before you order

Check the compatibility list first, because the module supports selected models only.
Confirm your access points in the room offer dual-band 2.4GHz and 5GHz Wi-Fi.
Keep the module in an air-conditioned space, since its rated limit is 40°C.
Ask for a free site survey if signal coverage at the display position is unclear.

For projects with several displays, plan quantities per room and check that each display model is compatible. SmartRooms Qatar supplies to all eight municipalities of Qatar, offers professional installation, and accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment can be made by bank transfer, cheque or purchase order.

To confirm compatibility and receive a quotation for your rooms, request a quote from the SmartRooms Qatar team and include your display model numbers.

Highlights

Dual-band 2.4GHz and 5GHz Wi-Fi 6 (802.11ax) connectivity
Bluetooth versions 2.1, 3.0, 4.0 and 5.2 BLE
5V DC, 0.9A input with consumption under 4.5W
Compact module measuring 99 x 11 x 77 mm, 30g net
Rated for 0°C to 40°C and 10% to 90% non-condensing humidity
Compliant with CE, FCC, IC, NCC, RoHS, WEEE and REACH

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

11 specifications · Source: manufacturer · checked Oct 2026

Wifi-Standard1

Value: Wifi Standard: 802.11 a/b/g/n/ac/ax

BT1

Value: Bluetooth: Support 2.1/3.0/4.0/5.2 BLE

Power2

Requirements: 5V DC, 0.9A
Consumption: < 4.5W

Dimension2

Physical: 3.90x0.43x3.03 in / 99x11x77mm
Packaging: 3.54x0.63x6.18 in / 90x16x157mm

WEIGHT2

Net: 0.07lb / 30g
Gross: 0.18lb / 80g

OPERATING CONDITION2

Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing

COMPLIANCE1

Value: CE, FCC, FCC ID, IC, IC ID, NCC, RoHS, WEEE, REACH

Downloads

2 files from the manufacturer

PDF Datasheets VB-WIFI-005_Datasheet.pdf 265 KB PDF Manuals & guides VB-WIFI-005_ENG_QSG.pdf 1.1 MB

Questions about VB-WIFI-005

What is the ViewSonic VB-WIFI-005 used for?

The VB-WIFI-005 is a wireless module that gives compatible ViewBoard and Presentation Display models a Wi-Fi connection, so content can be shared without a network cable at the display. It supports dual-band 2.4GHz and 5GHz operation with Wi-Fi 6 (802.11ax). It suits meeting rooms and classrooms where people share content from laptops and tablets. Compatibility is limited to selected models, so confirm yours before ordering.

Which displays is the VB-WIFI-005 compatible with?

The module is compatible with selected ViewBoard and Presentation Display models only, so the exact display model must be checked before purchase. SmartRooms Qatar can confirm whether your panel is supported when you request a quote, which avoids buying a module your display cannot use. Send us the model number printed on the display or its label.

Will Wi-Fi 6 help a conference room in a Doha hotel?

Yes, when the room has a compatible display and suitable access points. The VB-WIFI-005 supports the 802.11ax standard, known as Wi-Fi 6, alongside 802.11 a/b/g/n/ac, and operates on both 2.4GHz and 5GHz bands. In a Doha hotel conference room where many delegates connect laptops and phones to the same network at once, the dual-band design gives the IT team more options for connecting the display.

Does the module include Bluetooth?

The module lists Bluetooth support for versions 2.1, 3.0, 4.0 and 5.2 BLE. Bluetooth 5.2 with Low Energy is the newest version in that list, and it is the one to check against your planned accessories. Ask the SmartRooms Qatar team to confirm which Bluetooth functions your specific display model uses before you finalise the room design.

How much power does it need?

The module is rated at 5V DC and 0.9A, and its consumption is listed as less than 4.5W. Its physical size is 99 x 11 x 77 mm and it weighs 30g net, so it needs little space at the back of a display or in a nearby cabinet. Confirm with the SmartRooms Qatar team how your display supplies this input before installation, so the power plan is settled early.

Can it be installed in a lobby or window-facing room in Doha?

Only where the environment stays within its rated range. The VB-WIFI-005 is rated for 0°C to 40°C and 10% to 90% humidity, non-condensing. Summer temperatures in Doha can exceed 45°C outdoors, and a lobby with glazing or a sun-facing wall can heat up quickly, so keep the module in an air-conditioned room away from direct sun or unventilated cabinets.

Is it suitable for a private school classroom in Al Wakrah?

Yes, for a classroom with a compatible ViewBoard and working air conditioning. A private school in Al Wakrah fitting out new classrooms can let teachers send lesson files from tablets to the board without running cable routes through the walls. Because the module's rated maximum is 40°C, classrooms should stay cooled, and each room's display model should be checked against the compatibility list.

How does it suit a boardroom in Lusail?

A boardroom in Lusail where executives present from laptops and join calls with teams abroad benefits from a dual-band Wi-Fi link to the display. The VB-WIFI-005 operates on 2.4GHz and 5GHz, so the IT team can select the band that suits the room's access point. Before ordering, check the room's wireless coverage and ask SmartRooms Qatar for a free site survey if signal strength is uncertain.

Do we need a site survey before installation?

A site survey is advisable because wireless performance depends on coverage at the display position. Walls, glass and distance from the access point all affect the signal, and a survey lets the team record the mounting position and signal conditions before the quotation is finalised. SmartRooms Qatar offers free site surveys and professional installation, so the module and display can be planned together.

Can a government ministry order several units under a tender?

Yes. A ministry or government body can order several units through a purchase order (LPO) or a government tender, including Monaqasat. Send SmartRooms Qatar the display model for each room along with the quantity, so every module is matched to a compatible display. Payment can be made by bank transfer, cheque or purchase order, and quotations are usually issued within one working day.

Is the module covered by a warranty?

Yes. Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty. The warranty terms come from ViewSonic, so the SmartRooms Qatar team can confirm the details that apply to the VB-WIFI-005 when you request a quote. Keep your purchase order and invoice with your asset records, as these documents support any future warranty claim.

Which certifications does it carry?

The VB-WIFI-005 lists CE, FCC (including FCC ID), IC (including IC ID), NCC, RoHS, WEEE and REACH compliance. These marks relate to electromagnetic emissions, hazardous substances, electronic waste and chemical registration, and procurement teams often ask about them in tender files. Ask the SmartRooms Qatar team which supporting documents are available for this model when you request a quote.
