VPC10-WP-6

What the module adds to a ViewBoard display

The VPC10-WP-6 is an OPS computer module built for ViewBoard interactive displays. Instead of placing a separate desktop beside the screen, the panel gets its own Intel i5-6400 processor, DDR4 memory and a 500GB drive from a unit that sits inside a compatible display. Teaching areas and meeting rooms stay tidier, with fewer cables and one fewer device to manage.

Processing, memory and storage

The i5-6400 works with integrated Intel HD Graphics 530. Two DDR4 SO-DIMM sockets come with 4GB installed and can be expanded to 16GB, which matters when several applications need to run on the panel at the same time. Storage starts with a 2.5-inch 500GB hard drive over SATA3 and can be upgraded to 1TB.

Video outputs and resolution limits

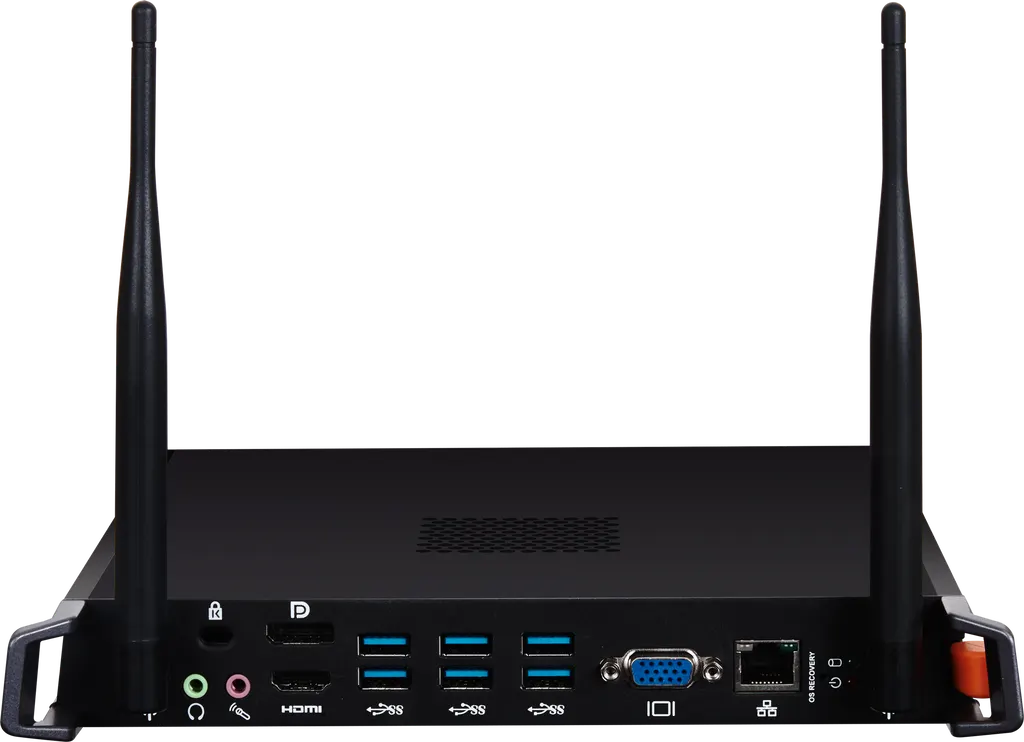

The module provides one DisplayPort, one HDMI and one VGA output, along with an earphone output. DisplayPort supports up to 4096x2304 at 60Hz, while HDMI is listed at 4096x2304 at 24Hz. Buyers who need the highest refresh rate at that resolution should use DisplayPort and confirm cabling and the connected screen before ordering.

Connectivity for classrooms and meetings

• Six USB 3.0 Type-A ports for keyboards and other peripherals
• Gigabit RJ45 wired LAN rated 10/100/1000M
• Dual band Wi-Fi on 802.11 a/b/g/n/ac, covering 2.4GHz and 5GHz
• Bluetooth 4.0 with BLE support
• One microphone input

Where it fits in Qatar

In a secondary school in Al Wakrah, the module lets a teacher run lesson software from the panel itself, with no extra desktop on the staff bench. In a boardroom in West Bay, the 5GHz band helps keep the room connected when meetings link with teams abroad. A training centre in Education City fitting out several rooms can standardise on the same module, simplifying support and spares.

What to plan before installation

The operating range is 0°C to 45°C with 10% to 90% non-condensing humidity. Summer temperatures in Doha can approach the upper limit, so the display should sit in an air-conditioned room with adequate ventilation, and the SmartRooms Qatar team can help confirm the environment. Power is rated 110-240V, 50/60Hz at 95W, which covers Qatar's 240V, 50Hz supply. The module measures 246.2 x 265.4 x 32.2 mm and weighs 1.9 kg net. Confirm that your ViewBoard model has a compatible slot. Free site surveys are available before installation, and quotations are usually issued within one working day. Request a quote for the number of units you need, and ask about purchase orders (LPOs) or government tenders.
