VPC10-WP

What the VPC10-WP adds to a ViewBoard panel

The ViewSonic VPC10-WP is a Windows slot-in PC, also called an OPS module, designed to sit in the matching slot of compatible ViewBoard panels: the IFP8650, IFP7550, IFP6550 and IFP5550. Once fitted, the panel can run Windows 10 Pro applications, and the ViewBoard 2.1 software listed with the module handles the whiteboard side. For a school or office that already owns one of these panels, it reduces the need for a separate computer in the room.

Processing, memory and storage for daily meeting use

The module uses an Intel Core i5-6400 processor with Intel HD Graphics 530. It ships with 8GB of DDR4 memory, expandable to 16GB, and a 2.5-inch 128GB SATA3 SSD that can be expanded to 256GB. For a classroom or boardroom, the practical benefit is headroom: presentations, shared documents, a browser and whiteboard software can stay open together through a long session. Storage capacity matters when lesson files or meeting records are kept locally, so size the SSD against your own content library.

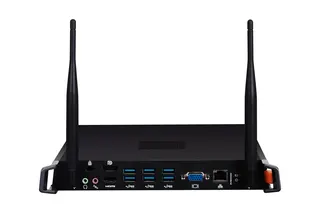

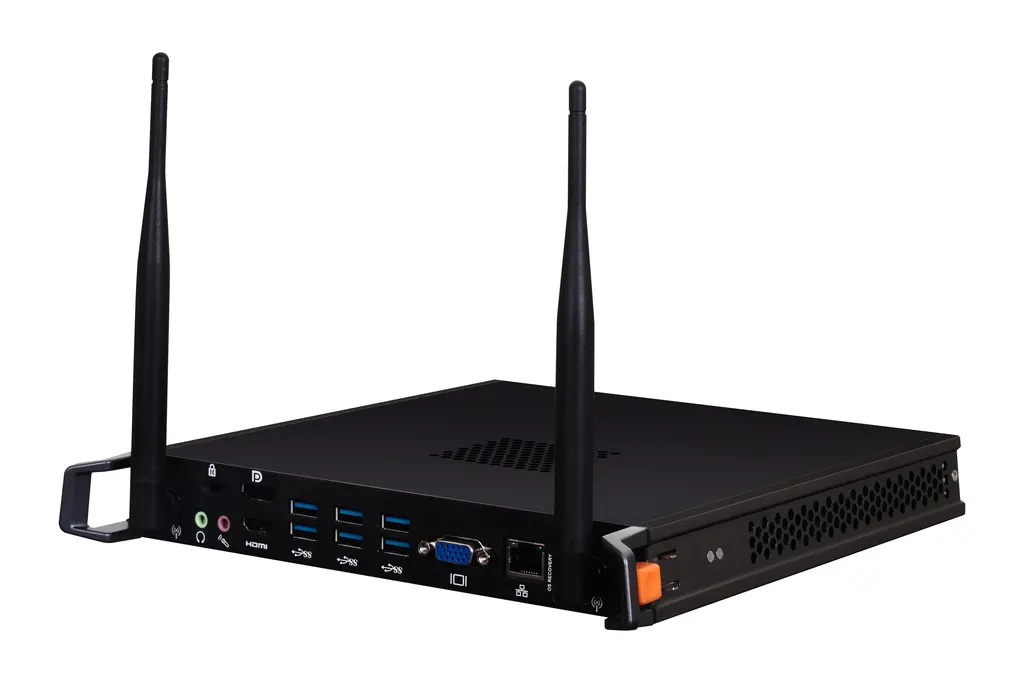

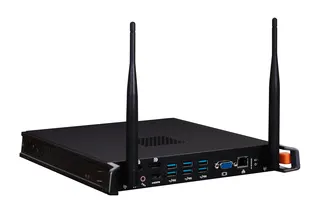

Connectivity: ports and wireless options

• Video: one DisplayPort (described by the manufacturer as 4K), one HDMI and one VGA output
• USB: six USB 3.0 Type A ports for keyboards, cameras, storage and other peripherals
• Network: Gigabit LAN on an RJ45 port, dual band 802.11 a/b/g/n/ac Wi-Fi on 2.4GHz and 5GHz, and Bluetooth 4.0
• Audio: one microphone input and one earphone output
• Security: a Kensington lock slot

Where it fits in Qatar

A government ministry in Doha equipping a boardroom could use this module so the shared screen can join meetings with teams abroad while staff keep their Windows tools. In Education City or Lusail, a university teaching room with a supported panel can run Windows-based lesson software without adding a tower PC. A private school in Al Wakrah fitting out several classrooms at once can standardise on the same module in every room, which keeps setup consistent for teachers.

Planning for power, temperature and installation

The power input is rated at AC 110 to 240V, 50/60Hz, with 95W consumption, so Qatar's 240V, 50Hz supply falls within the rated range. The operating temperature is 0°C to 45°C with 10% to 90% non-condensing humidity. Summer temperatures in Qatar can exceed 45°C, so install the panel in an air-conditioned room and keep the cooling running during use. Without stand, the module measures 246 x 265 x 32 mm and weighs 1.9 kg net, so check the panel model and free OPS slot before ordering. SmartRooms Qatar can review the room during a free site survey.

The Windows license must be purchased and activated locally, so include it in your quotation so your IT team knows what is supplied and what needs activation. Regulatory listings for the module include FCC, CE, CB, cTUVus, RCM and CCC, among others.

Request a quotation

To receive a quotation for the VPC10-WP, tell us which ViewBoard panel you have and how many rooms you are equipping. Quotations are usually issued within one working day, and we work with purchase orders (LPOs) and government tenders. Request a quote today and we will confirm compatibility for your panels.
