VPC12-WPO-2

What the VPC12-WPO-2 is and how it is built

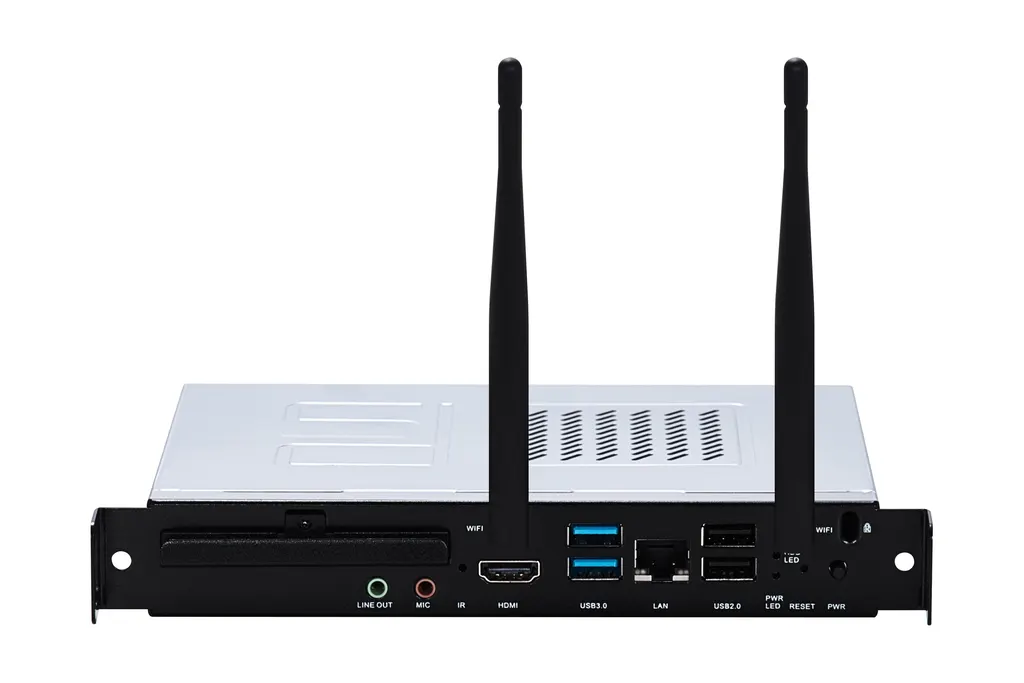

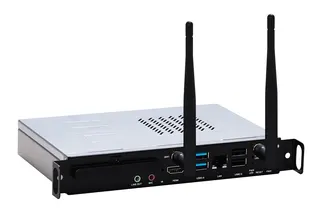

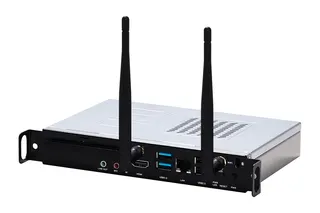

The VPC12-WPO-2 is a Windows 10 Pro computer module in the Open Pluggable Specification (OPS) format. It slides into the OPS slot of a compatible ViewBoard panel, so the display can run meeting, whiteboard and browser software without a separate desktop PC beside it. For IT managers, this means one installation point, one set of cables to the panel and one computer to keep updated.

Inside the module is an Intel Core i5-6300U processor with vPro and TPM function, 8GB of DDR4 memory that can be expanded to 16GB, and a 2.5-inch 128GB SATA3 SSD that can be expanded to 512GB. Graphics come from Intel HD Graphics 520. The operating system is Windows 10 Pro 64-bit.

Specifications that matter in a meeting room

Three areas drive most buying decisions. The first is wireless sharing. The module is Intel Unite certified and includes Intel Unite software, so participants can share screens and multimedia from their own devices. The host decides which onsite and remote participants join, and guests can connect without access to the corporate network.

The second is connectivity. Wi-Fi covers 802.11 a/b/g/n/ac on 2.4GHz and 5GHz, with Bluetooth 4.0 and a Gigabit LAN RJ45 port for a wired connection. Ports include two USB 3.0 Type A and two USB 2.0 Type A, a microphone input, an earphone audio output, an IR port and a Kensington lock slot.

The third is display output. The HDMI output is rated at 4096x2160 at 24Hz. Power is rated at DC 12/19V with 60W consumption.

Where it fits in Qatar

• Boardrooms in West Bay or Msheireb: one panel handles presentations, screen sharing from visitors' laptops and calls with teams abroad, with no separate PC to position.
• Classrooms in Al Rayyan or Al Wakrah: teachers run Windows 10 Pro applications, including Microsoft Office, from the panel, and the computer stays hidden inside the display.
• Training rooms in Education City: instructors connect a keyboard, mouse and USB storage through the USB 3.0 and 2.0 ports, and sessions can run with shared screens from participants' own devices.

What to plan before installation

The rated operating range is -5°C to 45°C, with 10% to 90% humidity non-condensing. Qatar summers can push temperatures near and above that limit, so install the panel only in air-conditioned rooms and keep the module away from direct sunlight, window glare and open lobby doors. Confirm the room conditions with the SmartRooms Qatar team before ordering.

Check the panel model first. The module is designed for ViewBoard panels, and the panel must have a compatible OPS slot. Measure the physical size, 180 x 119 x 30 mm, and check that the slot is reachable for fitting. SmartRooms Qatar offers free site surveys and professional installation, so the fitting is planned around your room rather than guessed from a catalogue.

To request a quote for the VPC12-WPO-2, send your ViewBoard model, the number of rooms and any extra peripherals. Quotations are usually issued within one working day, and SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order.
