ViewSonic VPC15-C53-G1 Chromebox OPS for ViewBoard

Name: ViewSonic VPC15-C53-G1 Chromebox OPS for ViewBoard
Brand: ViewSonic
SKU: viewsonic-vpc15-c53-g1
Availability: InStock

Overview

The ViewSonic VPC15-C53-G1 is a slot-in ChromeOS computer that fits compatible ViewBoard interactive displays, so the panel can run its own apps without a separate PC on the desk. It carries an Intel i5-1335U processor, 16GB of DDR4 memory and a 256GB SSD, with Wi-Fi 6E and Bluetooth 5.2. It suits Qatari schools and meeting rooms that want a simple, self-contained display computer. Request a quote.

What the VPC15-C53-G1 adds to a ViewBoard panel

The VPC15-C53-G1 is an OPS module, a complete ChromeOS computer that installs into the matching slot of a compatible ViewBoard interactive display. Instead of connecting a separate PC to the panel, the display itself can open documents, browse the web and run Android apps. ViewSonic designed the module for ViewBoard displays and states that it works with other ViewBoard models, but only the ViewBoard IFPG1 carries Works With Chromebook certification, so check your panel model before you order.

Processing, memory, storage and ports

The module is built around an Intel i5-1335U processor, rated at a 1.3 GHz base clock with turbo boost to 4.6 GHz, and Intel Iris Xe graphics. It has 16GB of DDR4 memory arranged as two 8GB modules, and a 256GB SSD for local storage. That combination suits teaching and meeting tools that run in a browser or as Android apps, where most of the work happens in the cloud.

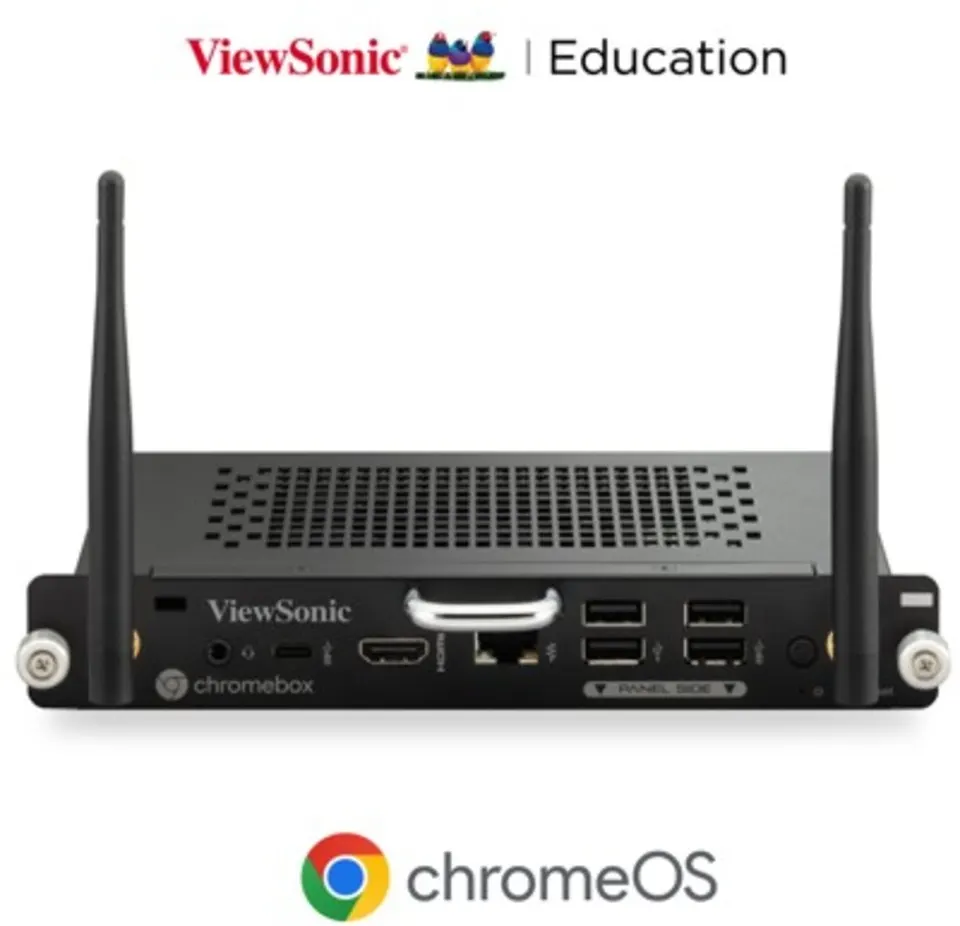

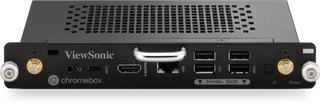

The module provides one combo audio jack input, one HDMI 2.0a output, one RJ45 LAN port, two USB 2.0 Type-A ports, two USB 3.2 Gen 1 Type-A ports and one USB Type-C port. Wireless is provided by an Intel AX211 adapter supporting Wi-Fi 6E and Bluetooth 5.2, and the box includes two antennas and a Quick Start Guide. A built-in security chip and automatic updates help keep the system protected and current.

Where it fits in Qatar

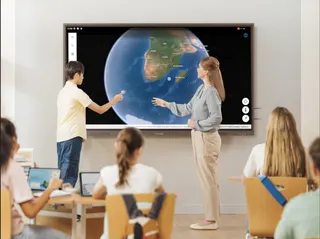

A private school in Al Wakrah fitting out new classrooms. Teachers can run lessons from the panel itself, and a school equipping several rooms can order the units together on a single LPO.
A boardroom in West Bay or Msheireb. Having the computer inside the display reduces the number of devices on the table, and the wired RJ45 port gives IT staff a second route onto the building network alongside Wi-Fi 6E.
A training centre in Lusail or Education City. Course rooms that change layout often benefit from a self-contained unit, and the 16GB of memory and 256GB SSD suit browser-based courseware and shared files.

Planning the installation and the environment

The module measures 200 x 118 x 30 mm and weighs 1 kg net, with packaging of 242 x 207 x 65 mm and a gross weight of 1.2 kg, so plan storage for spare units before rollout. Its DC input is rated at +12V to +19V with 8A maximum, and the SmartRooms Qatar team can confirm the power and slot details for your panel during the quotation.

The operating range is 0 to 40°C at 20% to 80% relative humidity, non-condensing. Summer temperatures in Qatar regularly pass 45°C outdoors and dust storms are common, so keep the display in an air-conditioned room, away from direct sun through windows and from dusty entrance lobbies. Before wall-mounting a heavy display, request a free site survey from SmartRooms Qatar to confirm the mounting position and cable routing.

Send your ViewBoard model, room layout and number of units to SmartRooms Qatar and request a quote. Quotations are usually returned within one working day, and we supply, deliver to all eight municipalities of Qatar and arrange professional installation.

Highlights

Intel i5-1335U processor with turbo boost up to 4.6 GHz
16GB DDR4 memory and 256GB SSD storage
Wi-Fi 6E and Bluetooth 5.2 with two antennas included
HDMI 2.0a output, RJ45 LAN and USB Type-C ports
ChromeOS with Chrome Web Store and Google Play access
Built-in security chip and automatic updates

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

21 specifications · Source: manufacturer · checked Oct 2026

Software1

Operating System: ChromeOS

Core2

CPU: Intel i5-1335U (1.3G), Turbo boost 4.6G
Graphics: Intel Iris Xe Graphics

Memory2

Type: DDR
Capacity: 16GB DDR4 (8GB *2)

Storage1

Capacity: 256GB SSD

INPUT1

Combo Jack: *1

OUTPUT1

HDMI: 2.0a *1

LAN1

RJ45: *1

Wireless / Bluetooth1

Wireless / Bluetooth: Intel Garfield Peak 2 AX211, Wi-Fi 6e +BT 5.2

USB2

Type A: Type A (2.0) *2 , Type-A (USB3.2Gen1(5Gbps)) *2
Type C: *1

Power1

Voltage: DC IN +12V~+19V @ 8A max

OPERATING CONDITIONS2

Temperature (º C): 0℃ ~ 40℃(working)
Humidity: 20% ~ 80% RH Non-Condensing(working)

DIMENSIONS (W x H x D)2

Physical (inch / mm): 7.87 x 4.64 x 1.18 (in)/ 200 x 118 x 30 (mm)
Packaging (inch / mm): 9.53 x 8.15 x 2.56 (in)/ 242 x 207 x 65 (mm)

WEIGHT2

Net (lb / kg): 2.2 lb / 1 kg
Gross (lb / kg): 2.64 lb / 1.2 kg

PACKAGE CONTENTS1

PACKAGE CONTENTS: Quick Start Guide *1 , Antenna * 2

Disclaimer1

Value: Product specifications are subject to change without notice

Downloads

4 files from the manufacturer

PDF Datasheets VPC15-C53-G1_Datasheet.pdf 264 KB PDF Manuals & guides VPC15-C53-G1_QSG.pdf 1.2 MB PDF Manuals & guides VPC15-C53-G1_UG_ENG.pdf 2.7 MB PDF Certificates & compliance VS20584_CE_DoC.pdf 161 KB

Questions about VPC15-C53-G1

What is the VPC15-C53-G1 and which panels is it for?

It is an OPS slot-in computer running ChromeOS that installs into a compatible ViewBoard interactive display instead of sitting beside it. ViewSonic designed it for ViewBoard displays and says it works with other ViewBoard models, but only the ViewBoard IFPG1 carries Works With Chromebook certification. Send your panel model to SmartRooms Qatar before ordering so we can confirm it fits.

What processor, memory and storage does it have?

It uses an Intel i5-1335U processor with a 1.3 GHz base speed and turbo up to 4.6 GHz, plus Intel Iris Xe graphics. Memory is 16GB of DDR4 across two 8GB modules, and storage is a 256GB SSD. That suits browser-based lessons, cloud documents and shared files in classrooms and meeting rooms. Heavy desktop software is outside what ChromeOS is designed to run.

Can a school in Al Wakrah use it for daily classroom teaching?

Yes, for teaching that runs in a browser or in Android apps. Google Play compatibility brings Android apps for a wide range of educational activities, and Chrome Web Store access adds tools and extensions. Teachers can start a lesson from the panel itself, without a laptop on the desk. A school fitting out several rooms can order the units together on one LPO. Keep classrooms air-conditioned, since the rated range tops out at 40°C.

Is it suitable for a boardroom in West Bay or Msheireb?

Yes. With the computer inside the display, fewer devices sit on the table and there is less to connect at each meeting. The module offers Wi-Fi 6E and Bluetooth 5.2 through its Intel AX211 adapter, and an RJ45 port gives IT staff a wired route onto the building network. Because summer temperatures outside pass 45°C, the room should stay air-conditioned within the module's 0 to 40°C operating range.

Will it work with the ViewBoard I already own?

Only if your panel is a compatible ViewBoard model, so confirm before ordering. ViewSonic says it works with other ViewBoard models, but only the ViewBoard IFPG1 is Works With Chromebook certified. If your display is a different model, ask the SmartRooms Qatar team to check fit and the functions you need. Quotations are usually returned within one working day.

What ports are on the module?

It has one combo audio jack input, one HDMI 2.0a output, one RJ45 LAN port, two USB 2.0 Type-A ports, two USB 3.2 Gen 1 Type-A ports and one USB Type-C port. Keyboards, mice and USB storage can be connected through the USB ports, while the RJ45 port handles wired networking for rooms where a cable is preferred over Wi-Fi.

What wireless options does it include, and what should a Lusail training centre check?

The Intel AX211 adapter provides Wi-Fi 6E and Bluetooth 5.2, and two antennas are included in the box. A training centre in Lusail should ask its IT team to confirm that the building's access points support Wi-Fi 6E before relying on it for every course. Keeping the RJ45 port available as a fallback gives trainers a wired connection if wireless performance varies between rooms.

Does it include security features and updates?

Yes. It has a built-in security chip and receives automatic updates, which helps IT teams keep several panels current without visiting each room. That matters for government ministries and schools that manage fleets of displays. Detailed management settings are not listed in the product data, so ask the SmartRooms Qatar team before ordering if your policy needs specific controls.

How much space and weight should we plan for?

The module measures 200 x 118 x 30 mm and weighs 1 kg net, or 2.2 lb. Its packaging is 242 x 207 x 65 mm with a gross weight of 1.2 kg. If you are ordering several units for a school or office, set aside a dry, secure space for boxes and spare modules before installation, and confirm the slot fit with the installer during the site survey.

What comes in the box?

The product data lists a Quick Start Guide and two antennas, and no other accessories. Mention any cables, mounts or extras your room needs when you request the quotation so they can be discussed upfront. The module's DC input is rated +12V to +19V at 8A maximum, so confirm the power arrangement for your display model with the SmartRooms Qatar team.

Can it cope with Qatar's summer heat and dust?

Its rated operating range is 0 to 40°C at 20% to 80% relative humidity, non-condensing. Qatar's summer temperatures exceed 45°C outdoors and dust storms are common, so keep the display in an air-conditioned room, away from windows that take direct sun and from dusty entrance lobbies. Ask SmartRooms Qatar to review the exact location with you before installation.

How do we buy it through a purchase order or a government tender?

SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. We supply and deliver to all eight municipalities of Qatar, install the unit professionally, and offer free site surveys for display mounting. The module is covered by the manufacturer's warranty. Request a quote and we usually reply within one working day.
