VPC15-WP-10
ViewSonic VPC15-WP-10 Slot-in PC (OPS) for ViewBoard Interactive Displays
- Screen size
- 246.2*265.4*32.2mm
- System
- Free DOS
The ViewSonic VPC15-WP-10 is a slot-in PC module (OPS format) that plugs into compatible ViewBoard interactive displays. It pairs an Intel Core i5-8400 processor with 4GB DDR4 memory, expandable to 32GB, and 500GB storage, plus Gigabit LAN and dual-band Wi-Fi. Suited to Qatari schools and offices that want a clean, integrated classroom or boardroom display setup. Request a quote from SmartRooms Qatar.
What this slot-in PC adds to a ViewBoard display
The VPC15-WP-10 is an OPS-format computer module. Instead of running a separate PC beside the screen, you insert this module into a compatible ViewBoard interactive display and run your software from the panel itself. Because compatibility depends on the host display, send your ViewBoard model to the SmartRooms Qatar team before ordering.
Processor, memory and storage
The module uses an Intel Core i5-8400 from the 8th Gen Coffee Lake series, with Intel UHD Graphics 630 handling video output. Two 260-pin DDR4 SO-DIMM slots come with 4GB installed and support up to 32GB. Storage is a 500GB unit in the M.2 2280 format, connected through PCIe and SATA 3 interfaces. These specifications suit presentation, web and document work in classrooms and meeting rooms.

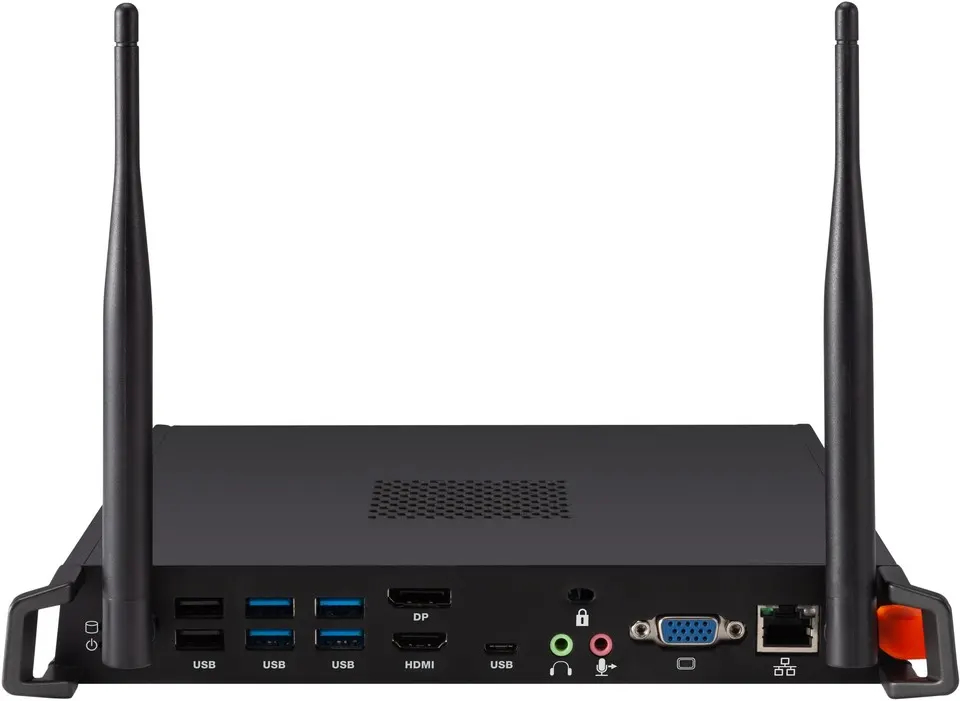

Ports and connectivity
- DisplayPort: one output, up to 4096x2304 at 60Hz
- HDMI: one output, up to 3840x2160 at 24Hz
- VGA: one RGB output for legacy displays and projectors
- USB: four USB 3.0, two USB 2.0 and one USB 3.1 Type-C port
- Network and wireless: one Gigabit RJ45 port, plus 802.11 a/b/g/n/ac dual-band Wi-Fi and Bluetooth 4.2 with BLE
- Audio: one microphone input and one earphone output
The HDMI output is rated 3840x2160 at 24Hz, so for a 4K signal at 60Hz the DisplayPort output is the one to use.
Where it fits across Qatar
A ministry training room in Msheireb could use a ViewBoard fitted with this module as its single presentation point, with presenters connecting laptops over USB or the network. A private school in Al Wakrah refitting several classrooms could standardise the same module across every display, so teachers see one consistent setup in each room. A West Bay boardroom running video calls with teams abroad can use the wired Gigabit LAN port for a fixed connection, keeping Wi-Fi available as an alternative.
What to plan before you order
- Confirm the host ViewBoard model and that its slot accepts this OPS module.
- Confirm the software you need, since the module lists Free DOS as its operating system.
- Check the room climate: the operating range is -5°C to 45°C, and Qatar summers can exceed 45°C, so keep the room air-conditioned.
- Power input is 110-240V at 50/60Hz, drawing 95W, which covers Qatar's 240V, 50Hz supply.
- Allow for the module's 246.2 x 265.4 x 32.2 mm footprint and 1.95 kg net weight during handling.
Each package includes the VPC15-WP module, a ViewSonic Wizard CD and a quick start guide. The listed approvals are CE, R&TTE, FCC, FCC-IC-ID, cTUVus, RCM, BSMI and NCC. Send your room layout and host display model to SmartRooms Qatar and request a quote; a free site survey can confirm the install location before you commit, and quotations are usually returned within one working day.
Highlights
- Intel Core i5-8400 (8th Gen Coffee Lake) processor
- 4GB DDR4 memory, expandable to 32GB
- 500GB M.2 2280 storage
- DisplayPort output up to 4096x2304 at 60Hz
- Gigabit RJ45 LAN and dual-band Wi-Fi
- Operating range -5°C to 45°C; power input 110-240V, 95W
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Software1
- Operating System
- Free DOS
Core2
- CPU
- Intel 8th Gen. Coffee Lake series i5-8400
- Graphics
- Intel® UHD Graphics 630 Total Available Graphics Memory: 64GB Max Resolution up to 4096x2304@60Hz
Memory2
- Type
- 260-pin DDR4 SO-DIMM x 2
- Capacity
- 4GB (up to 32GB)
Storage3
- Dimension
- M.2 2280(22 x 80 mm)
- Capacity
- 500GB SSD
- Interface
- PCIE and SATA 3
INPUT1
- MIC(Microphone)
- x1
OUTPUT4
- RGB / VGA
- x1
- DisplayPort
- x1 (max. resolution 4096x2304@60Hz)
- HDMI
- x1 (max. resolution 3840x2160@24Hz)
- Audio
- x1 Earphone Out
LAN1
- RJ45
- 1 x RTL8111(Gigabit)
Wireless / Bluetooth1
- Wireless / Bluetooth
- Intel 3165 802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE
USB2
- Type A
- USB 3.0 x 4, USB 2.0 x 2
- Type C
- USB 3.1 x 1
Support Media Format3
- Video format
- Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
- Image format
- Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
- Audio codec
- Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
Power2
- Voltage
- AC 110-240V 50 / 60Hz
- Consumption
- 95W
OPERATING CONDITIONS2
- Temperature (º C)
- -5°C to 45°C
- Humidity
- 10% ~ 90% @ 40°C Non-condensing.
DIMENSIONS (W x H x D)2
- Physical (inch / mm)
- 246.2*265.4*32.2mm
- Packaging (inch / mm)
- 350*310*90mm (1pc) 495*370*340mm (5pcs)
WEIGHT2
- Net (lb / kg)
- 4.3lb / 1.95kg
- Gross (lb / kg)
- 4.63lb / 2.1kg
REGULATIONS1
- REGULATIONS
- CE, R&TTE, FCC, FCC-IC-ID, cTUVus, , RCM, BSMI, NCC
PACKAGE CONTENTS1
- PACKAGE CONTENTS
- 1. VPC15-WP 2. ViewSonic Wizard CD 3. QSG
