VPC17-WP-6

What the VPC17-WP-6 adds to a ViewBoard display

The VPC17-WP-6 is a slot-in computer module for compatible ViewBoard interactive displays. Instead of connecting a separate desktop PC, the room runs Windows 10 Pro 64-bit from the panel itself. Intel Unite is embedded for sharing content wirelessly, and the myViewBoard whiteboarding software is bundled so teachers and presenters can annotate and share straight away.

Processing, memory and storage for daily use

The module uses an 8th Gen Intel Core vPro i7-8700 processor running at 3.2GHz from the Coffee Lake series, with vPro and TPM support. It ships with 16GB of DDR4 memory across two SO-DIMM slots, and the source data lists support for up to 32GB. Storage is a 256GB SSD that can be expanded to 512GB, installed through an M.2 interface that accepts 2242 or 2280 form factors.

• Graphics: integrated Intel HD Graphics 630
• Wireless: Intel 9260 or 9560 dual-band Wi-Fi with Bluetooth 5.0
• Wired: one Gigabit RJ45 port

Ports on the module and what they mean for your display

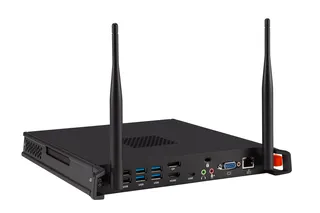

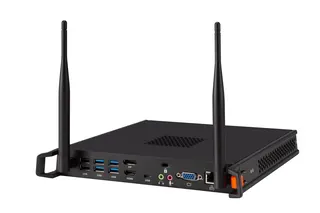

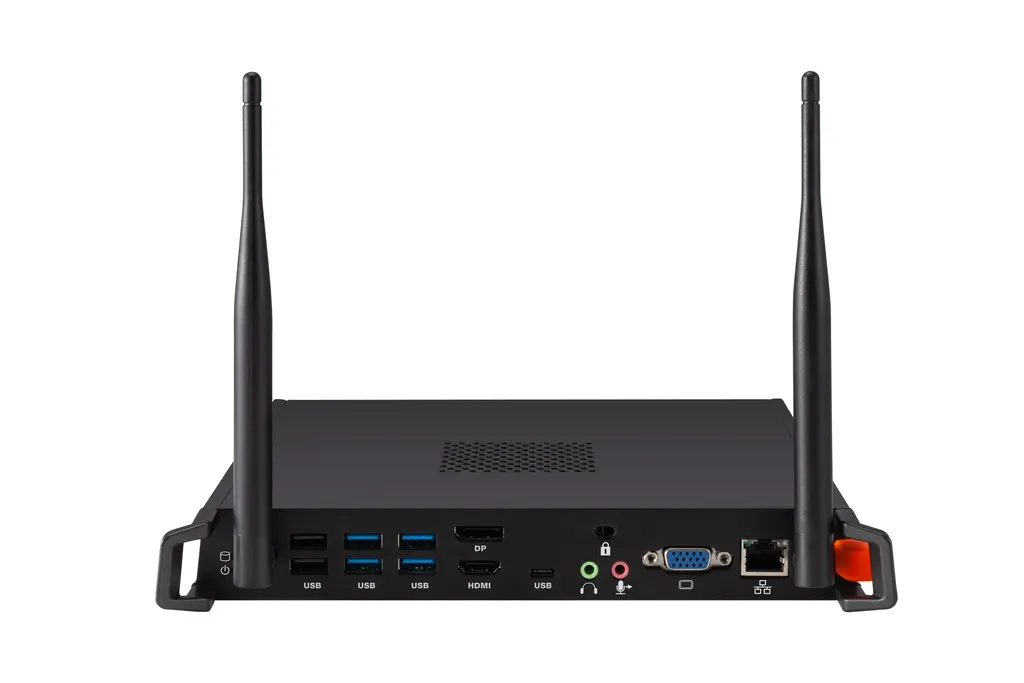

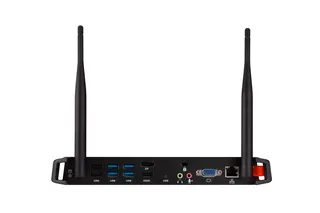

The module lists one DisplayPort with a maximum of 4096x2304 at 60Hz, one HDMI with a maximum of 3840x2160 at 24Hz, one RGB/VGA port, one microphone input and one earphone output. It also provides four USB 3.0 ports, two USB 2.0 ports and one USB 3.1 Type C port. The 24Hz limit on HDMI is the figure to check if your presentations rely on fast-moving video, so confirm your sources and cabling before installation.

Where it fits in Qatar

In a secondary school classroom in Al Sadd, a teacher can prepare, save and run lessons from the panel rather than moving a laptop between rooms. In a West Bay boardroom, Intel Unite helps participants share content from their own devices during meetings with colleagues abroad. A training centre in Mesaieed or Al Wakrah can equip several rooms with the same configuration, which keeps the software set identical across the building.

Planning power, heat and installation

The power supply accepts AC 110-240V at 50/60Hz and draws 95W, a range that includes Qatar's 240V, 50Hz mains. The operating range is -5°C to 45°C, with humidity of 10% to 90% non-condensing at 40°C. Summer temperatures in Doha can exceed 45°C, so install the display in an air-conditioned room and confirm the room conditions with the SmartRooms Qatar team. The module measures 246.2 x 265.4 x 32.2 mm and weighs 1.95 kg net. Our free site surveys let us check slot access, cable routing and mounting before you order. The package contains the VPC17-WP module, a ViewSonic Wizard CD and a quick start guide.

Ordering for your organisation

Schools and government bodies often buy several units against one purchase order or a tender. Send us the display models, the number of modules and each site location, and SmartRooms Qatar will return a quotation, usually within one working day. We deliver to all eight municipalities of Qatar and accept payment by bank transfer, cheque or purchase order. Request a quote to get started.
