VPC25-W33-O1-1B

What this OPS slot-in PC does for a ViewBoard display

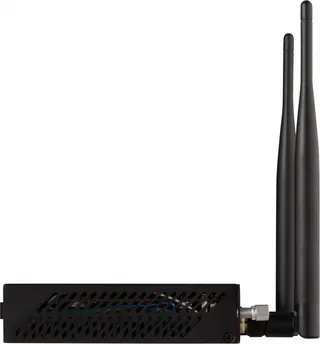

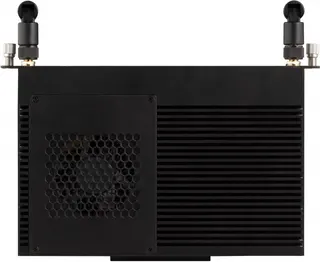

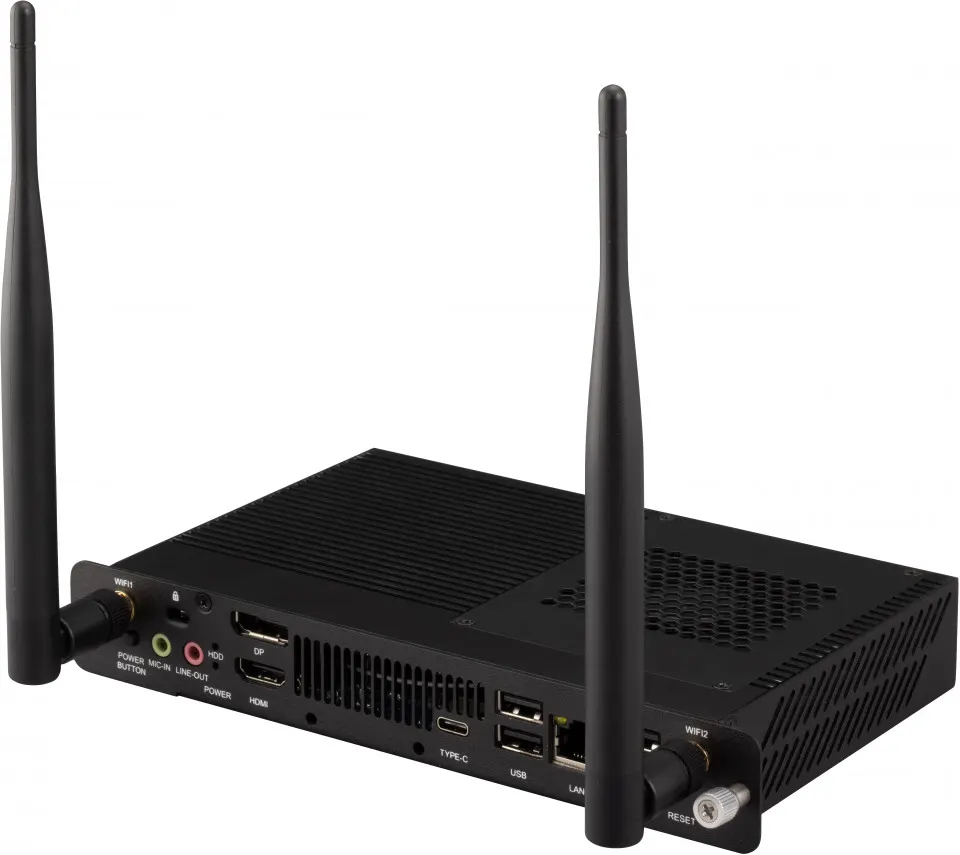

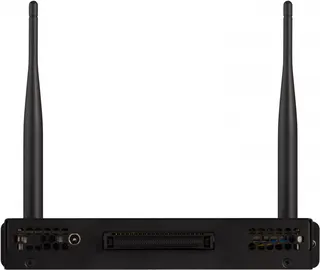

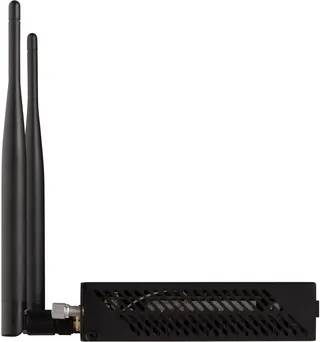

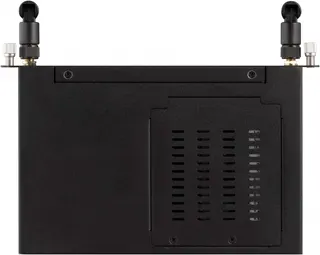

The ViewSonic VPC25-W33-O1-1B is an OPS (Open Pluggable Specification) computer module. Rather than placing a desktop tower beside the screen, the computer slides into a compatible ViewBoard interactive display and is powered through that display's slot. The screen then works as a single unit for teachers, presenters and meeting hosts. Before ordering, confirm with the SmartRooms Qatar team that your display model has a matching OPS slot.

Processor, memory and storage

The module uses an Intel Core i5-10400T processor with a 2.0GHz base clock and turbo boost up to 3.6GHz, plus TPM 2.0 support for hardware-based security functions. Intel UHD Graphics 630 with the Intel H510 chipset handles the on-screen image. Memory is 8GB DDR4, and storage is a 256GB NVMe PCIe Gen3 SSD in the M.2 2280 format measuring 22 x 80 mm. These specifications suit presentation software, web-based course materials, shared whiteboard sessions and everyday document work.

Ports and connectivity for classrooms and boardrooms

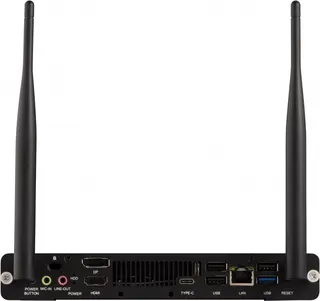

The DisplayPort 1.4 output supports 4096 x 2160 at 60Hz, while the HDMI 1.4 output supports 4096 x 2160 at 30Hz. Choose DisplayPort where 60Hz at 4K matters, and use HDMI where 30Hz is acceptable. The module also provides:

• One microphone input and one line-out audio port
• One Gigabit RJ45 LAN port for wired networking
• One USB 3.2 port and three USB 2.0 ports
• One USB-C port for data only

Wireless connectivity comes from an Intel AX200 module supporting dual-band Wi-Fi 6 and Bluetooth 5.2.

Where it fits in Qatar

Three realistic situations show where this module makes sense:

• A private school in Al Wakrah fitting out interactive classrooms, where one module per display reduces desk clutter and the number of extra computers in each room.
• A university department in Education City equipping lecture rooms, where Wi-Fi 6 and a wired gigabit port give presenters two network options.
• A government office in Doha refreshing executive meeting rooms, where Windows 11 Pro and TPM 2.0 suit IT teams that manage devices centrally.

What to plan for before ordering

The module is rated for operating temperatures from -5°C to 45°C and 20% to 80% relative humidity, non-condensing. Summer temperatures in Qatar can exceed 45°C, so the display should sit in an air-conditioned room, and the facilities team should check the room before installation. The module measures 202 x 119 x 30 mm and weighs 1 kg net, or 1.2 kg gross in packaging. Its power input is DC +12V to +19V at 3.42A, with typical consumption of 65 W, so compare these figures with your display's OPS specification. The box includes the VPC OPS module, a Quick Start Guide and two screws.

The bundled software is Adobe Reader, myViewBoard WhiteBoard, WatchDog and Winflash. The module runs Windows 11 Pro, with a Windows 10 Pro downgrade preinstalled.

SmartRooms Qatar supplies this module, delivers it to all eight municipalities of Qatar and can arrange professional installation after a free site survey. Request a quote, and the team will confirm compatibility with your ViewBoard model and send a quotation, usually within one working day.
