VPCF5-S33-G1

What the VPCF5-S33-G1 adds to a ViewBoard display

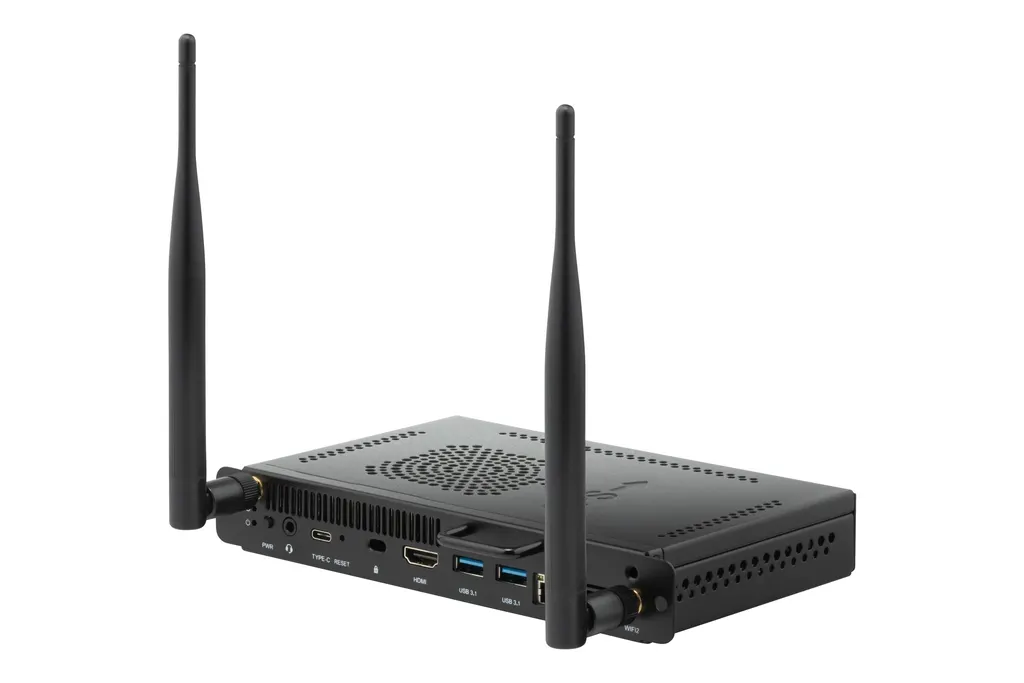

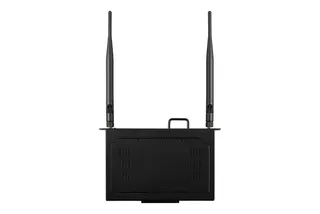

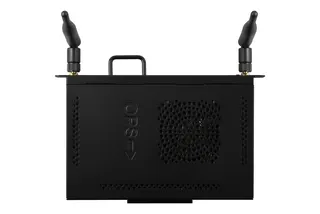

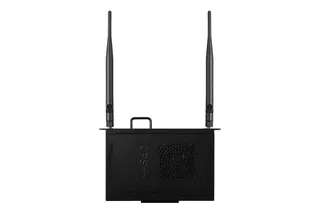

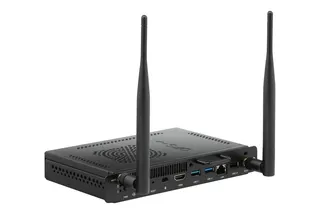

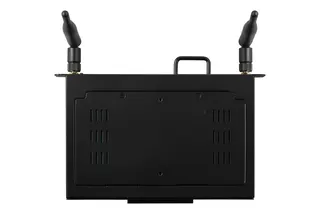

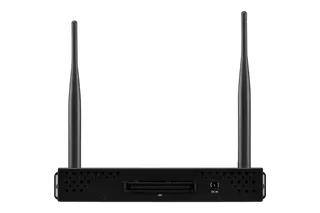

The ViewSonic VPCF5-S33-G1 is an OPS slot-in computer that installs inside a compatible ViewBoard interactive display or presentation display, so the screen carries its own computing power instead of relying on a separate desktop or cabinet. Once fitted, lessons, meetings and presentations start from the display itself. Confirm that the target display has a compatible OPS slot before ordering, because compatibility depends on the display model.

Processor, memory and storage

The module uses an Intel Tiger Lake mobile processor, and the manufacturer specifies an Intel Gen 11th Core i5 or later CPU. It is paired with 8GB of DDR4 memory and a 256GB M.2 SSD on a PCIe interface. Graphics come from integrated Intel Iris Xe Graphics (96EU). The manufacturer notes that graphics performance depends on memory configuration, and that a dual-channel memory setup is recommended for optimal results.

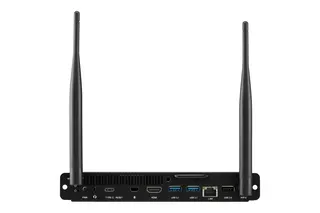

Ports, wireless and security

• HDMI: one output rated 3840x2160 at 30Hz
• USB: two USB 3.1 Type-A, one USB 2.0 Type-A and one USB 3.1 Gen2 Type-C port for data only
• Network: one Gigabit RJ45 port supporting 10M, 100M and 1000M
• Audio: one combined microphone-in and line-out connector
• Wireless: Intel AX101NGW with Wi-Fi 6 (802.11ax) and Bluetooth 5.2

Graphics specifications list output up to 7680x4320 at 60Hz over DisplayPort. An embedded TPM 2.0 chip is included for security.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can standardise on this module across each ViewBoard display, so every room has its own computing function without an extra desk PC. The USB ports handle peripherals, while the HDMI output connects a teacher laptop when needed.

A university lecture theatre in Education City can use HDMI for a second screen or presenter laptop, and the RJ45 port for a fixed connection at the lectern, where wireless may be crowded. A hotel conference room in Lusail hosting client presentations can combine Wi-Fi 6 for guest devices with the wired port for presentations that need a stable connection.

Heat, power and planning

Qatar summers regularly pass 45°C, while the module is rated for 0 to 40°C during operation, with humidity of 10% to 90% at 40°C, non-condensing. Install the display in an air-conditioned room, keep ventilation clear and avoid direct sun from windows. The source lists a DC input of 12 to 19 V at 8 A maximum, with maximum consumption of 90 W, so confirm how the module is powered within your display setup.

• Check the OPS slot compatibility of the target display.
• Confirm the room stays within 0 to 40°C, especially in summer.
• Plan Wi-Fi coverage or cable routes for the RJ45 port.
• Confirm software requirements; the listed operating system is UEFI Shell.

The module measures 200 x 119 x 30 mm and weighs 0.7 kg net. The box contains a Quick Start Guide with compliance statement, two screws and two antennas. Listed compliance includes CE EMC, LVD, CE RED, RoHS, REACH, WEEE and CB2018.

Request a quote from SmartRooms Qatar and we will confirm compatibility, quantities and installation for your site. Quotations usually come within one working day. Organisations ordering several units can issue a purchase order, and a free site survey can confirm each display's slot and room conditions before supply.
