VPCF5-S55-G1
ViewSonic VPCF5-S55-G1 Slot-in PC for ViewBoard Interactive Displays
- Screen size
- 7.87 x 4.68 x 1.18 in / 200 x…
- System
- UEFI Shell

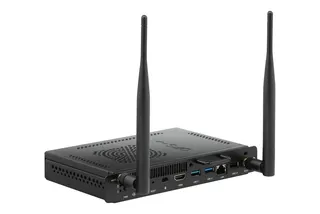

The ViewSonic VPCF5-S55-G1 is an OPS slot-in computer for compatible ViewBoard interactive and presentation displays. It pairs an 11th-generation Intel Core i5 or later processor with 16GB DDR4 memory and a 512GB PCIe M.2 SSD, plus WiFi 6, Bluetooth 5.2 and Gigabit Ethernet. Schools and offices across Qatar can run lessons and meetings from the panel without a separate desktop PC.
What the slot-in PC does inside a ViewBoard display

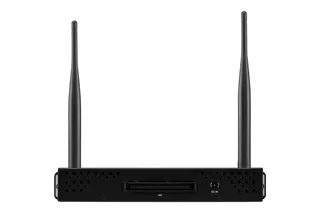

An OPS module sits in a compatible display's slot and turns the panel into a self-contained computer, so teachers and presenters can open files, browse the web and run lesson software without connecting a separate desktop. The ViewSonic VPCF5-S55-G1 is designed for ViewBoard interactive displays and presentation displays, and its listed operating environment is UEFI Shell.
Processing, memory and storage
The module is built around an 11th-generation Intel Tiger Lake mobile processor, and the manufacturer specifies a Core i5 or later. It has 16GB of DDR4 memory and a 512GB M.2 SSD connected over PCIe, which gives lesson software, a browser and a video call room to run side by side. Graphics come from integrated Intel Iris Xe hardware with 96 execution units. Because that GPU shares system memory, the source recommends a dual-channel memory setup for the best graphics results.
Ports and wireless connectivity

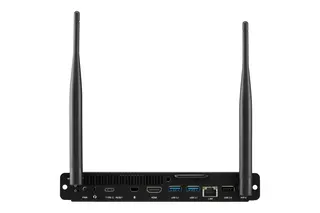

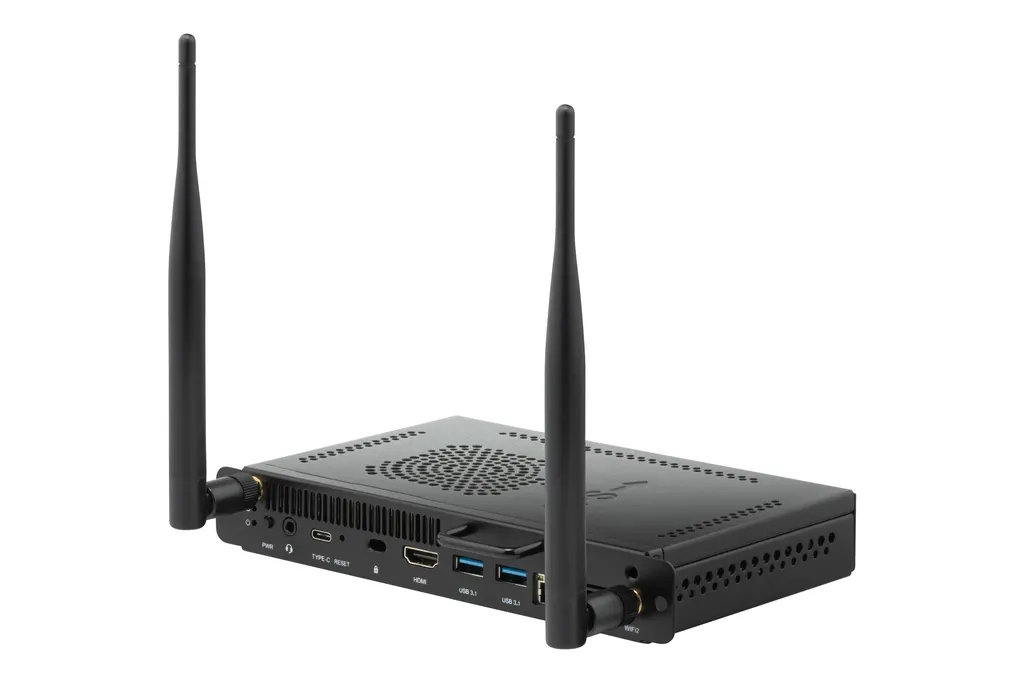

The module provides a single HDMI output rated to 3840x2160 at 30Hz and a DisplayPort path that the specification lists up to 7680x4320 at 60Hz. Other connections include:
- One Gigabit Ethernet RJ45 port (10M/100M/1000M)
- Two USB 3.1 Type-A ports and one USB 2.0 port
- One USB 3.1 Gen 2 Type-C port for data only
- A combined microphone-in and line-out connector
Wireless uses an Intel AX101NGW module with dual-band WiFi 6 (802.11ax) and Bluetooth 5.2, and two antennas are included in the box.
Where it fits in Qatar
In Doha, a private school in Al Wakrah fitting out new classrooms can standardise on one OPS module per display, so teachers do not need a separate PC in each room. A ministry meeting room in West Bay can show documents directly from the panel and use the Ethernet port where wireless coverage is weak. A hotel conference room in The Pearl hosting a visiting delegation can present from the panel itself, without a laptop on the podium.
Summer conditions need planning. Qatar summers can exceed 45°C, while this module's listed operating range is 0°C to 40°C with 10% to 90% humidity, non-condensing. Install it in an air-conditioned room, keep the display's ventilation clear and confirm the room conditions with the SmartRooms Qatar team before installation.
What to plan before installation
The module measures 200 x 119 x 30 mm and weighs 0.7 kg net, or 1.2 kg in its packaging. It runs from a DC 12-19V input with a maximum draw of 90W, so confirm that the host display supports this module before ordering. The box contains a quick start guide with compliance statement, two screws and two antennas. SmartRooms Qatar offers free site surveys and professional installation, and multi-room projects can be ordered on an LPO. Listed regulatory approvals include CE EMC, LVD, CE RED, RoHS, REACH, WEEE and CB2018.
To get a quotation for the ViewSonic VPCF5-S55-G1, send your room count and the ViewBoard models you already own. The SmartRooms Qatar team will usually return a quote within one working day.
Highlights
- Intel 11th-generation Core i5 or later processor
- 16GB DDR4 memory and 512GB PCIe M.2 SSD
- HDMI output up to 3840x2160 at 30Hz
- WiFi 6, Bluetooth 5.2 and Gigabit Ethernet
- Operating range 0°C to 40°C, non-condensing humidity
- Built for ViewBoard interactive and presentation displays
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Software1
- Operating System
- UEFI Shell
Core2
- CPU
- Intel® Tiger Lake Mobile Processor Intel Gen11th core i5 CPU or later Gen. CPU
- Graphics
- Integrated Intel® Iris Xe Graphics (96EU)* Total Available Graphics Memory: 32GB Max Resolution up to 7680x4320@60Hz (DP)
Memory2
- Type
- DDR4
- Capacity
- 16GB
Storage3
- Dimension
- M.2 SSD
- Capacity
- 512GB
- Interface
- PCIE
INPUT2
- MIC(Microphone)
- MIC-In&Line-Out two in one connector
- OPS Standard
- x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1)
OUTPUT2
- HDMI
- x1 (Max 3840x2160@30Hz)
- Audio
- MIC-In & Line-Out two in one connector
LAN1
- RJ45
- x1 (10M/100M/1000M)
Wireless / Bluetooth1
- Wireless / Bluetooth
- Intel® AX101NGW WIFI 6 802.11 ax + BT5.2
USB2
- Type A
- USB 3.1 x 2 / USB 2.0 x1
- Type C
- USB 3.1 Gen2 x 1 (Data Only)
Power2
- Voltage
- DC 12-19V/8A Max
- Consumption
- Max 90W
OPERATING CONDITIONS2
- Temperature (º C)
- 0℃ ~ 40℃(working)
- Humidity
- 10% ~ 90% @ 40°C Non-condensing(working)
DIMENSIONS (W x H x D)2
- Physical (inch / mm)
- 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
- Packaging (inch / mm)
- 10.23xx 7.87 x 3.15 in / 260 x 200 x 80 mm
WEIGHT2
- Net (lb / kg)
- 1.54 lb / 0.7 kg
- Gross (lb / kg)
- 2.65 lb / 1.2 kg
REGULATIONS1
- REGULATIONS
- CE EMC / LVD / CE RED / RoHS /REACH / WEEE / CB2018
PACKAGE CONTENTS1
- PACKAGE CONTENTS
- 1. Quick Start Guide(With Compliance Statement ) 2. Screws x 2 3. Antenna x 2
Disclaimer1
- Value
- *Intel® Iris® Xe Graphics in this model is an integrated GPU. Actual graphics performance may vary depending on the system-memory configuration. For optimal results, a dual-channel memory setup is recommended. When only single-channel memory is used, certain graphics features may be unavailable and overall GPU performance may differ.
