VPCF5-W33-G1

What the VPCF5-W33-G1 adds to a ViewBoard display

The VPCF5-W33-G1 is an OPS slot-in computer: a compact module that fits the expansion slot of compatible ViewBoard interactive and presentation displays and turns the panel into a self-contained Windows 11 Pro computer. Instead of cabling a laptop or desktop to every screen, teachers and staff run lessons, presentations and whiteboard software from the display itself. The module is designed for ViewBoard models, so it works as an integrated part of the display rather than a loose accessory.

Processor, memory and storage

The module uses an Intel Tiger Lake mobile processor, and its specification calls for an Intel 11th Gen Core i5 or later. Graphics come from integrated Intel Iris Xe hardware with 96 execution units, and the total available graphics memory is listed at 32GB. The module carries 8GB of DDR4 memory and a 256GB M.2 SSD on a PCIe interface, which suits everyday classroom and boardroom work. Intel's note on graphics is worth reading: performance depends on how system memory is configured, dual-channel memory is recommended, and some graphics features may be unavailable with a single memory channel.

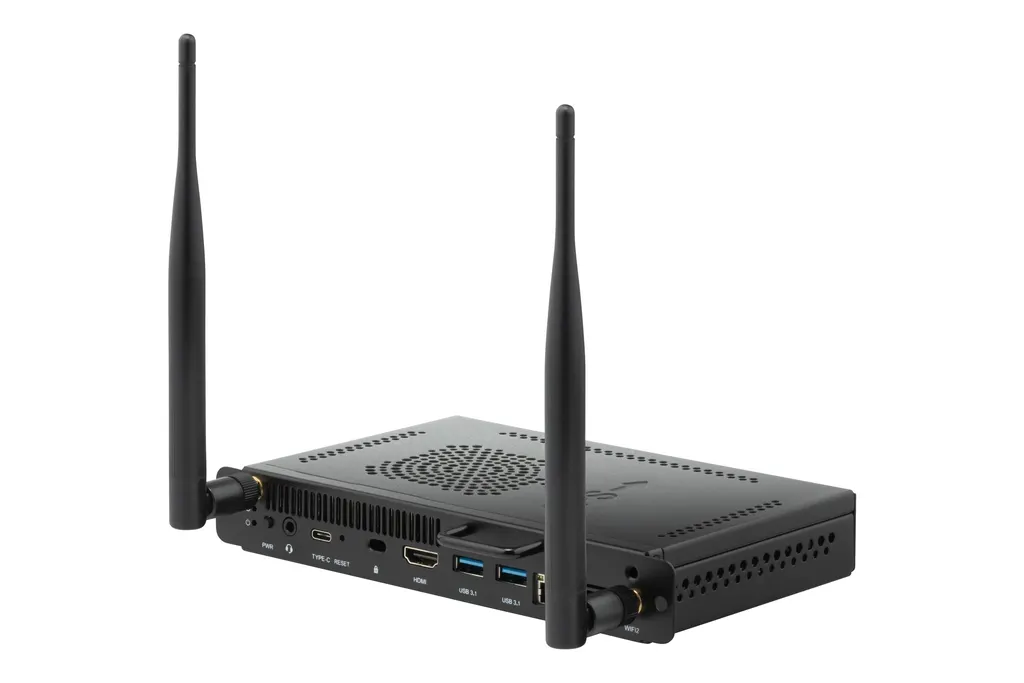

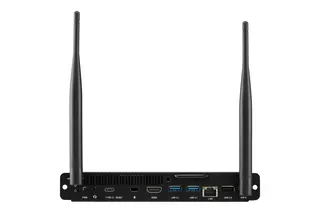

Ports and connectivity for classrooms and meeting rooms

• Video: one HDMI port rated up to 3840x2160 at 30Hz, plus a DisplayPort connection rated up to 7680x4320 at 60Hz.
• USB: two USB 3.1 Type-A ports, one USB 2.0 Type-A port and one USB 3.1 Gen 2 Type-C port for data only.
• Network and wireless: one RJ45 LAN port with gigabit speed, plus Intel AX101NGW Wi-Fi 6 (802.11ax) and Bluetooth 5.2.
• Audio: one combined microphone-in and line-out connector.

Where it fits in Qatar

Three situations show where the module earns its place:

• A private school in Al Wakrah fitting out new classrooms, where each display runs its own Windows computer so teaching stations need no separate PC.
• A meeting room in West Bay where staff join calls with colleagues abroad, using Wi-Fi 6 for laptops and the gigabit wired port when a fixed connection matters.
• A government office in Msheireb whose network policy favours wired connections, where the RJ45 port keeps the display on the corporate LAN.

Planning before you order

Qatar's summers put heavy demands on indoor cooling, so plan the room first. The module is rated for 0 to 40°C with 10% to 90% humidity at 40°C, non-condensing. Summer temperatures can exceed 45°C outside, so install the display in an air-conditioned room and check that the cooling holds the space inside that range. Confirm the environment with the SmartRooms Qatar team before you order.

• Confirm that the host display accepts this OPS module.
• Check power against the 12 to 19V DC input range, 8A maximum, 90W maximum consumption.
• Plan the network: one RJ45 port, and two antennas are supplied for wireless.
• The package includes a quick start guide, two screws and two antennas; net weight is 0.7 kg.
• Bundled software includes myViewBoard Whiteboard, Adobe Reader and Watchdog/Winflash.

The module carries the following regulatory marks: CE EMC, LVD, CE RED, RoHS, REACH, WEEE and CB2018. For a school or government order covering several rooms, SmartRooms Qatar offers a free site survey, professional installation and delivery to all eight municipalities of Qatar. Quotations are usually issued within one working day, and we accept purchase orders (LPOs), government tenders and payment by bank transfer, cheque or purchase order. Request a quote for your VPCF5-W33-G1 today.
