Wallaby Self-Service Stands (Gen 2)

A discontinued self-service stand for 15 and 22-inch I-Series displays

Elo has discontinued the Wallaby Self-Service Stands (Gen 2), so this page is written for organisations that already run the stand, buyers comparing it with other kiosk hardware, and anyone searching for a replacement. The range is sold under three part numbers: countertop stand E796783, and floor stand E796965 with base E797162. SmartRooms Qatar can quote a current equivalent or a compatible replacement that matches your display size and payment setup.

Countertop or floor, matched to the I-Series display

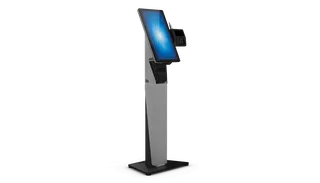

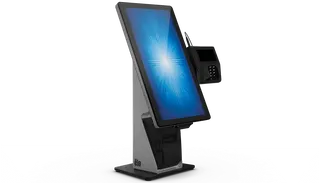

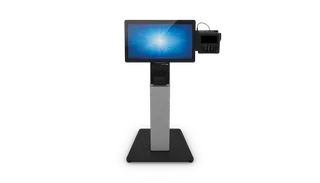

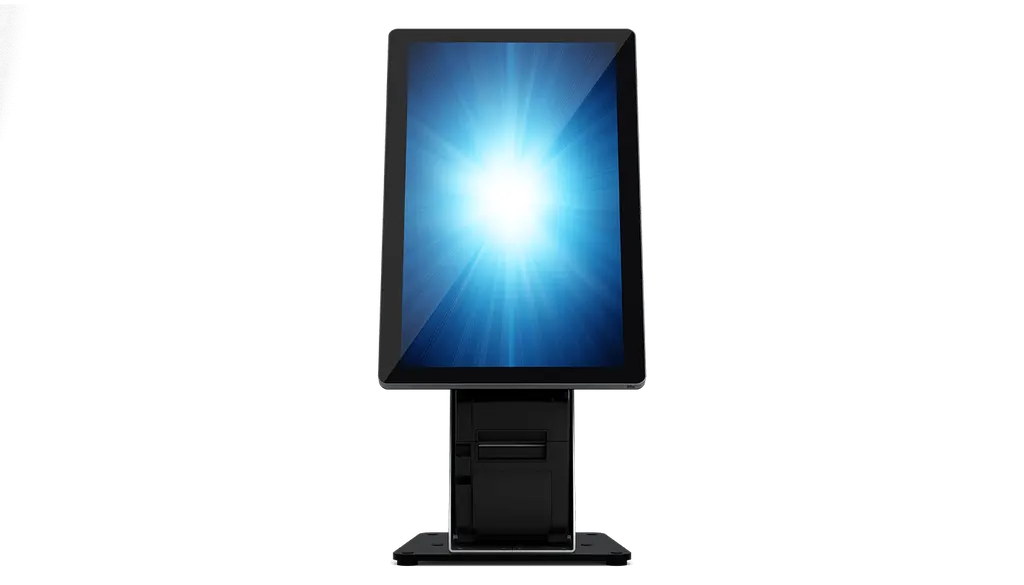

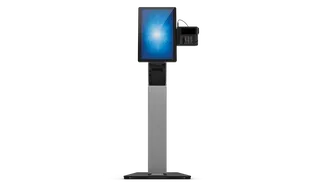

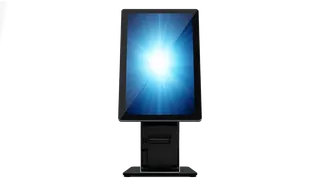

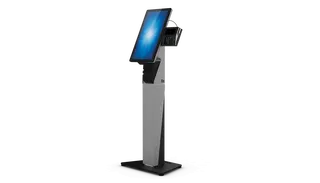

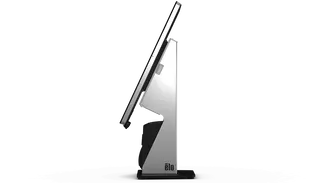

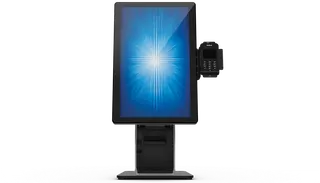

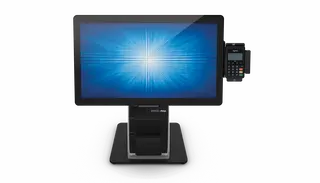

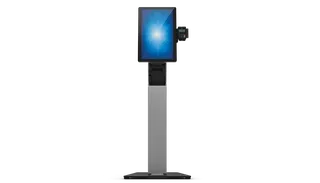

The stand was built to carry the 15-inch and 22-inch I-Series displays, whether they run Android or Windows, and the screen can be mounted in portrait or landscape. The countertop version sits on a service counter, reception desk or till point where floor space is tight. The floor version raises the screen to standing height for walk-up use in a lobby, a shop floor or a clinic waiting area. Elo lists separate mounting brackets for Android and Windows I-Series displays, so confirm the bracket that matches your panel before ordering.

Payment, printing and peripherals

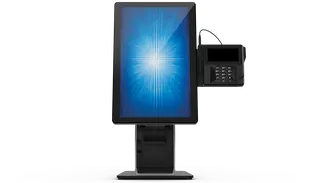

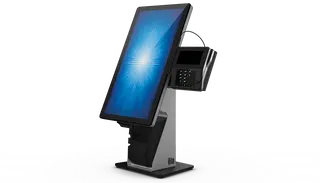

Both versions take an EMV card terminal in a cradle, and the compatibility list covers models from Verifone, Ingenico and MagTek. Receipt printers from Epson, Star and Bixolon are also listed. The Epson M30 needs its own printer tray, part E797921. Inside the base there is room for a power supply and a network switch, and the box includes a 4-port USB-A 3.0 hub. Elo also lists compatible Edge Connect accessories, including a 2D barcode scanner, RFID reader, status light, magnetic stripe reader, webcam, 3D camera and fingerprint scanner.

• Wired or wireless: the I-Series links by Wi-Fi 802.11, Bluetooth 4.0 or Ethernet.
• Accessible design: the source data lists the stand as ADA compliant.

Where it fits in Qatar

A pharmacy or clinic in Doha might use the countertop model at a check-in or payment point, where staff need a screen that customers can use without queueing. A hotel or serviced apartment in West Bay or The Pearl could place floor units in the lobby for self check-in or guest information. A retail store in Lusail or Al Sadd might use a floor unit with a printer and card terminal at self-service checkout points. Because the stand is rated from 0°C to 40°C, keep every unit inside air-conditioned areas, away from direct sun and dust-laden entrances. Summer temperatures in Qatar often exceed 45°C, so do not place it near open doors or outdoor-facing glass.

Planning before you order

The countertop stand measures 295 mm x 230 mm x 431.96 mm and weighs 11.2 kg unpackaged. The floor stand measures 562.43 mm x 370 mm x 1192.8 mm overall, with the top section at 18.5 kg and the base at 12.4 kg, so plan a clear route for delivery and a stable, level floor. Operating humidity should stay between 20% and 80%. Before you commit to floor units, SmartRooms Qatar offers a free site survey to check layout, power and network points. Quotations are usually issued within one working day, and purchase orders (LPOs) and government tenders are accepted.

Send your I-Series display size, card terminal and printer models to the SmartRooms Qatar team and request a quote for a current equivalent or compatible replacement.
