TD-215SKF2

A hygiene point and a digital message in one unit

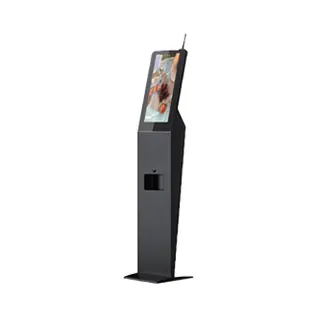

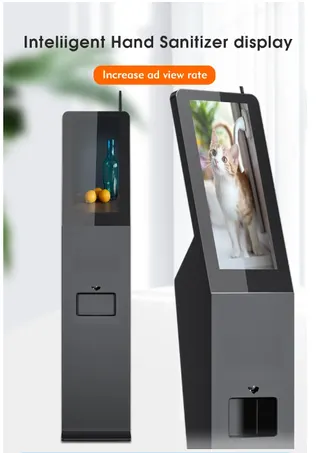

The TD-215SKF2 is a 21.5-inch kiosk that combines an integrated automatic hand sanitizer dispenser with a Full HD screen and a built-in media player. Visitors can sanitize their hands while reading the content on the panel, so one unit covers both the hygiene step and the message at an entrance, reception desk or waiting area.

The display and media facts that matter

The panel is a 1920x1080 Full HD display in a 16:9 format, with a visible area of 479.84 mm by 271.31 mm. It is rated at 350 cd/m2 brightness with a typical contrast of 1000:1, uses WLED backlighting, runs at a 60 Hz refresh rate and has an 8 ms response time. The viewing angle is rated at a minimum of 89 degrees in each direction.

The standard media player is an integrated Android unit on an RK3288 platform with 2GB RAM and 8GB storage, and the specification lists Android 5.1 and 7.1 as operating system options. Upgrade options include 4GB or 8GB RAM and SSD capacities from 32GB to 256GB. Integrated Windows media players with Intel i3, i5 or i7 processors, 4GB RAM and 128GB SSD are also listed, as is a version with no media player and an HDMI input for showing content from your own device.

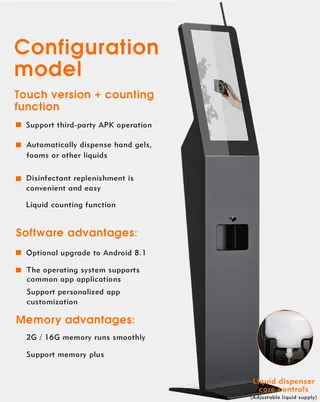

Touch is available as an option, with 22-inch infrared or capacitive touch screens listed in the configuration. Digital signage software with 1GB of cloud server storage is also offered as an add-on.

Where it fits in Qatar

Three situations suit this model well:

• A private clinic in Msheireb placing the kiosk at the entrance, where patients sanitize before reaching the waiting room and see guidance looping on the screen.
• A shopping mall in Lusail using a unit in a main atrium to promote a campaign while visitors pass the dispenser.
• A hotel in West Bay placing the unit near reception to show welcome information and local event listings, with the dispenser beside it.

Heat, power and the planning checklist

The operating range is 0 to 50 °C, and storage is rated from -20 to 60 °C. Summer temperatures in Doha regularly exceed 45 °C, so the kiosk should sit indoors in an air-conditioned space, away from direct sun, glass frontages and open doors. If the location is unclear, confirm the environment with the SmartRooms Qatar team before ordering.

The power input is listed as AC 110-240 V, which includes Qatar's 240 V mains supply. Plan a socket within reach of the unit and ask your installer to check the plug and socket arrangement on site.

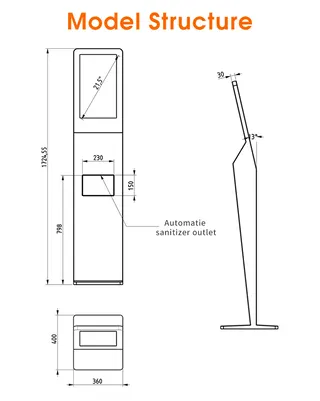

• Check the cabinet footprint against the site plan, since the specification gives panel dimensions only.
• Choose the media player and memory before ordering, because they determine the software and storage.
• Plan a refill routine for the 1-litre dispenser at busy entrances.
• Book a free site survey to confirm the position, power point and floor space.

To request a quote for the Trend TD-215SKF2, tell us the media player, memory and touch option you need, along with the site. Our team usually returns quotations within one working day, and we accept purchase orders (LPOs) and government tenders, including Monaqasat. Request a quote from SmartRooms Qatar now.
