TD-215SKF3

What the TD-215SKF3 kiosk does

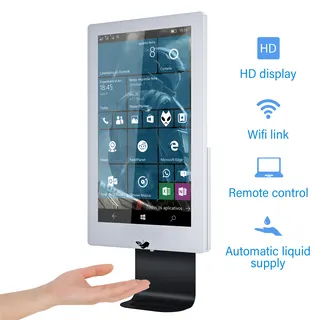

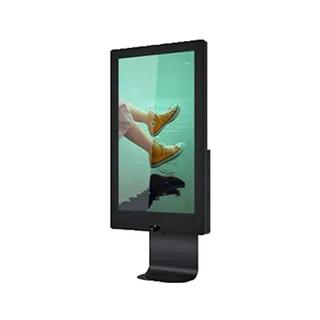

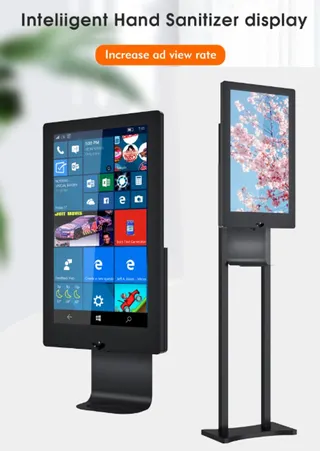

The Trend TD-215SKF3 puts a 21.5-inch LCD screen and a 1-litre automatic hand sanitizer dispenser into one kiosk unit. Visitors use the dispenser at the same spot where they see your message, so hygiene and content reach them together. The screen is a 16:9 a-Si TFT LCD with WLED backlighting, displaying 1920x1080 Full HD at a 60 Hz refresh rate with 16.7 million colours.

Display and media specifications that matter

Brightness is rated at 350 cd/m2 with a typical contrast of 1000:1, which keeps text legible in well-lit lobbies and corridors. The minimum viewing angle is 89 degrees in each direction, so people approaching from the side can still read a slide. An 8 ms response time keeps moving video and transitions clean. The active picture area measures 476.64 mm by 268.11 mm.

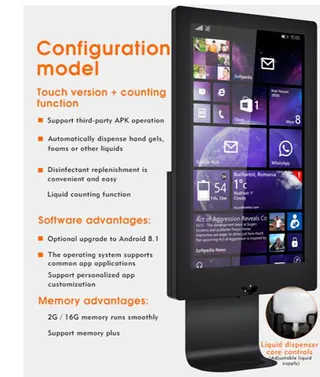

The base unit runs an integrated Android RK3288 media player with 2GB RAM and 8GB storage on Android 5.1 or 7.1. Listed options raise memory to 4GB, 8GB or 16GB, and storage up to 256GB. You can also specify a Windows media player with an i3, i5 or i7 processor, 4GB RAM and 128GB SSD, or a configuration with no internal player and an HDMI input for an external source.

Where it fits in Qatar

Because the screen and dispenser share one footprint, the TD-215SKF3 works best where people pause and wait:

• Hotel lobby in West Bay: a welcome loop beside a sanitizer station at the entrance, played from the Android player.
• Clinic waiting area in Doha: hygiene reminders and health information next to the reception desk, with staff refilling the 1-litre dispenser on a fixed routine.
• Shopping mall in Lusail: a promotional video at the main atrium entrance, placed indoors away from direct sunlight.

What to plan before installation

• Confirm an indoor, air-conditioned position, because the operating range is 0 to 50°C.
• Check the socket and cable route; the stated power input is AC 110 to 240V.
• Request the cabinet drawing, as overall dimensions and weight are not in the data we hold.
• Choose memory and storage based on the content you plan to hold.
• Agree a refill schedule for the dispenser with your facilities team.

SmartRooms Qatar offers a free site survey before installation, the simplest way to confirm placement, power and clearance around the unit. Quotations are usually issued within one working day, and orders can be placed by purchase order.

Request a quote

To get a quotation, tell us the quantity, the media player configuration you need and the delivery location within Qatar. We deliver to all eight municipalities, and payment can be made by bank transfer, cheque or purchase order. Request a quote from SmartRooms Qatar today.
