Tesira AMP-450BP

What the AMP-450BP does in a Tesira room

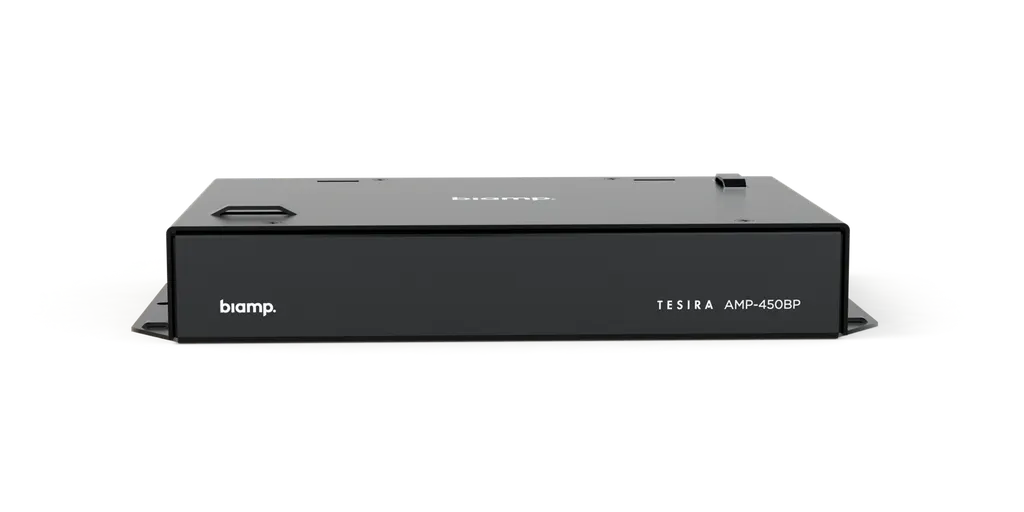

The Biamp Tesira AMP-450BP is a four-channel conferencing amplifier designed to feed Desono C-IC6 ceiling speakers. It is an AVB/TSN enabled endpoint in a Tesira system, so it is configured through Tesira software rather than by hand at each unit. It is powered over Ethernet using PoE+ (IEEE 802.3at Class 4, 30 W), which means one network cable carries power to the amplifier at the ceiling.

Power, channels and burst output

Output power depends on how the channels are used. With all four channels driven, each channel delivers 3 W continuous. Driving two channels raises this to 7 W each, and a single channel delivers 15 W continuous, measured at both 4 Ω and 8 Ω. Because channel count and power are set in software, a room can trade channels for power without changing hardware.

For short peaks, the unit provides burst output measured to ANSI/CTA-2006-B, up to 50 W per channel into 4 Ω or 30 W into 8 Ω. An internal limiter is included. Distortion is below 0.3 percent at continuous power, frequency response is within ±1 dB from 20 Hz to 20 kHz, and dynamic range is above 90 dB, all of which matter for clear speech in a conference room.

Installing above the ceiling

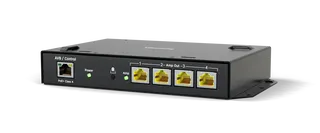

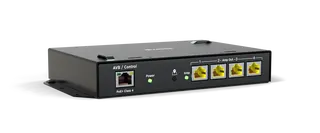

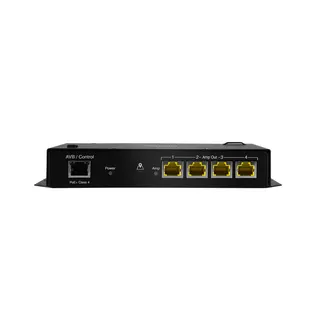

The amplifier can sit close to the speakers or be mounted directly on the back can of a Desono C-IC6, which shortens speaker runs. Four RJ-45 connectors allow termination-free connections to compatible speakers. A mechanical enclosure is available to protect electrical connections and help meet typical code requirements for above-ceiling work. The unit is evaluated to UL 2043 for air handling spaces, which is relevant where the ceiling void forms part of the air path.

The rated ambient operating range is 0 to 40 °C (32 to 104 °F), with 0 to 95 percent humidity, non-condensing, and altitudes up to 3,000 m. Summer temperatures in Qatar often exceed 45 °C, so the ceiling void should be measured against the 40 °C limit before any unit is fixed in place. The SmartRooms Qatar team can include this check in a free site survey.

Where it fits in Qatar

• Boardrooms in West Bay or Lusail: a few ceiling speakers with a Tesira network, where speech must reach every seat without a visible equipment rack.
• Training rooms in Education City: hybrid sessions with partners abroad need even audio coverage, and the amplifier sits inside the same Tesira system the IT team already manages.
• Multipurpose halls in Al Rayyan: a school hall can use the software choice between four channels at low power for background coverage or fewer channels at higher power for assemblies.

What to plan before you order

Count the speakers, confirm each Desono C-IC6 position, and decide whether each amplifier will sit on the speaker back can or be mounted separately. Each unit needs a PoE+ port rated for IEEE 802.3at Class 4 (30 W) on the network switch, so check the switch power budget. Accessories listed for this model include a plenum box, a tile bridge, a seismic cable adapter and pre-terminated plenum-rated Cat 5e cables in 10 ft and 25 ft lengths.

To request a quote, send SmartRooms Qatar your room list, speaker count and ceiling type. We usually respond within one working day, and we can supply, deliver to all eight municipalities of Qatar and arrange professional installation. Request a quote today and we will confirm the channel plan and cabling for your project.
