Tesira AMP-450P

What the Tesira AMP-450P does in a conferencing system

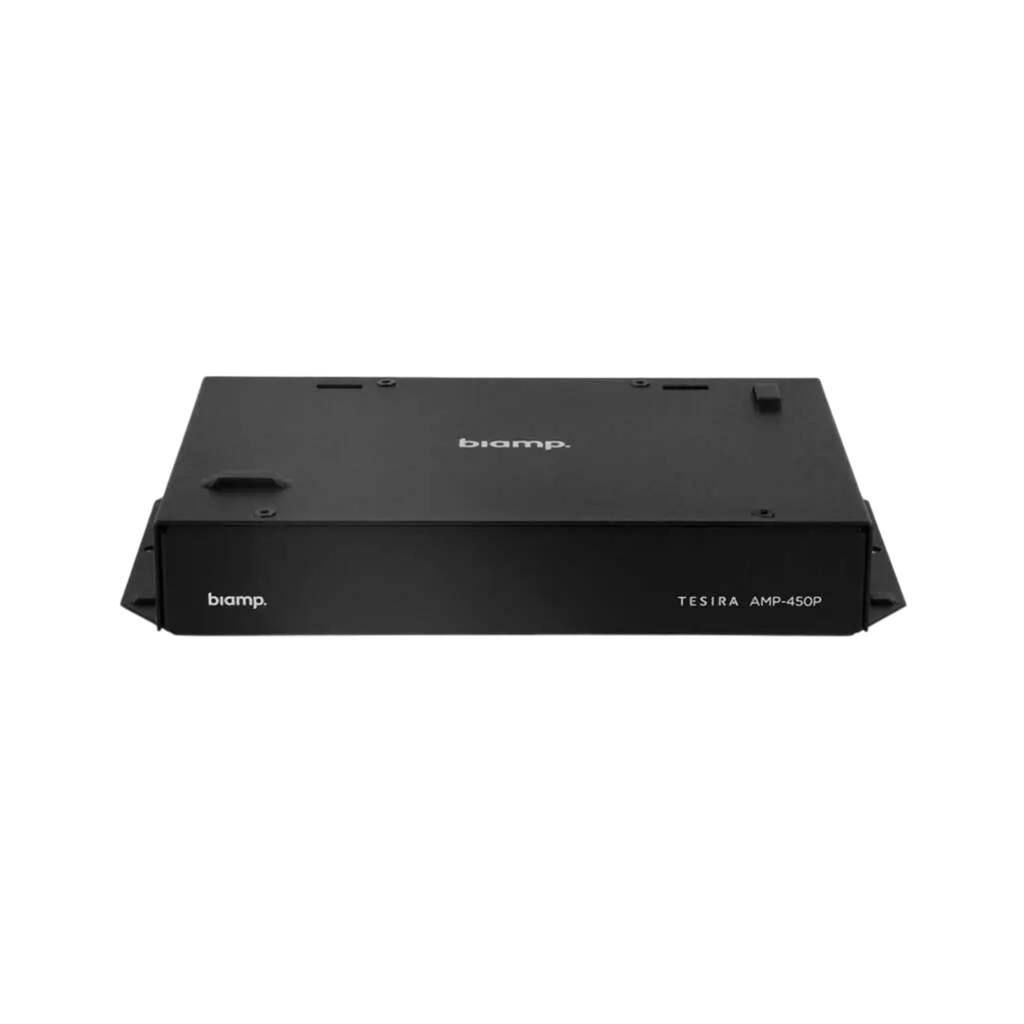

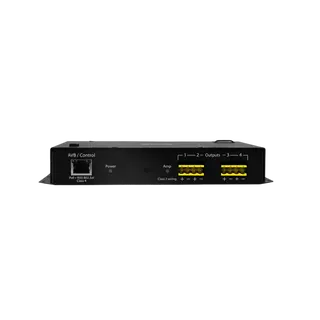

The Tesira AMP-450P is a four-channel amplifier from Biamp's Tesira series, built for conferencing audio that travels over a network. It takes its power from a PoE+ connection that meets IEEE 802.3at Class 4 at 30 W, and it receives audio through a Gigabit Ethernet RJ-45 port on Cat 5e cabling or better. The unit is AVB/TSN enabled and is configured in Tesira software, so one cable run can carry both power and signal to the amplifier.

Continuous and burst power per channel

When all four channels are driven, continuous output is 3 W per channel. The output allocation is set in software, so a single channel can deliver 15 W continuous into 4 Ω or 8 Ω, while two channels deliver 7 W. For short peaks the amplifier switches to burst mode, rated at 50 W per channel into 4 Ω and 30 W into 8 Ω, measured at 1 kHz under ANSI/CTA-2006-B. An internal limiter is included to manage the output.

Audio performance figures to check against your room

• Frequency response: ±1 dB from 20 Hz to 20 kHz
• Dynamic range: above 90 dB across 20 Hz to 20 kHz
• Distortion: THD+N below 0.3% at continuous power, and SMPTE intermodulation below 0.3%

These figures matter most in speech-led rooms, where clarity across the full range counts for more than loud playback. Compare them against your speaker sensitivity and room size before you finalise the order.

Installation above the ceiling

The amplifier is fanless and relies on convection cooling, so it adds no fan noise to a quiet meeting room. It is evaluated to UL 2043 and described as suitable for air handling spaces, which matters when the unit sits in a ceiling void. Its body measures 195 mm wide, 120 mm deep and 30 mm high, and weighs 0.7 kg. The ambient operating range is 0 to 40°C (32 to 104°F). Manufacturer-listed accessories include a 12x12 plenum box, a TB-1 tile bridge, a seismic cable adapter, a backpack kit and pre-terminated plenum-rated Cat 5e cables in 10 ft and 25 ft lengths.

Where it fits in Qatar

• A boardroom in a government authority in West Bay, where the amplifier sits above the ceiling and drives its speakers from one PoE+ port.
• A lecture room or seminar room at a university in Education City, where several speaker zones each need their own channel.
• A meeting room in a hotel or serviced apartment at The Pearl, where a fanless unit keeps the room quiet during long sessions.

What to plan before you order

Check that the PoE+ switch port can supply 30 W, the rating this amplifier requires, and budget the switch capacity if several units share it. Decide between 4 Ω and 8 Ω speakers early, because that choice sets the continuous power available per channel. Use Cat 5e or better cabling, and where cable runs pass through air handling spaces, use the plenum-rated accessories listed above.

SmartRooms Qatar offers a free site survey to check the ceiling void, cable routes and switch capacity before installation. Quotations are usually issued within one working day. We supply and deliver to all eight municipalities of Qatar, accept purchase orders and LPOs, and the product is covered by the manufacturer's 5-year warranty. Request a quote for your Tesira AMP-450P and tell us your room size and speaker count.
